Commercial
Non-Insulated
Terminals

Filter
09-7136-2-01
09-7136-2-01
09-7136-2-01
0.367" 0.040 - RIVET MOUNT 0.087" 1/16 0.044 Brass Silver YES
09-7163-1-044
09-7163-1-044
09-7163-1-044
0.183" 0.026 - RIVET MOUNT 0.051" 1/32 0.035 Brass Bright Tin YES
09-7197-1-03
09-7197-1-03
09-7197-1-03
0.443" 0.040 - RIVET MOUNT 0.048" 1/64 0.043 Brass Gold YES
09-8043-2-05
09-8043-2-05
09-8043-2-05
0.772" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Electro Solder NO
09-8076-1-03
09-8076-1-03
09-8076-1-03
0.751" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES
09-8136-2-05
09-8136-2-05
09-8136-2-05
0.447" 0.040 TURRET/PIN Swage Mount 0.093" 1/16 0.125 Brass Electro Solder NO
09-8169-2-035
09-8169-2-035
09-8169-2-035
0.243" 0.031 - Swage Mount 0.087" 1/16 0.0465 Brass Gold YES
09-8260-2-035
09-8260-2-035
09-8260-2-035
0.234" - - Press Fit/Solder 0.078" 1/16 0.104 Brass Gold YES

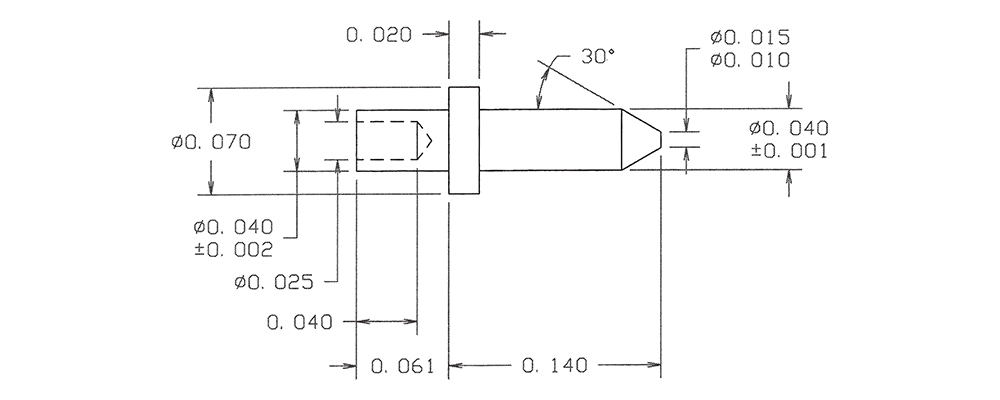

09-8462-1-05
09-8462-1-05
09-8462-1-05
0.201" 0.040 - Swage Mount 0.061" 1/32 0.0465 Brass Electro Solder NO
09-8653-11-05
09-8653-11-05
09-8653-11-05
0.200" - - Swage Mount 0.029" 1/64 0.037 Brass Electro Solder NO
09-8766-2-035
09-8766-2-035
09-8766-2-035
0.719" 0.090 - Swage Mount 0.094" 1/16 0.094 Brass Gold YES
09-8848-1-04
09-8848-1-04
09-8848-1-04
0.371" 0.025 - Swage Mount 0.051" 1/32 0.035 Brass Electro-Tin YES
10-102-4-04
10-102-4-04
10-102-4-04
0.359" - - Swage Mount 0.172" 1/8 0.082 Brass Electro-Tin YES
10-109-1-095
10-109-1-095
10-109-1-095
0.221" - - Swage Mount 0.062" 1/32 0.094 Brass Hot Solder Dip NO

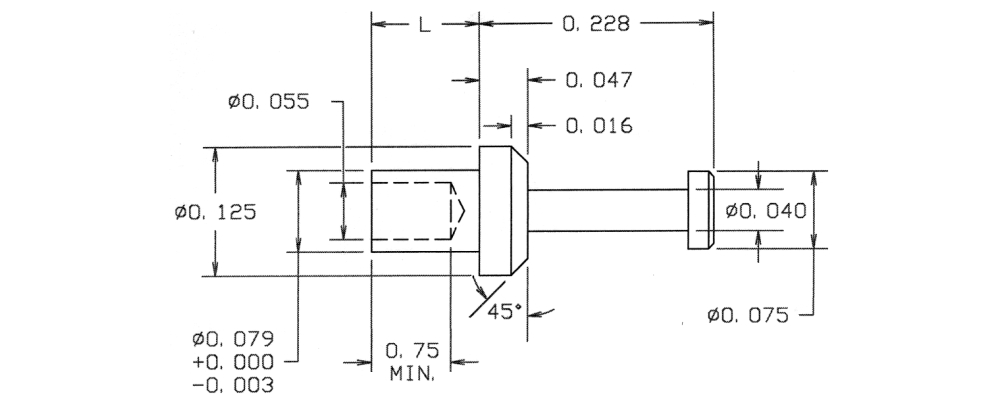

10-119-3-04
10-119-3-04
10-119-3-04
0.363" - - Swage Mount 0.135" 3/32 0.082 Brass Electro-Tin YES
10-138-4-05
10-138-4-05
10-138-4-05
0.406" - - Swage Mount 0.156" 1/8 0.067 Brass Electro Solder NO

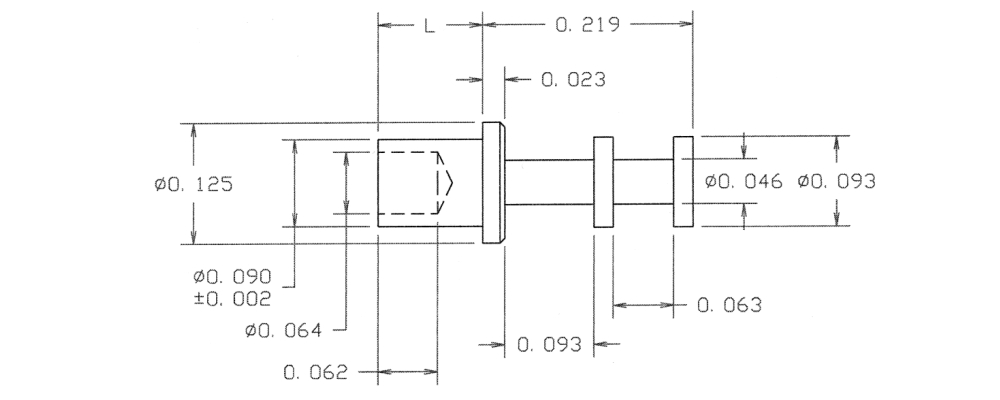

10-209-2-05
10-209-2-05
10-209-2-05
0.328" - - Swage Mount 0.109" 1/16 0.094 Brass Electro Solder NO
10-216-1-03
10-216-1-03
10-216-1-03
0.312" - - Swage Mount 0.075" 1/32 0.094 Brass Gold YES

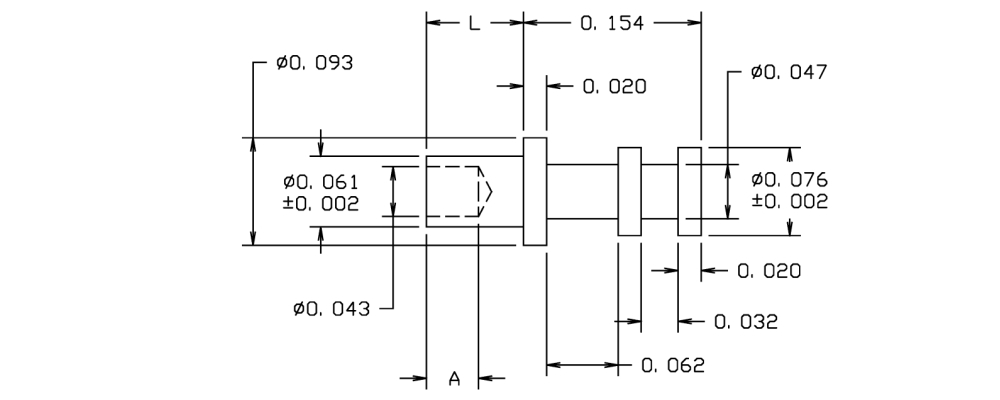

10-225-6-04
10-225-6-04
10-225-6-04
0.363" - - Swage Mount 0.209" 3/16 0.067 Brass Electro-Tin YES
10-240-3-095
10-240-3-095
10-240-3-095
0.499" - - Swage Mount 0.135" 3/32 0.116 Brass Hot Solder Dip NO
