Commercial
Non-Insulated
Terminals

Filter
10-862-2-05
10-862-2-05
10-862-2-05
0.344" 0.040 - Swage Mount 0.094" 1/16 0.094 Brass Electro Solder NO
10-882-3-04
10-882-3-04
10-882-3-04
0.595" - Turret/Turret Swage Mount 0.135" 3/32 0.147 Brass Electro-Tin YES
10-902-2-035
10-902-2-035
10-902-2-035
0.282" 0.060 - Swage Mount 0.094" 1/16 0.064 Brass Gold YES

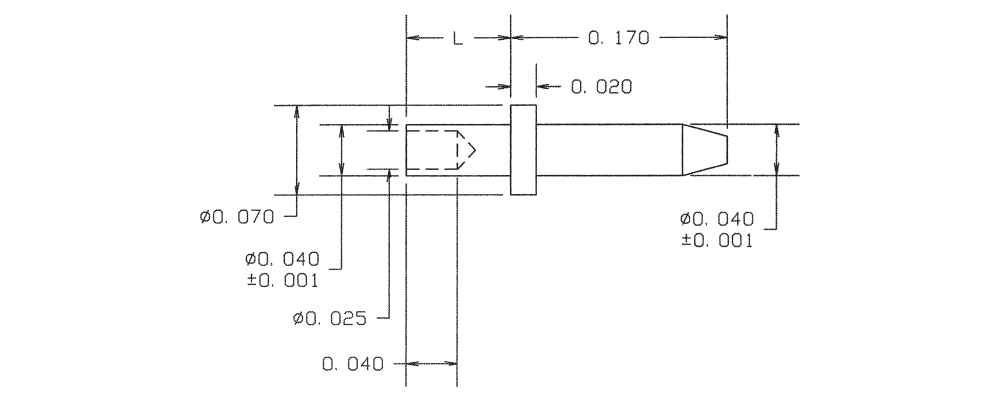

10-917-2-03
10-917-2-03
10-917-2-03
0.252" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Gold YES
10-931-2-01
10-931-2-01
10-931-2-01
0.250" - - Swage Mount 0.094" 1/16 0.0635 Brass Silver YES
10-974-2-05
10-974-2-05
10-974-2-05
1.102" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Electro Solder NO
14-916-3-035
14-916-3-035
14-916-3-035
0.433" 0.040 - Swage Mount 0.113" 3/32 0.043 LEADED Red Brass Gold YES
10-401-2-035
10-401-2-035
10-401-2-035
0.250" - - Swage Mount 0.094" 1/16 0.067 Brass Gold YES

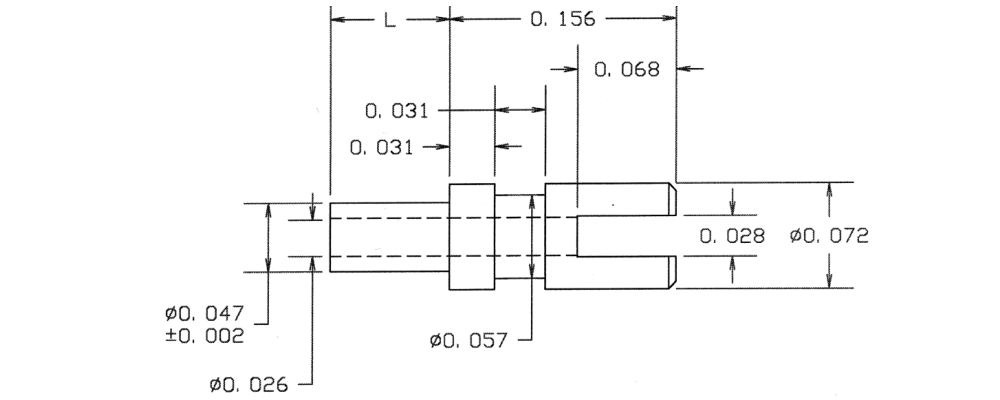

10-414-8-088
10-414-8-088
10-414-8-088
0.426" - - Swage Mount 0.270" 1/4 0.052 Brass Bright Tin-Lead NO
10-450-1-04
10-450-1-04
10-450-1-04
0.263" - - Swage Mount 0.075" 1/32 0.116 Brass Electro-Tin YES
10-472-3-01
10-472-3-01
10-472-3-01
0.479" - - Swage Mount 0.135" 3/32 0.116 Brass Silver YES

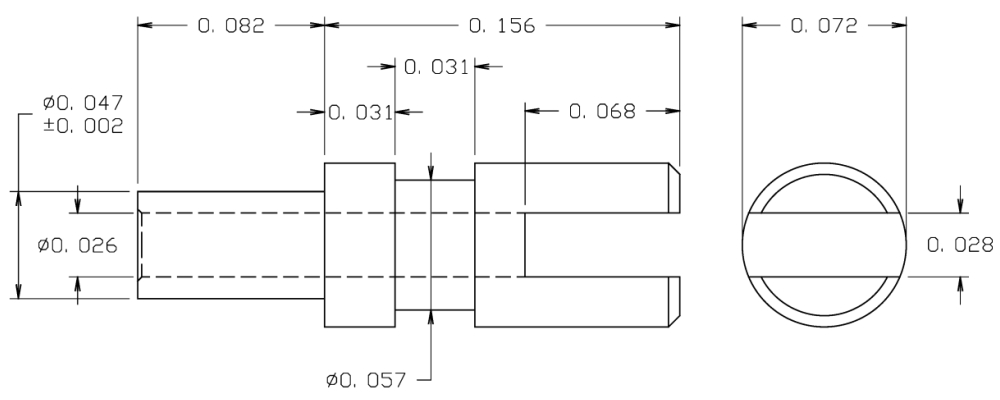

14-414-3-044
14-414-3-044
14-414-3-044
0.270" - - Swage Mount 0.113" 3/32 0.052 LEADED Red Brass Bright Tin YES
09-0053-2-035
09-0053-2-035
09-0053-2-035
0.269" - - Press Fit/Solder 0.078" 1/16 0.073 Brass Gold YES
09-0142-2-035
09-0142-2-035
09-0142-2-035
0.344" - - Swage Mount 0.094" 1/16 0.116 Brass Gold YES
09-0180-1-095
09-0180-1-095
09-0180-1-095
0.289" - - Swage Mount 0.062" 1/32 0.062 Brass Hot Solder Dip NO
09-0219-4-01
09-0219-4-01
09-0219-4-01
0.458" - - Swage Mount 0.148" 1/8 0.067 Brass Silver YES
09-0268-1-044
09-0268-1-044
09-0268-1-044
0.368" - - Swage Mount 0.078" 1/32 0.094 Brass Bright Tin YES
09-0316-3-03
09-0316-3-03
09-0316-3-03
0.215" - - Swage Mount 0.120" 3/32 0.047 Brass Gold YES
09-6001-1-01
09-6001-1-01
09-6001-1-01
0.785" 0.025 SQ. TURRET/SQUARE-WRAP PC PIN Press Fit/Solder 0.150" 1/16 TO 1/8 0.055 Brass Silver YES
09-7020-2B-04
09-7020-2B-04
09-7020-2B-04
0.245" - - Swage Mount 0.105" 1/16 0.059 Brass Electro-Tin YES
