Commercial
Non-Insulated
Terminals

Filter
09-0264-2-01
09-0264-2-01
09-0264-2-01
0.350" 0.040 DOUBLE TURRET/PIN Swage Mount 0.084" 1/16 0.076 Brass Silver YES
09-0310-2-088
09-0310-2-088
09-0310-2-088
0.240" - - Swage Mount 0.084" 1/16 0.043 Brass Bright Tin-Lead NO

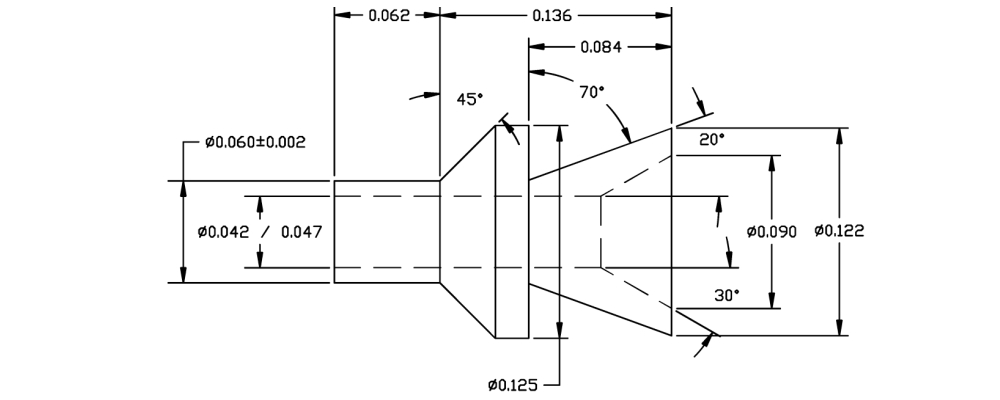

09-0378-1-04
09-0378-1-04
09-0378-1-04
0.198" - - Swage Mount 0.062" 1/32 0.063 Brass Electro-Tin YES
09-7017-4-088
09-7017-4-088
09-7017-4-088
0.310" - - Swage Mount 0.150" 1/8 0.055 LEADED Red Brass Bright Tin-Lead NO
09-7133-2-035
09-7133-2-035
09-7133-2-035
1.013" 0.0405 - RIVET MOUNT 0.087" 1/16 0.044 Brass Gold YES
09-7160-2-088
09-7160-2-088
09-7160-2-088
0.373" 0.040 - RIVET MOUNT 0.095" 1/16 0.0625 Brass Bright Tin-Lead NO

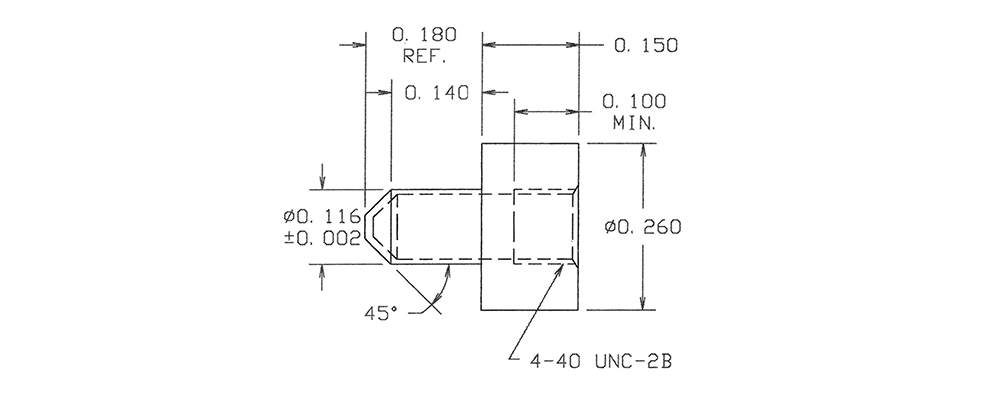

09-7194-3-04
09-7194-3-04
09-7194-3-04
0.330" - - RIVET MOUNT 0.140" 3/32 0.120 Brass Electro-Tin YES
09-8041-4-01
09-8041-4-01
09-8041-4-01
0.315" 0.032 TURRET/PC PIN Swage Mount 0.147" 1/8 0.067 Brass Silver YES

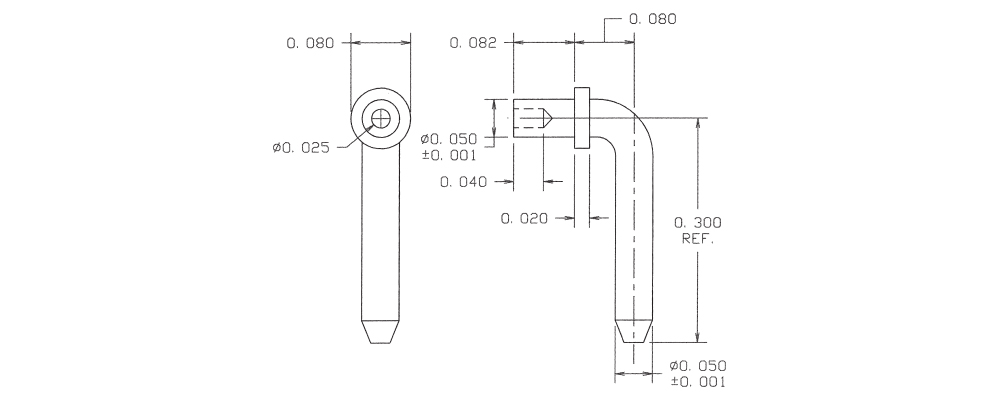

09-8073-2-04
09-8073-2-04
09-8073-2-04
0.340" 0.050 - Swage Mount 0.082" 1/16 0.052 Brass Electro-Tin YES

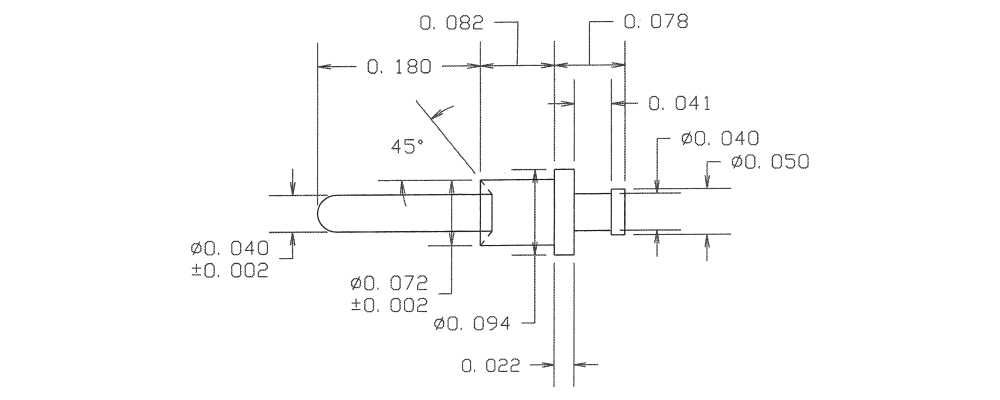

09-8134-2-01
09-8134-2-01
09-8134-2-01
0.340" 0.040 TURRET/PIN Swage Mount 0.082" 1/16 0.076 Brass Silver YES
09-8165-3-044
09-8165-3-044
09-8165-3-044
1.403" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Bright Tin YES
09-8251-2A-095
09-8251-2A-095
09-8251-2A-095
0.197" - - Swage Mount 0.093" 1/16 0.076 Brass Hot Solder Dip NO
09-8423-2-035
09-8423-2-035
09-8423-2-035
0.207" 0.025 - Swage Mount 0.082" 1/16 0.036 Brass Gold YES

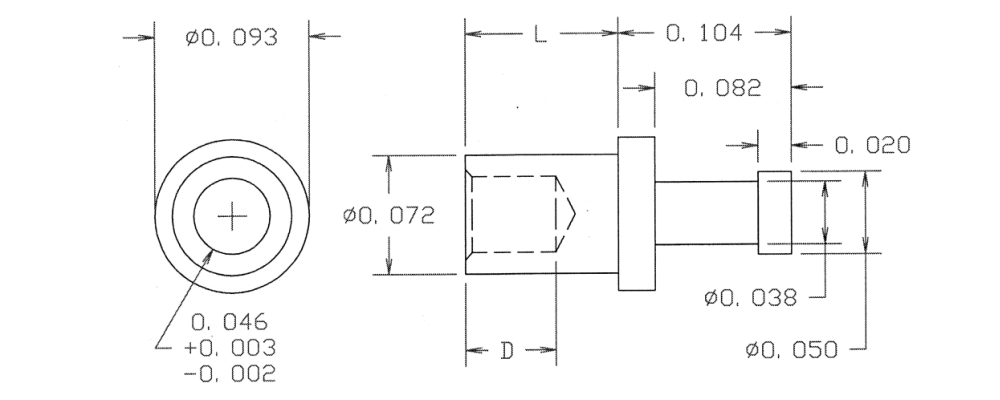

09-8652-2-035
09-8652-2-035
09-8652-2-035
0.197" - - Swage Mount 0.093" 1/16 0.076 LEADED Red Brass Gold YES
09-8761-4-044
09-8761-4-044
09-8761-4-044
0.891" 0.060 - Swage Mount 0.156" 1/8 0.0635 Brass Bright Tin YES

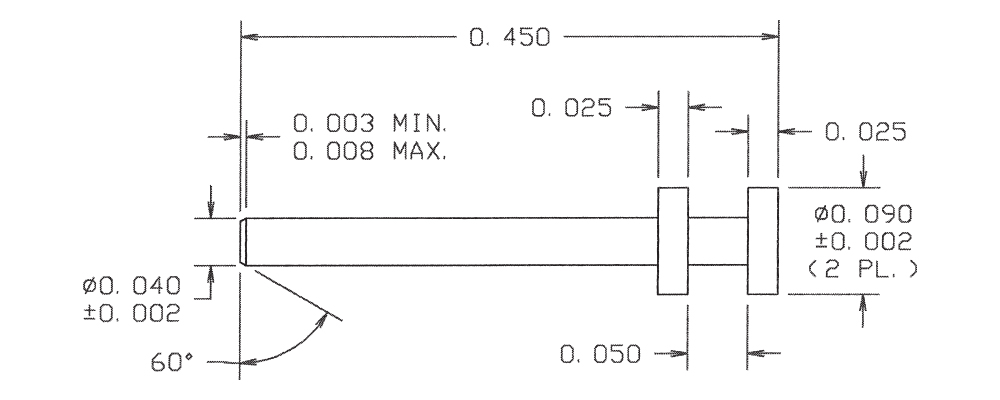

09-8842-1-05
09-8842-1-05
09-8842-1-05
0.450" 0.040 - - - - - Brass Electro Solder NO
10-102-2-01
10-102-2-01
10-102-2-01
0.296" - - Swage Mount 0.109" 1/16 0.082 Brass Silver YES
10-108-3-044
10-108-3-044
10-108-3-044
0.208" - - Swage Mount 0.115" 3/32 0.067 Brass Bright Tin YES

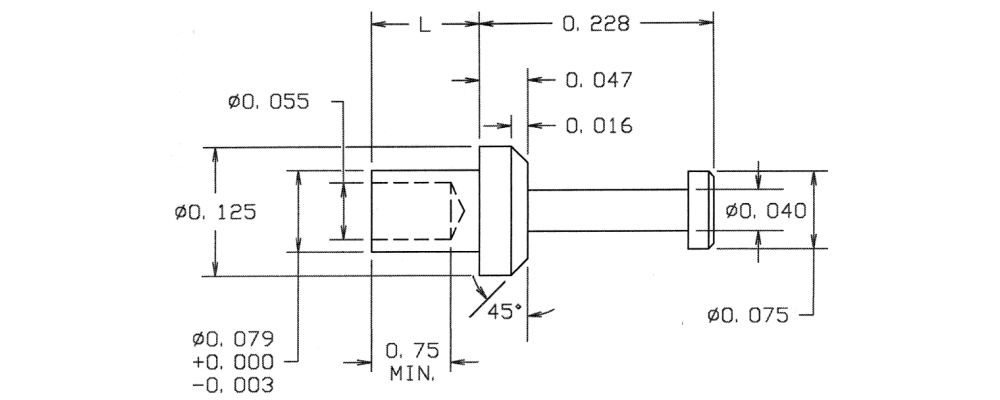

10-119-1-01
10-119-1-01
10-119-1-01
0.303" - - Swage Mount 0.075" 1/32 0.082 Brass Silver YES
10-138-2-035
10-138-2-035
10-138-2-035
0.344" - - Swage Mount 0.094" 1/16 0.067 Brass Gold YES
