Commercial
Non-Insulated
Terminals

Filter
10-301-1-044
10-301-1-044
10-301-1-044
0.249" - - Swage Mount 0.062" 1/32 0.076 Brass Bright Tin YES
10-309-5-044
10-309-5-044
10-309-5-044
0.512" - - Swage Mount 0.195" 5/32 0.116 Brass Bright Tin YES

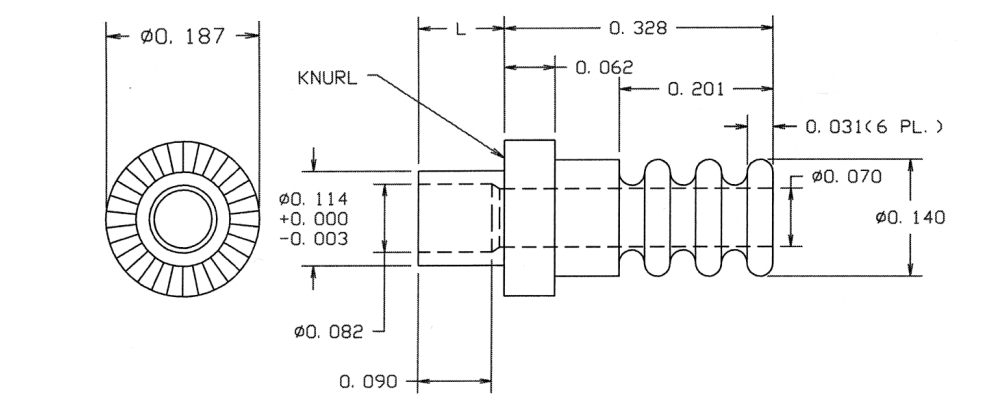

10-318-2-03
10-318-2-03
10-318-2-03
0.433" - - Swage Mount 0.105" 1/16 0.116 Brass Gold YES
10-336-1-05
10-336-1-05
10-336-1-05
0.437" - - Swage Mount 0.109" 1/16 0.125 Brass Electro Solder NO
10-411-2-035
10-411-2-035
10-411-2-035
0.437" - - Swage Mount 0.109" 1/16 0.116 Brass Gold YES
10-421-4-04
10-421-4-04
10-421-4-04
0.634" - - Swage Mount 0.165" 1/8 0.116 Brass Electro-Tin YES
10-441-1-04
10-441-1-04
10-441-1-04
0.419" - - Swage Mount 0.075" 1/32 0.1405 Brass Electro-Tin YES
10-456-3-01
10-456-3-01
10-456-3-01
0.453" - - Swage Mount 0.141" 3/32 0.116 Brass Silver YES

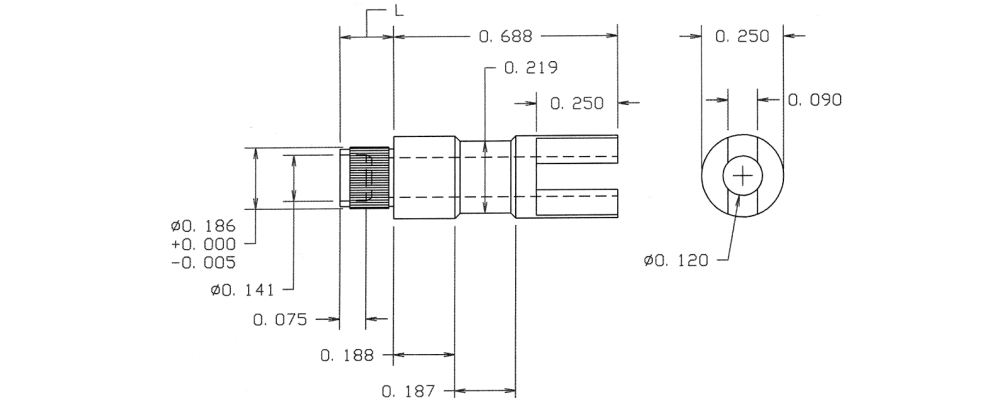

10-467-5-04
10-467-5-04
10-467-5-04
0.883" - - Swage Mount 0.195" 5/32 0.1875 Brass Electro-Tin YES
10-501-1A-01
10-501-1A-01
10-501-1A-01
0.254" - Turret/Turret Swage Mount 0.068" 1/32 0.076 Brass Silver YES

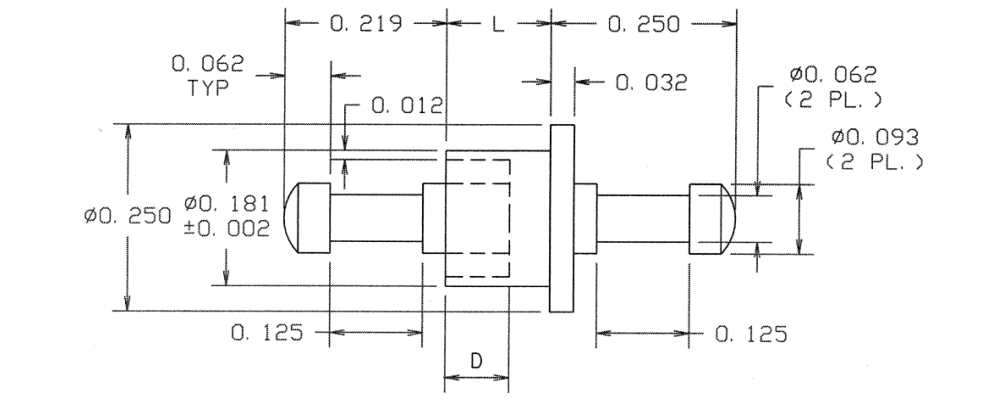

10-507-1-01
10-507-1-01
10-507-1-01
0.547" - Turret/Turret Swage Mount 0.078" 1/32 0.185 Brass Silver YES
10-512-8-01
10-512-8-01
10-512-8-01
0.661" - Double Turret/Double Turret Swage Mount 0.290" 1/4 0.129 Brass Silver YES
10-522-2-01
10-522-2-01
10-522-2-01
0.574" - Turret/Turret Swage Mount 0.105" 1/16 0.206 Brass Silver YES
10-542-1-01
10-542-1-01
10-542-1-01
0.425" - TURRET/DOUBLE TURRET Swage Mount 0.062" 1/32 0.094 Brass Silver YES
10-556-3-01
10-556-3-01
10-556-3-01
0.416" - Turret/Turret Swage Mount 0.135" 3/32 0.116 Brass Silver YES
10-603-4-04
10-603-4-04
10-603-4-04
0.586" - - Swage Mount 0.165" 1/8 0.116 Brass Electro-Tin YES
10-704-3-01
10-704-3-01
10-704-3-01
0.250" - - 4-40 - - 4-40 THREAD Brass Silver YES
10-8011-1-04
10-8011-1-04
10-8011-1-04
0.359" - - Swage Mount 0.078" 1/32 0.116 Brass Electro-Tin YES
10-802-2-03
10-802-2-03
10-802-2-03
0.302" 0.032 TURRET/PIN Swage Mount 0.084" 1/16 0.067 Brass Gold YES
10-806-2-04
10-806-2-04
10-806-2-04
0.536" - - Swage Mount 0.109" 1/16 0.094 Brass Electro-Tin YES
