Commercial
Non-Insulated
Terminals

Filter
09-0050-4-088
09-0050-4-088
09-0050-4-088
0.484" - - Swage Mount 0.172" 1/8 0.140 Brass Bright Tin-Lead NO
09-0119-2-05
09-0119-2-05
09-0119-2-05
0.240" - - Swage Mount 0.084" 1/16 0.070 Brass Electro Solder NO
09-0176-1-05
09-0176-1-05
09-0176-1-05
0.112" - - Swage Mount 0.051" 1/32 0.052 Brass Electro Solder NO
09-0218-1-05
09-0218-1-05
09-0218-1-05
0.520" 0.025 PIN/TERMINAL Solder 0.030" 1/64 TO 1/32 0.0635 Brass Electro Solder NO
09-0264-2-03
09-0264-2-03
09-0264-2-03
0.350" 0.040 DOUBLE TURRET/PIN Swage Mount 0.084" 1/16 0.076 Brass Gold YES
09-0310-2-095
09-0310-2-095
09-0310-2-095
0.240" - - Swage Mount 0.084" 1/16 0.043 Brass Hot Solder Dip NO

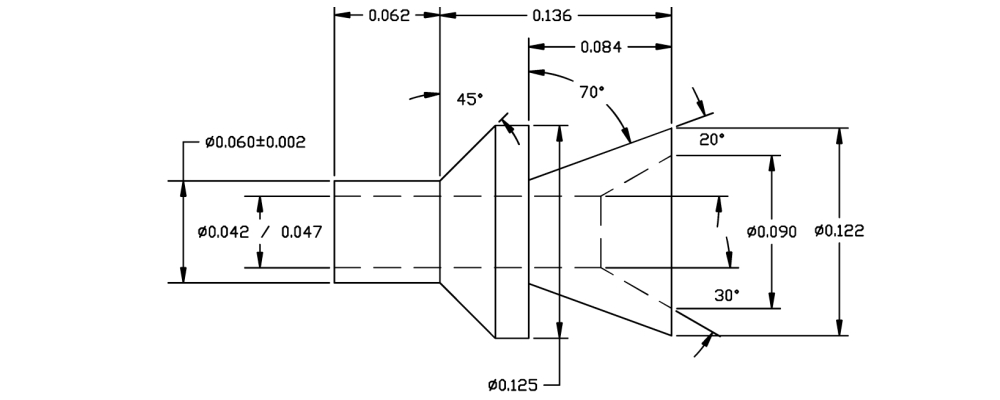

09-0378-1-044
09-0378-1-044
09-0378-1-044
0.198" - - Swage Mount 0.062" 1/32 0.063 Brass Bright Tin YES
09-7017-4-095
09-7017-4-095
09-7017-4-095
0.310" - - Swage Mount 0.150" 1/8 0.055 LEADED Red Brass Hot Solder Dip NO
09-7133-2-04
09-7133-2-04
09-7133-2-04
1.013" 0.0405 - RIVET MOUNT 0.087" 1/16 0.044 Brass Electro-Tin YES
09-7161-1-01
09-7161-1-01
09-7161-1-01
0.252" 0.040 - RIVET MOUNT 0.064" 1/32 0.0625 Brass Silver YES
09-7194-3-044
09-7194-3-044
09-7194-3-044
0.330" - - RIVET MOUNT 0.140" 3/32 0.120 Brass Bright Tin YES
09-8041-4-03
09-8041-4-03
09-8041-4-03
0.315" 0.032 TURRET/PC PIN Swage Mount 0.147" 1/8 0.067 Brass Gold YES
09-8073-2-044
09-8073-2-044
09-8073-2-044
0.340" 0.050 - Swage Mount 0.082" 1/16 0.052 Brass Bright Tin YES

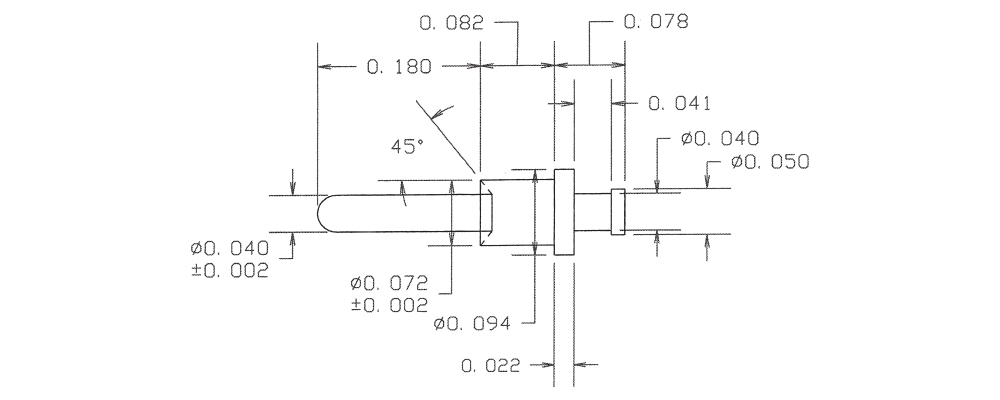

09-8134-2-03
09-8134-2-03
09-8134-2-03
0.340" 0.040 TURRET/PIN Swage Mount 0.082" 1/16 0.076 Brass Gold YES
09-8165-3-05
09-8165-3-05
09-8165-3-05
1.403" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Electro Solder NO
09-8251-3-01
09-8251-3-01
09-8251-3-01
0.229" - - Swage Mount 0.125" 3/32 0.076 Brass Silver YES
09-8423-2-04
09-8423-2-04
09-8423-2-04
0.207" 0.025 - Swage Mount 0.082" 1/16 0.036 Brass Electro-Tin YES
09-8652-2-04
09-8652-2-04
09-8652-2-04
0.197" - - Swage Mount 0.093" 1/16 0.076 LEADED Red Brass Electro-Tin YES
09-8761-4-05
09-8761-4-05
09-8761-4-05
0.891" 0.060 - Swage Mount 0.156" 1/8 0.0635 Brass Electro Solder NO
09-8842-1-088
09-8842-1-088
09-8842-1-088
0.450" 0.040 - - - - - Brass Bright Tin-Lead NO
