Commercial
Non-Insulated
Terminals

Filter
09-7133-2-03
09-7133-2-03
09-7133-2-03
1.013" 0.0405 - RIVET MOUNT 0.087" 1/16 0.044 Brass Gold YES

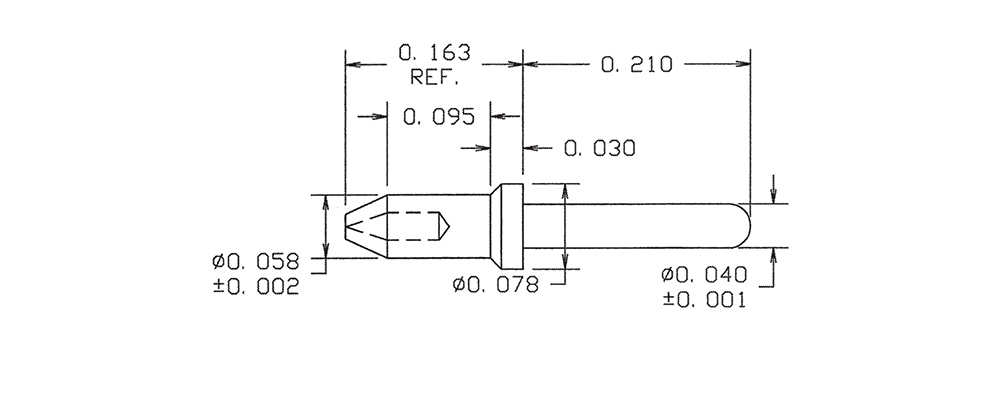

09-7160-2-05
09-7160-2-05
09-7160-2-05
0.373" 0.040 - RIVET MOUNT 0.095" 1/16 0.0625 Brass Electro Solder NO
09-7194-3-035
09-7194-3-035
09-7194-3-035
0.330" - - RIVET MOUNT 0.140" 3/32 0.120 Brass Gold YES
09-8041-3-088
09-8041-3-088
09-8041-3-088
0.283" 0.032 TURRET/PC PIN Swage Mount 0.115" 3/32 0.067 Brass Bright Tin-Lead NO
09-8073-2-035
09-8073-2-035
09-8073-2-035
0.340" 0.050 - Swage Mount 0.082" 1/16 0.052 Brass Gold YES
09-8133-2-088
09-8133-2-088
09-8133-2-088
0.301" 0.040 TURRET/PIN Swage Mount 0.082" 1/16 0.076 Brass Bright Tin-Lead NO
09-8165-3-04
09-8165-3-04
09-8165-3-04
1.403" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Electro-Tin YES
09-8251-2A-088
09-8251-2A-088
09-8251-2A-088
0.197" - - Swage Mount 0.093" 1/16 0.076 Brass Bright Tin-Lead NO
09-8423-2-03
09-8423-2-03
09-8423-2-03
0.207" 0.025 - Swage Mount 0.082" 1/16 0.036 Brass Gold YES
09-8652-2-03
09-8652-2-03
09-8652-2-03
0.197" - - Swage Mount 0.093" 1/16 0.076 LEADED Red Brass Gold YES

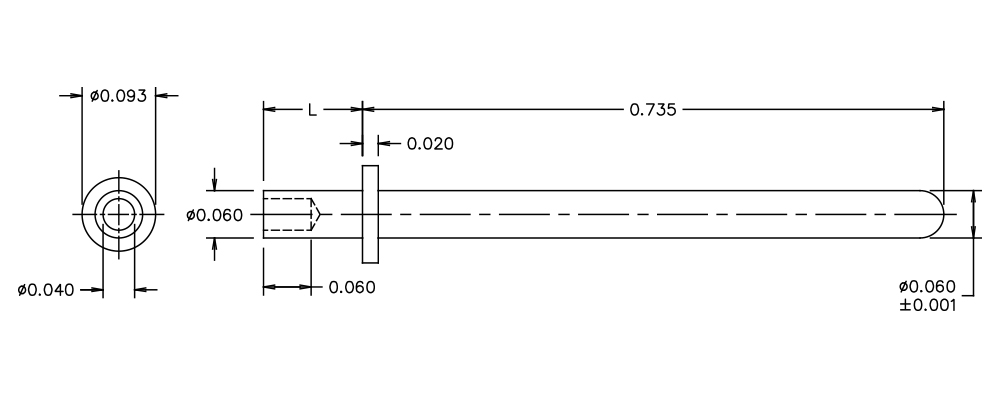

09-8761-4-04
09-8761-4-04
09-8761-4-04
0.891" 0.060 - Swage Mount 0.156" 1/8 0.0635 Brass Electro-Tin YES
09-8842-1-044
09-8842-1-044
09-8842-1-044
0.450" 0.040 - - - - - Brass Bright Tin YES
10-102-1-095
10-102-1-095
10-102-1-095
0.265" - - Swage Mount 0.078" 1/32 0.082 Brass Hot Solder Dip NO
10-108-3-04
10-108-3-04
10-108-3-04
0.208" - - Swage Mount 0.115" 3/32 0.067 Brass Electro-Tin YES

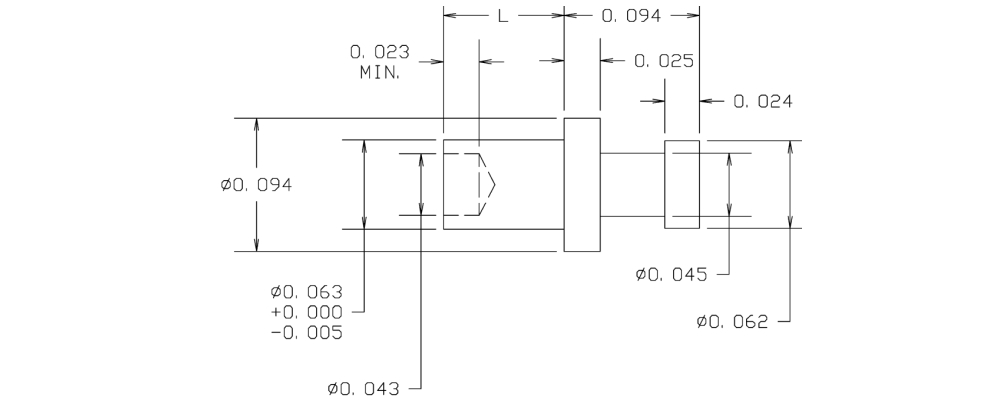

10-117-4-095
10-117-4-095
10-117-4-095
0.241" - - Swage Mount 0.147" 1/8 0.067 Brass Hot Solder Dip NO
10-138-2-03
10-138-2-03
10-138-2-03
0.344" - - Swage Mount 0.094" 1/16 0.067 Brass Gold YES
10-207-4-01
10-207-4-01
10-207-4-01
0.399" - - Swage Mount 0.165" 1/8 0.094 Brass Silver YES
10-215-4-05
10-215-4-05
10-215-4-05
0.301" - - Swage Mount 0.147" 1/8 0.063 Brass Electro Solder NO
10-225-3-095
10-225-3-095
10-225-3-095
0.269" - - Swage Mount 0.115" 3/32 0.067 Brass Hot Solder Dip NO

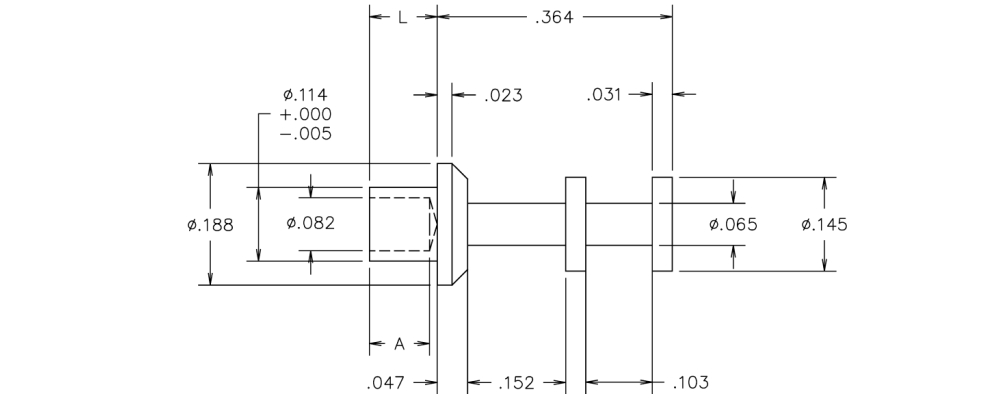

10-240-1-04
10-240-1-04
10-240-1-04
0.439" - - Swage Mount 0.075" 1/32 0.116 Brass Electro-Tin YES
