Commercial
Non-Insulated
Terminals

Filter
10-414-3-05
10-414-3-05
10-414-3-05
0.269" - - Swage Mount 0.113" 3/32 0.052 Brass Electro Solder NO

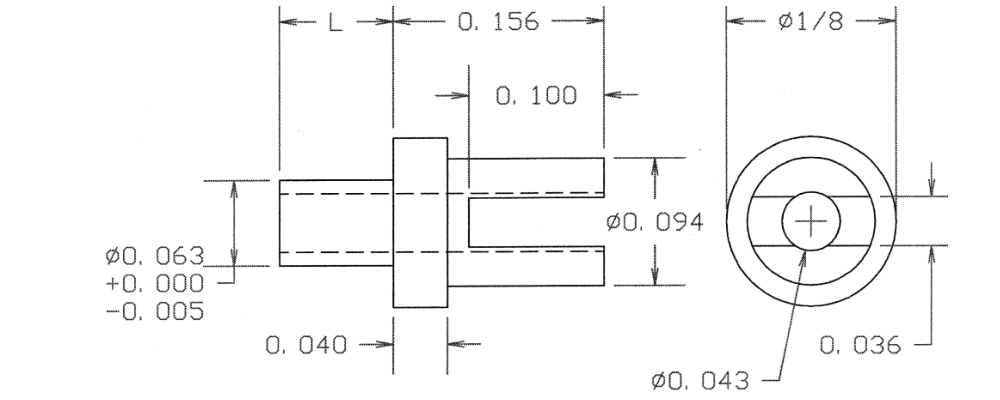

10-449-2-035
10-449-2-035
10-449-2-035
0.240" - - Swage Mount 0.084" 1/16 0.064 Brass Gold YES
10-471-4-088
10-471-4-088
10-471-4-088
0.303" - - Swage Mount 0.147" 1/8 0.067 Brass Bright Tin-Lead NO
14-414-11-04
14-414-11-04
14-414-11-04
0.192" - - Swage Mount 0.035" 1/64 0.052 LEADED Red Brass Electro-Tin YES
09-0050-4-035
09-0050-4-035
09-0050-4-035
0.484" - - Swage Mount 0.172" 1/8 0.140 Brass Gold YES

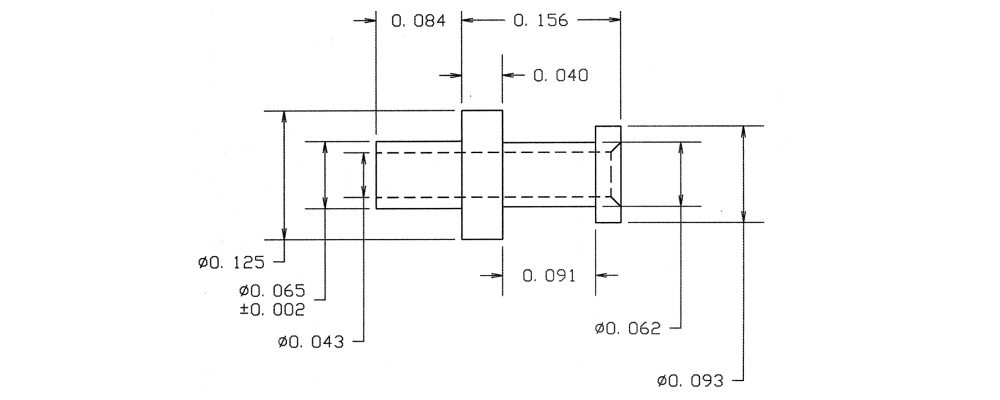

09-0119-2-03
09-0119-2-03
09-0119-2-03
0.240" - - Swage Mount 0.084" 1/16 0.070 Brass Gold YES
09-0176-1-03
09-0176-1-03
09-0176-1-03
0.112" - - Swage Mount 0.051" 1/32 0.052 Brass Gold YES
09-0218-1-03
09-0218-1-03
09-0218-1-03
0.520" 0.025 PIN/TERMINAL Solder 0.030" 1/64 TO 1/32 0.0635 Brass Gold YES
09-0263-1-05
09-0263-1-05
09-0263-1-05
0.140" - - Swage Mount 0.125" 3/32 0.043 Brass Electro Solder NO
09-0310-2-04
09-0310-2-04
09-0310-2-04
0.240" - - Swage Mount 0.084" 1/16 0.043 Brass Electro-Tin YES
09-0378-1-01
09-0378-1-01
09-0378-1-01
0.198" - - Swage Mount 0.062" 1/32 0.063 Brass Silver YES

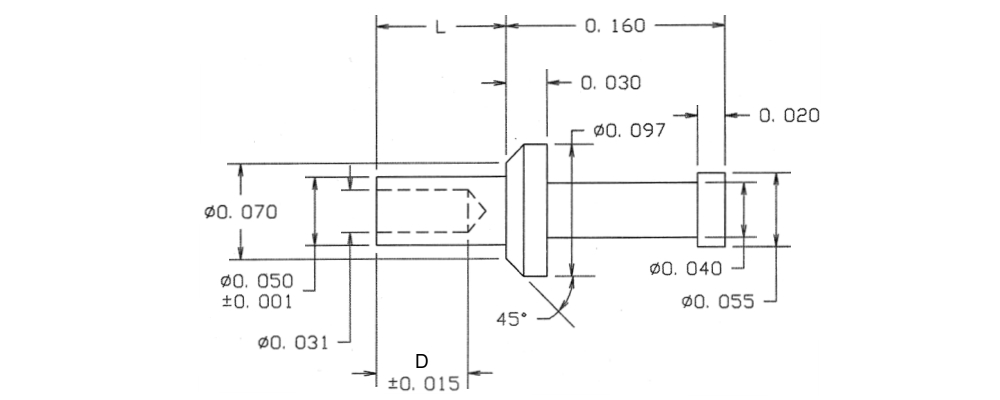

09-7017-4-04
09-7017-4-04
09-7017-4-04
0.310" - - Swage Mount 0.150" 1/8 0.055 LEADED Red Brass Electro-Tin YES
09-7132-2-088
09-7132-2-088
09-7132-2-088
0.853" 0.0405 - RIVET MOUNT 0.087" 1/16 0.044 Brass Bright Tin-Lead NO
09-7160-2-04
09-7160-2-04
09-7160-2-04
0.373" 0.040 - RIVET MOUNT 0.095" 1/16 0.0625 Brass Electro-Tin YES
09-7194-3-01
09-7194-3-01
09-7194-3-01
0.330" - - RIVET MOUNT 0.140" 3/32 0.120 Brass Silver YES

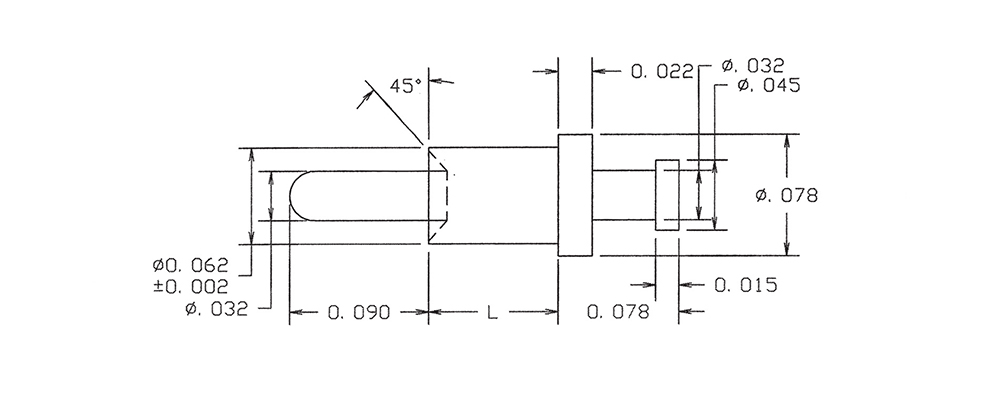

09-8041-3-044
09-8041-3-044
09-8041-3-044
0.283" 0.032 TURRET/PC PIN Swage Mount 0.115" 3/32 0.067 Brass Bright Tin YES
09-8073-2-01
09-8073-2-01
09-8073-2-01
0.340" 0.050 - Swage Mount 0.082" 1/16 0.052 Brass Silver YES
09-8133-2-044
09-8133-2-044
09-8133-2-044
0.301" 0.040 TURRET/PIN Swage Mount 0.082" 1/16 0.076 Brass Bright Tin YES
09-8165-3-03
09-8165-3-03
09-8165-3-03
1.403" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Gold YES
09-8251-2A-044
09-8251-2A-044
09-8251-2A-044
0.197" - - Swage Mount 0.093" 1/16 0.076 Brass Bright Tin YES
