Commercial
Non-Insulated
Terminals

Filter
09-7129-1-044
09-7129-1-044
09-7129-1-044
0.862" 0.0405 - RIVET MOUNT 0.056" 1/32 0.044 Brass Bright Tin YES
09-7158-1A-03
09-7158-1A-03
09-7158-1A-03
0.191" 0.025 - RIVET MOUNT 0.048" 1/64 0.0625 Brass Gold YES

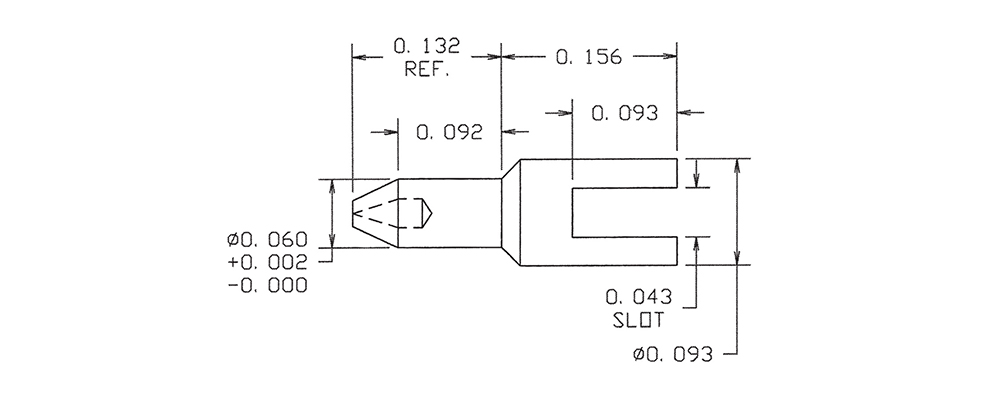

09-7190-2-05
09-7190-2-05
09-7190-2-05
0.288" - - RIVET MOUNT 0.092" 1/16 0.0625 Brass Electro Solder NO
09-8040-2-035
09-8040-2-035
09-8040-2-035
0.614" 0.020 - Solder 0.063" 1/32 0.022 Brass Gold YES
09-8067-2-05
09-8067-2-05
09-8067-2-05
0.802" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Electro Solder NO
09-8131-1-035
09-8131-1-035
09-8131-1-035
0.240" 0.032 TURRET/PIN Swage Mount 0.051" 1/32 0.067 Brass Gold YES

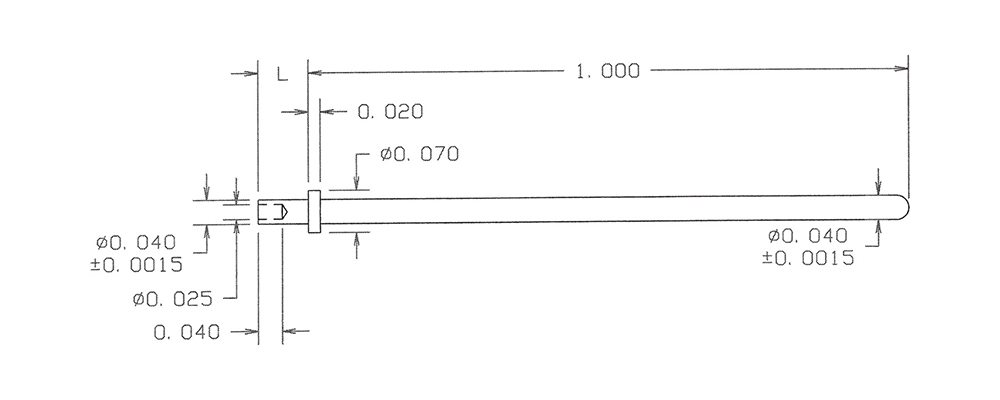

09-8161-2-088
09-8161-2-088
09-8161-2-088
1.084" 0.0405 - Swage Mount 0.084" 1/16 0.043 Brass Bright Tin-Lead NO
09-8193-2-04
09-8193-2-04
09-8193-2-04
0.392" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Electro-Tin YES

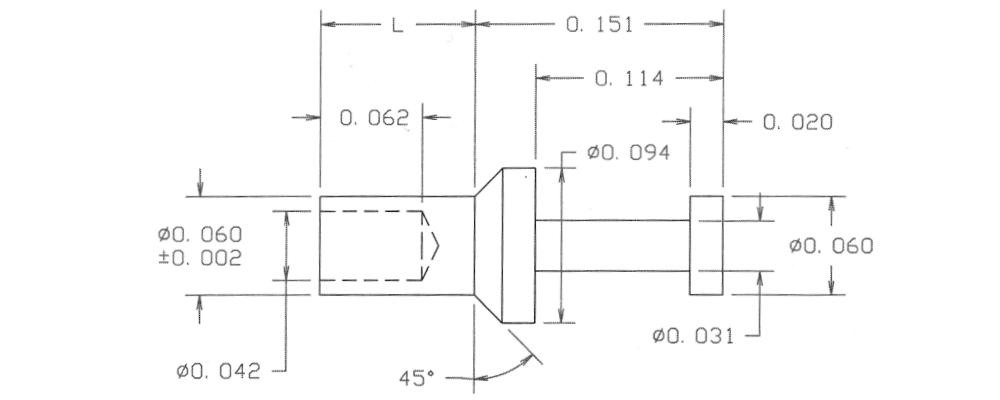

09-8422-2-01
09-8422-2-01
09-8422-2-01
0.245" - - Swage Mount 0.094" 1/16 0.067 Brass Silver YES

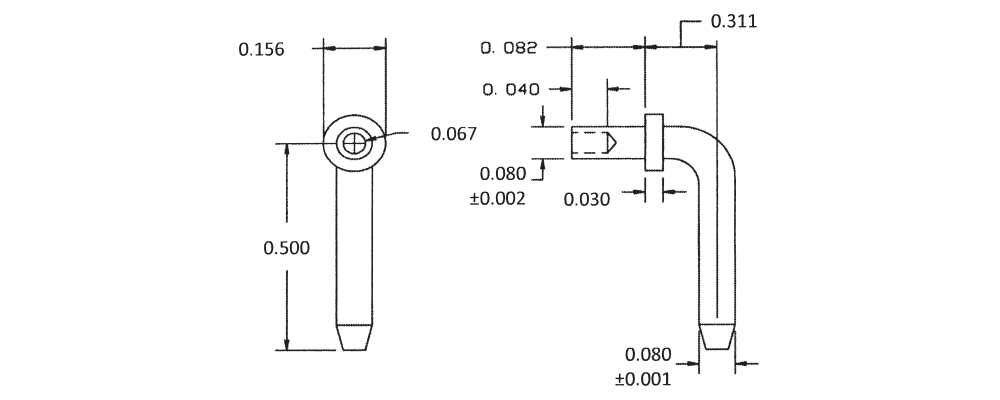

09-8633-2-044
09-8633-2-044
09-8633-2-044
0.578" 0.080 - Swage Mount 0.082" 1/16 0.086 Brass Bright Tin YES
09-8748-1-088
09-8748-1-088
09-8748-1-088
0.516" 0.030 - Press Fit/Solder 0.086" 1/16 0.0625 Brass Bright Tin-Lead NO
09-8839-1-01
09-8839-1-01
09-8839-1-01
0.166" 0.025 - Swage Mount 0.051" 1/32 0.043 Brass Silver YES
10-101-4-088
10-101-4-088
10-101-4-088
0.249" - - Swage Mount 0.145" 1/8 0.076 Brass Bright Tin-Lead NO
10-108-1-035
10-108-1-035
10-108-1-035
0.147" - - Swage Mount 0.054" 1/32 0.067 Brass Gold YES

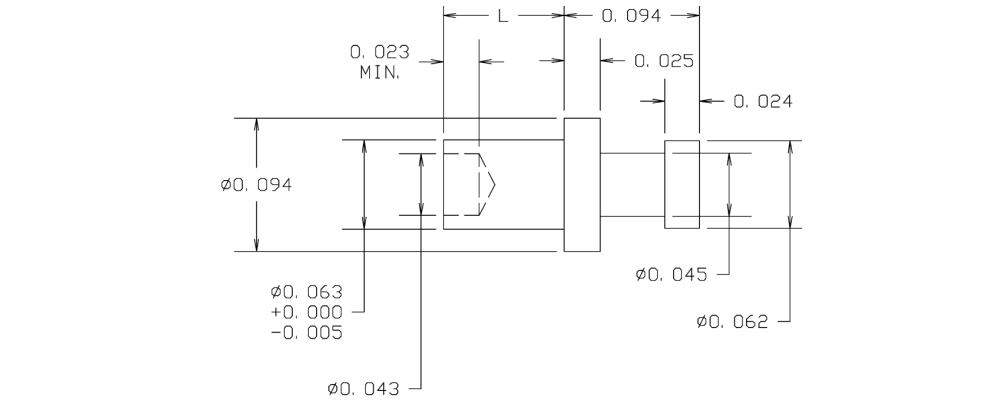

10-117-11-088
10-117-11-088
10-117-11-088
0.131" - - Swage Mount 0.037" 1/64 0.067 Brass Bright Tin-Lead NO
10-137-3-01
10-137-3-01
10-137-3-01
0.300" - - Swage Mount 0.141" 3/32 0.094 Brass Silver YES
10-206-4-044
10-206-4-044
10-206-4-044
0.338" - - Swage Mount 0.147" 1/8 0.076 Brass Bright Tin YES
10-215-11-044
10-215-11-044
10-215-11-044
0.191" - - Swage Mount 0.037" 1/64 0.063 Brass Bright Tin YES
10-225-1-088
10-225-1-088
10-225-1-088
0.209" - - Swage Mount 0.053" 1/32 0.067 Brass Bright Tin-Lead NO
10-238-2-035
10-238-2-035
10-238-2-035
0.530" - - Swage Mount 0.109" 1/16 0.116 Brass Gold YES
