Commercial
Non-Insulated
Terminals

Filter
10-929-2-03
10-929-2-03
10-929-2-03
0.177" - - Swage Mount 0.084" 1/16 0.052 Brass Gold YES
10-972-2-03
10-972-2-03
10-972-2-03
0.852" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Gold YES
14-351-2-05
14-351-2-05
14-351-2-05
0.434" - - Swage Mount 0.109" 1/16 0.196 LEADED Red Brass Electro Solder NO
09-0279-2-05
09-0279-2-05
09-0279-2-05
0.344" - - Swage Mount 0.105" 1/16 0.094 Brass Electro Solder NO
10-414-1-035
10-414-1-035
10-414-1-035
0.207" - - Swage Mount 0.051" 1/32 0.052 Brass Gold YES
10-448-3-088
10-448-3-088
10-448-3-088
0.427" - - Swage Mount 0.115" 3/32 0.063 Brass Bright Tin-Lead NO
10-471-11-04
10-471-11-04
10-471-11-04
0.193" - - Swage Mount 0.037" 1/64 0.067 Brass Electro-Tin YES
10-948-3-01
10-948-3-01
10-948-3-01
0.298" - - Swage Mount 0.125" 3/32 0.0635 Brass Silver YES
09-0047-2-095
09-0047-2-095
09-0047-2-095
1.535" - - Swage Mount 0.105" 1/16 0.116 Brass Hot Solder Dip NO
09-0112-2-05
09-0112-2-05
09-0112-2-05
0.448" - TURRET/THREAD Swage Mount 0.094" 1/16 0.154 Brass Electro Solder NO
09-0175-2-03
09-0175-2-03
09-0175-2-03
0.240" - - Swage Mount 0.084" 1/16 0.063 Brass Gold YES
09-0215-2-03
09-0215-2-03
09-0215-2-03
0.400" 0.030 Pin/Pin Solder 0.090" 1/16 0.136 Brass Gold YES
09-0258-1-05
09-0258-1-05
09-0258-1-05
0.346" (0.040 (+0.000/-0.003))/(0.040) Pin/Pin Solder 0.064" 1/32 0.070 Brass Electro Solder NO
09-0304-1-035
09-0304-1-035
09-0304-1-035
0.154" - - Swage Mount 0.060" 1/32 0.055 Brass Gold YES
09-0368-4-088
09-0368-4-088
09-0368-4-088
0.422" - - Swage Mount 0.172" 1/8 0.266 Brass Bright Tin-Lead NO
09-7017-1-04
09-7017-1-04
09-7017-1-04
0.222" - - Swage Mount 0.062" 1/32 0.055 LEADED Red Brass Electro-Tin YES
09-7129-1-04
09-7129-1-04
09-7129-1-04
0.862" 0.0405 - RIVET MOUNT 0.056" 1/32 0.044 Brass Electro-Tin YES
09-7158-1A-01
09-7158-1A-01
09-7158-1A-01
0.191" 0.025 - RIVET MOUNT 0.048" 1/64 0.0625 Brass Silver YES
09-7190-2-044
09-7190-2-044
09-7190-2-044
0.288" - - RIVET MOUNT 0.092" 1/16 0.0625 Brass Bright Tin YES

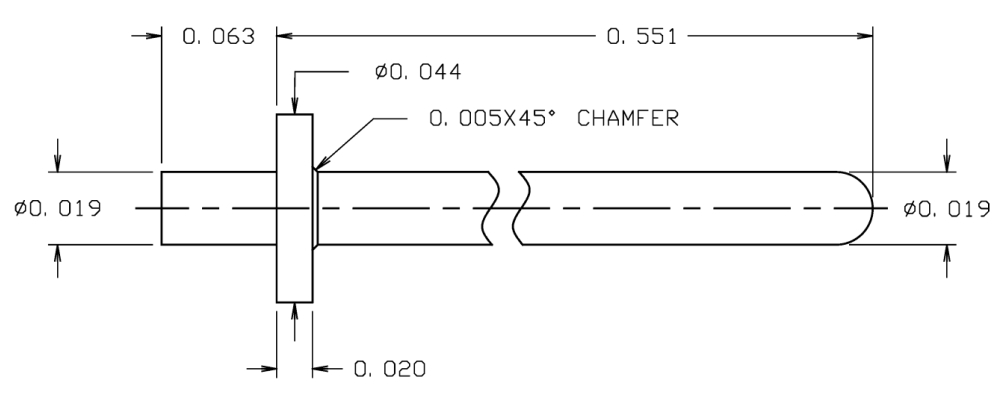

09-8040-2-03
09-8040-2-03
09-8040-2-03
0.614" 0.020 - Solder 0.063" 1/32 0.022 Brass Gold YES
