Commercial
Non-Insulated
Terminals

Filter
10-259-8-044
10-259-8-044
10-259-8-044
0.500" - - Swage Mount 0.281" 1/4 0.094 Brass Bright Tin YES

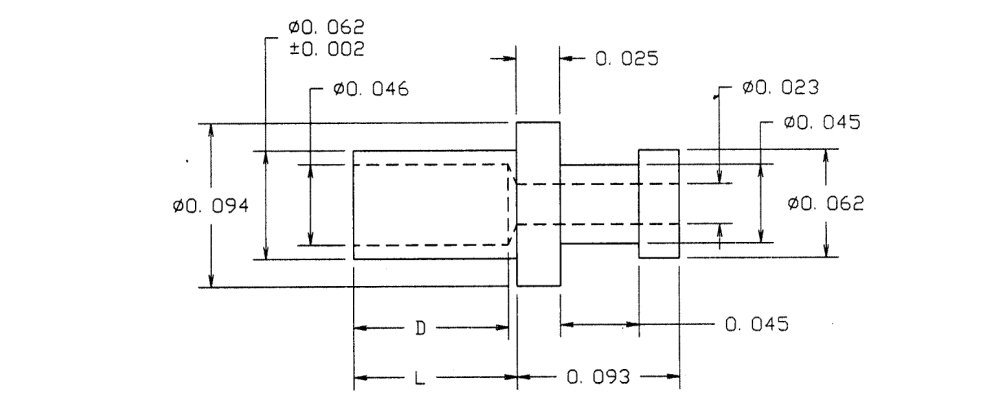

10-308-2-088
10-308-2-088
10-308-2-088
0.187" - - Swage Mount 0.094" 1/16 0.067 Brass Bright Tin-Lead NO
10-316-4-04
10-316-4-04
10-316-4-04
0.625" - - Swage Mount 0.165" 1/8 0.116 Brass Electro-Tin YES

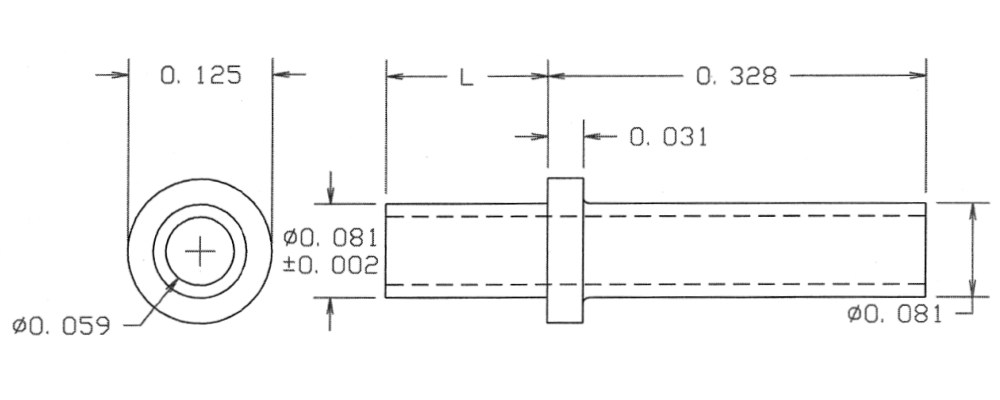

10-331-4-01
10-331-4-01
10-331-4-01
0.500" - - Swage Mount 0.172" 1/8 0.086 Brass Silver YES

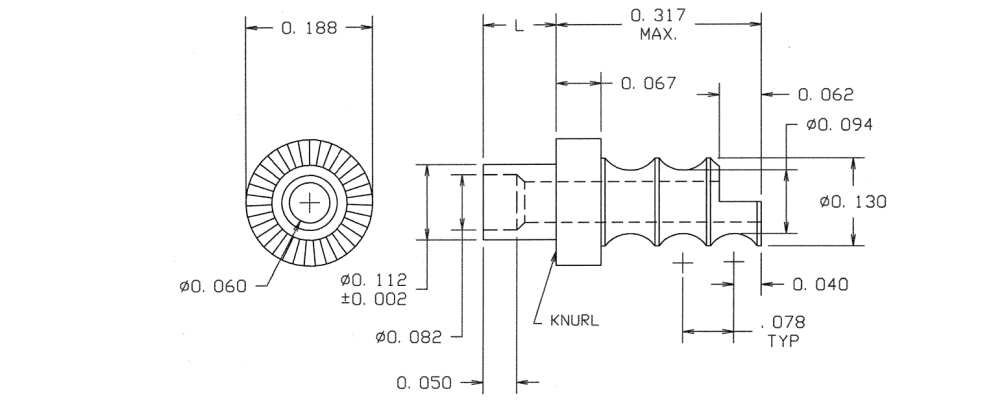

10-405-6-044
10-405-6-044
10-405-6-044
0.551" - - Swage Mount 0.234" 3/16 0.116 Brass Bright Tin YES
10-420-3-05
10-420-3-05
10-420-3-05
0.516" - - Swage Mount 0.141" 3/32 0.154 Brass Electro Solder NO
10-433-6-05
10-433-6-05
10-433-6-05
0.922" - - Swage Mount 0.234" 3/16 0.182 Brass Electro Solder NO

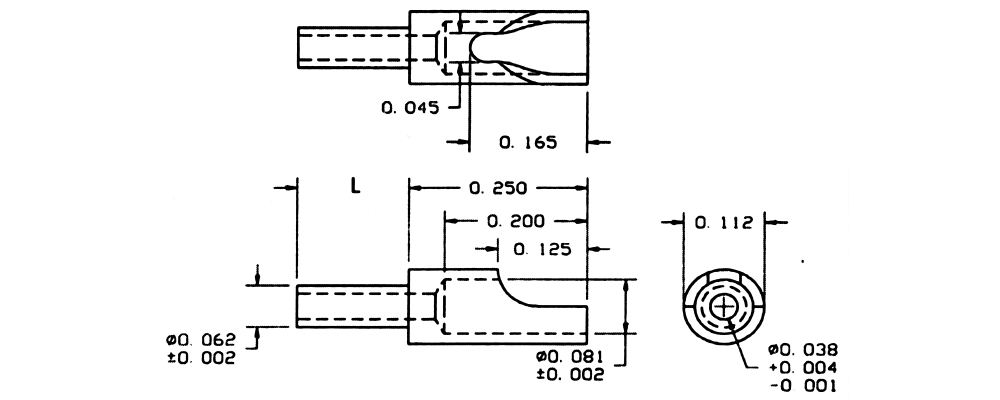

10-454-3-035
10-454-3-035
10-454-3-035
0.375" - - Swage Mount 0.125" 3/32 0.067 Brass Gold YES
10-466-2-03
10-466-2-03
10-466-2-03
0.340" - TURRET/THREAD Swage Mount 0.082" 1/16 0.076 Brass Gold YES
10-492-1-044
10-492-1-044
10-492-1-044
0.356" - Slotted/Slotted Swage Mount 0.075" 1/32 0.120 Brass Bright Tin YES
10-506-1-01
10-506-1-01
10-506-1-01
0.343" - Turret/Turret Swage Mount 0.062" 1/32 0.120 Brass Silver YES

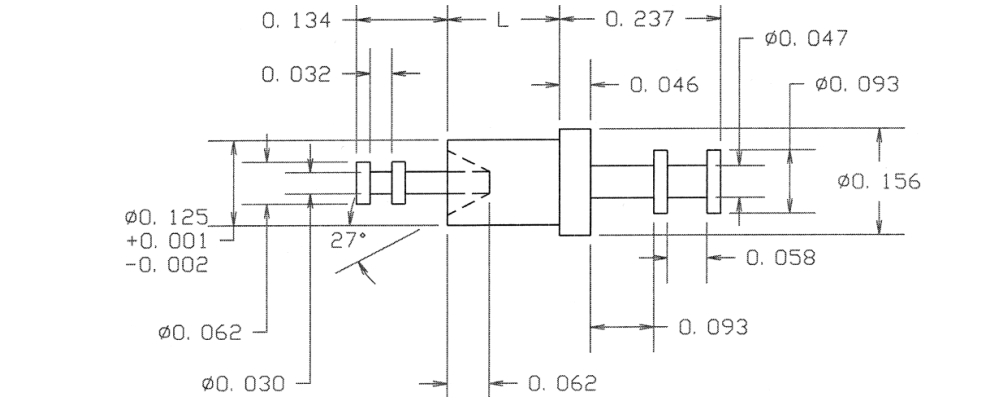

10-512-1-01
10-512-1-01
10-512-1-01
0.446" - Double Turret/Double Turret Swage Mount 0.075" 1/32 0.129 Brass Silver YES

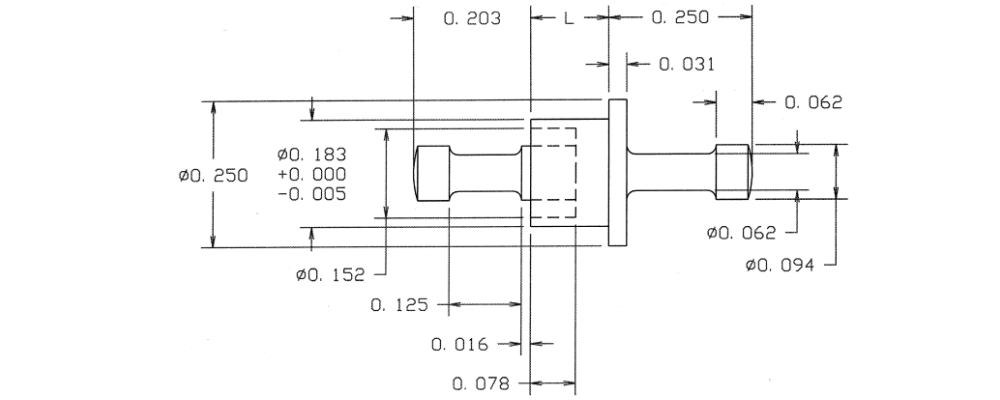

10-521-2-01
10-521-2-01
10-521-2-01
0.558" 0.094 Pin/Pin Swage Mount 0.105" 1/16 0.185 Brass Silver YES

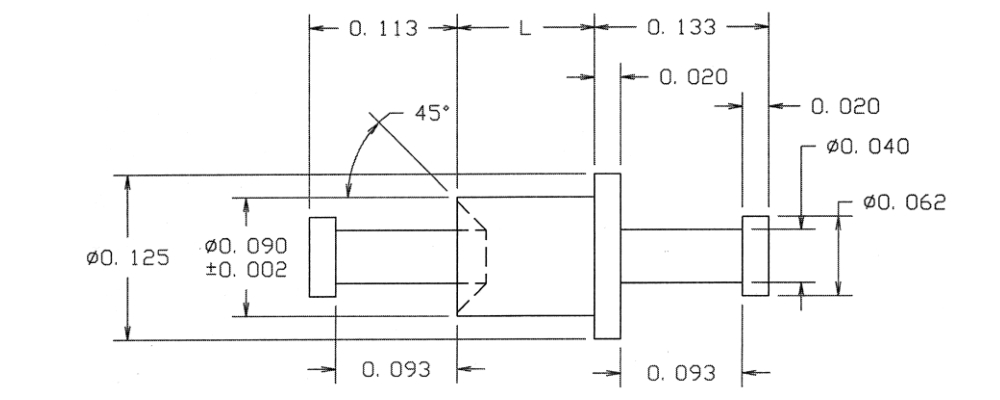

10-533-3-01
10-533-3-01
10-533-3-01
0.381" - Turret/Turret Swage Mount 0.135" 3/32 0.094 Brass Silver YES
10-554-2-01
10-554-2-01
10-554-2-01
0.427" - TURRET/DOUBLE TURRET Swage Mount 0.105" 1/16 0.094 Brass Silver YES
10-602-6-01
10-602-6-01
10-602-6-01
0.718" - - Swage Mount 0.234" 3/16 0.116 Brass Silver YES
10-703-2-035
10-703-2-035
10-703-2-035
0.244" - - 2-56 - - 2-56 THREAD Brass Gold YES
10-8008-3-088
10-8008-3-088
10-8008-3-088
0.525" 0.080 - Swage Mount 0.125" 3/32 0.094 Brass Bright Tin-Lead NO
10-8020-1-044
10-8020-1-044
10-8020-1-044
0.621" 0.025 - Swage Mount 0.051" 1/32 0.035 Brass Bright Tin YES
10-805-3-04
10-805-3-04
10-805-3-04
0.431" - - Swage Mount 0.141" 3/32 0.094 Brass Electro-Tin YES
