Commercial
Non-Insulated
Terminals

Filter
10-858-3-03
10-858-3-03
10-858-3-03
0.594" 0.040 Pin/Pin Swage Mount 0.125" 3/32 0.094 Brass Gold YES

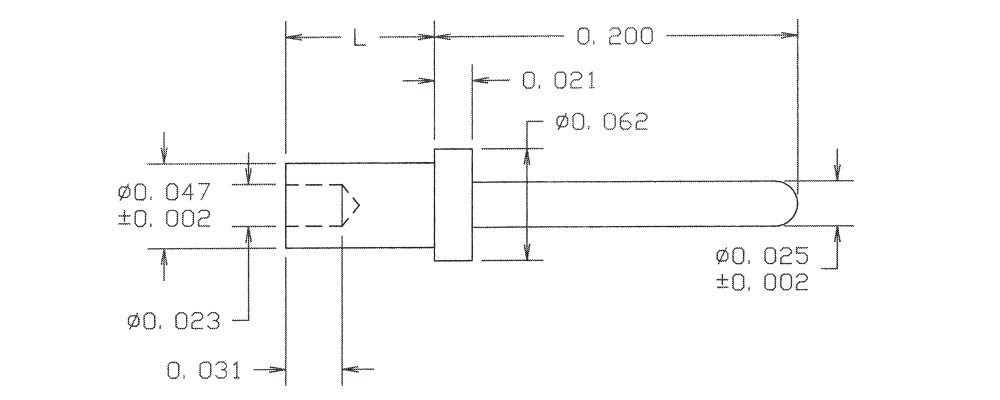

10-876-4-088
10-876-4-088
10-876-4-088
0.345" 0.025 - Swage Mount 0.145" 1/8 0.052 Brass Bright Tin-Lead NO
10-895-7-02
10-895-7-02
10-895-7-02
0.400" 0.040 - - - - - Brass Nickel YES
10-915-1-044
10-915-1-044
10-915-1-044
0.201" 0.025 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin YES
10-927-2-03
10-927-2-03
10-927-2-03
0.291" 0.025 - Swage Mount 0.078" 1/16 0.035 Brass Gold YES
10-971-3-03
10-971-3-03
10-971-3-03
0.633" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Gold YES
14-350-5-05
14-350-5-05
14-350-5-05
0.716" - - Swage Mount 0.195" 5/32 0.196 LEADED Red Brass Electro Solder NO
09-0265-1-05
09-0265-1-05
09-0265-1-05
0.221" - - Swage Mount 0.065" 1/32 0.067 Brass Electro Solder NO
10-413-6-035
10-413-6-035
10-413-6-035
0.363" - - Swage Mount 0.207" 3/16 0.052 Brass Gold YES
10-448-11-088
10-448-11-088
10-448-11-088
0.349" - - Swage Mount 0.037" 1/64 0.063 Brass Bright Tin-Lead NO
10-464-4-04
10-464-4-04
10-464-4-04
0.217" - - Swage Mount 0.147" 1/8 0.035 Brass Electro-Tin YES
10-948-1-01
10-948-1-01
10-948-1-01
0.235" - - Swage Mount 0.062" 1/32 0.0635 Brass Silver YES
09-0043-2-03
09-0043-2-03
09-0043-2-03
0.249" - - Swage Mount 0.099" 1/16 0.094 Brass Gold YES

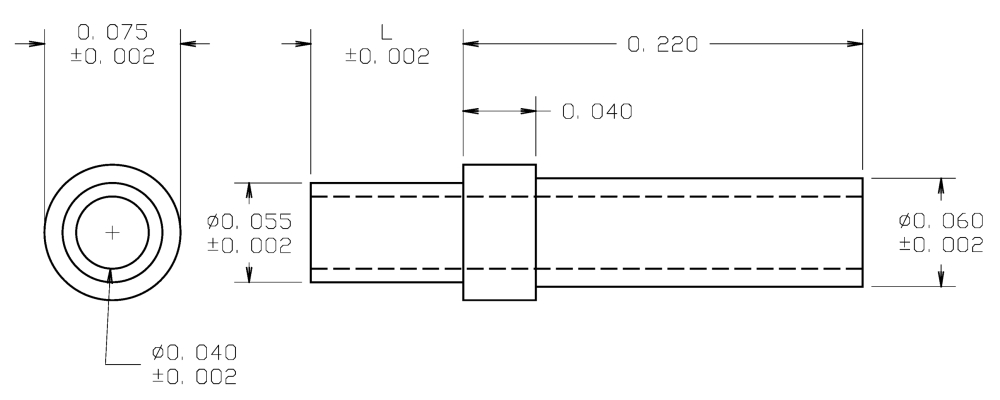

09-0108-2-05
09-0108-2-05
09-0108-2-05
0.304" - - Swage Mount 0.084" 1/16 0.059 Brass Electro Solder NO

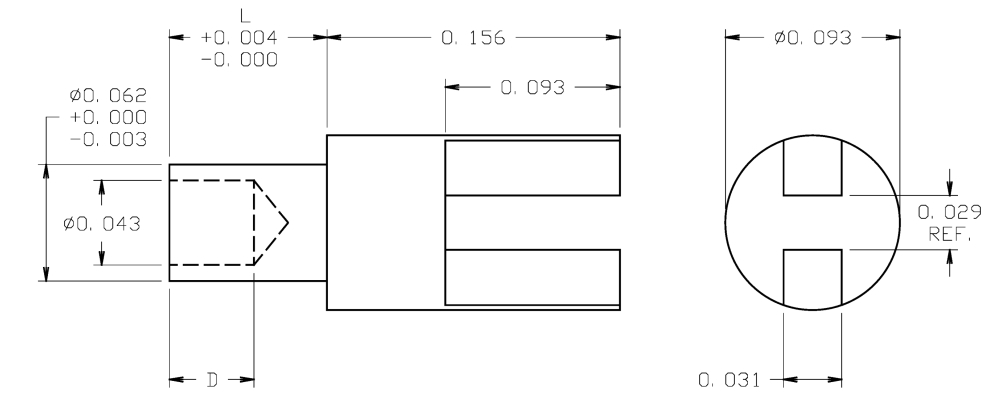

09-0175-1-04
09-0175-1-04
09-0175-1-04
0.209" - - Swage Mount 0.053" 1/32 0.063 Brass Electro-Tin YES
09-0210-8-04
09-0210-8-04
09-0210-8-04
0.400" - - 2-56 - - 2-56 THREAD Brass Electro-Tin YES
09-0255-1-088
09-0255-1-088
09-0255-1-088
0.344" 0.045 - Press Fit/Solder 0.055" 1/16 0.052 Brass Bright Tin-Lead NO
09-0303-4-044
09-0303-4-044
09-0303-4-044
0.307" - - Swage Mount 0.150" 1/8 0.063 Brass Bright Tin YES
09-0364-3-088
09-0364-3-088
09-0364-3-088
0.641" - - Swage Mount 0.141" 3/32 0.140 Brass Bright Tin-Lead NO
09-7016-3-05
09-7016-3-05
09-7016-3-05
0.285" - - Swage Mount 0.125" 3/32 0.055 Brass Electro Solder NO

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
