Commercial
Non-Insulated
Terminals

Filter
09-8420-2-01
09-8420-2-01
09-8420-2-01
0.150" 0.040 - Solder - - 0.042 Brass Silver YES
09-8631-2-04
09-8631-2-04
09-8631-2-04
0.735" 0.032 - Swage Mount 0.082" 1/16 0.055 Brass Electro-Tin YES

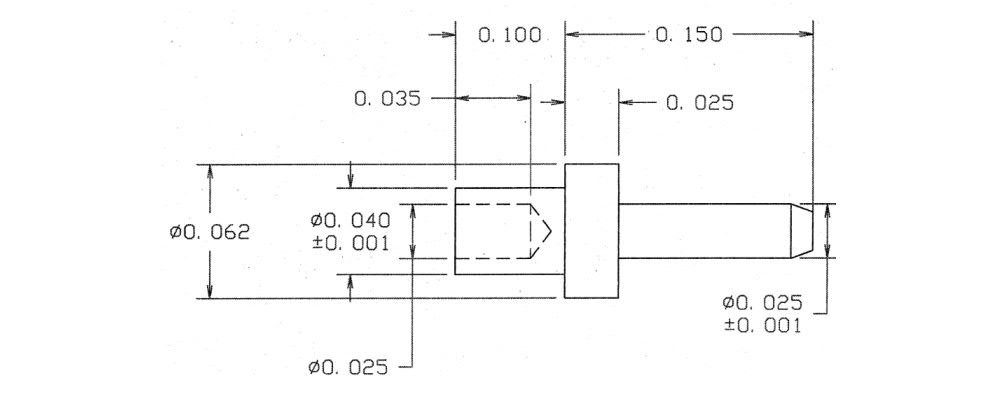

09-8737-3-095
09-8737-3-095
09-8737-3-095
0.250" 0.060 - Swage Mount 0.100" 1/16 0.043 Brass Hot Solder Dip NO
09-8835-1-088
09-8835-1-088
09-8835-1-088
0.725" 0.040 (+0.002/-0.001) - Solder 0.100" 1/16 0.043 Brass Bright Tin-Lead NO
10-101-2-01
10-101-2-01
10-101-2-01
0.186" - - Swage Mount 0.082" 1/16 0.076 Brass Silver YES
10-107-2-044
10-107-2-044
10-107-2-044
0.187" - - Swage Mount 0.094" 1/16 0.067 Brass Bright Tin YES

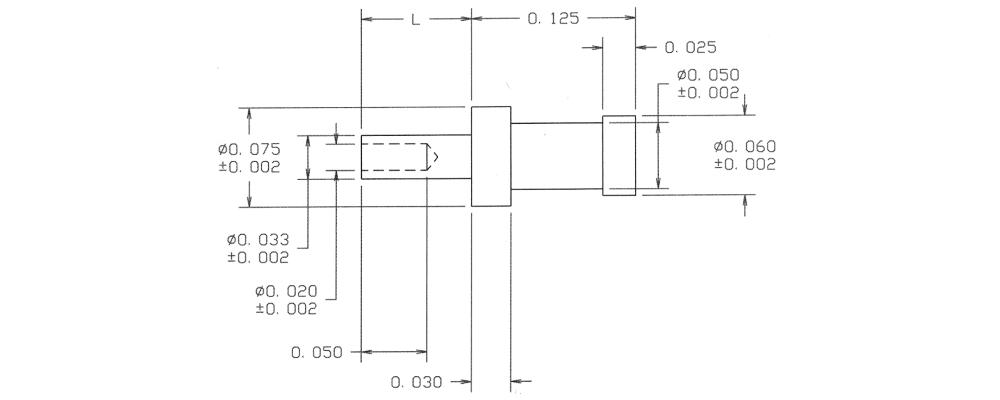

10-115-2B-01
10-115-2B-01
10-115-2B-01
0.221" - - Swage Mount 0.096" 1/16 0.037 Brass Silver YES

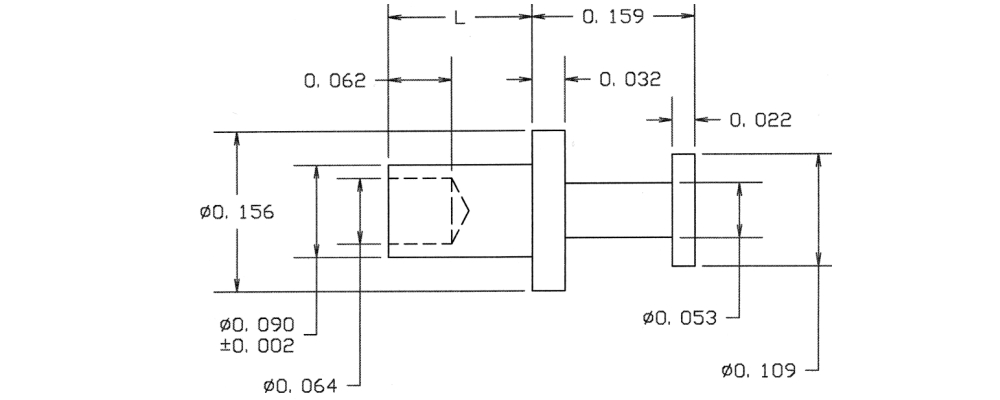

10-137-1-035
10-137-1-035
10-137-1-035
0.237" - - Swage Mount 0.078" 1/32 0.094 Brass Gold YES
10-206-1-088
10-206-1-088
10-206-1-088
0.244" - - Swage Mount 0.053" 1/32 0.076 Brass Bright Tin-Lead NO
10-214-5-088
10-214-5-088
10-214-5-088
0.334" - - Swage Mount 0.178" 5/32 0.067 Brass Bright Tin-Lead NO
10-222-1-05
10-222-1-05
10-222-1-05
0.297" - - Press Fit/Solder 0.105" 3/32 0.128 Brass Electro Solder NO
10-236-4-035
10-236-4-035
10-236-4-035
0.578" - - Swage Mount 0.156" 1/8 0.116 Brass Gold YES
10-259-6-05
10-259-6-05
10-259-6-05
0.438" - - Swage Mount 0.219" 3/16 0.094 Brass Electro Solder NO

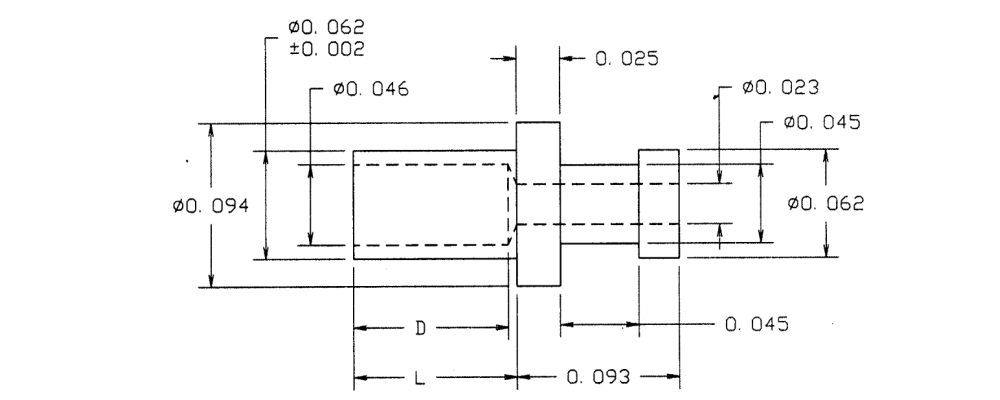

10-308-11-088
10-308-11-088
10-308-11-088
0.118" - - Swage Mount 0.025" 1/64 0.067 Brass Bright Tin-Lead NO
10-316-3-04
10-316-3-04
10-316-3-04
0.595" - - Swage Mount 0.135" 3/32 0.116 Brass Electro-Tin YES

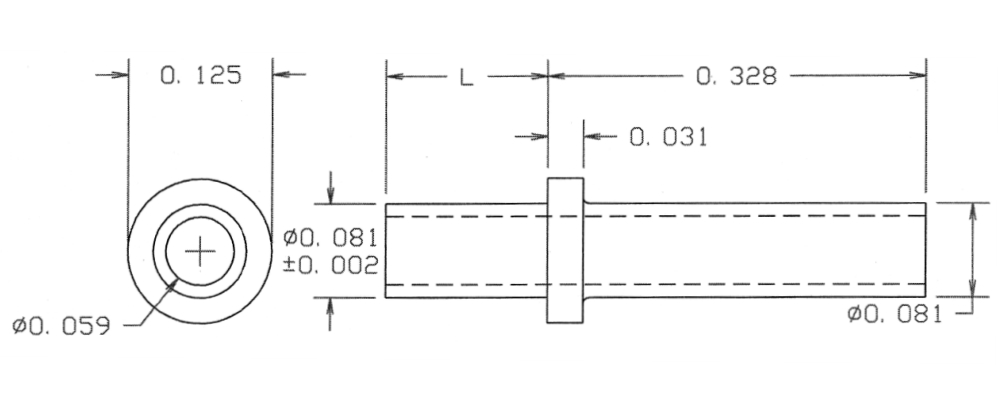

10-331-3-01
10-331-3-01
10-331-3-01
0.469" - - Swage Mount 0.141" 3/32 0.086 Brass Silver YES
10-405-4-044
10-405-4-044
10-405-4-044
0.489" - - Swage Mount 0.172" 1/8 0.116 Brass Bright Tin YES
10-420-2-05
10-420-2-05
10-420-2-05
0.484" - - Swage Mount 0.109" 1/16 0.154 Brass Electro Solder NO
10-433-4-05
10-433-4-05
10-433-4-05
0.860" - - Swage Mount 0.172" 1/8 0.182 Brass Electro Solder NO
10-454-2-035
10-454-2-035
10-454-2-035
0.339" - - Swage Mount 0.089" 1/16 0.067 Brass Gold YES
