Commercial
Non-Insulated
Terminals

Filter
09-0252-2-044
09-0252-2-044
09-0252-2-044
0.186" - - Swage Mount 0.082" 1/16 0.081 Brass Bright Tin YES
09-0298-1-04
09-0298-1-04
09-0298-1-04
0.344" 0.050 - Press Fit/Solder 0.055" 1/16 0.055 Brass Electro-Tin YES
09-0360-1-04
09-0360-1-04
09-0360-1-04
0.276" - - Press Fit/Solder 0.138" 3/32 0.052 Brass Electro-Tin YES
09-7013-4-05
09-7013-4-05
09-7013-4-05
0.310" - - Swage Mount 0.150" 1/8 0.067 LEADED Red Brass Electro Solder NO

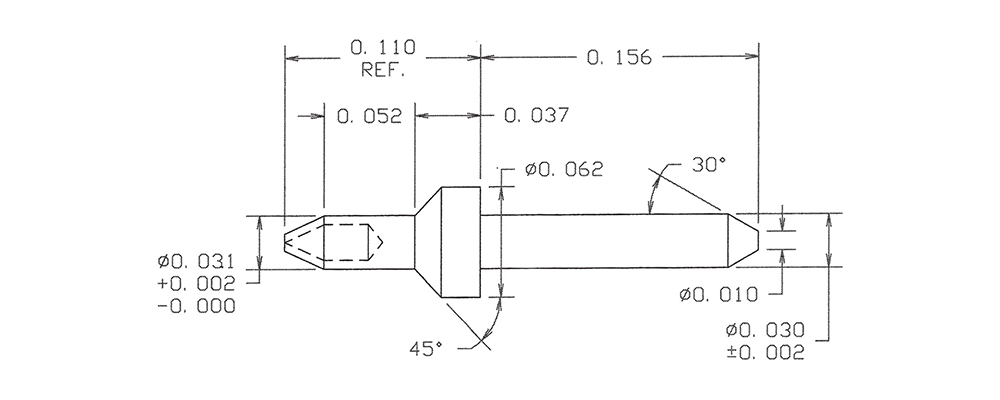

09-7124-1-01
09-7124-1-01
09-7124-1-01
0.266" 0.030 - RIVET MOUNT 0.052" 1/32 0.035 Brass Silver YES

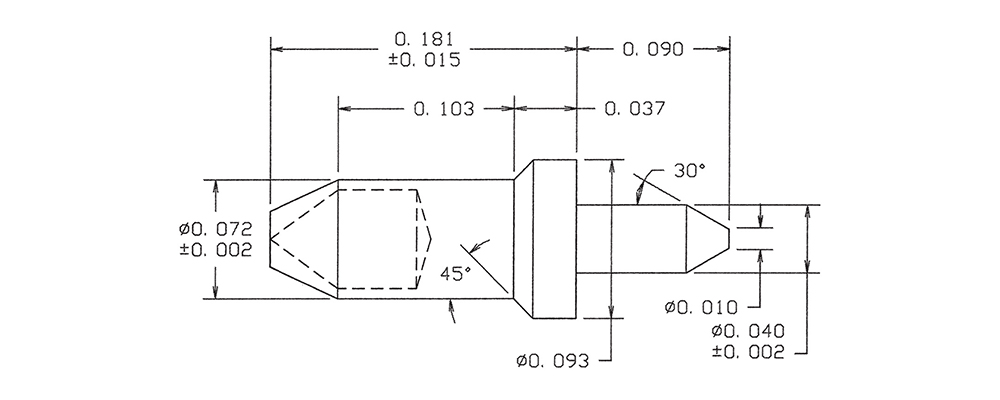

09-7153-2-044
09-7153-2-044
09-7153-2-044
0.271" 0.040 - RIVET MOUNT 0.103" 1/16 0.076 Brass Bright Tin YES
09-7186-1A-03
09-7186-1A-03
09-7186-1A-03
0.191" - - RIVET MOUNT 0.041" 1/64 0.044 Brass Gold YES

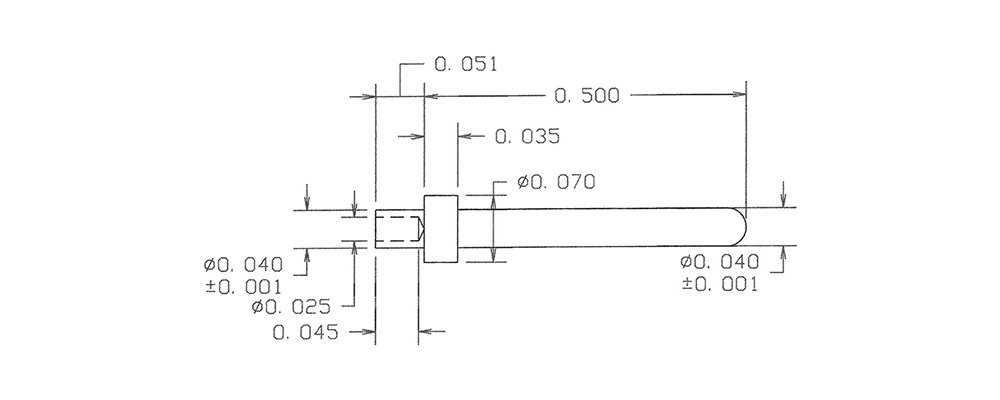

09-8030-1-05
09-8030-1-05
09-8030-1-05
0.551" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Electro Solder NO
09-8063-1-03
09-8063-1-03
09-8063-1-03
0.506" 0.020 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES
09-8113-3-05
09-8113-3-05
09-8113-3-05
0.233" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Electro Solder NO

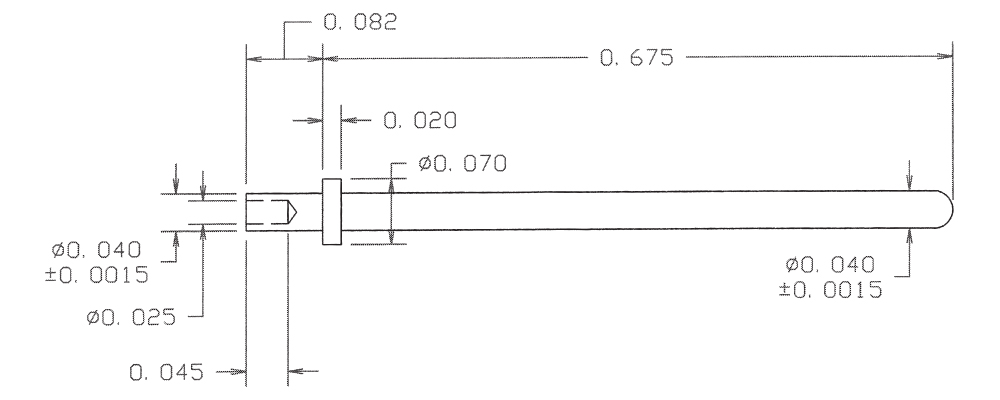

09-8158-2-035
09-8158-2-035
09-8158-2-035
0.757" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Gold YES
09-8186-2A-088
09-8186-2A-088
09-8186-2A-088
0.130" 0.025 - Swage Mount 0.060" 3/64 0.035 Brass Bright Tin-Lead NO
09-8404-1-05
09-8404-1-05
09-8404-1-05
0.160" 0.025 - - - - - Brass Electro Solder NO

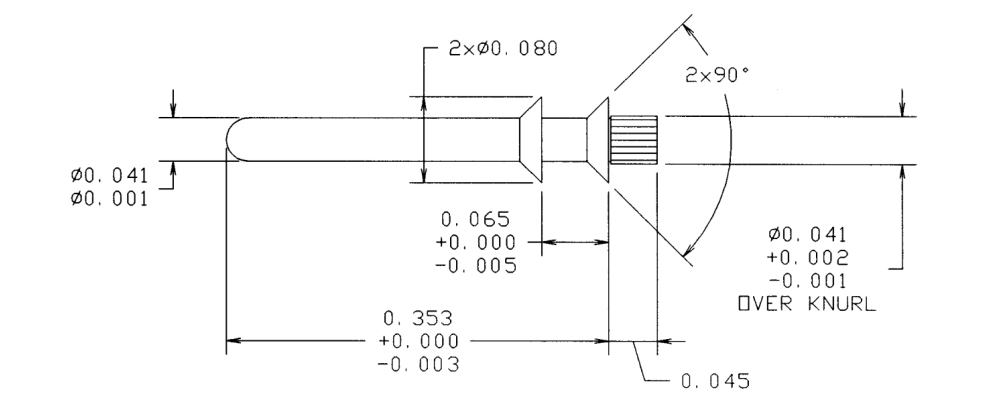

09-8623-1-01
09-8623-1-01
09-8623-1-01
0.398" 0.041 - Press Fit/Solder 0.045" 1/64 0.038 Brass Silver YES
09-8730-1-05
09-8730-1-05
09-8730-1-05
0.343" 0.040 TURRET/PIN Press Fit/Solder 0.195" 7/32 TO 9/32 0.052 Brass Electro Solder NO
09-8831-1-044
09-8831-1-044
09-8831-1-044
0.317" 0.090 - Swage Mount 0.075" 1/32 0.094 Brass Bright Tin YES

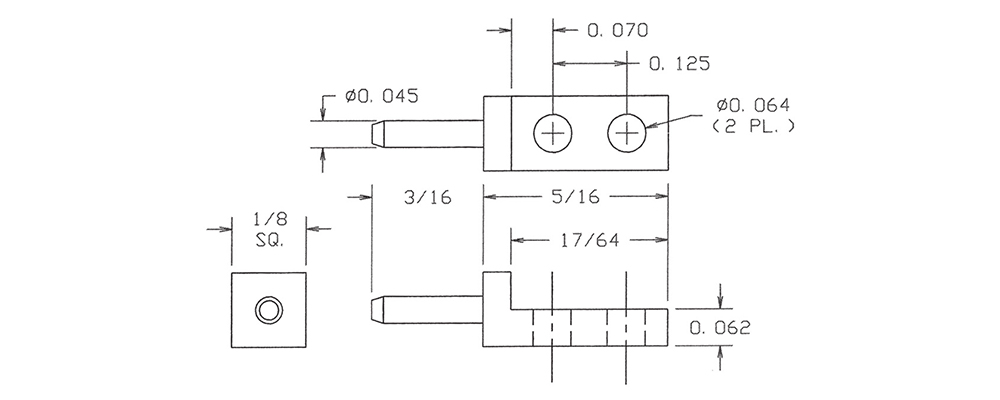

09-9505-1-05
09-9505-1-05
09-9505-1-05
0.444" 0.045 - 0-80 Screw - 1/32 TO 1/16 CLEARANCE FOR #0 Screw Brass Electro Solder NO

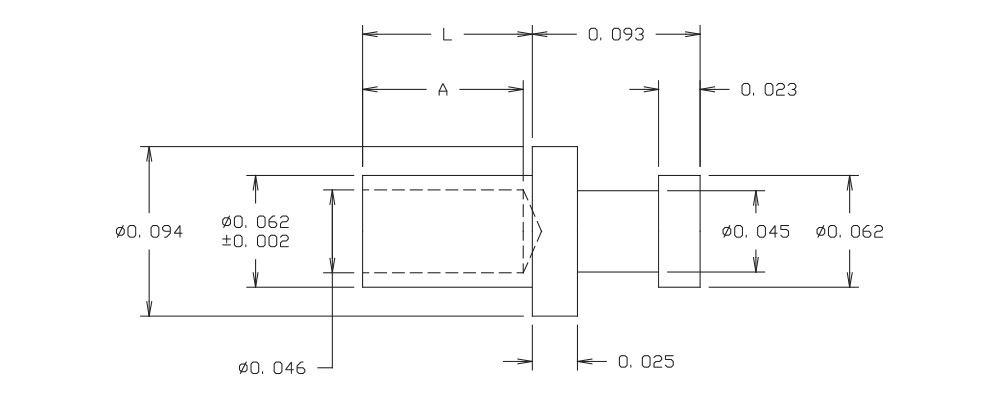

10-107-1-04
10-107-1-04
10-107-1-04
0.138" - - Swage Mount 0.045" 1/32 0.067 Brass Electro-Tin YES
10-114-4-095
10-114-4-095
10-114-4-095
0.241" - - Swage Mount 0.147" 1/8 0.043 Brass Hot Solder Dip NO
10-136-1-03
10-136-1-03
10-136-1-03
0.149" - - Swage Mount 0.055" 1/32 0.041 Brass Gold YES
