Commercial
Non-Insulated
Terminals

10-501-2-04
10-501-2-04
10-501-2-04
0.268" - Turret/Turret Swage Mount 0.082" 1/16 0.076 Brass Electro-Tin YES
10-501-4-044
10-501-4-044
10-501-4-044
0.331" - Turret/Turret Swage Mount 0.145" 1/8 0.076 Brass Bright Tin YES
10-878-3-03
10-878-3-03
10-878-3-03
0.446" 0.040 Pin/Pin Swage Mount 0.113" 3/32 0.076 Brass Gold YES
09-8311-3-01
09-8311-3-01
09-8311-3-01
0.299" 0.040 - Swage Mount 0.113" 3/32 0.076 Brass Silver YES
14-351-5-05
14-351-5-05
14-351-5-05
0.520" - - Swage Mount 0.195" 5/32 0.196 LEADED Red Brass Electro Solder NO
10-226-4-095
10-226-4-095
10-226-4-095
0.525" - - Swage Mount 0.165" 1/8 0.206 Brass Hot Solder Dip NO
14-350-4-05
14-350-4-05
14-350-4-05
0.693" - - Swage Mount 0.172" 1/8 0.196 LEADED Red Brass Electro Solder NO
14-351-4-044
14-351-4-044
14-351-4-044
0.497" - - Swage Mount 0.172" 1/8 0.196 LEADED Red Brass Bright Tin YES
10-439-6-03
10-439-6-03
10-439-6-03
0.711" - - Swage Mount 0.230" 3/16 0.1875 Brass Gold YES
10-433-8-03
10-433-8-03
10-433-8-03
0.985" - - Swage Mount 0.297" 1/4 0.182 Brass Gold YES
09-0168-2-088
09-0168-2-088
09-0168-2-088
0.421" - - Swage Mount 0.109" 1/16 0.141 Brass Bright Tin-Lead NO
10-441-6-088
10-441-6-088
10-441-6-088
0.574" - - Swage Mount 0.230" 3/16 0.1405 Brass Bright Tin-Lead NO
09-0050-6-044
09-0050-6-044
09-0050-6-044
0.546" - - Swage Mount 0.234" 3/16 0.140 Brass Bright Tin YES
09-0168-1-035
09-0168-1-035
09-0168-1-035
0.390" - - Swage Mount 0.078" 1/32 0.141 Brass Gold YES
10-441-3-01
10-441-3-01
10-441-3-01
0.479" - - Swage Mount 0.135" 3/32 0.1405 Brass Silver YES

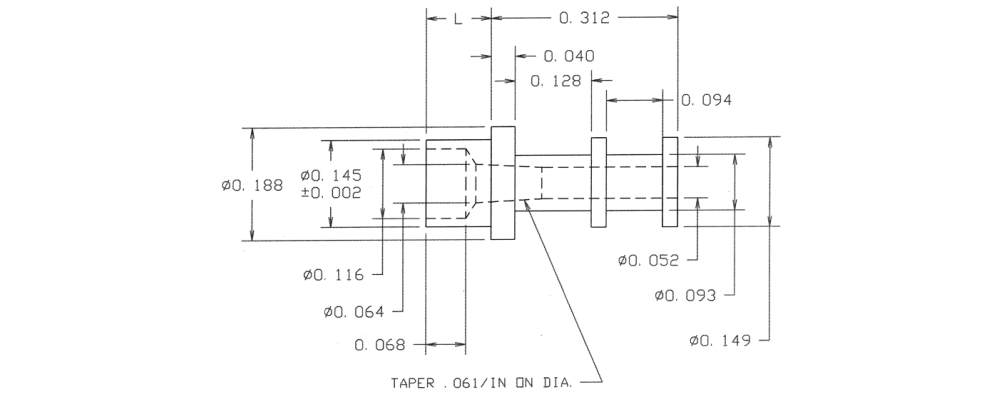

10-810-2-088
10-810-2-088
10-810-2-088
0.421" - - Swage Mount 0.109" 1/16 0.1495 Brass Bright Tin-Lead NO
10-325-2-044
10-325-2-044
10-325-2-044
0.312" - - Swage Mount 0.105" 1/16 0.1405 Brass Bright Tin YES
09-0088-3-044
09-0088-3-044
09-0088-3-044
0.406" - - Swage Mount 0.125" 3/32 0.159 Brass Bright Tin YES
10-424-3-01
10-424-3-01
10-424-3-01
0.572" - - Swage Mount 0.135" 3/32 0.141 Brass Silver YES
10-231-3-035
10-231-3-035
10-231-3-035
0.290" - - Swage Mount 0.135" 3/32 0.116 Brass Gold YES
