Commercial
Non-Insulated
Terminals

Filter

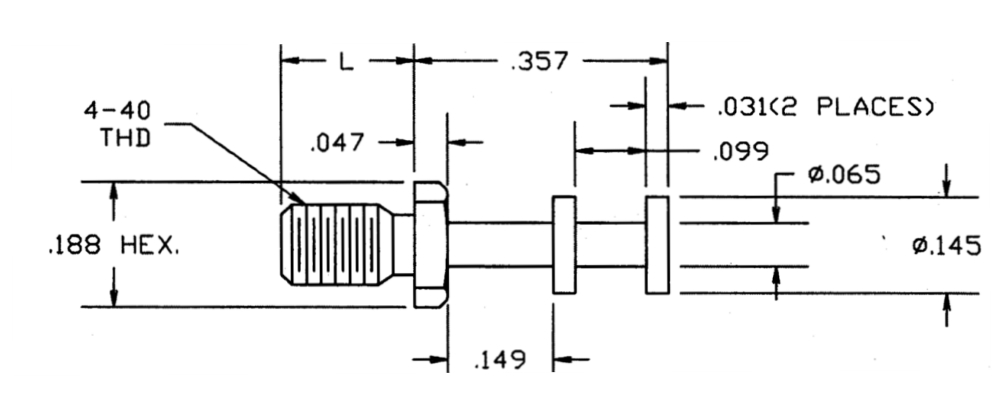

10-702-10-044
10-702-10-044
10-702-10-044
0.669" - - 4-40 - - 4-40 THREAD Brass Bright Tin YES
09-0260-1-01
09-0260-1-01
09-0260-1-01
0.376" (0.040 (+0.000/-0.003))/(0.040) Pin/Pin Solder 0.064" 1/32 0.070 Brass Silver YES
10-717-12-044
10-717-12-044
10-717-12-044
0.844" - - 6-32 - - 6-32 THREAD Brass Bright Tin YES
10-8014-2-05
10-8014-2-05
10-8014-2-05
0.350" 0.019 SLOTTED/PIN Press Fit/Solder 0.068" 1/64 to 1/32 0.055 Brass Electro Solder NO
10-948-4-01
10-948-4-01
10-948-4-01
0.329" - - Swage Mount 0.156" 1/8 0.0635 Brass Silver YES
09-0272-1-05
09-0272-1-05
09-0272-1-05
0.243" - - Swage Mount 0.055" 1/32 0.067 Brass Electro Solder NO
09-8012-1-05
09-8012-1-05
09-8012-1-05
0.631" 0.020 - Swage Mount 0.051" 1/32 0.043 Brass Electro Solder NO
09-8008-2-05
09-8008-2-05
09-8008-2-05
0.832" 0.020 - Swage Mount 0.082" 1/16 0.043 Brass Electro Solder NO
09-7020-3-05
09-7020-3-05
09-7020-3-05
0.257" - - Swage Mount 0.117" 3/32 0.059 Brass Electro Solder NO
09-8810-2-095
09-8810-2-095
09-8810-2-095
0.300" 0.040 - Swage Mount 0.094" 1/16 0.067 Brass Hot Solder Dip NO
10-218-3-01
10-218-3-01
10-218-3-01
0.372" - - Swage Mount 0.135" 3/32 0.094 Brass Silver YES
09-0040-1-02
09-0040-1-02
09-0040-1-02
1.1875" 0.055 - - - - - Brass Nickel YES
10-461-3-04
10-461-3-04
10-461-3-04
0.427" - - Swage Mount 0.115" 3/32 0.043 Brass Electro-Tin YES
10-303-3-088
10-303-3-088
10-303-3-088
0.463" - - Swage Mount 0.135" 3/32 0.116 Brass Bright Tin-Lead NO
10-530-4-088
10-530-4-088
10-530-4-088
0.634" - TURRET/DOUBLE TURRET Swage Mount 0.165" 1/8 0.159 Brass Bright Tin-Lead NO
10-816-3-044
10-816-3-044
10-816-3-044
0.335" - - Swage Mount 0.135" 3/32 0.1495 Brass Bright Tin YES
09-0170-1-05
09-0170-1-05
09-0170-1-05
0.199" - - Swage Mount 0.062" 1/32 0.063 Brass Electro Solder NO
10-514-4-095
10-514-4-095
10-514-4-095
0.405" - Turret/Turret Swage Mount 0.165" 1/8 0.129 Brass Hot Solder Dip NO
10-468-4-044
10-468-4-044
10-468-4-044
0.404" - - Swage Mount 0.165" 1/8 0.094 Brass Bright Tin YES
09-8631-1-01
09-8631-1-01
09-8631-1-01
0.704" 0.032 - Swage Mount 0.051" 1/32 0.055 Brass Silver YES
