Commercial
Non-Insulated
Terminals

Filter

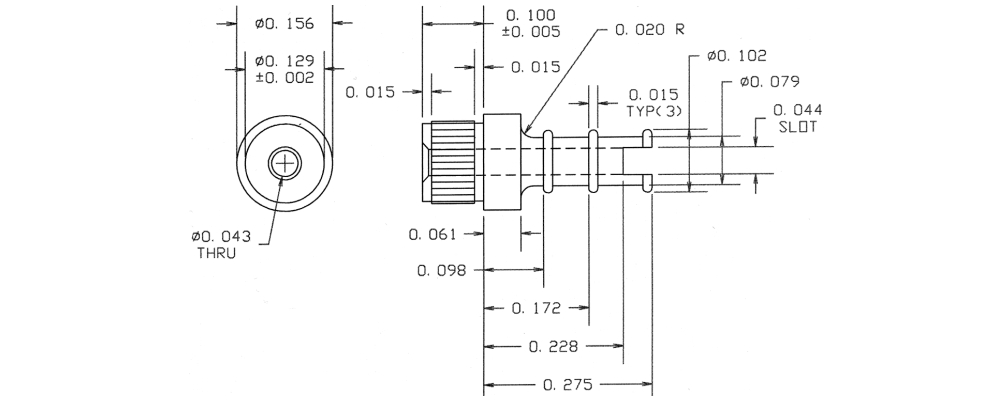

09-0037-2-01
09-0037-2-01
09-0037-2-01
0.375" - - Press Fit/Solder 0.100" 1/16 0.1285 Brass Silver YES

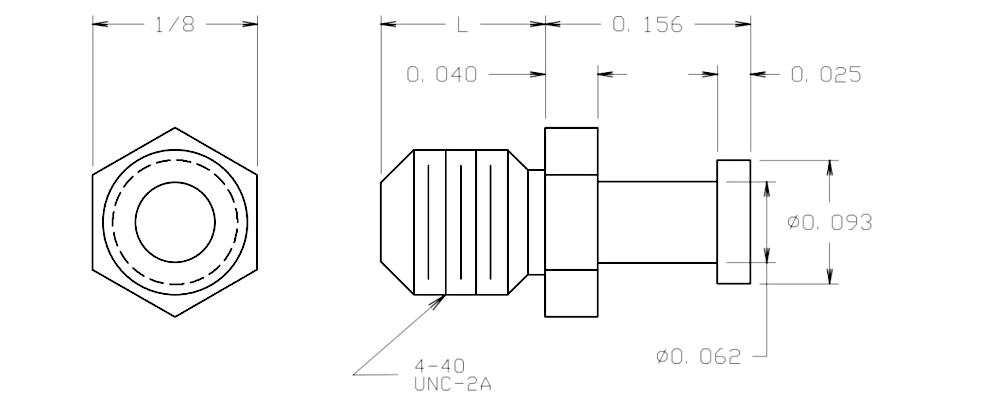

09-0104-10-035
09-0104-10-035
09-0104-10-035
0.466" - - 4-40 - - 4-40 THREAD Brass Gold YES

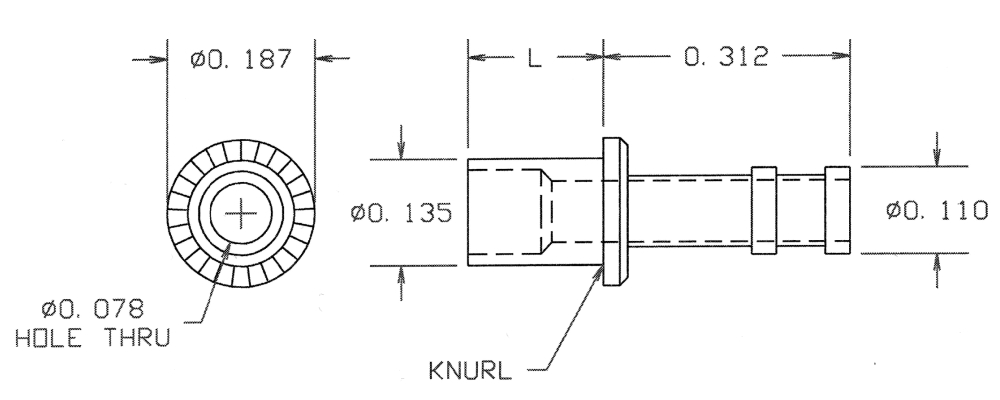

09-0168-4-04
09-0168-4-04
09-0168-4-04
0.484" - - Swage Mount 0.172" 1/8 0.141 Brass Electro-Tin YES
09-0208-4-044
09-0208-4-044
09-0208-4-044
0.329" - - Swage Mount 0.156" 1/8 0.067 LEADED Red Brass Bright Tin YES

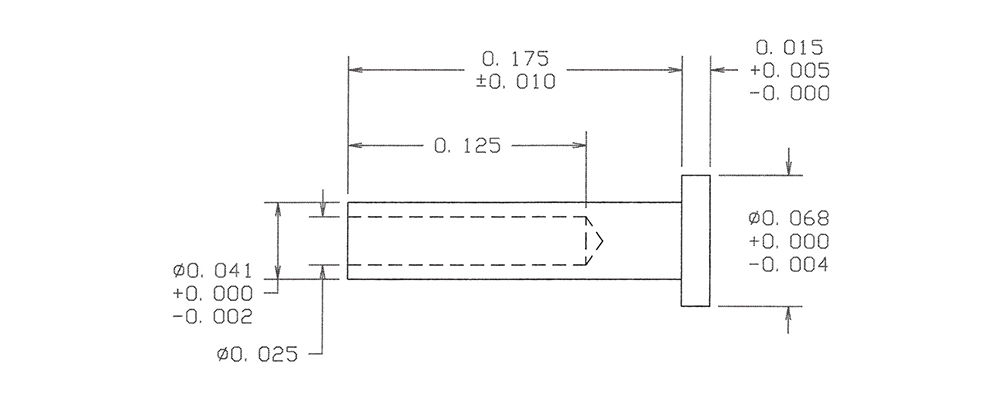

09-0246-1-05
09-0246-1-05
09-0246-1-05
0.190" 0.041 (+0.000/-0.002) - - - - - Brass Electro Solder NO
09-0294-7-04
09-0294-7-04
09-0294-7-04
0.565" - - Swage Mount 0.253" 7/32 0.116 Brass Electro-Tin YES

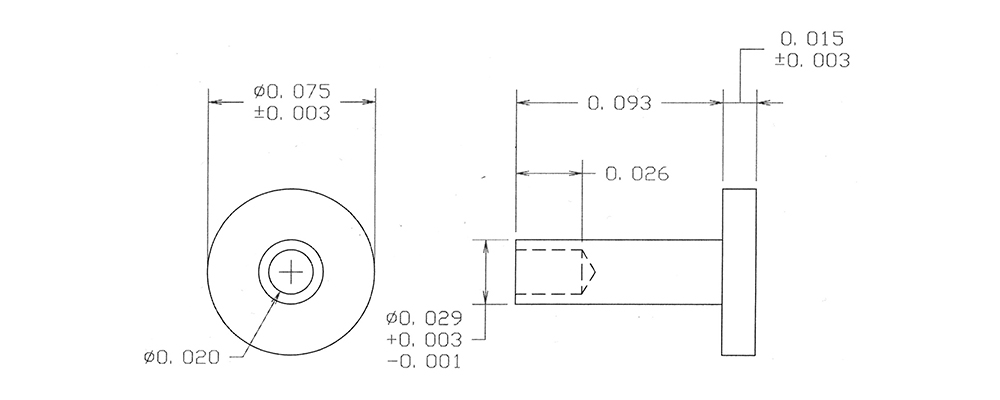

09-0356-1-04
09-0356-1-04
09-0356-1-04
0.108" 0.029 (+0.003/-0.001) - - 0.093" - - Brass Electro-Tin YES
09-7013-2-095
09-7013-2-095
09-7013-2-095
0.255" - - Swage Mount 0.095" 1/16 0.067 LEADED Red Brass Hot Solder Dip NO

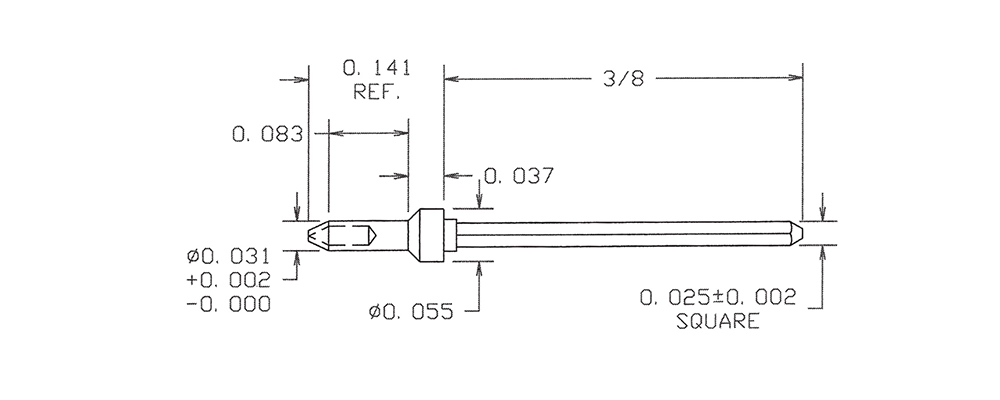

09-7122-1-01
09-7122-1-01
09-7122-1-01
0.516" 0.025 SQ. - RIVET MOUNT 0.083" 1/16 0.035 Brass Silver YES

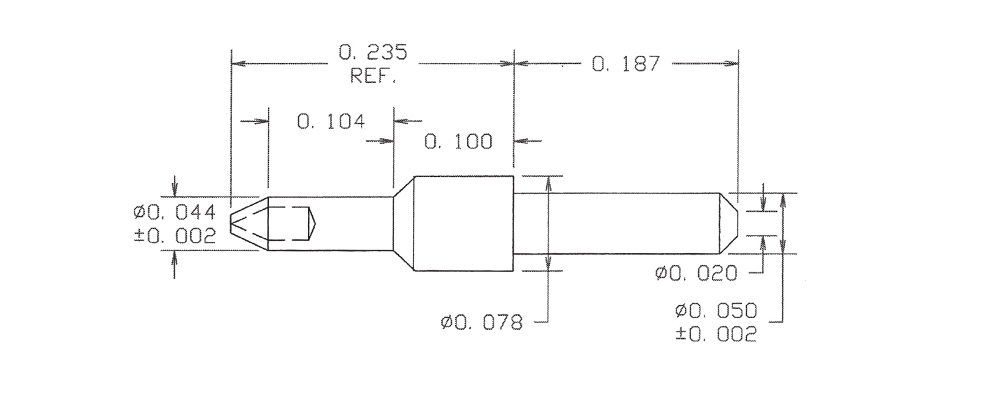

09-7151-2-044
09-7151-2-044
09-7151-2-044
0.422" 0.050 - RIVET MOUNT 0.104" 1/16 0.048 Brass Bright Tin YES

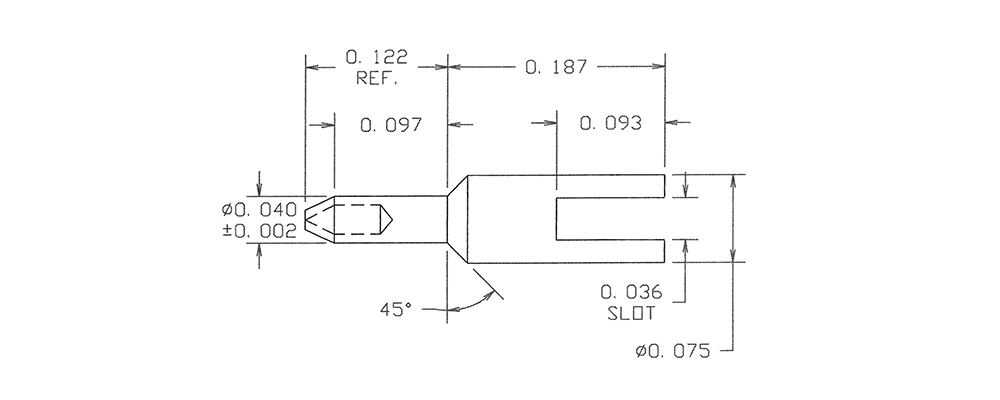

09-7184-2B-03
09-7184-2B-03
09-7184-2B-03
0.309" - - RIVET MOUNT 0.097" 9/128 0.044 Brass Gold YES

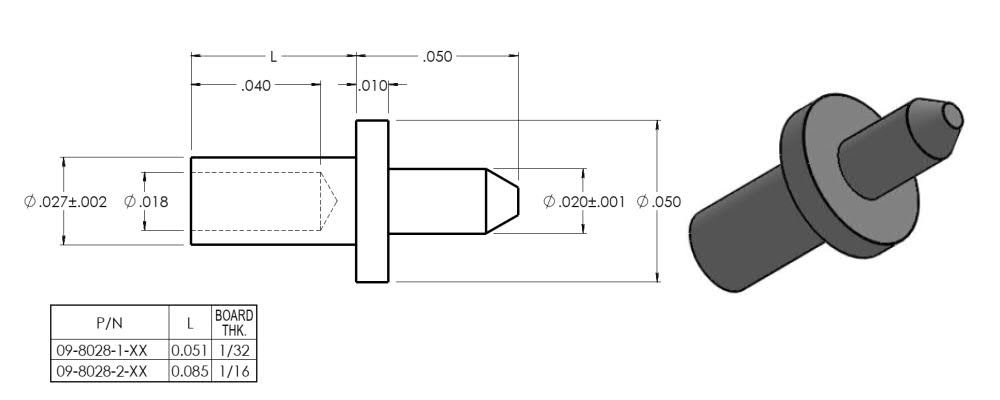

09-8028-1-05
09-8028-1-05
09-8028-1-05
0.101" 0.020 - Swage Mount 0.051" 1/32 0.031 Brass Electro Solder NO

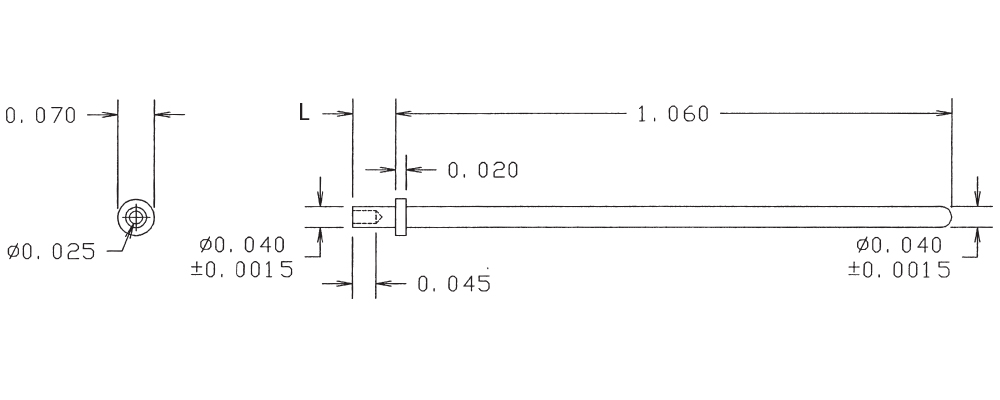

09-8061-1-03
09-8061-1-03
09-8061-1-03
1.111" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES

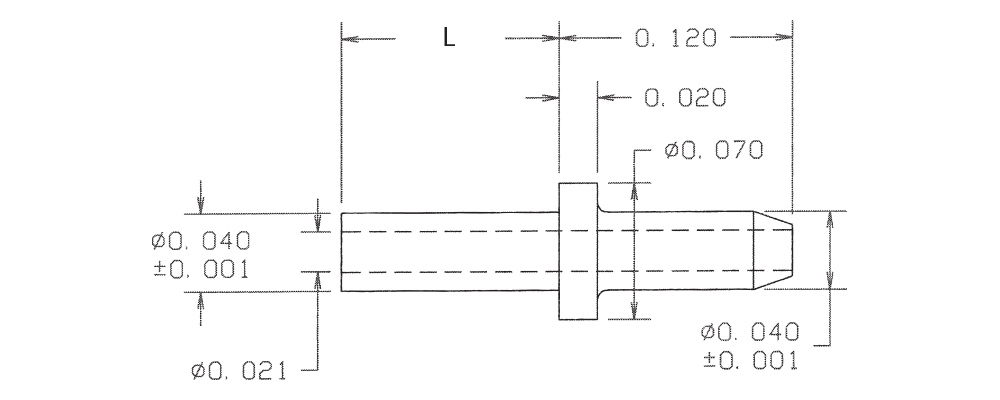

09-8113-1-05
09-8113-1-05
09-8113-1-05
0.171" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Electro Solder NO

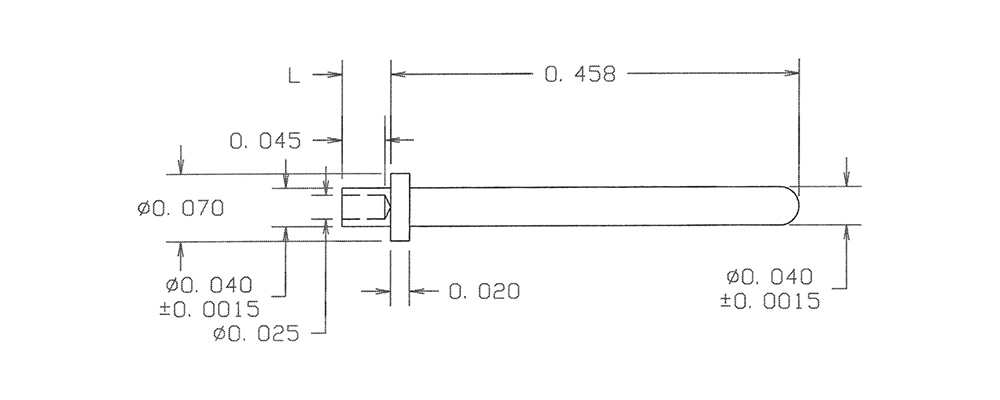

09-8157-1-035
09-8157-1-035
09-8157-1-035
0.509" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES

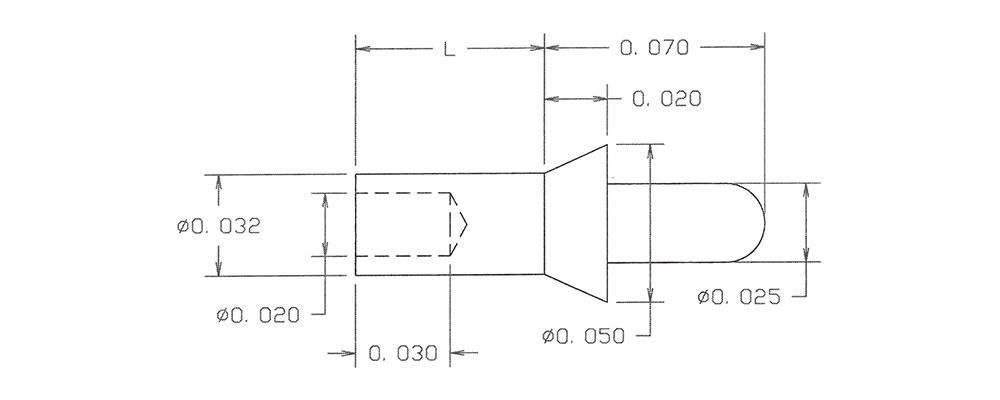

09-8186-1-088
09-8186-1-088
09-8186-1-088
0.117" 0.025 - Swage Mount 0.047" 1/32 0.035 Brass Bright Tin-Lead NO
09-8390-2-05
09-8390-2-05
09-8390-2-05
0.328" 0.025 - Swage Mount 0.078" 1/16 0.035 Brass Electro Solder NO

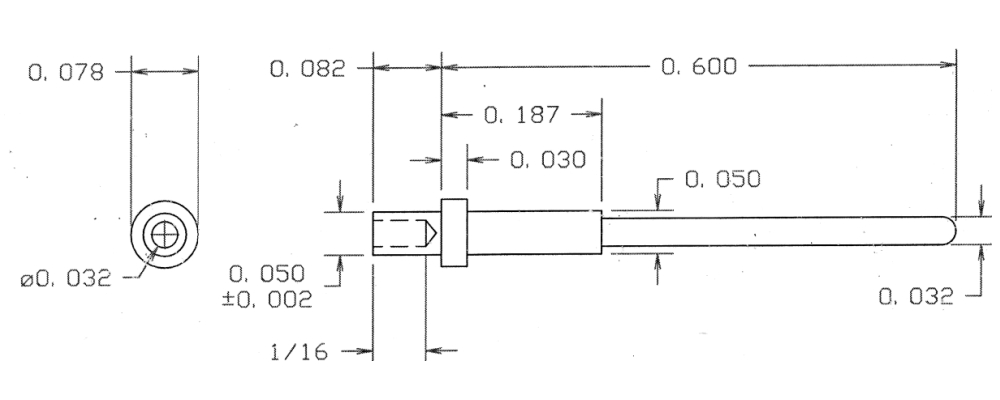

09-8618-2-03
09-8618-2-03
09-8618-2-03
0.682" 0.032 - Swage Mount 0.082" 1/16 0.055 Brass Gold YES

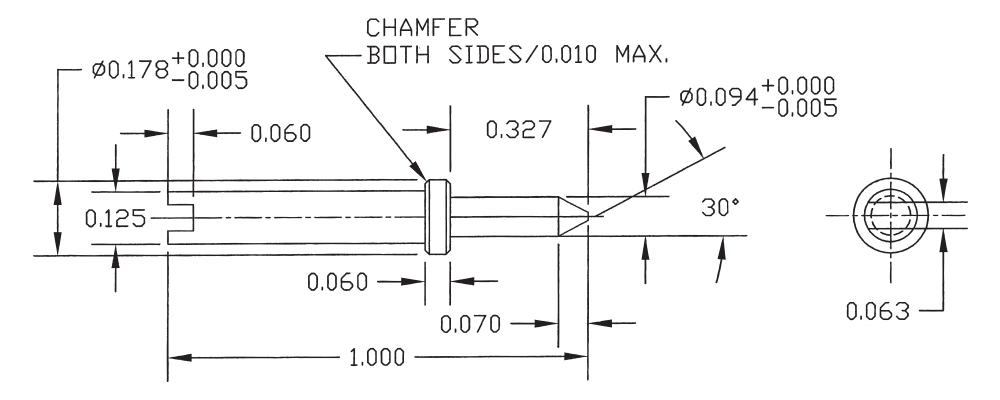

09-8724-1-05
09-8724-1-05
09-8724-1-05
1.000" 0.094 (+0.000/-0.005) SLOTTED/PIN - - - - Beryllium Copper Electro Solder NO

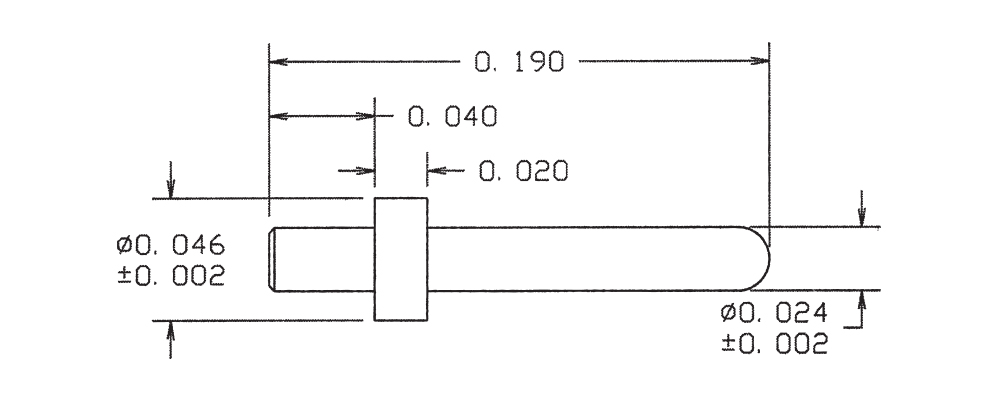

09-8827-1-044
09-8827-1-044
09-8827-1-044
0.190" 0.024 - Solder 0.040" 1/64 0.028 Brass Bright Tin YES
