Commercial
Non-Insulated
Terminals

Filter
09-0246-1-044
09-0246-1-044
09-0246-1-044
0.190" 0.041 (+0.000/-0.002) - - - - - Brass Bright Tin YES

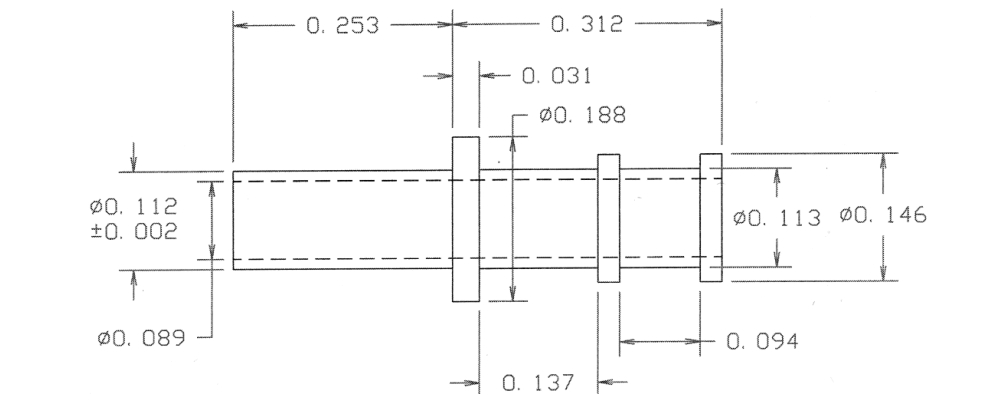

09-0294-7-035
09-0294-7-035
09-0294-7-035
0.565" - - Swage Mount 0.253" 7/32 0.116 Brass Gold YES

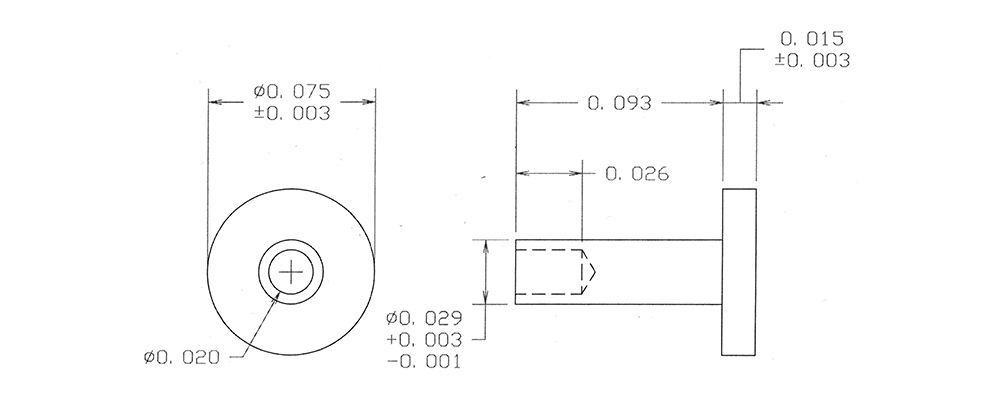

09-0356-1-035
09-0356-1-035
09-0356-1-035
0.108" 0.029 (+0.003/-0.001) - - 0.093" - - Brass Gold YES
09-7013-2-088
09-7013-2-088
09-7013-2-088
0.255" - - Swage Mount 0.095" 1/16 0.067 LEADED Red Brass Bright Tin-Lead NO

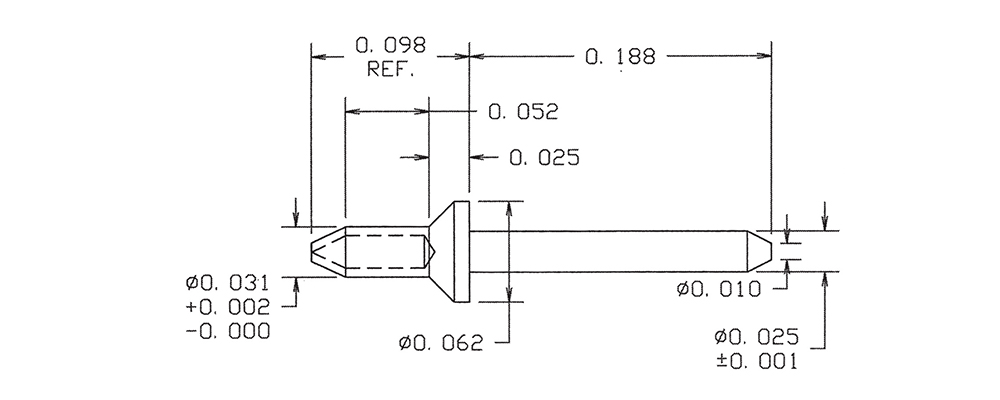

09-7121-1-088
09-7121-1-088
09-7121-1-088
0.286" 0.025 - RIVET MOUNT 0.052" 1/32 0.035 Brass Bright Tin-Lead NO

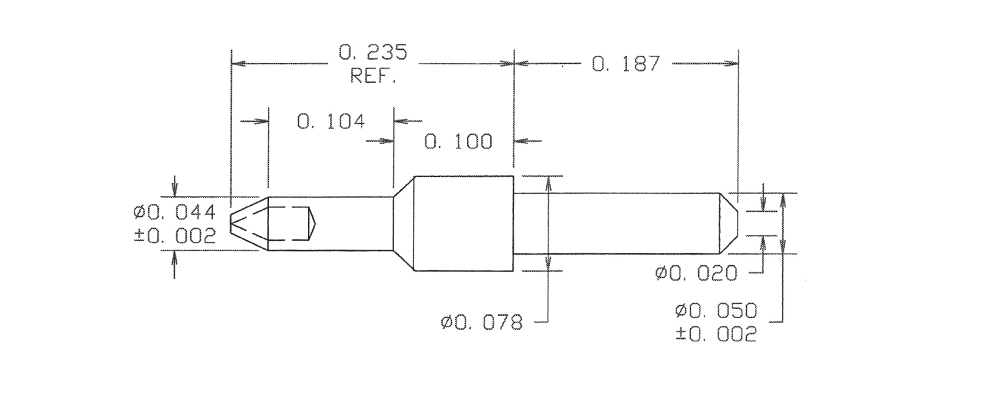

09-7151-2-04
09-7151-2-04
09-7151-2-04
0.422" 0.050 - RIVET MOUNT 0.104" 1/16 0.048 Brass Electro-Tin YES

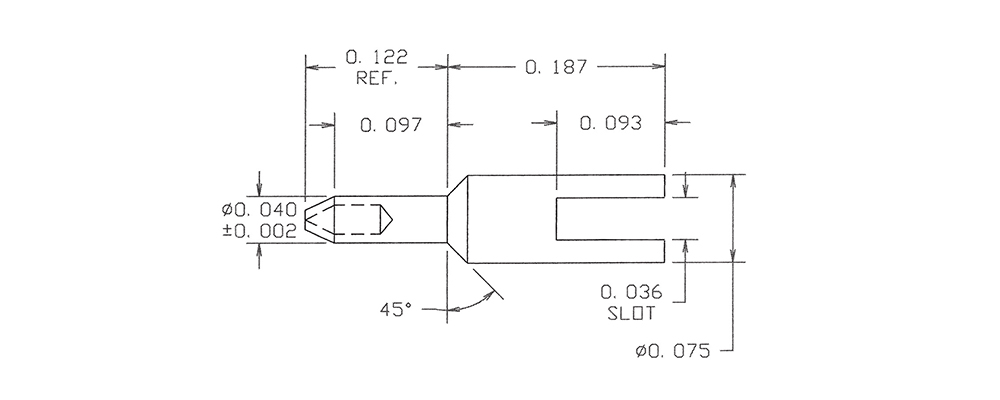

09-7184-2B-01
09-7184-2B-01
09-7184-2B-01
0.309" - - RIVET MOUNT 0.097" 9/128 0.044 Brass Silver YES

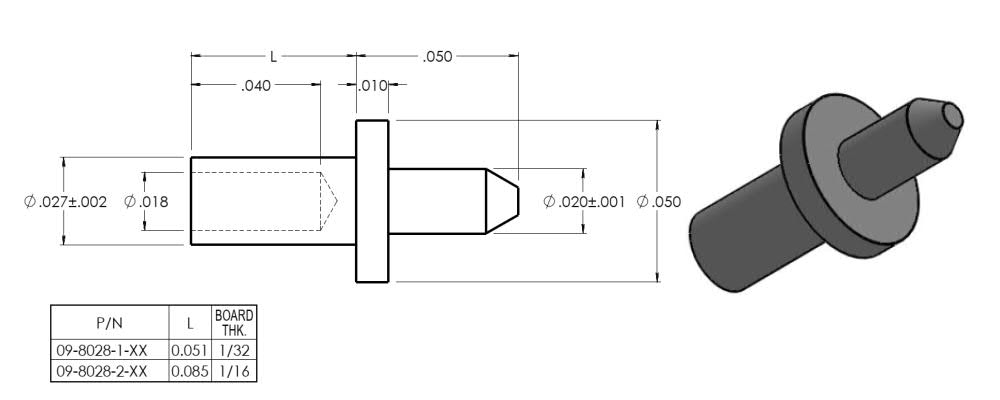

09-8028-1-044
09-8028-1-044
09-8028-1-044
0.101" 0.020 - Swage Mount 0.051" 1/32 0.031 Brass Bright Tin YES
09-8061-1-01
09-8061-1-01
09-8061-1-01
1.111" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Silver YES

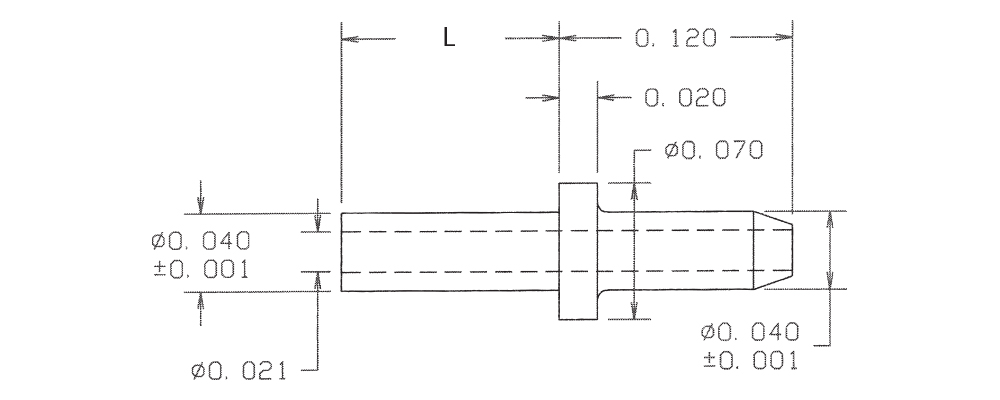

09-8113-1-044
09-8113-1-044
09-8113-1-044
0.171" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin YES

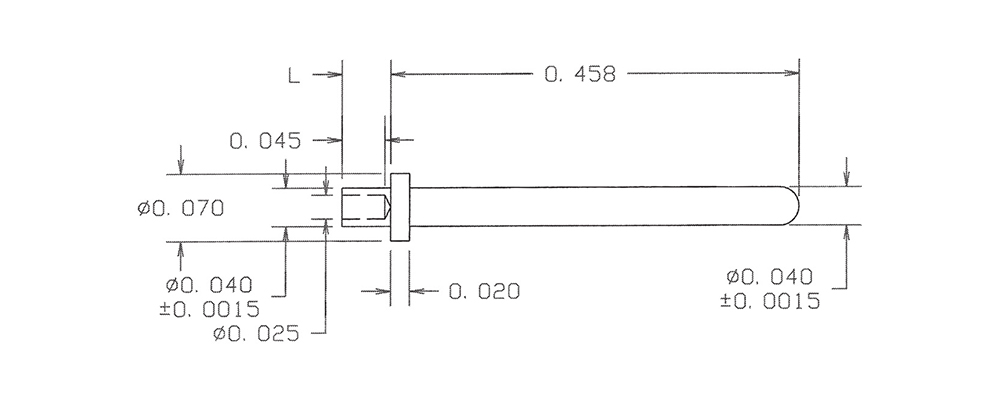

09-8157-1-03
09-8157-1-03
09-8157-1-03
0.509" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES

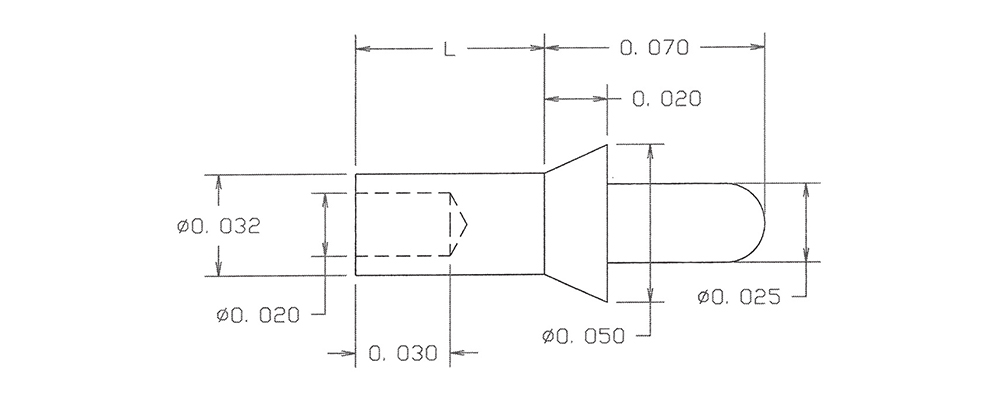

09-8186-1-05
09-8186-1-05
09-8186-1-05
0.117" 0.025 - Swage Mount 0.047" 1/32 0.035 Brass Electro Solder NO
09-8390-2-044
09-8390-2-044
09-8390-2-044
0.328" 0.025 - Swage Mount 0.078" 1/16 0.035 Brass Bright Tin YES

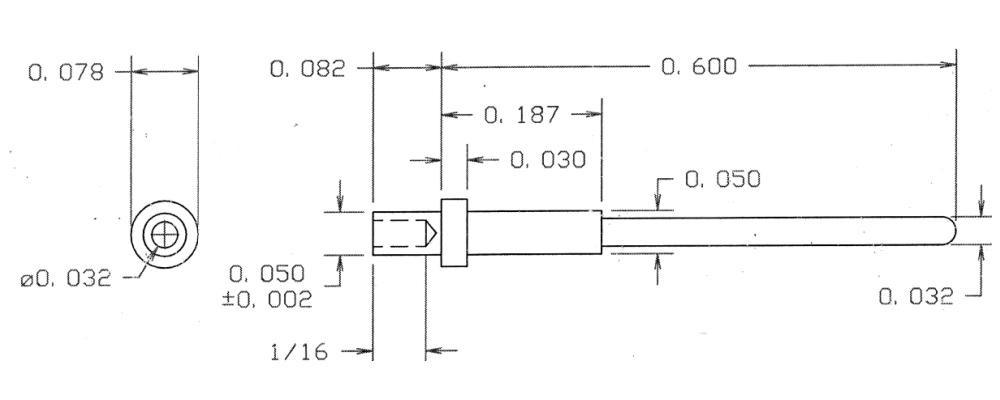

09-8618-2-01
09-8618-2-01
09-8618-2-01
0.682" 0.032 - Swage Mount 0.082" 1/16 0.055 Brass Silver YES

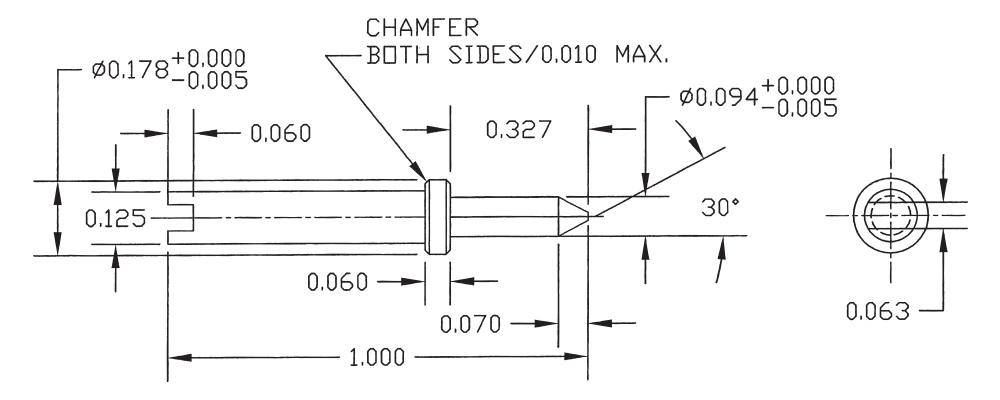

09-8724-1-044
09-8724-1-044
09-8724-1-044
1.000" 0.094 (+0.000/-0.005) SLOTTED/PIN - - - - Beryllium Copper Bright Tin YES

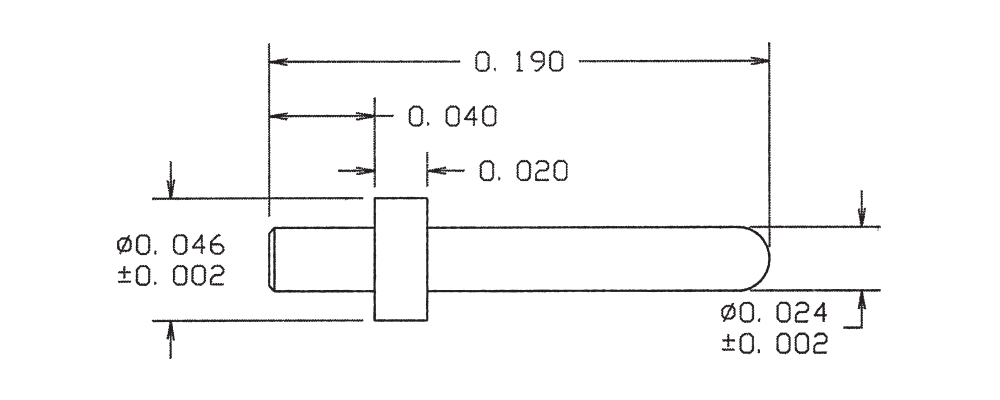

09-8827-1-04
09-8827-1-04
09-8827-1-04
0.190" 0.024 - Solder 0.040" 1/64 0.028 Brass Electro-Tin YES

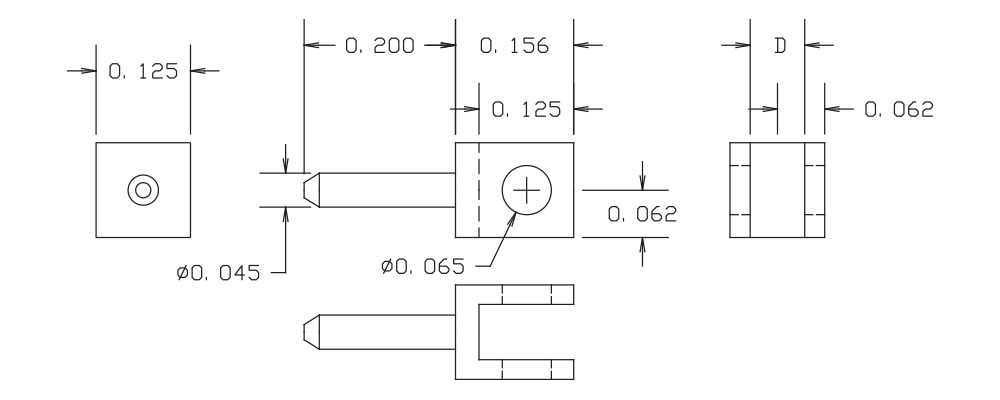

09-9504-1-044
09-9504-1-044
09-9504-1-044
0.356" 0.045 - 0-80 Screw - 1/32 CLEARANCE FOR #0 Screw Brass Bright Tin YES

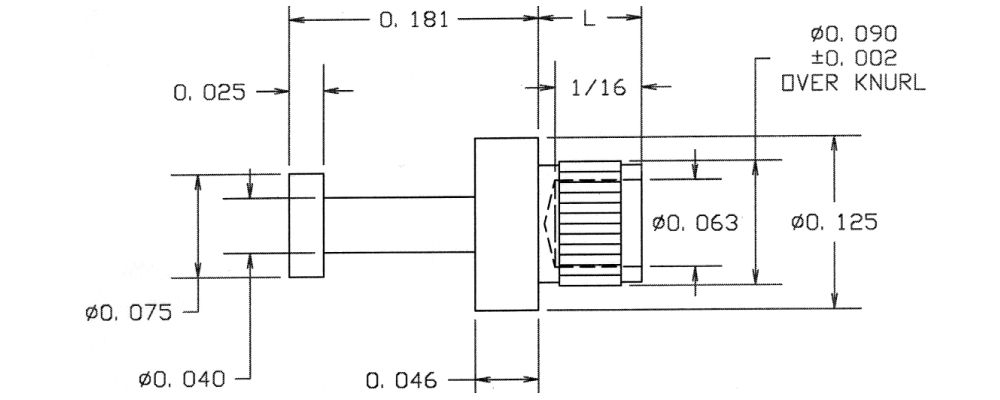

10-106-3-035
10-106-3-035
10-106-3-035
0.316" - - Swage Mount 0.135" 3/32 0.094 Brass Gold YES

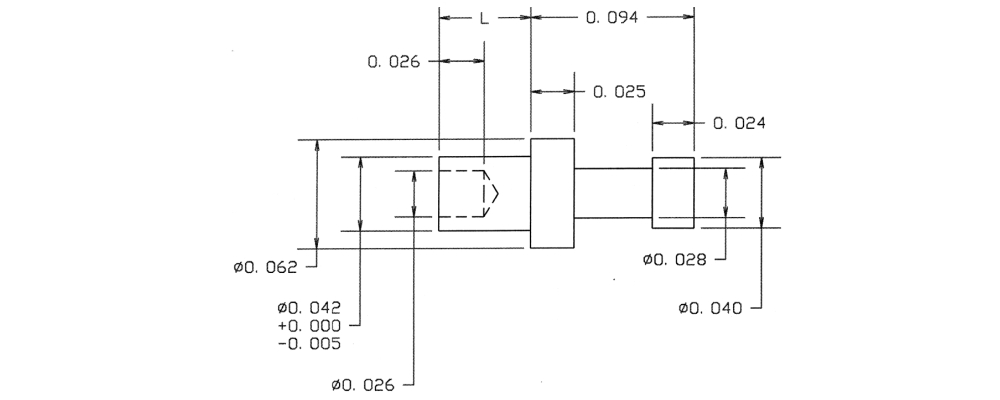

10-114-3-01
10-114-3-01
10-114-3-01
0.209" - - Swage Mount 0.115" 3/32 0.043 Brass Silver YES

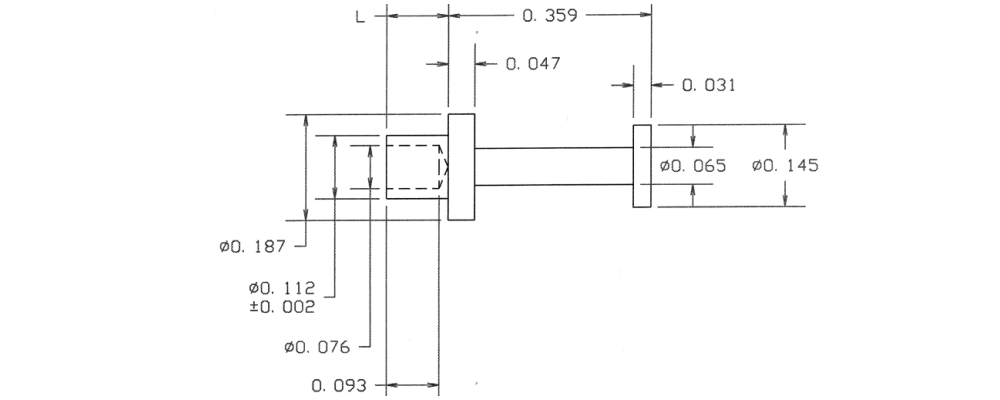

10-135-3-035
10-135-3-035
10-135-3-035
0.499" - - Swage Mount 0.140" 3/32 0.116 Brass Gold YES
