Commercial
Non-Insulated
Terminals

Filter
10-702-10-01
10-702-10-01
10-702-10-01
0.669" - - 4-40 - - 4-40 THREAD Brass Silver YES
10-754-4-044
10-754-4-044
10-754-4-044
0.687" - TURRET/THREAD Swage Mount 0.172" 1/8 0.242 Brass Bright Tin YES

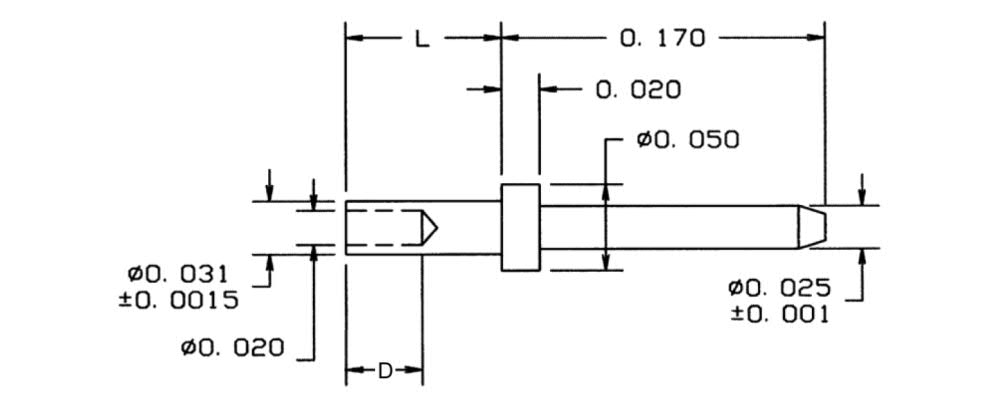

10-8017-2-04
10-8017-2-04
10-8017-2-04
0.252" 0.025 - Swage Mount 0.082" 1/16 0.035 Brass Electro-Tin YES

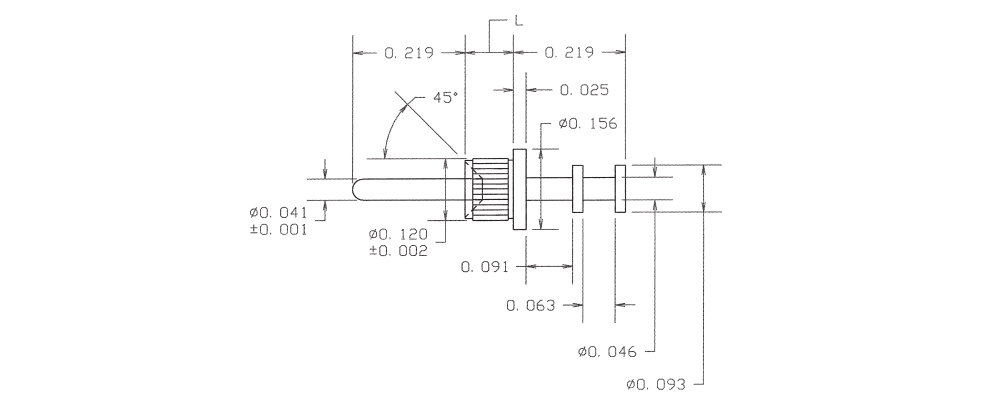

10-804-1-04
10-804-1-04
10-804-1-04
0.500" 0.041 DOUBLE TURRET/PIN Swage Mount 0.062" 1/32 0.125 Brass Electro-Tin YES

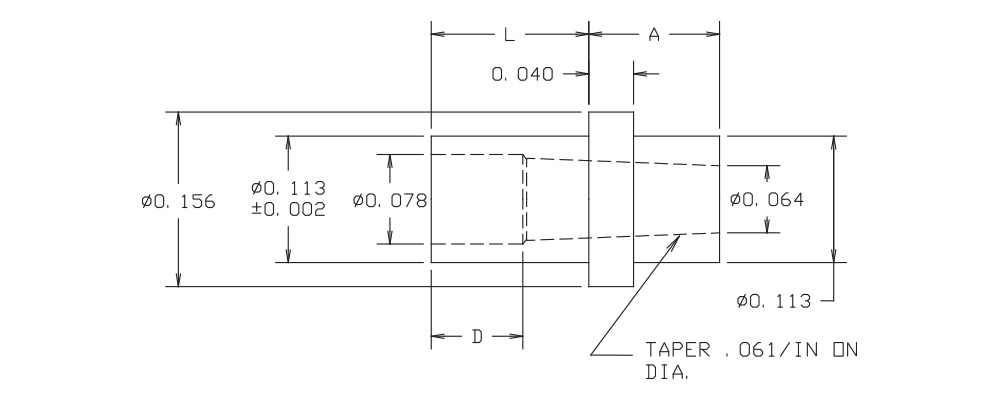

10-809-8-044
10-809-8-044
10-809-8-044
0.383" - - Swage Mount 0.297" 1/4 0.116 Brass Bright Tin YES

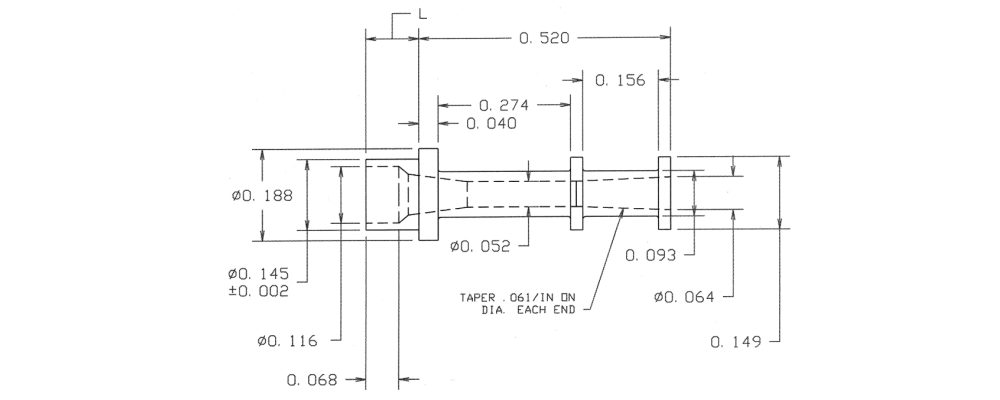

10-817-1-03
10-817-1-03
10-817-1-03
0.598" - - Swage Mount 0.078" 1/32 0.1495 Brass Gold YES

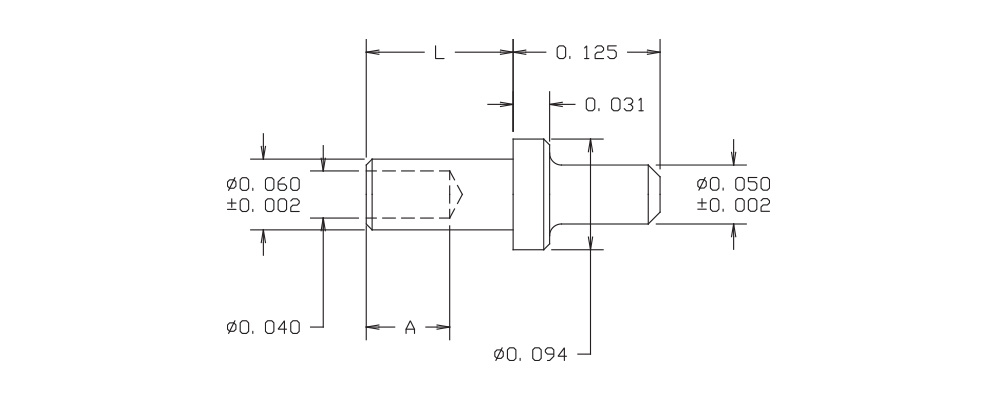

10-829-1-044
10-829-1-044
10-829-1-044
0.188" 0.050 - Swage Mount 0.063" 1/32 0.063 Brass Bright Tin YES

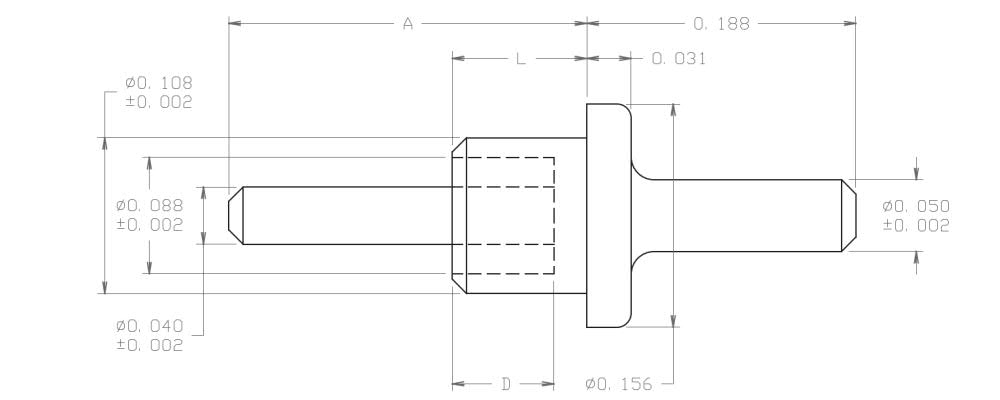

10-837-6-04
10-837-6-04
10-837-6-04
0.563" 0.050 Pin/Pin Swage Mount 0.219" 3/16 0.111 Brass Electro-Tin YES
10-855-12-01
10-855-12-01
10-855-12-01
0.687" 0.050 - 4-40 - - 4-40 THREAD Brass Silver YES

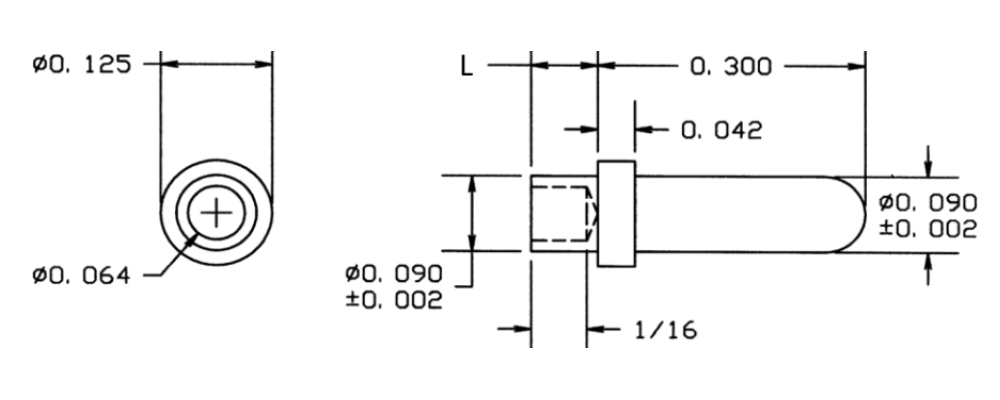

10-874-3-088
10-874-3-088
10-874-3-088
0.435" 0.090 - Swage Mount 0.135" 3/32 0.094 Brass Bright Tin-Lead NO

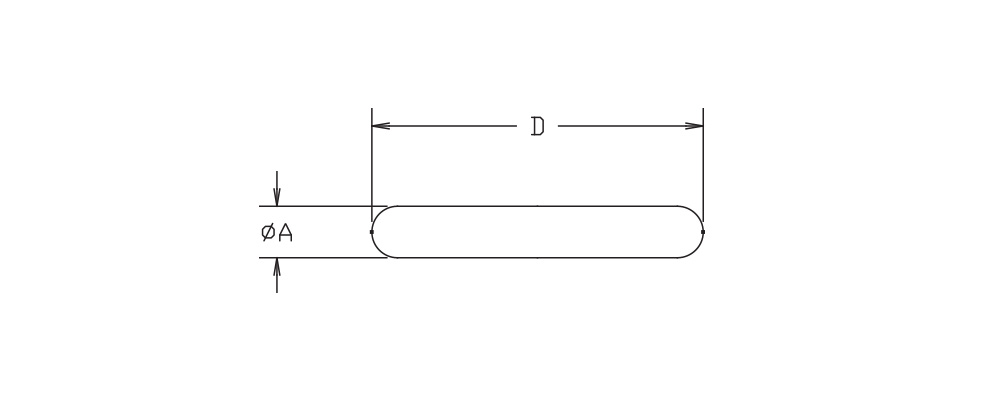

10-895-12-05
10-895-12-05
10-895-12-05
0.900" 0.062 - - - - - Brass Electro Solder NO

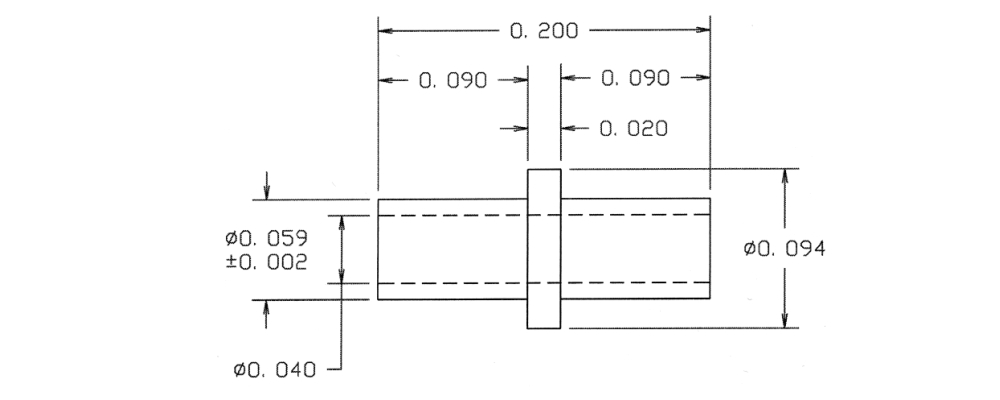

10-913-2-01
10-913-2-01
10-913-2-01
0.200" 0.059 - Swage Mount 0.090" 1/16 0.0635 Brass Silver YES

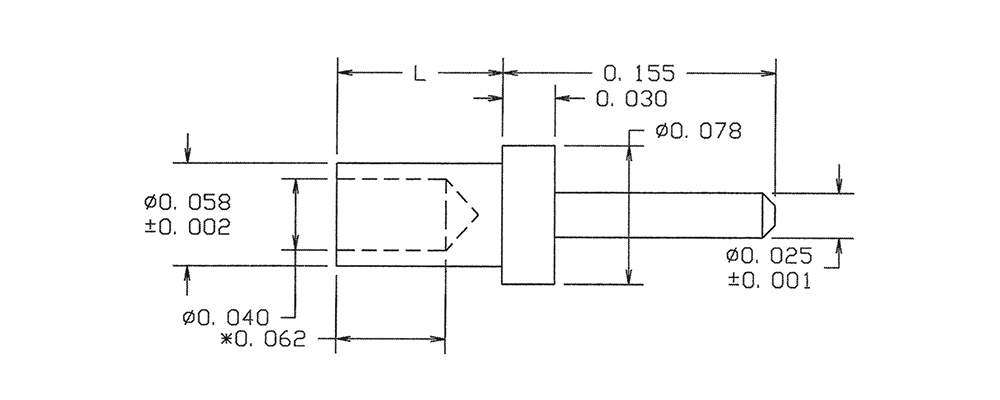

10-925-3-01
10-925-3-01
10-925-3-01
0.280" 0.025 - Swage Mount 0.125" 3/32 0.0625 Brass Silver YES

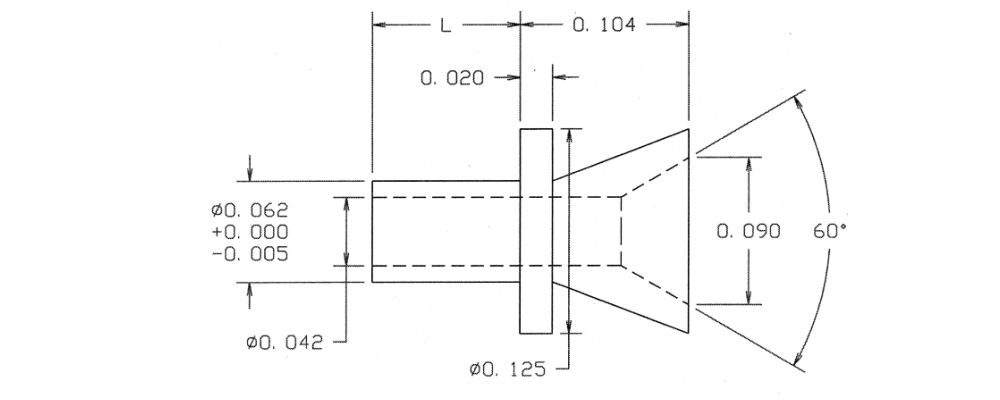

10-961-4-03
10-961-4-03
10-961-4-03
0.260" - - Swage Mount 0.156" 1/8 0.0635 Brass Gold YES
14-348-3-044
14-348-3-044
14-348-3-044
0.463" - - Swage Mount 0.135" 3/32 0.082 LEADED Red Brass Bright Tin YES

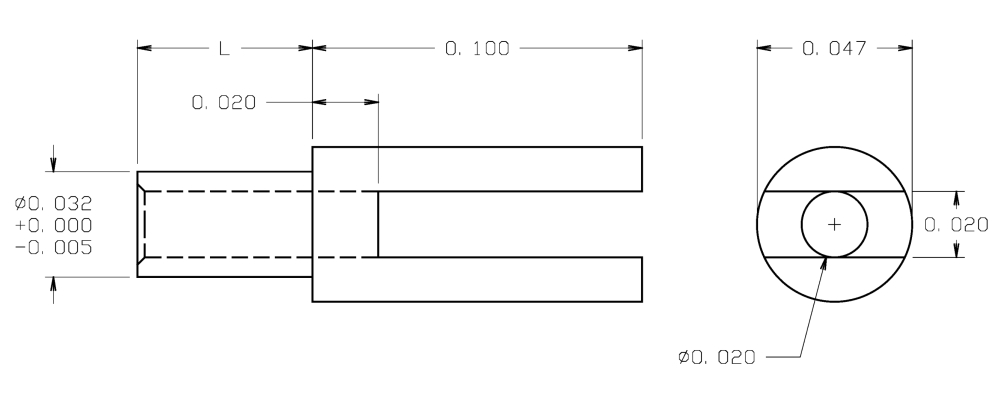

09-0118-1-05
09-0118-1-05
09-0118-1-05
0.153" - - Swage Mount 0.053" 1/32 0.033 Brass Electro Solder NO

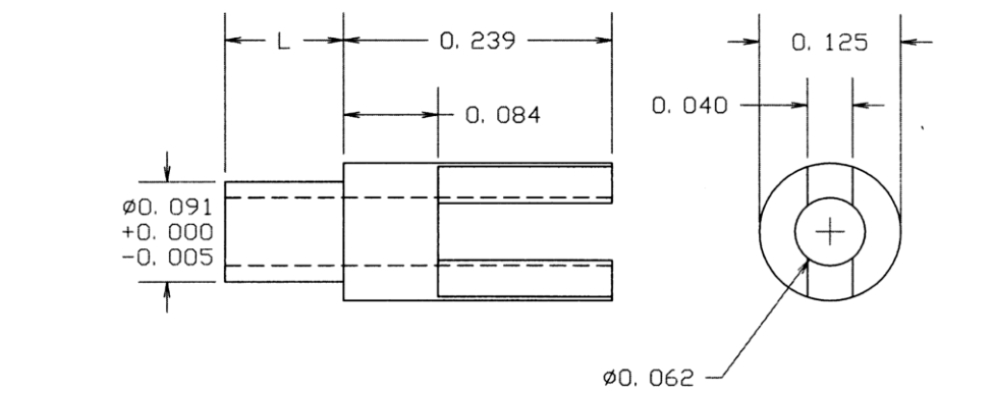

10-412-4-03
10-412-4-03
10-412-4-03
0.404" - - Swage Mount 0.165" 1/8 0.094 Brass Gold YES

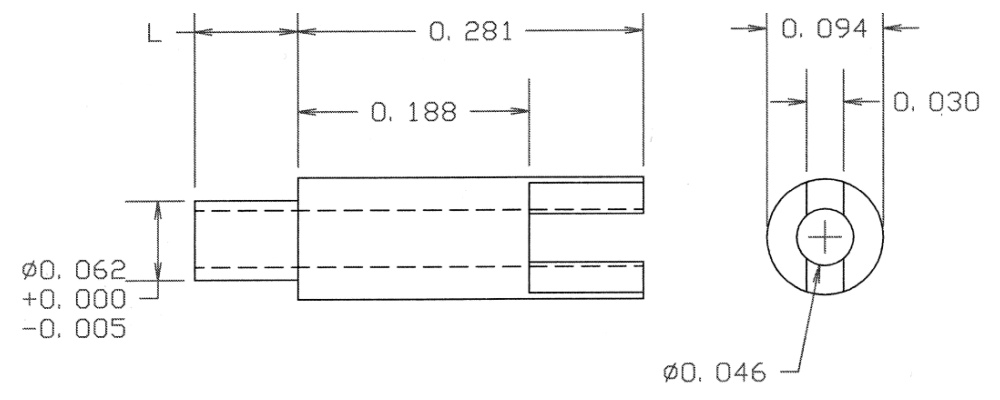

10-447-1-05
10-447-1-05
10-447-1-05
0.334" - - Swage Mount 0.053" 1/32 0.063 Brass Electro Solder NO

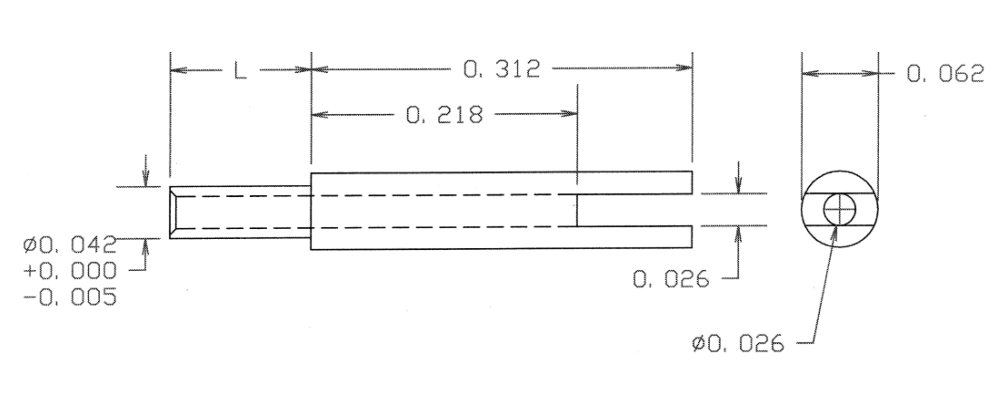

10-461-3-035
10-461-3-035
10-461-3-035
0.427" - - Swage Mount 0.115" 3/32 0.043 Brass Gold YES

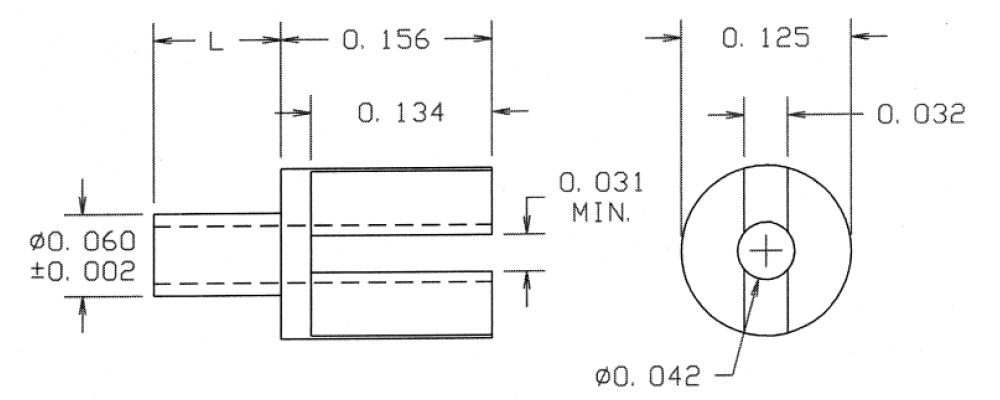

10-932-2-088
10-932-2-088
10-932-2-088
0.250" - - Swage Mount 0.094" 1/16 0.0635 Brass Bright Tin-Lead NO
