Commercial
Non-Insulated
Terminals

Filter

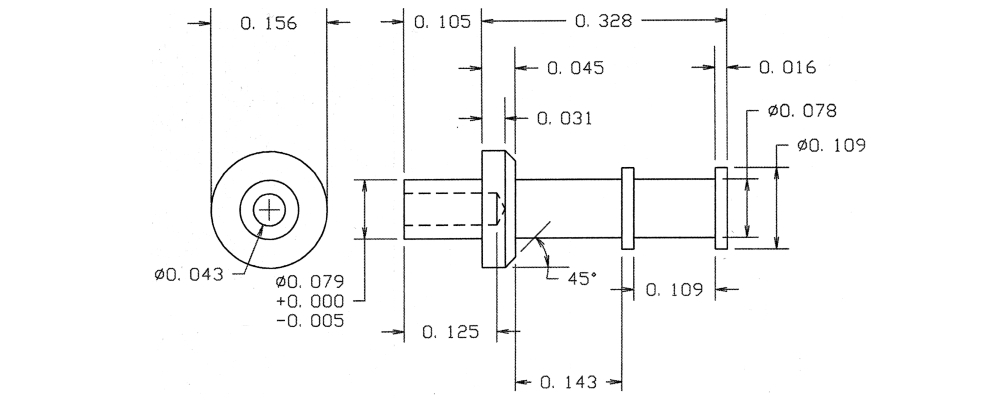

09-0035-2-04
09-0035-2-04
09-0035-2-04
0.433" - - Swage Mount 0.105" 1/16 0.081 Brass Electro-Tin YES

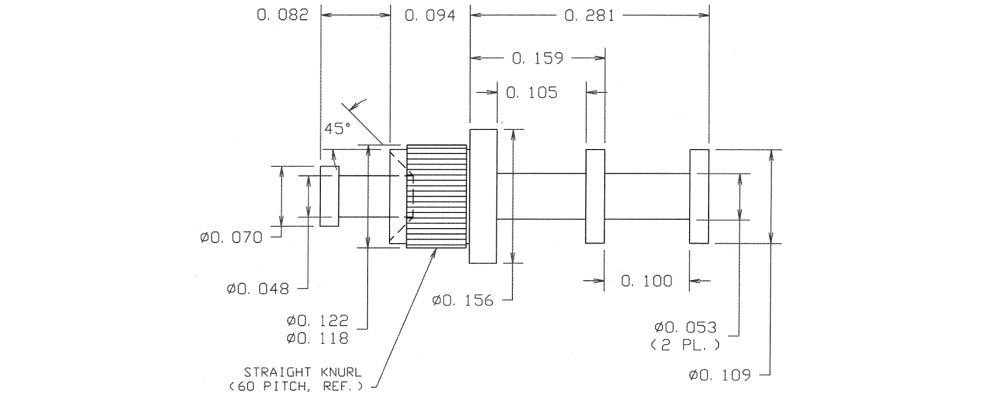

09-0090-2-044
09-0090-2-044
09-0090-2-044
0.457" - Turret/Turret Swage Mount 0.094" 1/16 0.125 Brass Bright Tin YES

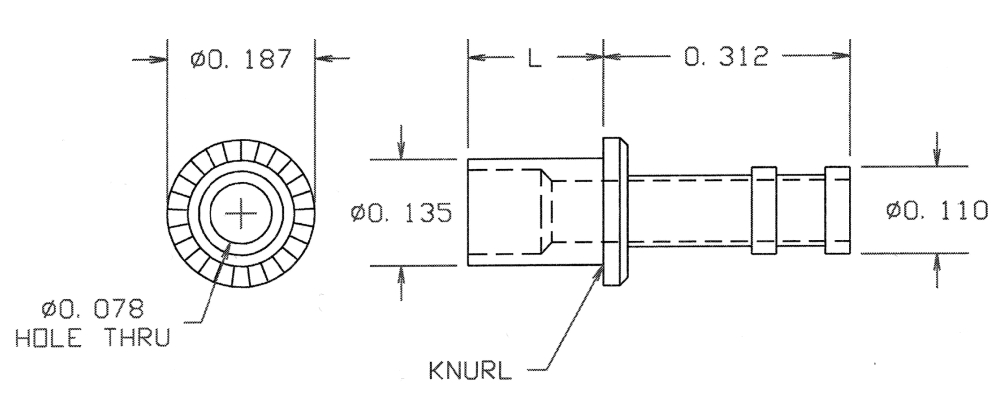

09-0168-3-05
09-0168-3-05
09-0168-3-05
0.453" - - Swage Mount 0.141" 3/32 0.141 Brass Electro Solder NO

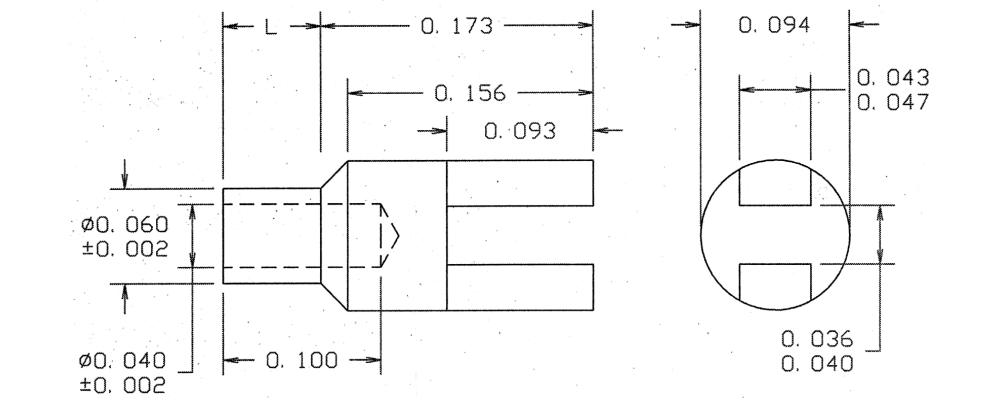

09-0208-3-095
09-0208-3-095
09-0208-3-095
0.298" - - Swage Mount 0.125" 3/32 0.067 LEADED Red Brass Hot Solder Dip NO

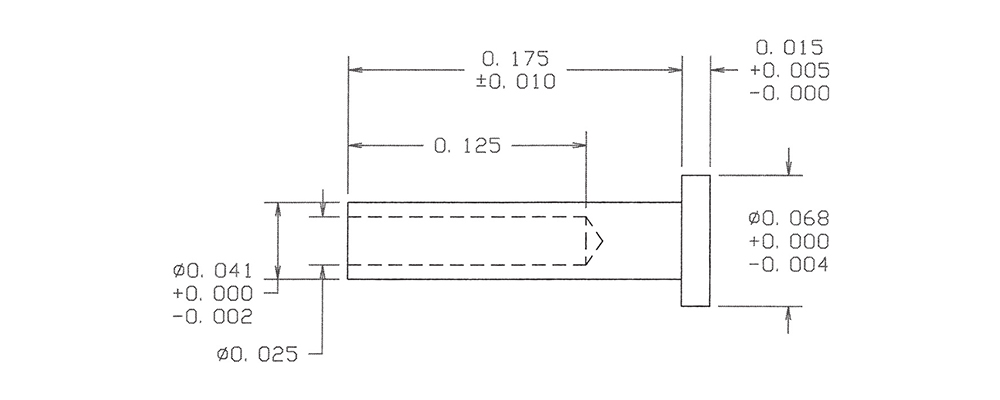

09-0246-1-01
09-0246-1-01
09-0246-1-01
0.190" 0.041 (+0.000/-0.002) - - - - - Brass Silver YES

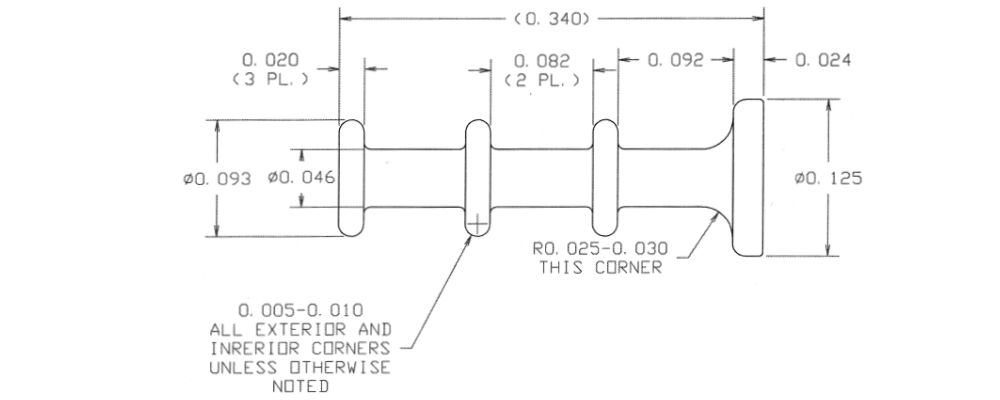

09-0293-1-088
09-0293-1-088
09-0293-1-088
0.340" - - Solder - - - Brass Bright Tin-Lead NO

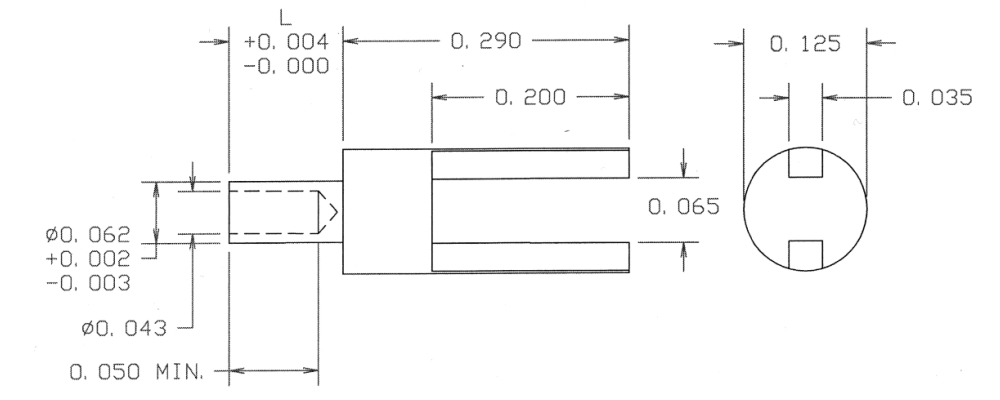

09-0353-5-088
09-0353-5-088
09-0353-5-088
0.468" - - Swage Mount 0.178" 5/32 0.067 Brass Bright Tin-Lead NO

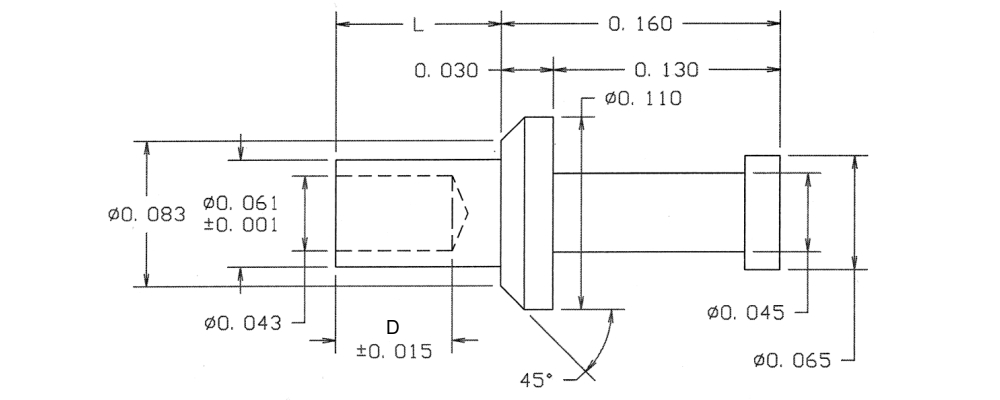

09-7013-2-035
09-7013-2-035
09-7013-2-035
0.255" - - Swage Mount 0.095" 1/16 0.067 LEADED Red Brass Gold YES

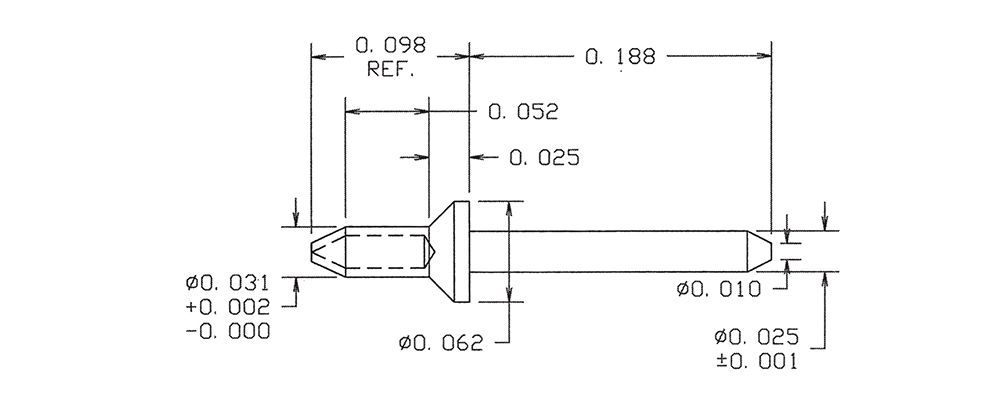

09-7121-1-035
09-7121-1-035
09-7121-1-035
0.286" 0.025 - RIVET MOUNT 0.052" 1/32 0.035 Brass Gold YES
09-7150-2-088
09-7150-2-088
09-7150-2-088
0.359" 0.050 - RIVET MOUNT 0.104" 1/16 0.048 Brass Bright Tin-Lead NO

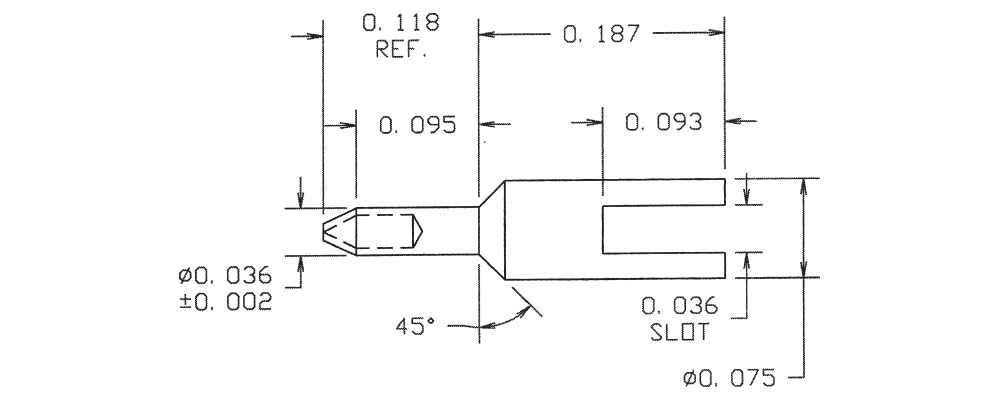

09-7183-2B-04
09-7183-2B-04
09-7183-2B-04
0.305" - - RIVET MOUNT 0.095" 9/128 0.040 Brass Electro-Tin YES

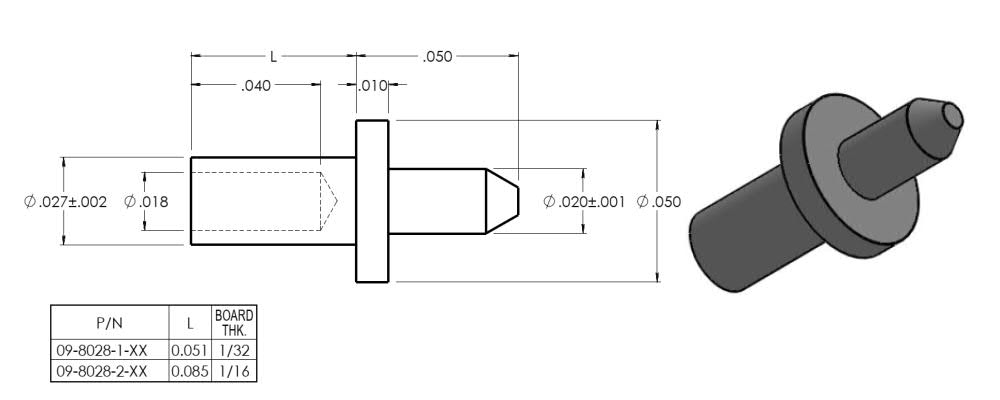

09-8028-1-01
09-8028-1-01
09-8028-1-01
0.101" 0.020 - Swage Mount 0.051" 1/32 0.031 Brass Silver YES

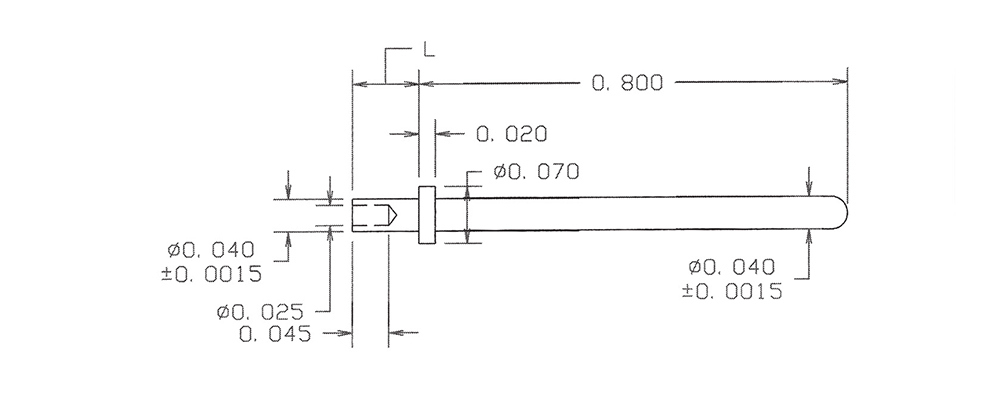

09-8060-2-04
09-8060-2-04
09-8060-2-04
0.882" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Electro-Tin YES

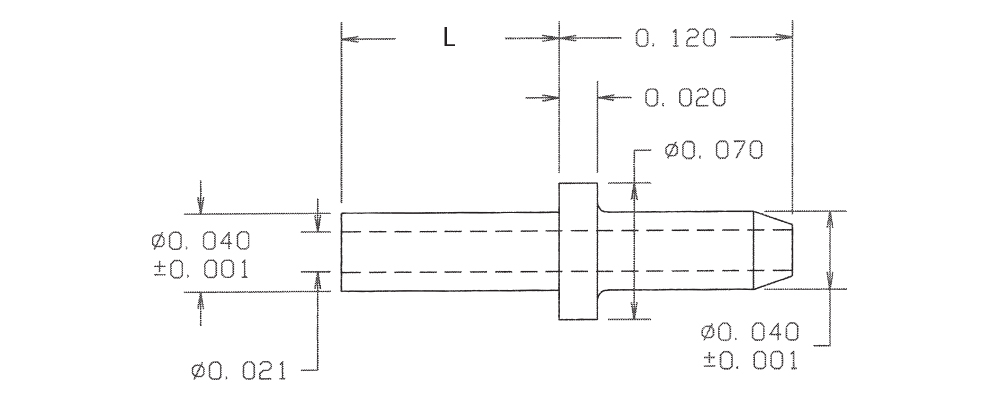

09-8113-1-01
09-8113-1-01
09-8113-1-01
0.171" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Silver YES
09-8156-4-044
09-8156-4-044
09-8156-4-044
0.450" 0.0405 - Swage Mount 0.150" 1/8 0.043 Brass Bright Tin YES

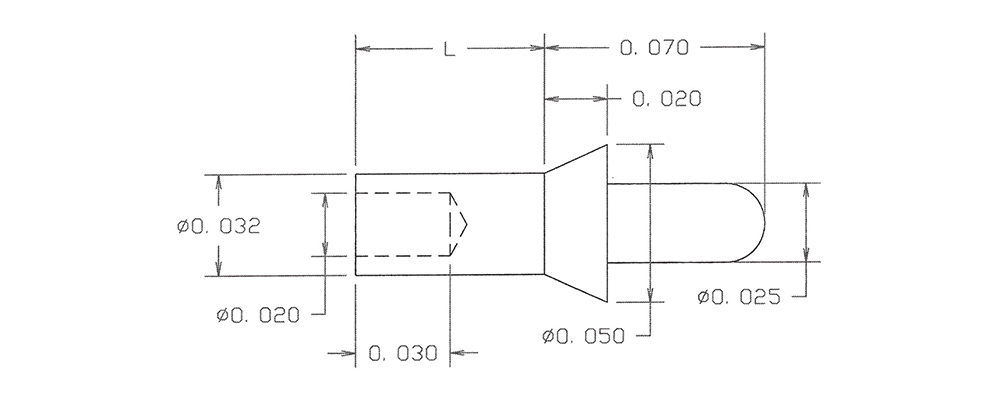

09-8186-1-03
09-8186-1-03
09-8186-1-03
0.117" 0.025 - Swage Mount 0.047" 1/32 0.035 Brass Gold YES

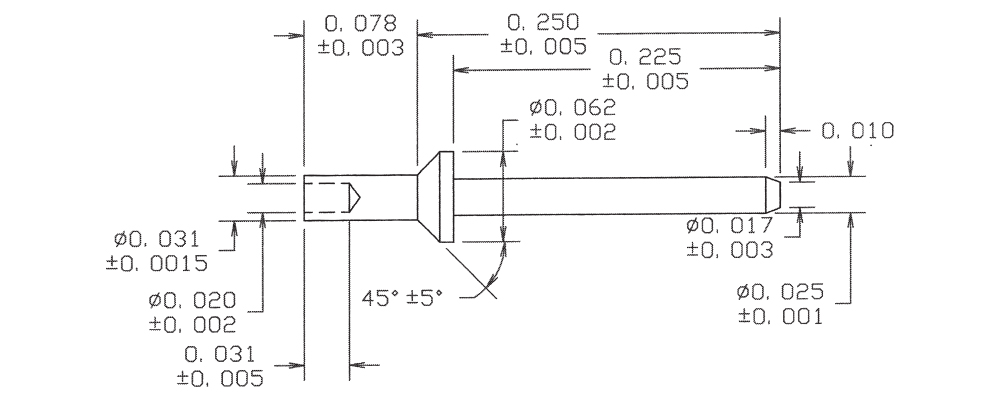

09-8390-2-01
09-8390-2-01
09-8390-2-01
0.328" 0.025 - Swage Mount 0.078" 1/16 0.035 Brass Silver YES

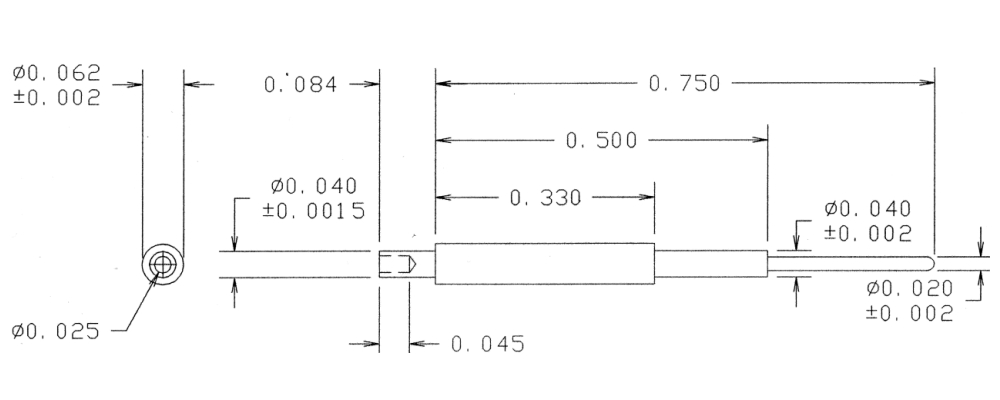

09-8617-2-044
09-8617-2-044
09-8617-2-044
0.834" 0.020 - Swage Mount 0.084" 1/16 0.043 Brass Bright Tin YES

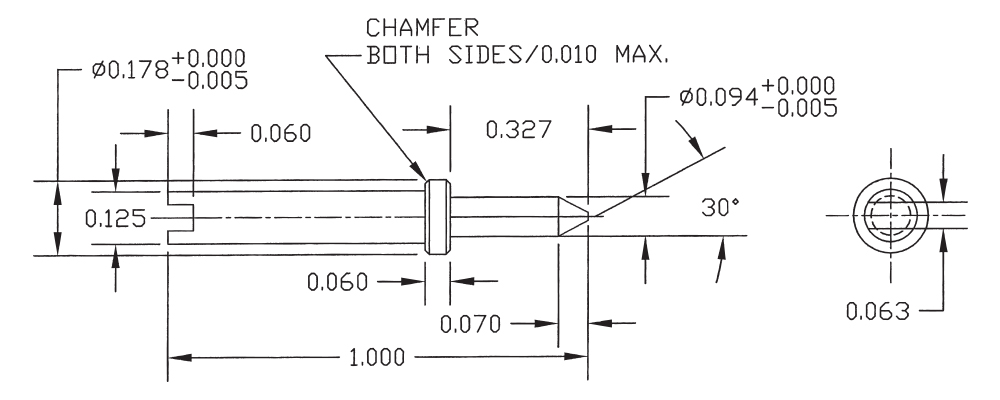

09-8724-1-01
09-8724-1-01
09-8724-1-01
1.000" 0.094 (+0.000/-0.005) SLOTTED/PIN - - - - Beryllium Copper Silver YES

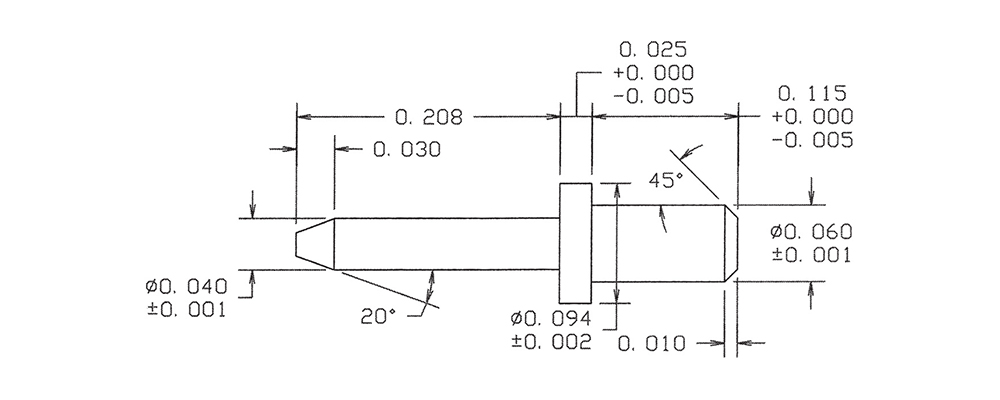

09-8826-4-088
09-8826-4-088
09-8826-4-088
0.348" 0.040 - Solder 0.115" 1/64 TO 3/32 0.0625 Brass Bright Tin-Lead NO
