Commercial
Non-Insulated
Terminals

Filter

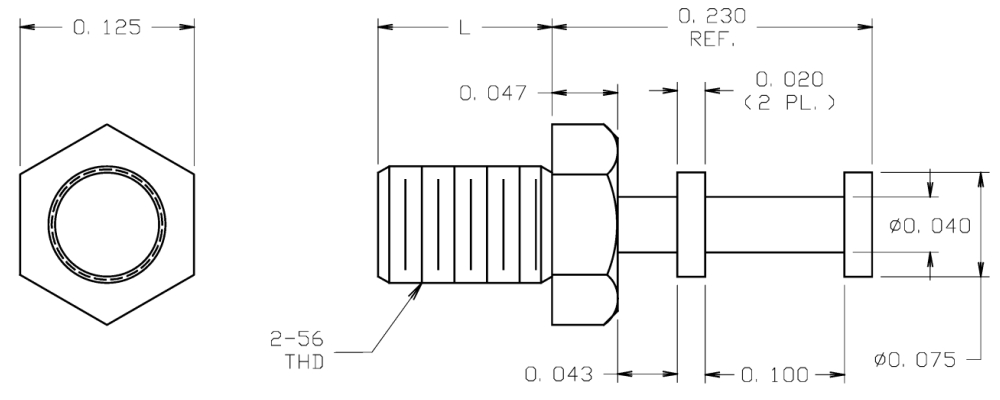

09-0241-1-044
09-0241-1-044
09-0241-1-044
0.293" - - 2-56 - - 2-56 THREAD Brass Bright Tin YES

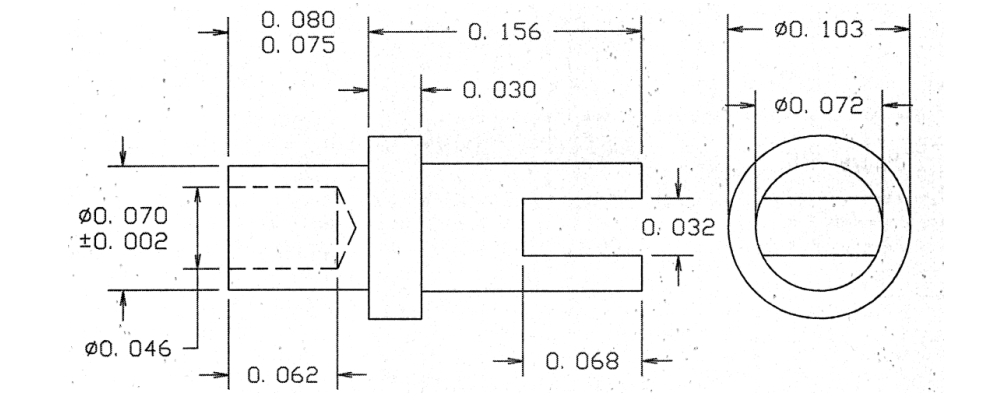

09-0286-2-05
09-0286-2-05
09-0286-2-05
0.234" - - Swage Mount 0.078" 1/16 0.076 Brass Electro Solder NO

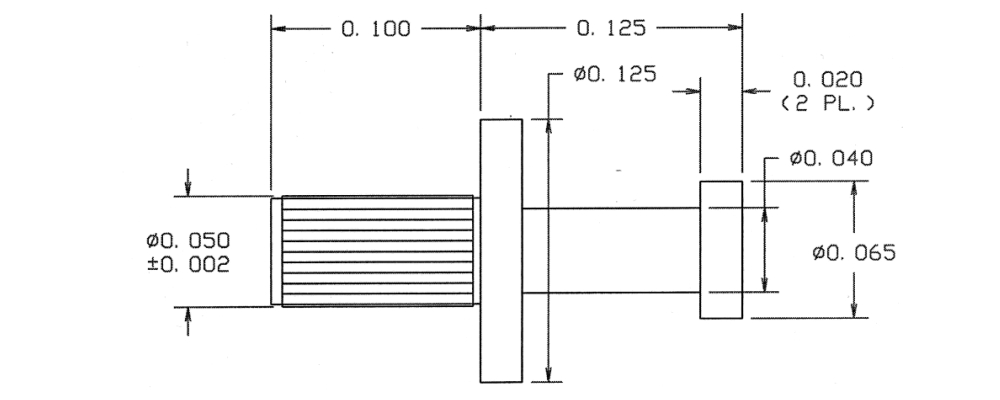

09-0352-3-088
09-0352-3-088
09-0352-3-088
0.225" - - Press Fit/Solder 0.100" 3/32 0.047 Brass Bright Tin-Lead NO

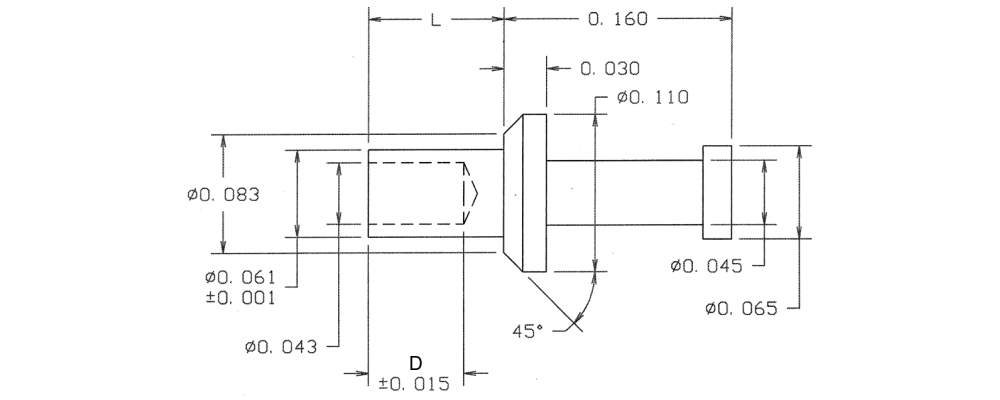

09-7012-2-04
09-7012-2-04
09-7012-2-04
0.255" - - Swage Mount 0.095" 1/16 0.067 Brass Electro-Tin YES

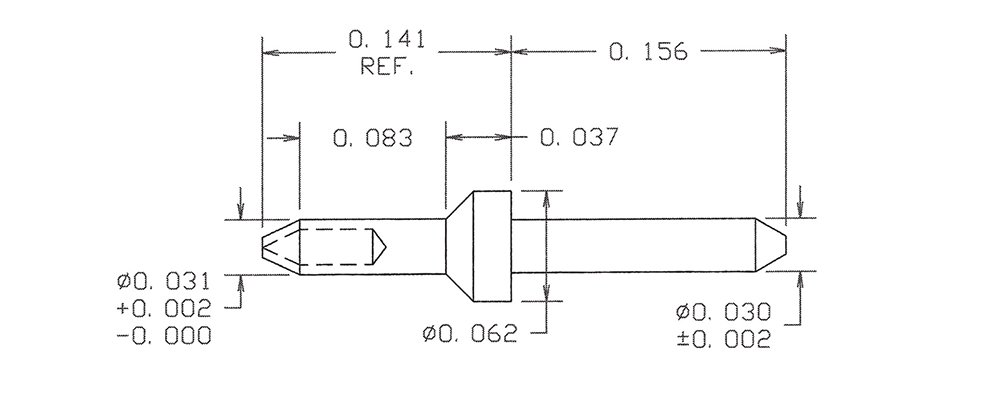

09-7115-2-088
09-7115-2-088
09-7115-2-088
0.297" 0.030 - RIVET MOUNT 0.083" 1/16 0.035 Brass Bright Tin-Lead NO

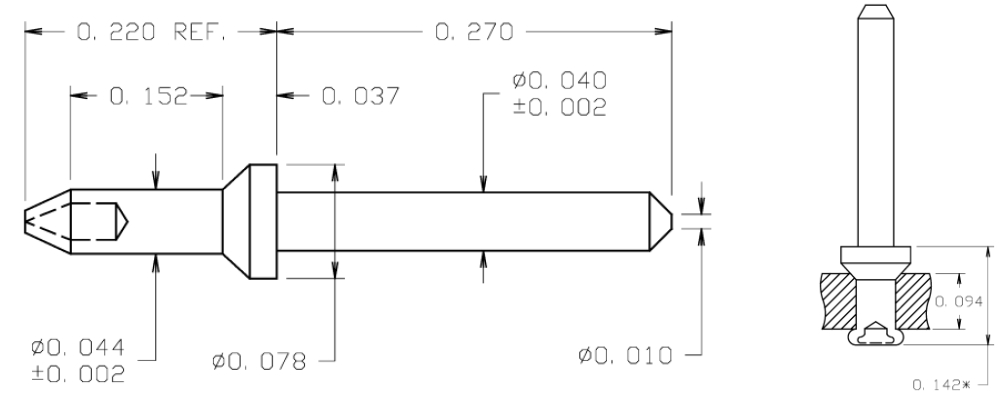

09-7148-3-04
09-7148-3-04
09-7148-3-04
0.453" 0.040 - RIVET MOUNT 0.152" 3/32 0.048 Brass Electro-Tin YES

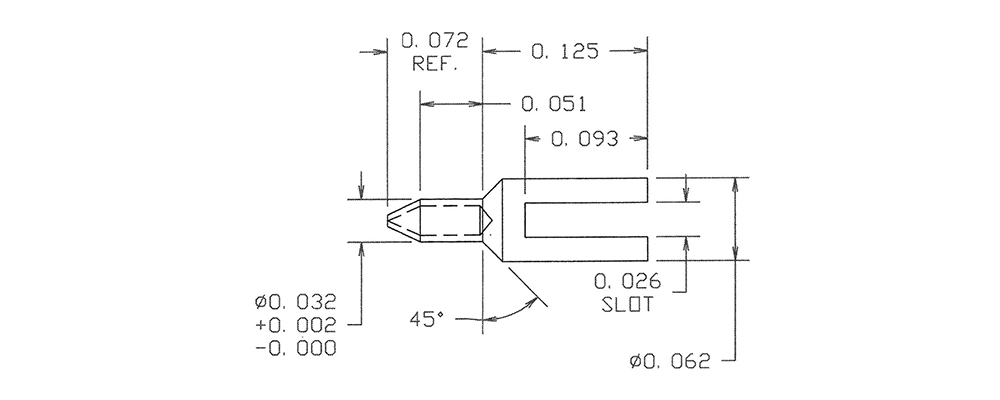

09-7181-1-01
09-7181-1-01
09-7181-1-01
0.197" - - RIVET MOUNT 0.052" 1/32 0.036 Brass Silver YES

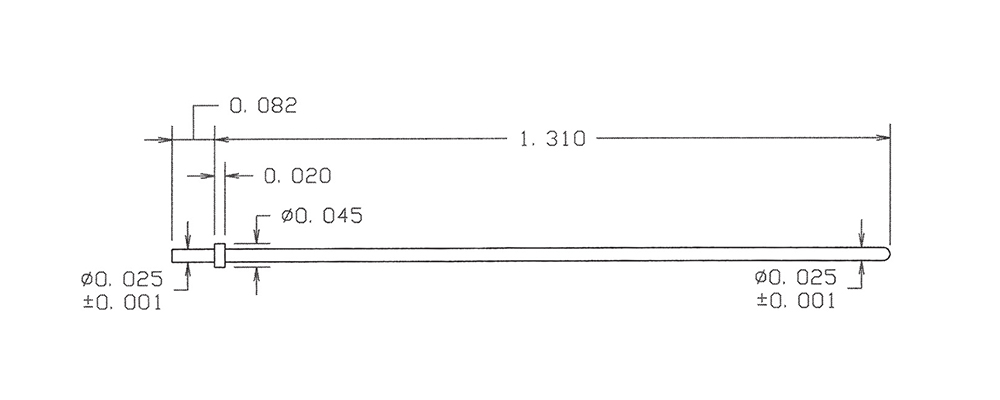

09-8021-2-044
09-8021-2-044
09-8021-2-044
1.392" 0.025 - Solder 0.082" 1/16 0.028 Brass Bright Tin YES

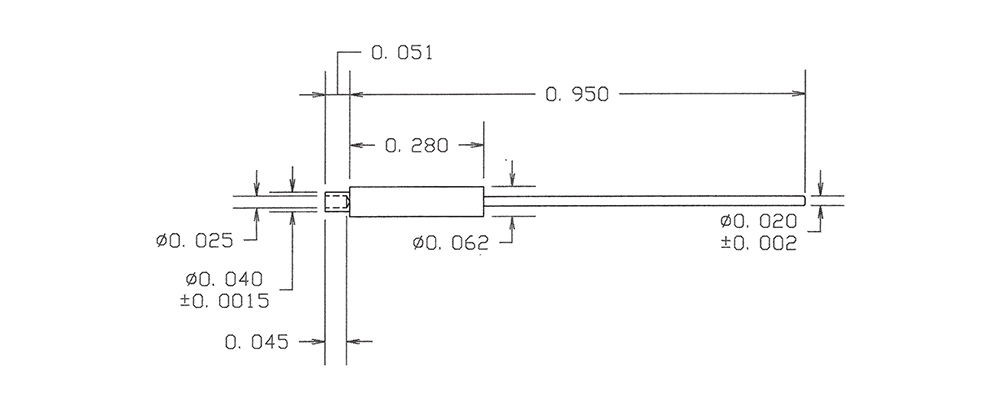

09-8058-1-01
09-8058-1-01
09-8058-1-01
1.001" 0.020 - Swage Mount 0.051" 1/32 0.043 Brass Silver YES

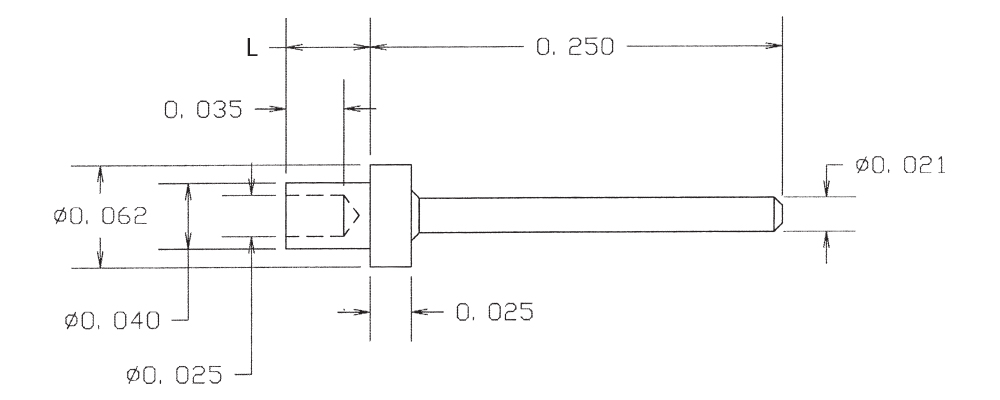

09-8096-1-044
09-8096-1-044
09-8096-1-044
0.301" 0.021 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin YES

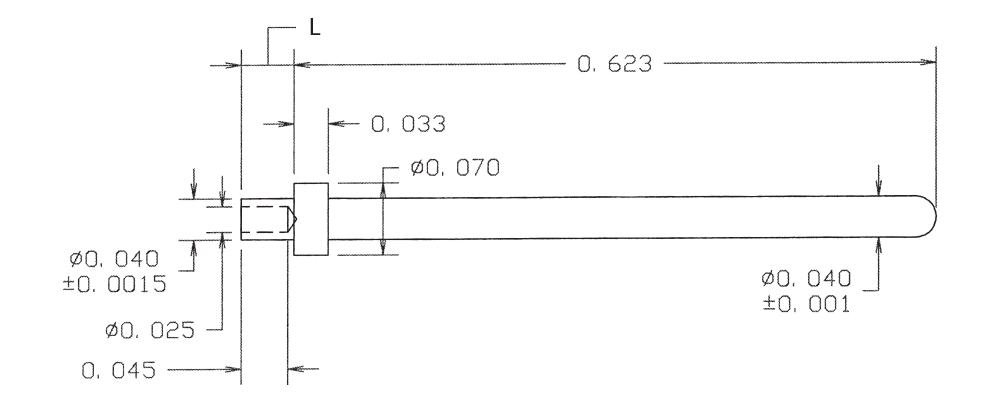

09-8154-1-03
09-8154-1-03
09-8154-1-03
0.674" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES

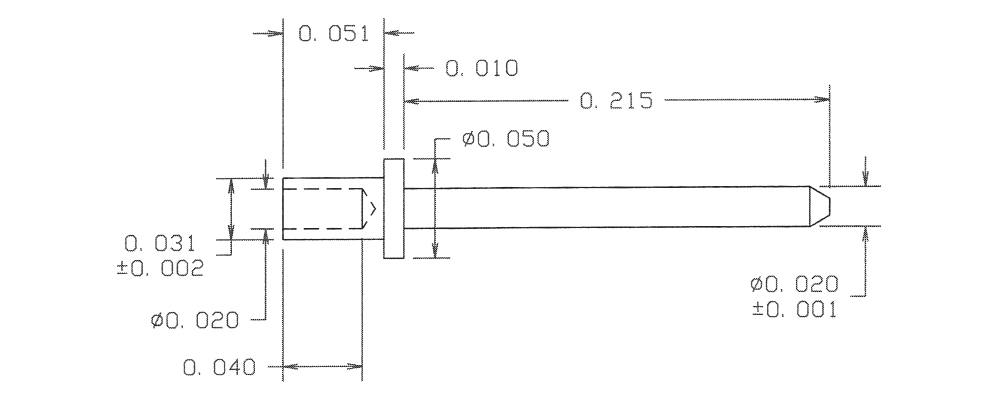

09-8181-1-05
09-8181-1-05
09-8181-1-05
0.276" 0.020 - Swage Mount 0.051" 1/32 0.035 Brass Electro Solder NO

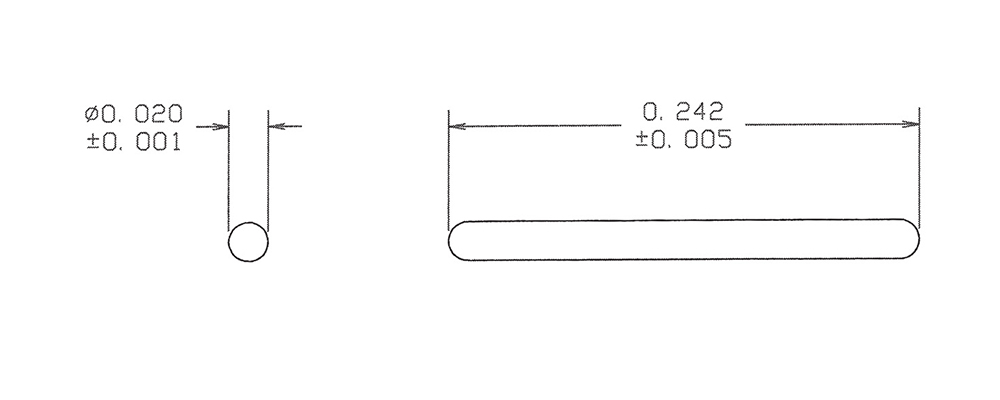

09-8345-1-044
09-8345-1-044
09-8345-1-044
0.242" 0.020 - - - - - Phosphor Bronze Bright Tin YES

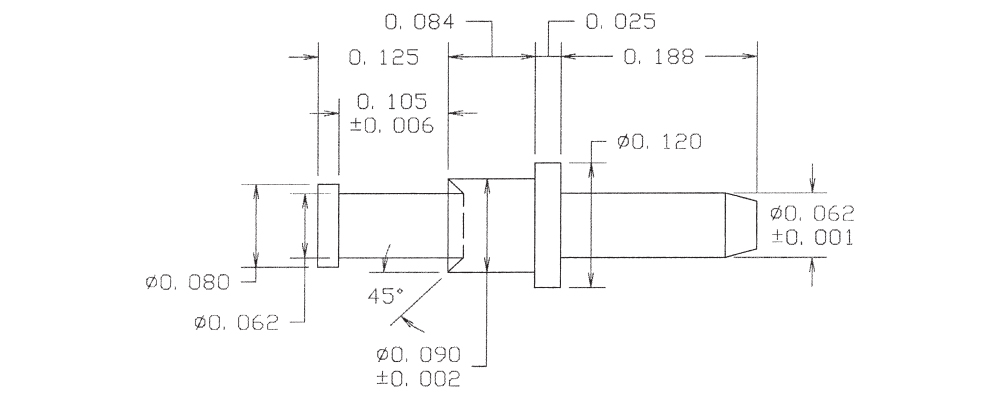

09-8586-2-04
09-8586-2-04
09-8586-2-04
0.422" 0.062 TURRET/PIN Swage Mount 0.084" 1/16 0.094 Brass Electro-Tin YES

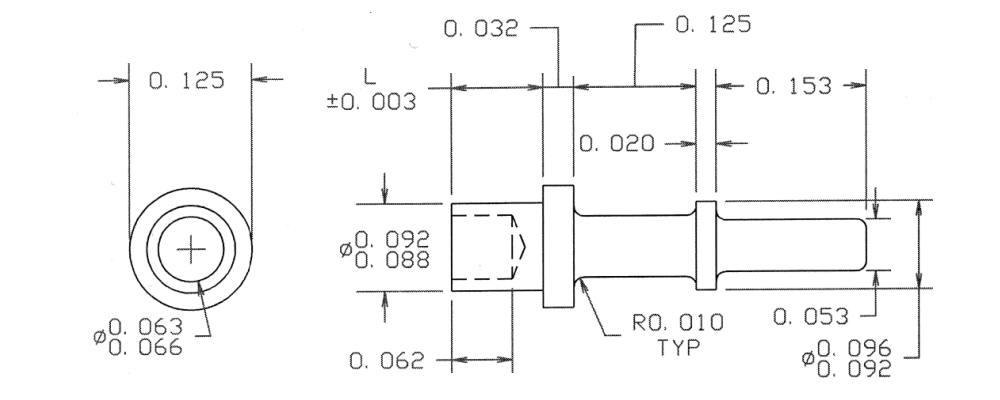

09-8705-3-03
09-8705-3-03
09-8705-3-03
0.471" - - Swage Mount 0.141" 3/32 0.094 LEADED Red Brass Gold YES

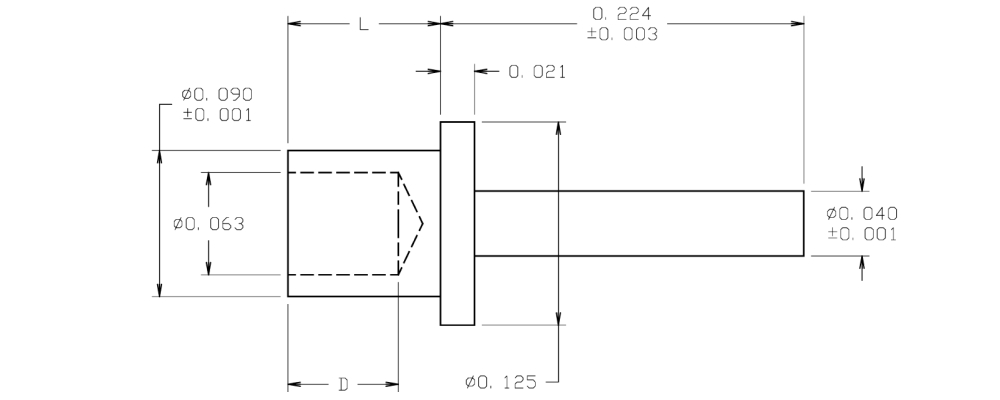

09-8816-2-088
09-8816-2-088
09-8816-2-088
0.318" 0.040 - Swage Mount 0.094" 1/16 0.094 Brass Bright Tin-Lead NO

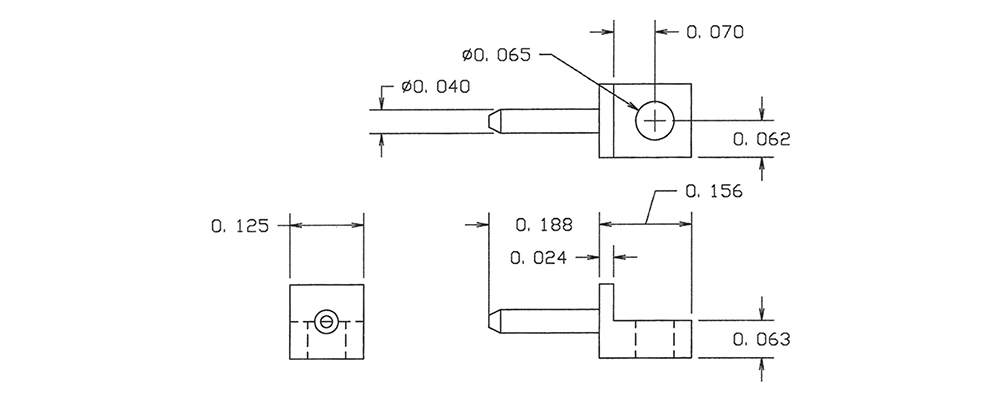

09-9501-1-044
09-9501-1-044
09-9501-1-044
0.344" 0.040 - 0-80 Screw - 1/16 CLEARANCE FOR #0 Screw Brass Bright Tin YES

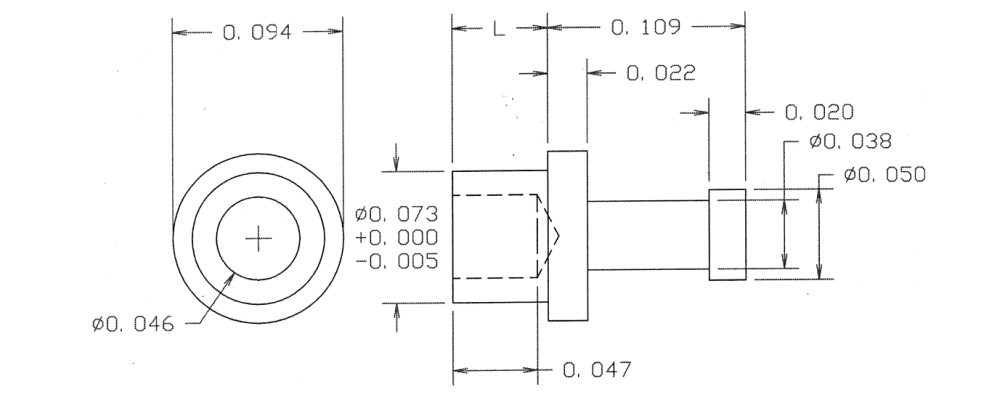

10-105-2-05
10-105-2-05
10-105-2-05
0.193" - - Swage Mount 0.084" 1/16 0.076 Brass Electro Solder NO

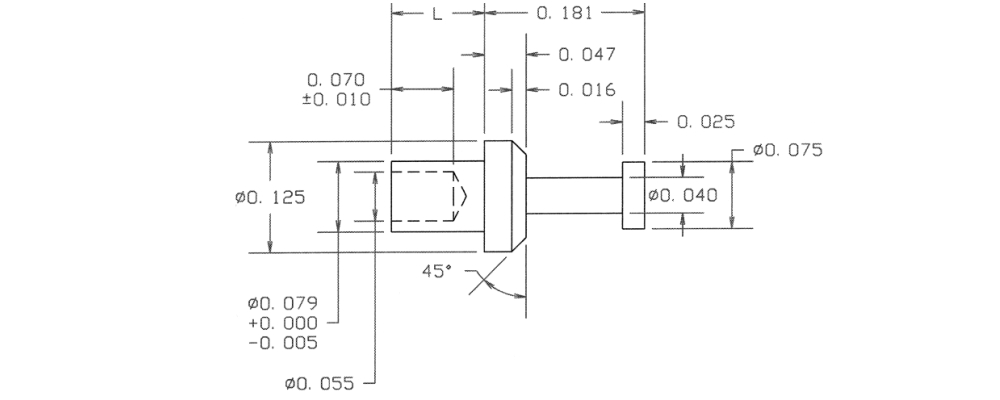

10-112-3-05
10-112-3-05
10-112-3-05
0.316" - - Swage Mount 0.135" 3/32 0.082 Brass Electro Solder NO

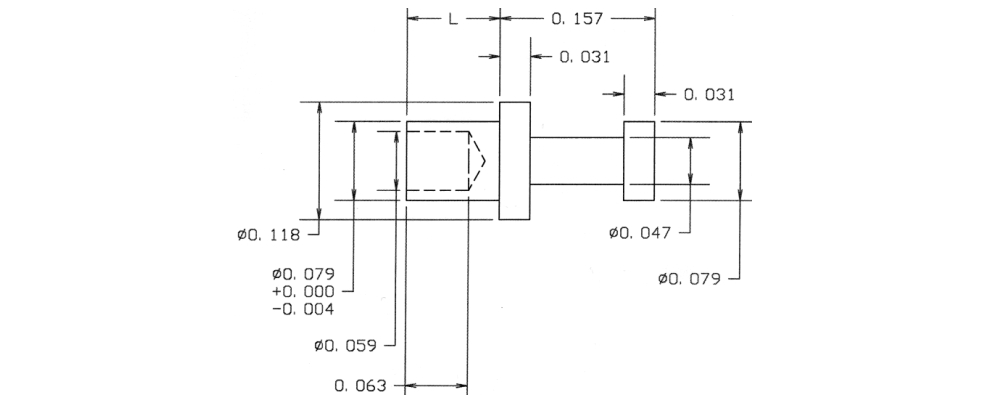

10-134-2-095
10-134-2-095
10-134-2-095
0.251" - - Swage Mount 0.094" 1/16 0.081 Brass Hot Solder Dip NO
