Commercial
Non-Insulated
Terminals

Filter
09-8094-2-035
09-8094-2-035
09-8094-2-035
0.194" 0.025 - Swage Mount 0.094" 1/16 0.035 Brass Gold YES

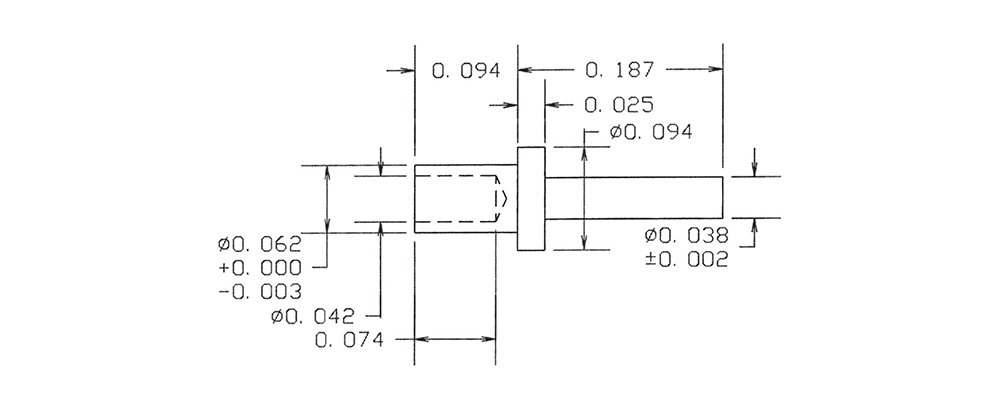

09-8150-2-088
09-8150-2-088
09-8150-2-088
0.281" 0.038 - Swage Mount 0.094" 1/16 0.0635 Brass Bright Tin-Lead NO

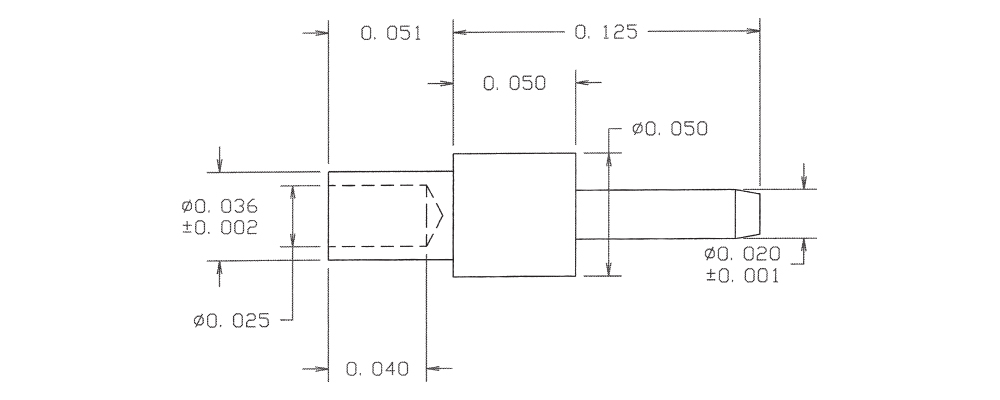

09-8179-1-04
09-8179-1-04
09-8179-1-04
0.176" 0.020 - Swage Mount 0.051" 1/32 0.039 Brass Electro-Tin YES

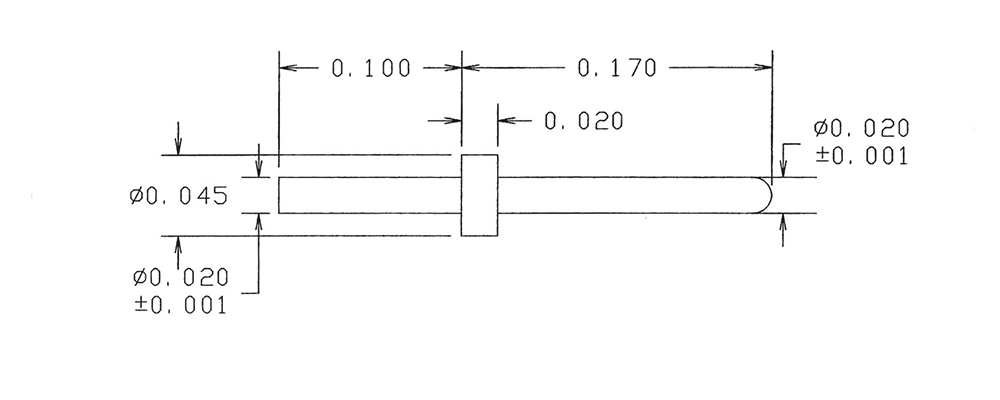

09-8332-2-04
09-8332-2-04
09-8332-2-04
0.270" 0.020 - Solder 0.100" 1/64 TO 1/16 0.0225 Brass Electro-Tin YES

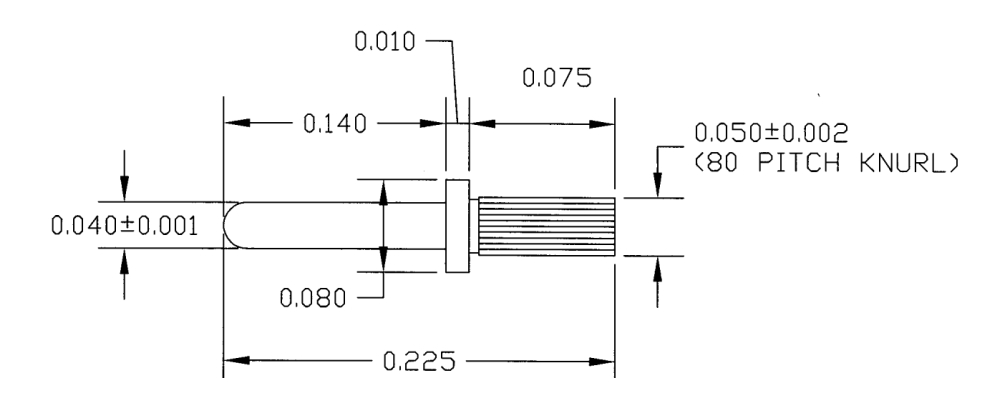

09-8574-1-03
09-8574-1-03
09-8574-1-03
0.225" 0.040 - Press Fit/Solder 0.075" 1/16 0.047 Brass Gold YES
09-8705-1-035
09-8705-1-035
09-8705-1-035
0.408" - - Swage Mount 0.078" 1/32 0.094 LEADED Red Brass Gold YES

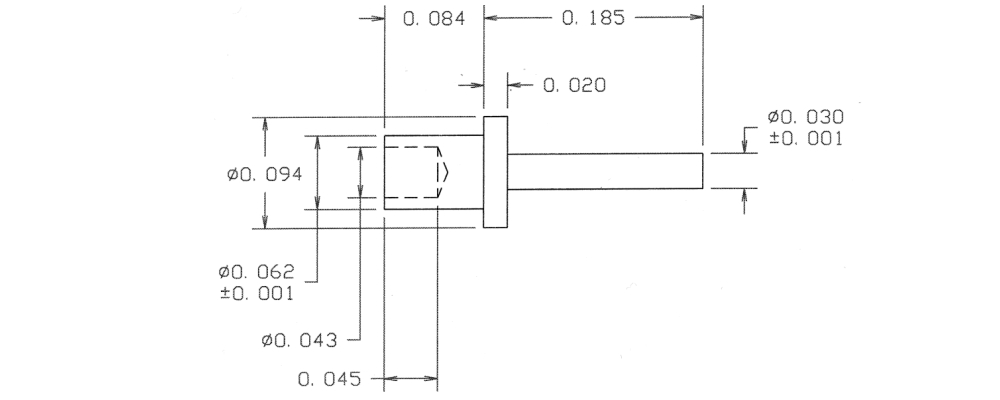

09-8809-2-095
09-8809-2-095
09-8809-2-095
0.269" 0.030 - Swage Mount 0.084" 1/16 0.096 Brass Hot Solder Dip NO

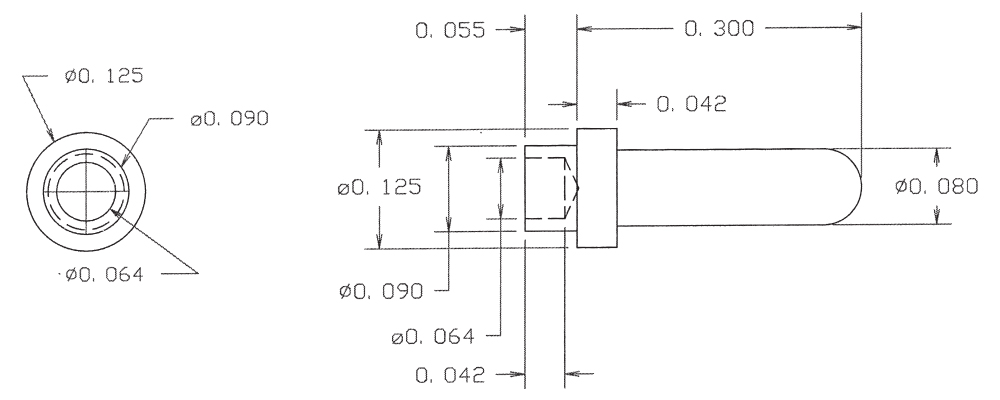

09-8882-1-04
09-8882-1-04
09-8882-1-04
0.355" 0.080 - Swage Mount 0.055" 1/32 0.094 Brass Electro-Tin YES
10-104-4-088
10-104-4-088
10-104-4-088
0.239" - - Swage Mount 0.145" 1/8 0.052 Brass Bright Tin-Lead NO
10-111-5-088
10-111-5-088
10-111-5-088
0.376" - - Swage Mount 0.195" 5/32 0.094 Brass Bright Tin-Lead NO
10-133-3-01
10-133-3-01
10-133-3-01
0.155" - - Swage Mount 0.115" 3/32 0.033 Brass Silver YES
10-204-1-088
10-204-1-088
10-204-1-088
0.437" - - Swage Mount 0.078" 1/32 0.116 Brass Bright Tin-Lead NO
10-211-8-01
10-211-8-01
10-211-8-01
0.797" - - Swage Mount 0.297" 1/4 0.266 Brass Silver YES
10-218-2-04
10-218-2-04
10-218-2-04
0.342" - - Swage Mount 0.105" 1/16 0.094 Brass Electro-Tin YES
10-229-3-01
10-229-3-01
10-229-3-01
0.185" - - Swage Mount 0.115" 3/32 0.035 Brass Silver YES

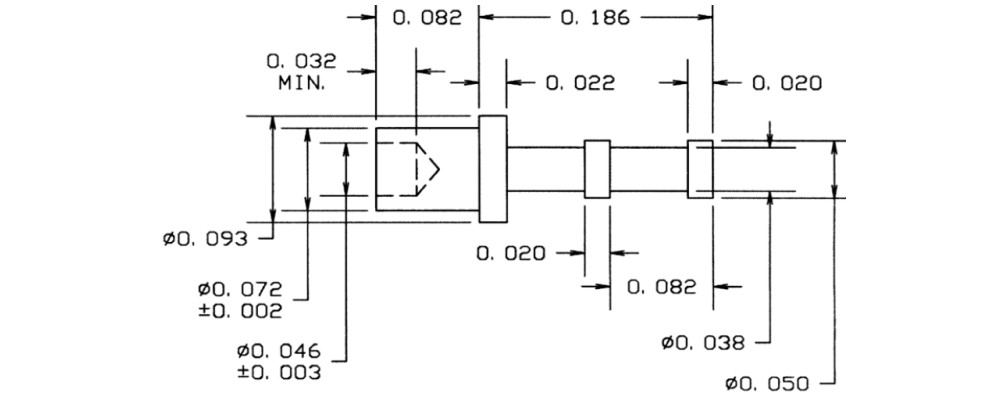

10-251-2-04
10-251-2-04
10-251-2-04
0.268" - - Swage Mount 0.082" 1/16 0.076 Brass Electro-Tin YES
10-305-2-01
10-305-2-01
10-305-2-01
0.297" - - Swage Mount 0.109" 1/16 0.113 Brass Silver YES
10-312-4-044
10-312-4-044
10-312-4-044
0.493" - - Swage Mount 0.165" 1/8 0.082 Brass Bright Tin YES
10-323-6-03
10-323-6-03
10-323-6-03
0.365" - - Swage Mount 0.209" 3/16 0.076 Brass Gold YES
10-372-2-05
10-372-2-05
10-372-2-05
0.240" - - Swage Mount 0.084" 1/16 0.064 Brass Electro Solder NO
