Commercial
Non-Insulated
Terminals

Filter
10-530-2-05
10-530-2-05
10-530-2-05
0.574" - TURRET/DOUBLE TURRET Swage Mount 0.105" 1/16 0.159 Brass Electro Solder NO
10-544-6-05
10-544-6-05
10-544-6-05
0.460" - Turret/Turret Swage Mount 0.219" 3/16 0.094 Brass Electro Solder NO
10-562-6-05
10-562-6-05
10-562-6-05
0.698" - Double Turret/Double Turret Swage Mount 0.230" 3/16 0.159 Brass Electro Solder NO
10-607-2-03
10-607-2-03
10-607-2-03
0.526" - - Swage Mount 0.105" 1/16 0.116 Brass Gold YES
10-714-2-05
10-714-2-05
10-714-2-05
0.667" - DOUBLE TURRET/THREAD Swage Mount 0.105" 1/16 0.204 Brass Electro Solder NO
10-8015-6-05
10-8015-6-05
10-8015-6-05
0.582" 0.040 TURRET/PIN Swage Mount 0.207" 3/16 0.076 Brass Electro Solder NO

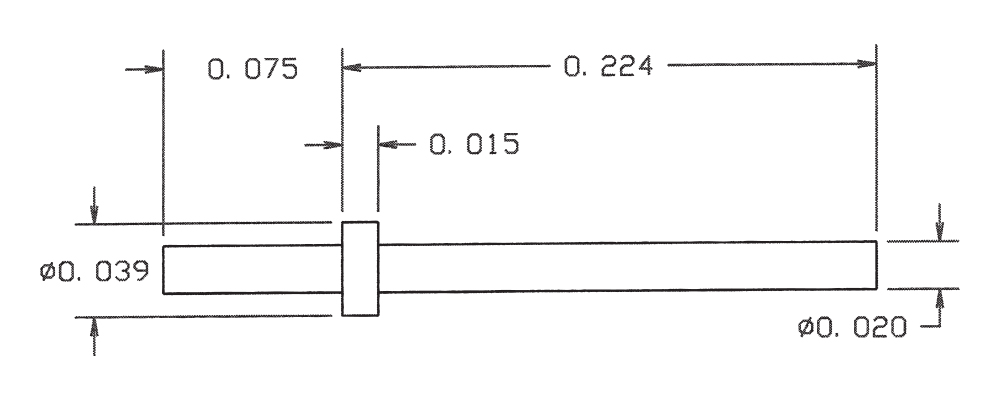

10-8027-1-04
10-8027-1-04
10-8027-1-04
0.299" 0.020 - Solder 0.075" 1/64 TO 1/32 0.043 Brass Electro-Tin YES
10-808-6-01
10-808-6-01
10-808-6-01
0.705" - - Swage Mount 0.234" 3/16 0.094 Brass Silver YES
10-815-5-035
10-815-5-035
10-815-5-035
0.395" - - Swage Mount 0.195" 5/32 0.1495 Brass Gold YES
10-825-3-05
10-825-3-05
10-825-3-05
0.463" - - Swage Mount 0.135" 3/32 0.081 Brass Electro Solder NO
10-835-4-044
10-835-4-044
10-835-4-044
0.594" 0.050 - Swage Mount 0.156" 1/8 0.064 Brass Bright Tin YES
10-846-5-03
10-846-5-03
10-846-5-03
0.523" - - Swage Mount 0.195" 5/32 0.116 Brass Gold YES

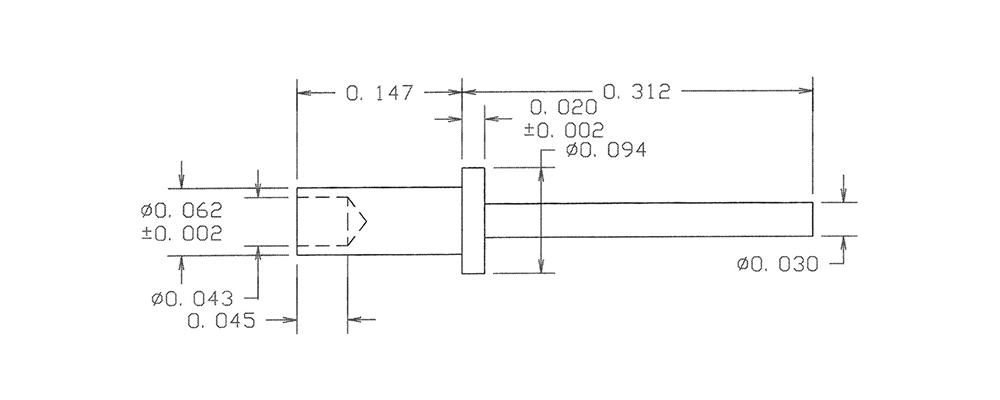

10-870-4-05
10-870-4-05
10-870-4-05
0.459" 0.030 - Swage Mount 0.147" 1/8 0.067 Brass Electro Solder NO

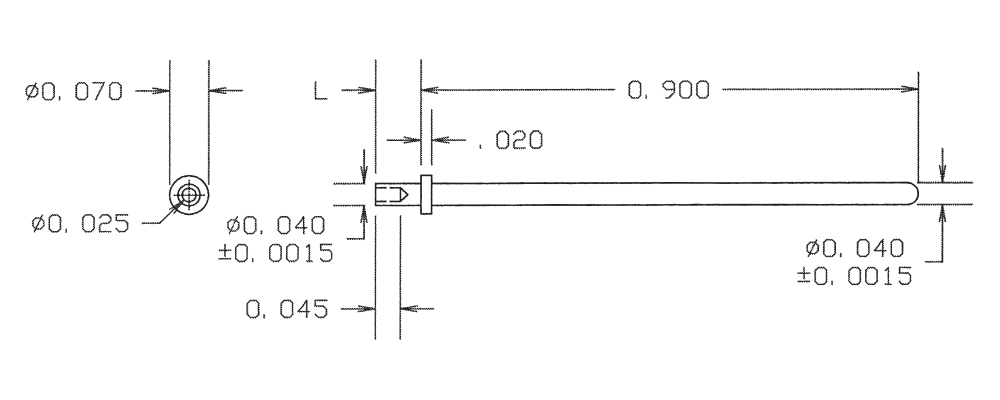

10-893-3-04
10-893-3-04
10-893-3-04
1.013" 0.0405 - Swage Mount 0.113" 3/32 0.043 Brass Electro-Tin YES
10-906-3-03
10-906-3-03
10-906-3-03
0.261" - - Swage Mount 0.125" 3/32 0.0635 Brass Gold YES
10-921-4-03
10-921-4-03
10-921-4-03
0.364" 0.045 - Swage Mount 0.156" 1/8 0.064 Brass Gold YES
10-938-11-044
10-938-11-044
10-938-11-044
0.370" 0.038 - Swage Mount 0.045" 1/64 0.042 Brass Bright Tin YES
14-346-3-05
14-346-3-05
14-346-3-05
0.323" - - Swage Mount 0.135" 3/32 0.082 LEADED Red Brass Electro Solder NO
19-246-3-095
19-246-3-095
19-246-3-095
0.500" - - Swage Mount 0.141" 3/32 0.116 LEADED Red Brass Hot Solder Dip NO
10-408-6-035
10-408-6-035
10-408-6-035
0.542" - - Swage Mount 0.230" 3/16 0.116 Brass Gold YES
