Commercial
Non-Insulated
Terminals

Filter
10-438-4-088
10-438-4-088
10-438-4-088
0.484" - - Swage Mount 0.172" 1/8 0.116 Brass Bright Tin-Lead NO
10-457-2-04
10-457-2-04
10-457-2-04
0.250" - - Swage Mount 0.094" 1/16 0.076 Brass Electro-Tin YES
10-483-3-01
10-483-3-01
10-483-3-01
0.463" - - Swage Mount 0.135" 3/32 0.116 Brass Silver YES

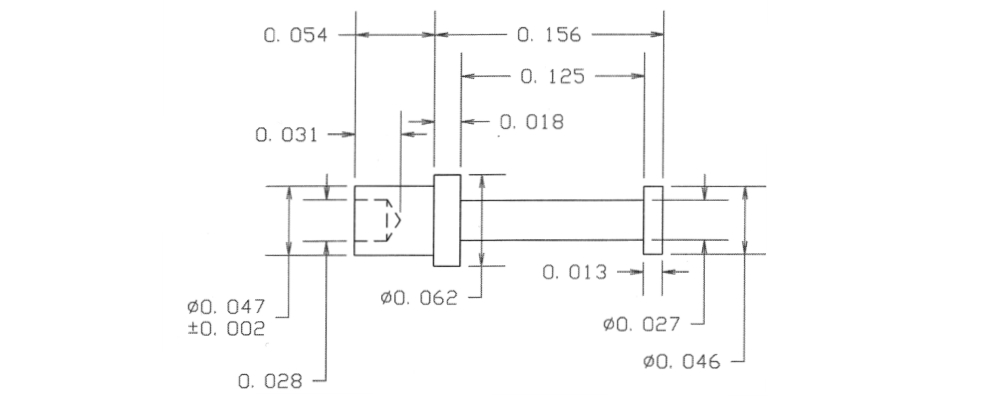

09-0025-1-03
09-0025-1-03
09-0025-1-03
0.210" - - Swage Mount 0.054" 1/32 0.052 Brass Gold YES
09-0078-11-01
09-0078-11-01
09-0078-11-01
0.193" - - Swage Mount 0.037" 1/64 0.076 Brass Silver YES

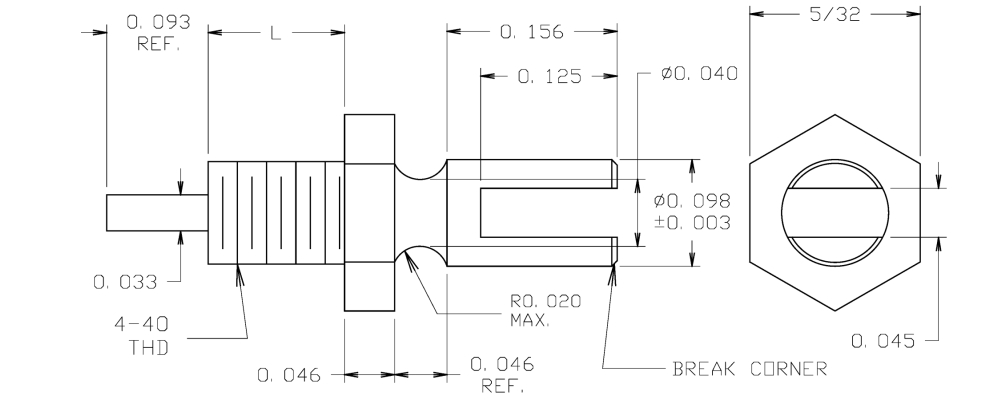

09-0163-6-03
09-0163-6-03
09-0163-6-03
0.531" 0.033 SLOTTED/PIN 4-40 Nut - 3/32 0.120 Brass Gold YES

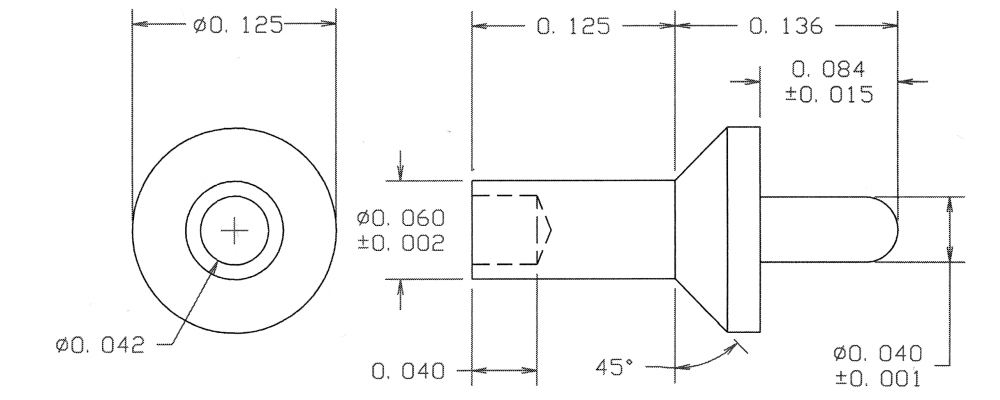

09-0190-3-088
09-0190-3-088
09-0190-3-088
0.261" 0.040 - Swage Mount 0.125" 3/32 0.067 Brass Bright Tin-Lead NO

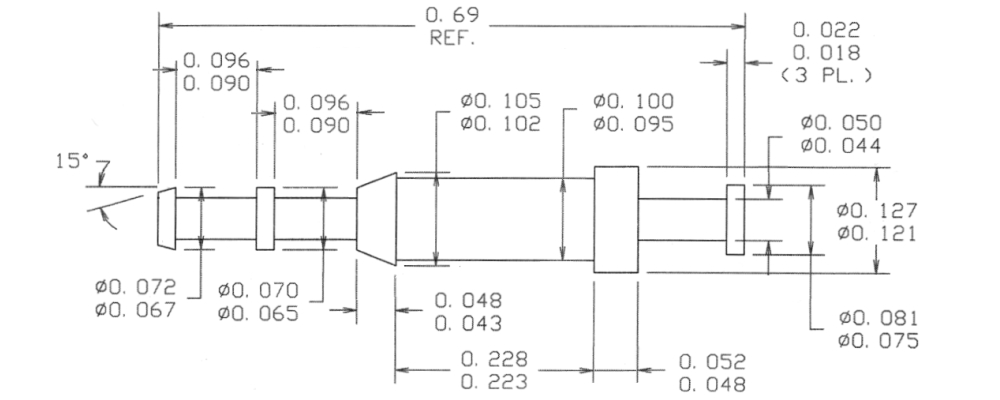

09-0235-1-04
09-0235-1-04
09-0235-1-04
0.690" - TURRET/DOUBLE TURRET Solder 0.228" 3/32 0.106 LEADED Red Brass Electro-Tin YES

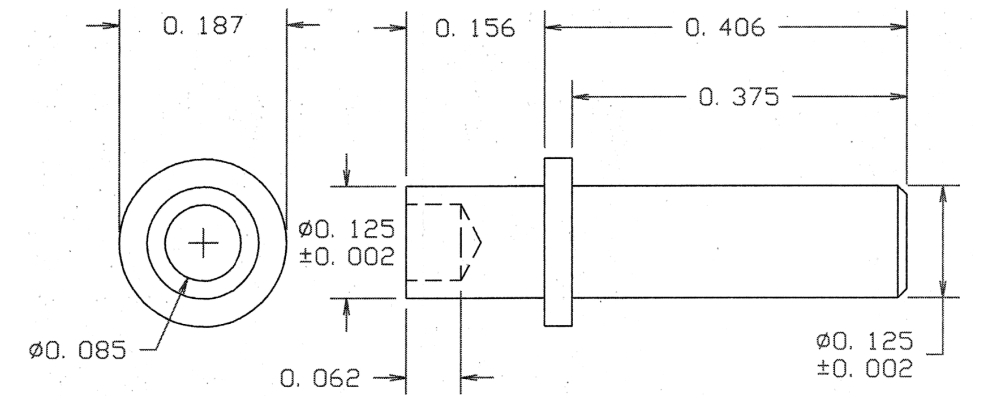

09-0282-4-044
09-0282-4-044
09-0282-4-044
0.562" 0.125 - Swage Mount 0.156" 1/8 0.129 Brass Bright Tin YES

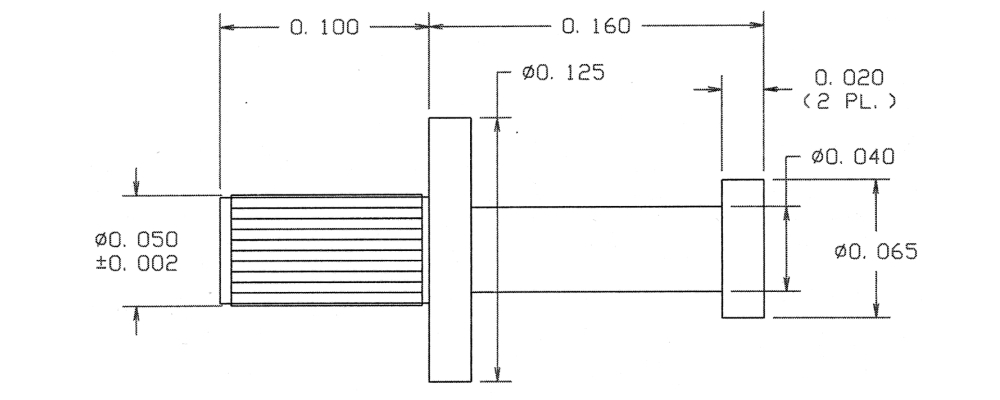

09-0345-1-04
09-0345-1-04
09-0345-1-04
0.260" - - Press Fit/Solder 0.100" 1/16 0.047 Brass Electro-Tin YES
09-7010-3-04
09-7010-3-04
09-7010-3-04
0.265" 0.050 - Swage Mount 0.125" 3/32 0.055 Brass Electro-Tin YES
09-7111-2-04
09-7111-2-04
09-7111-2-04
0.336" 0.026 - RIVET MOUNT 0.082" 1/16 0.032 Brass Electro-Tin YES
09-7147-1-01
09-7147-1-01
09-7147-1-01
0.188" 0.030 - RIVET MOUNT 0.058" 1/32 0.048 Brass Silver YES

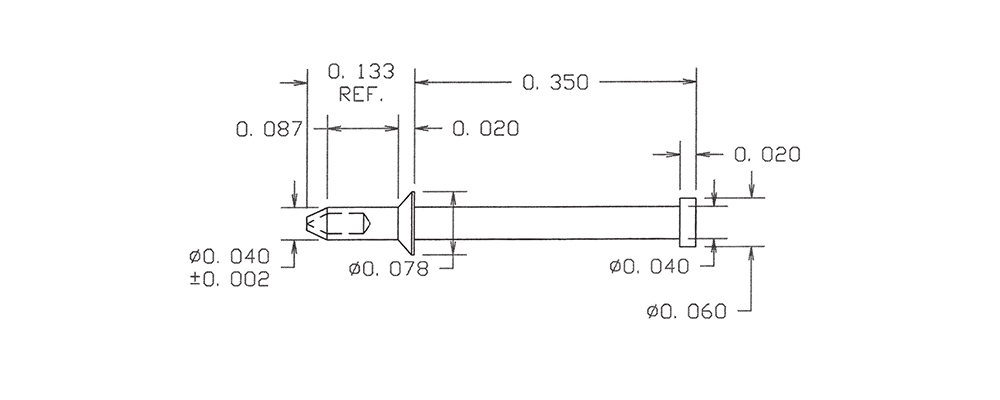

09-7175-2-044
09-7175-2-044
09-7175-2-044
0.483" - - RIVET MOUNT 0.088" 1/16 0.044 Brass Bright Tin YES

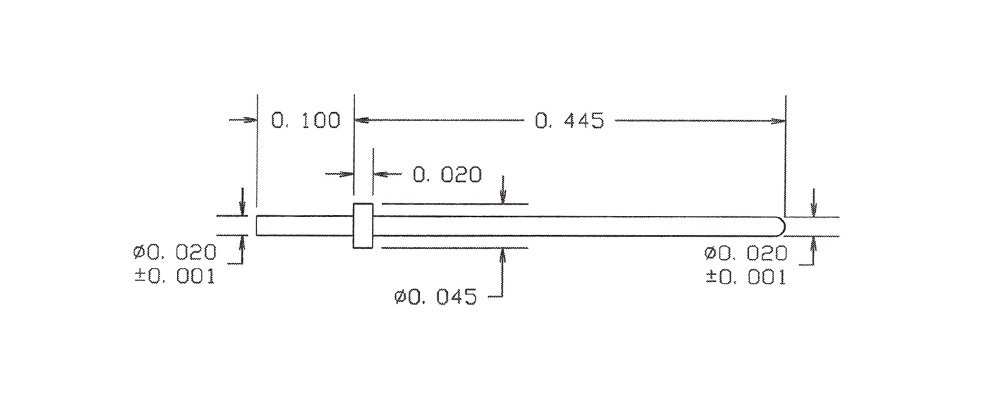

09-8017-2-03
09-8017-2-03
09-8017-2-03
0.545" 0.020 - Solder 0.100" 1/16 0.024 Brass Gold YES

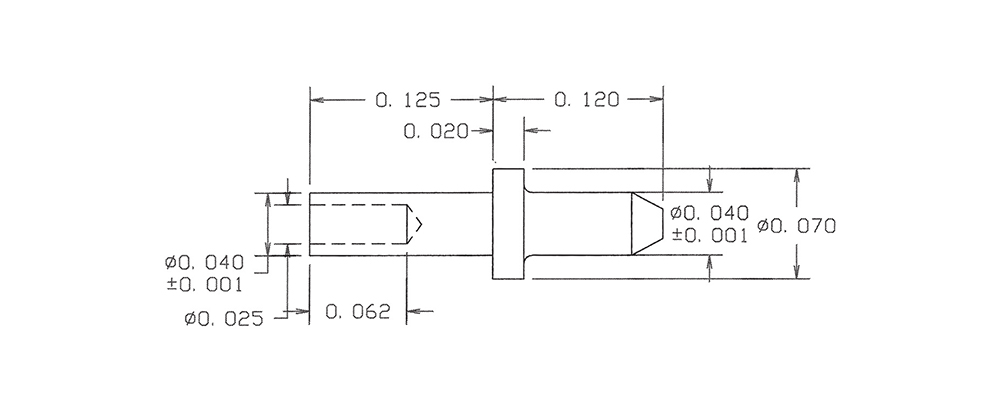

09-8053-3-044
09-8053-3-044
09-8053-3-044
0.245" 0.040 - Swage Mount 0.125" 3/32 0.043 Brass Bright Tin YES
09-8094-2-03
09-8094-2-03
09-8094-2-03
0.194" 0.025 - Swage Mount 0.094" 1/16 0.035 Brass Gold YES
09-8150-2-05
09-8150-2-05
09-8150-2-05
0.281" 0.038 - Swage Mount 0.094" 1/16 0.0635 Brass Electro Solder NO

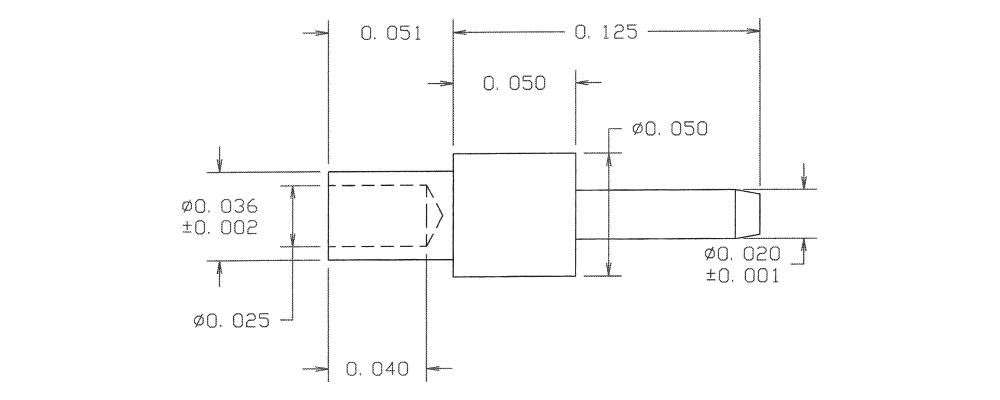

09-8179-1-035
09-8179-1-035
09-8179-1-035
0.176" 0.020 - Swage Mount 0.051" 1/32 0.039 Brass Gold YES
09-8332-2-035
09-8332-2-035
09-8332-2-035
0.270" 0.020 - Solder 0.100" 1/64 TO 1/16 0.0225 Brass Gold YES
