Commercial
Non-Insulated
Terminals

Filter

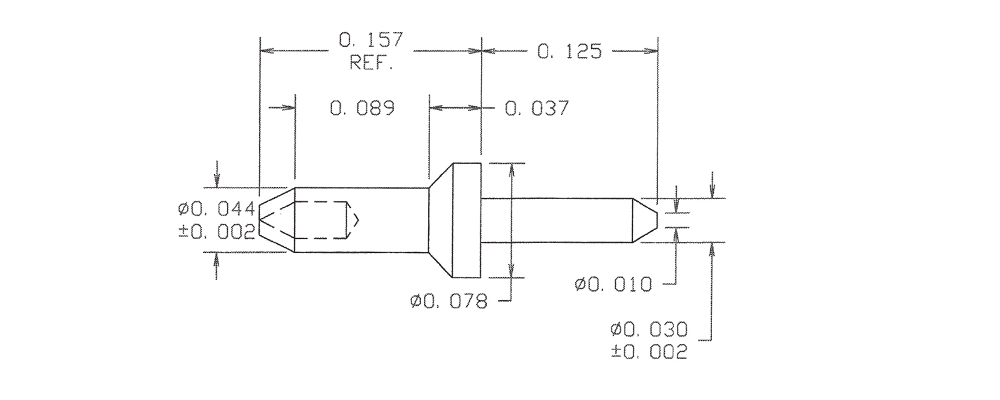

09-7145-2-01
09-7145-2-01
09-7145-2-01
0.282" 0.030 - RIVET MOUNT 0.089" 1/16 0.048 Brass Silver YES

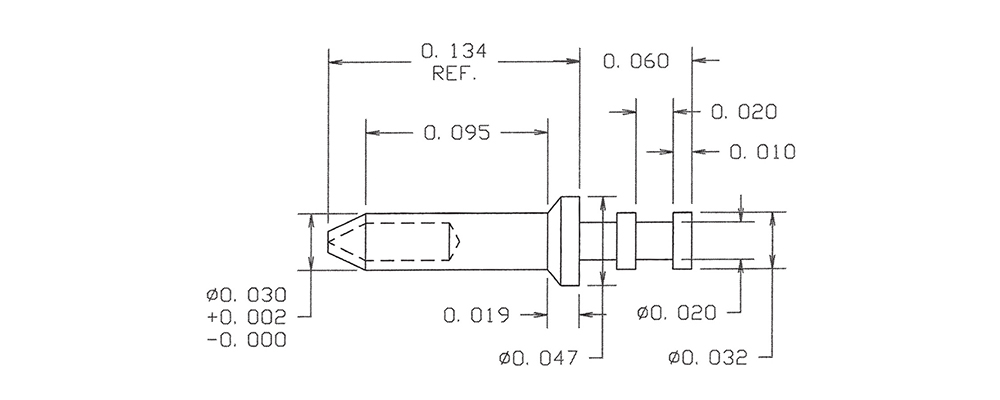

09-7170-2B-044
09-7170-2B-044
09-7170-2B-044
0.194" - - RIVET MOUNT 0.095" 19/256 0.035 Brass Bright Tin YES

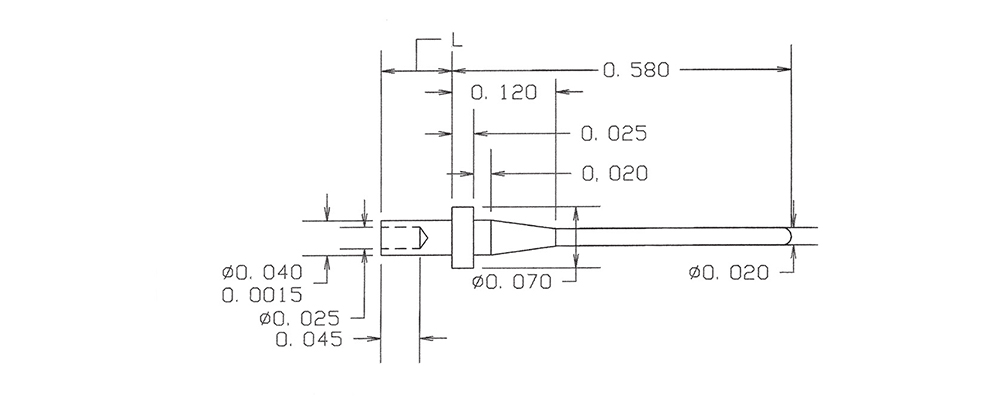

09-8012-2-03
09-8012-2-03
09-8012-2-03
0.662" 0.020 - Swage Mount 0.082" 1/16 0.043 Brass Gold YES

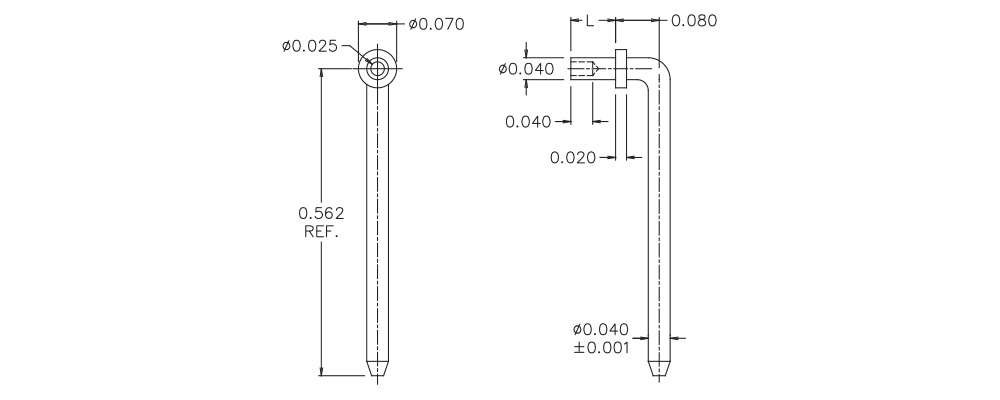

09-8048-1-05
09-8048-1-05
09-8048-1-05
0.597" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Electro Solder NO

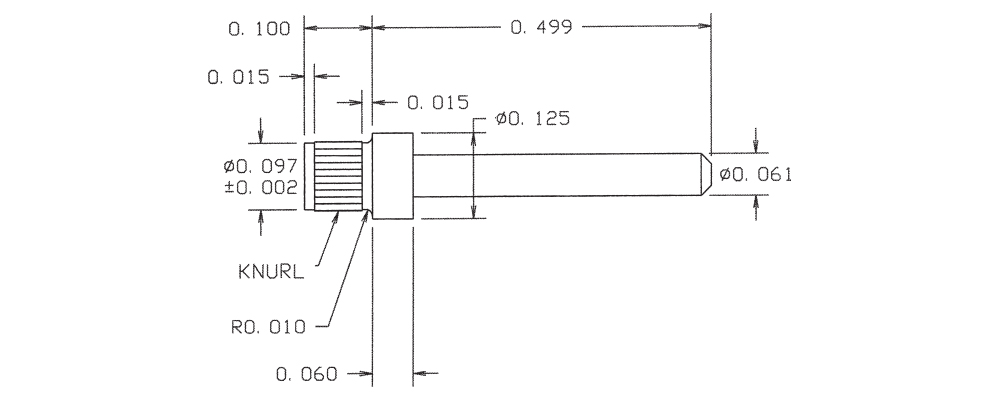

09-8088-2-03
09-8088-2-03
09-8088-2-03
0.599" 0.061 - Press Fit/Solder 0.100" 1/16 0.094 Brass Gold YES

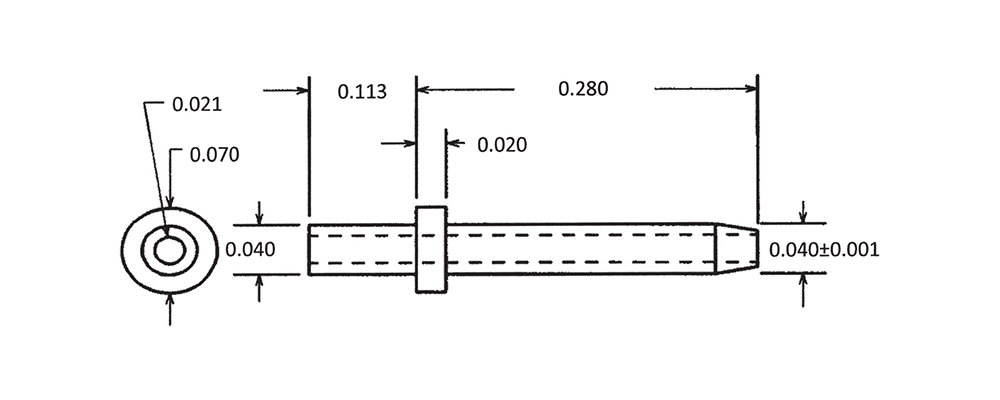

09-8144-3-05
09-8144-3-05
09-8144-3-05
0.393" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Electro Solder NO
09-8175-1-035
09-8175-1-035
09-8175-1-035
0.526" 0.025 - Swage Mount 0.051" 1/32 0.042 Brass Gold YES

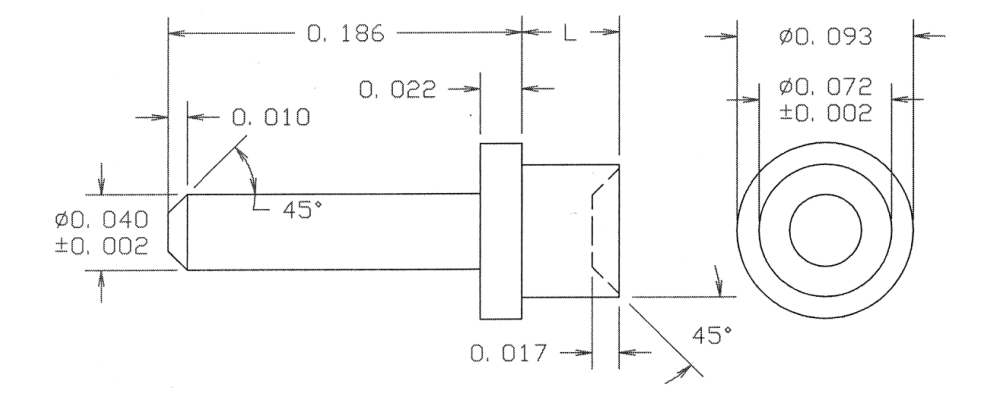

09-8311-1-035
09-8311-1-035
09-8311-1-035
0.237" 0.040 - Swage Mount 0.051" 1/32 0.076 Brass Gold YES
09-8563-1-044
09-8563-1-044
09-8563-1-044
0.282" 0.020 - Solder 0.260" 15/64 0.024 Beryllium Copper Bright Tin YES

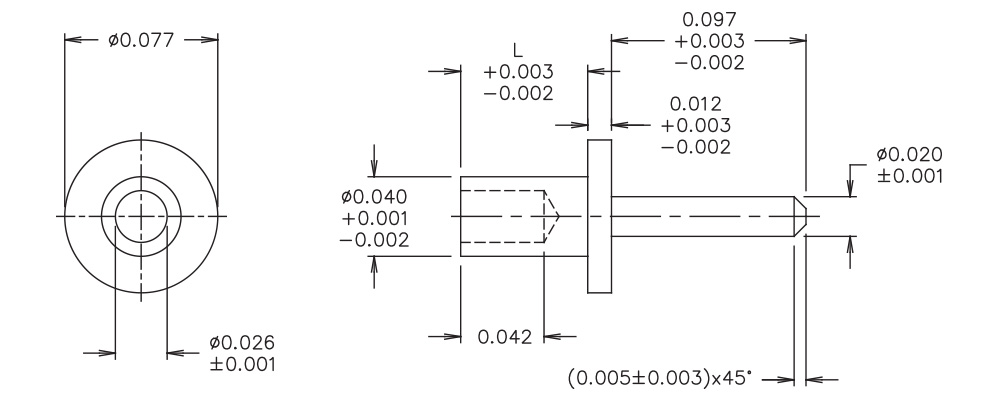

09-8689-3-03
09-8689-3-03
09-8689-3-03
0.204" 0.020 - Swage Mount 0.094" 1/16 0.043 Brass Gold YES

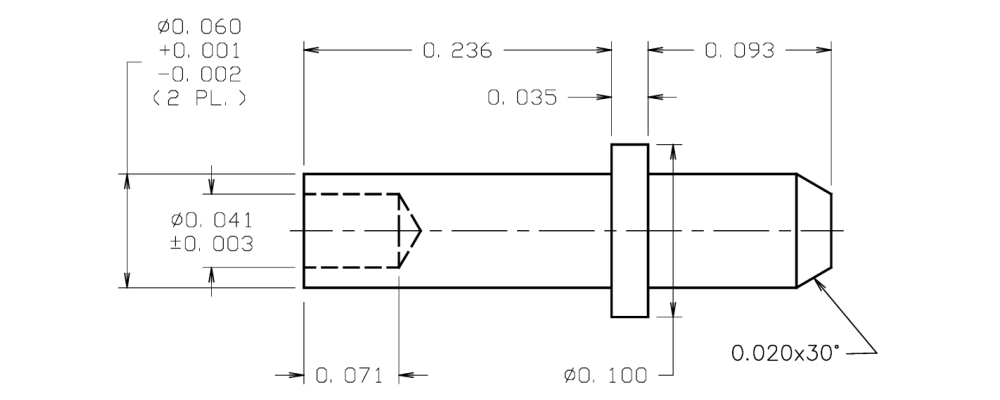

09-8802-6-01
09-8802-6-01
09-8802-6-01
0.364" 0.060 (+0.001/-0.002) - Swage Mount 0.236" 3/16 0.063 Brass Silver YES

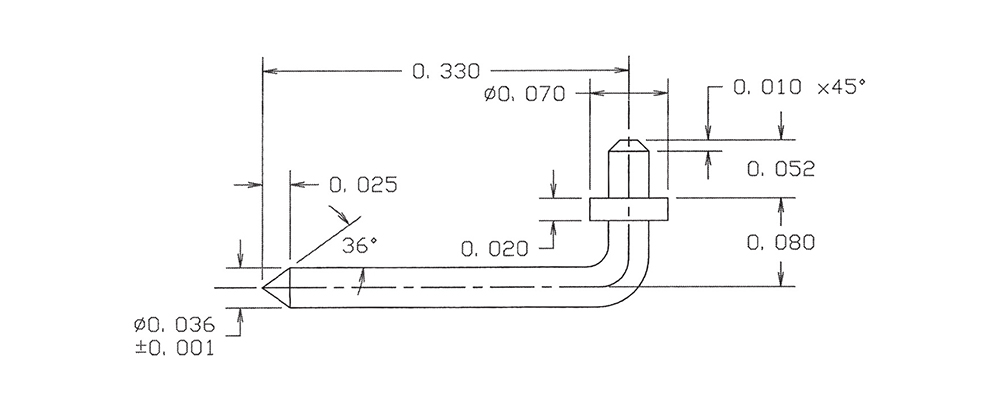

09-8861-1-035
09-8861-1-035
09-8861-1-035
0.365" 0.036 - Solder 0.052" 1/64 TO 1/32 0.039 Brass Gold YES
10-104-11-03
10-104-11-03
10-104-11-03
0.129" - - Swage Mount 0.035" 1/64 0.052 Brass Gold YES
10-111-2-03
10-111-2-03
10-111-2-03
0.286" - - Swage Mount 0.105" 1/16 0.094 Brass Gold YES

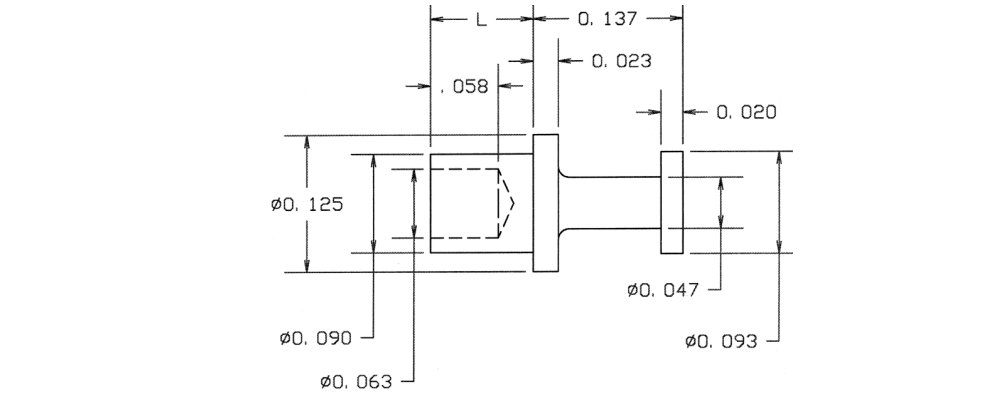

10-130-4-04
10-130-4-04
10-130-4-04
0.278" - - Swage Mount 0.141" 1/8 0.094 Brass Electro-Tin YES

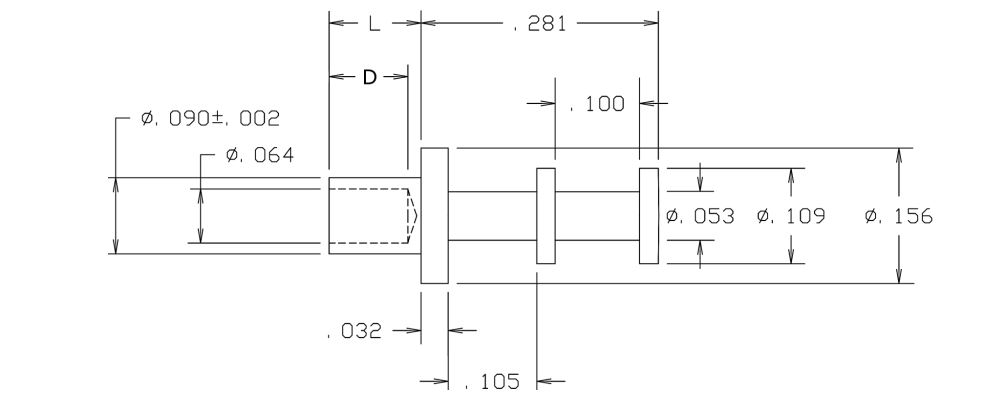

10-203-4-03
10-203-4-03
10-203-4-03
0.453" - - Swage Mount 0.172" 1/8 0.094 Brass Gold YES

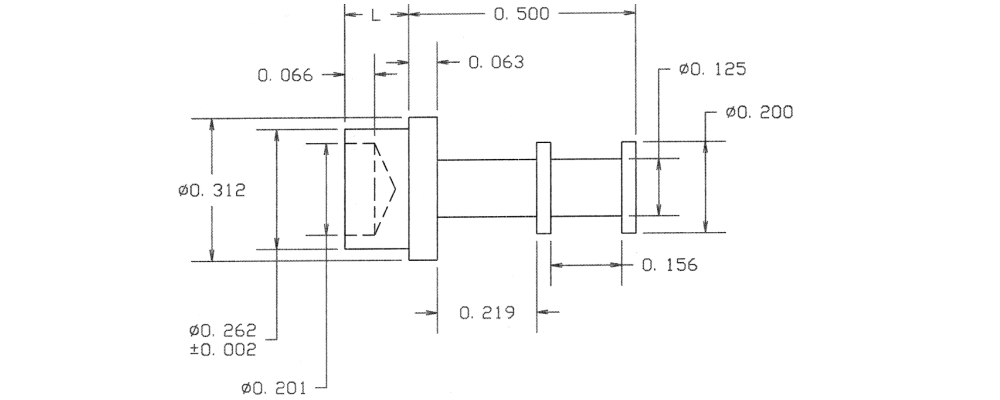

10-211-2-04
10-211-2-04
10-211-2-04
0.609" - - Swage Mount 0.109" 1/16 0.266 Brass Electro-Tin YES
10-217-4-035
10-217-4-035
10-217-4-035
0.509" - - Swage Mount 0.165" 1/8 0.116 Brass Gold YES

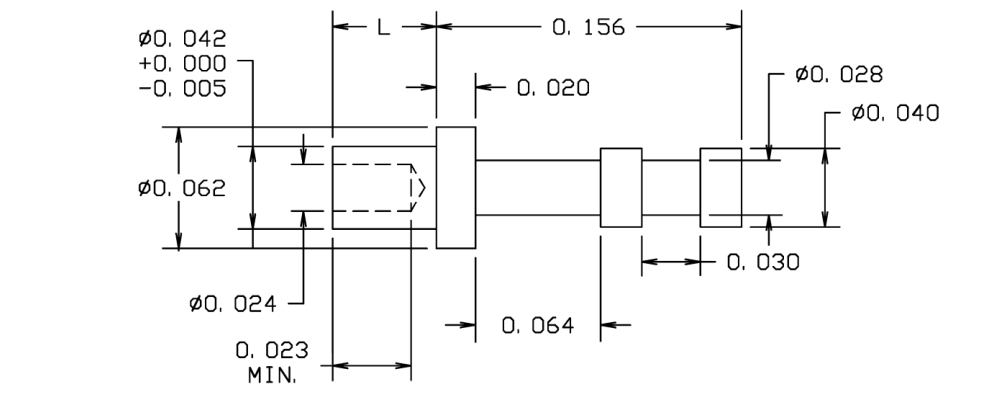

10-227-4-03
10-227-4-03
10-227-4-03
0.303" - - Swage Mount 0.147" 1/8 0.043 Brass Gold YES
10-247-4-088
10-247-4-088
10-247-4-088
0.531" - - Swage Mount 0.172" 1/8 0.116 Brass Bright Tin-Lead NO
