Commercial
Insulated
Pin Terminals

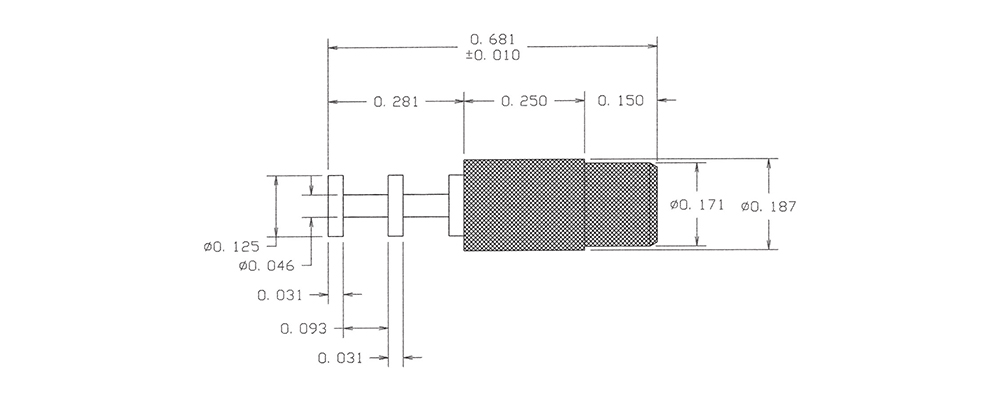

1102-67-0415
1102-67-0415
1102-67-0415
0.681" - - Press Fit 1/8 0.158 Brass Electro-Tin - - PTFE Green YES
1102-71-0511
1102-71-0511
1102-71-0511
1.268" - - Press Fit 5/32 0.158 Brass Electro Solder - - PTFE Brown NO

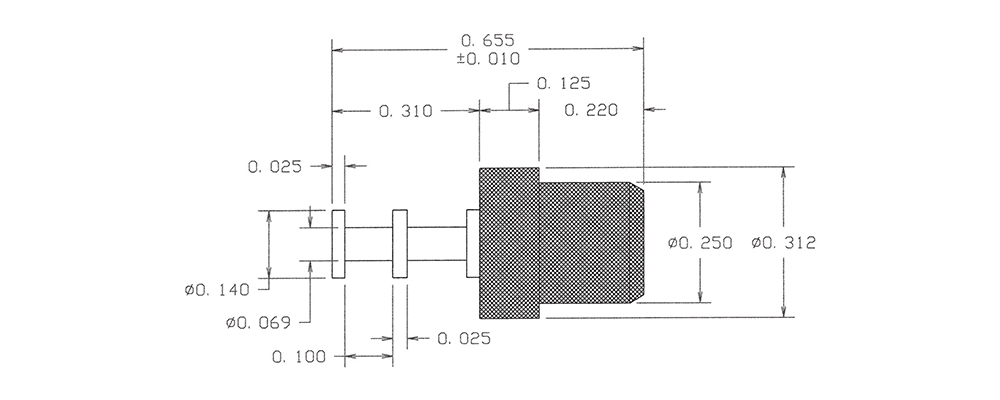

1102-76-08817
1102-76-08817
1102-76-08817
0.655" - - Press Fit Up to 3/16 0.236 Brass Bright Tin-Lead - - PTFE Violet NO

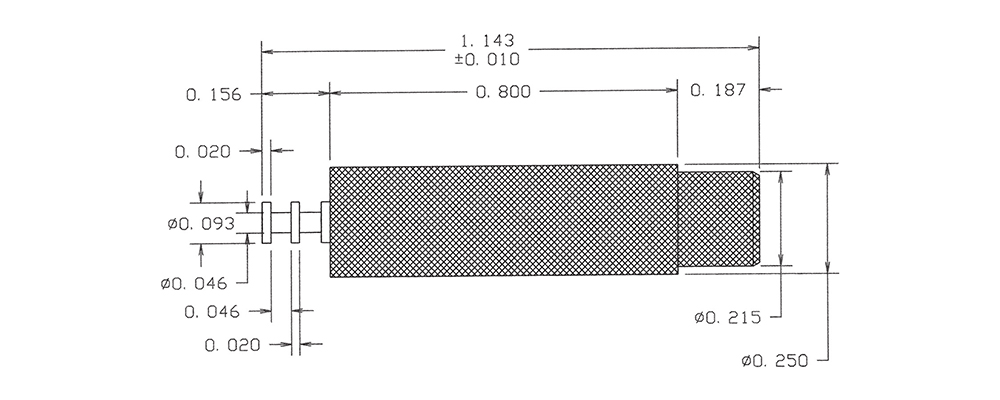

1102-81-0313
1102-81-0313
1102-81-0313
1.143" - - Press Fit 5/32 0.203 Brass Gold - - PTFE Orange NO

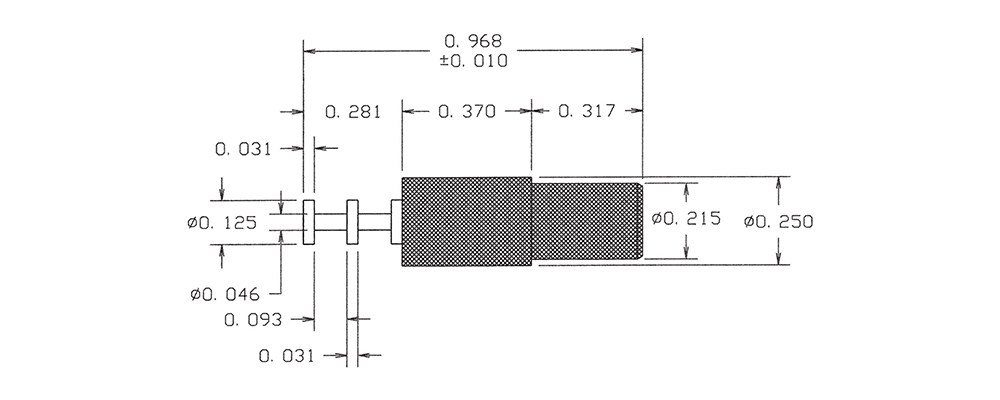

1102-85-0419
1102-85-0419
1102-85-0419
0.968" - - Press Fit Up to 1/4 0.203 Brass Electro-Tin - - PTFE White YES

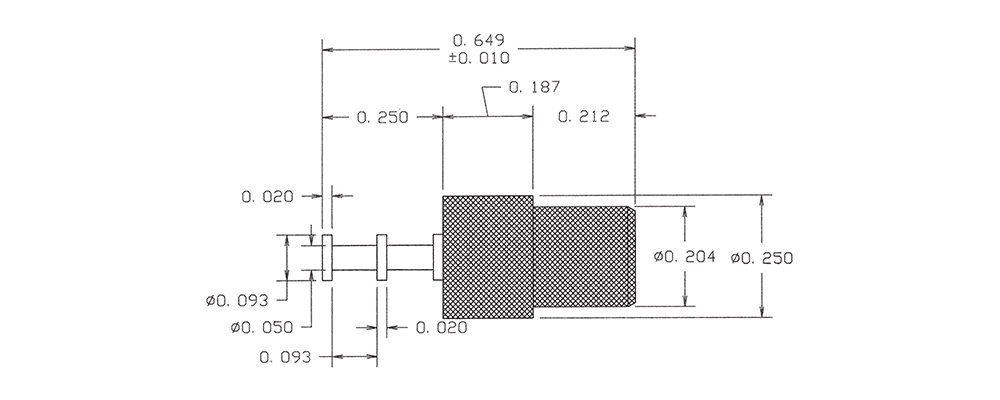

1102-94-0515
1102-94-0515
1102-94-0515
0.649" - - Press Fit Up to 3/16 0.191 Brass Electro Solder - - PTFE Green NO
1102R-11-0111
1102R-11-0111
1102R-11-0111
0.296" - - Press Fit 1/16 0.136 Brass Silver - - PTFE Brown NO

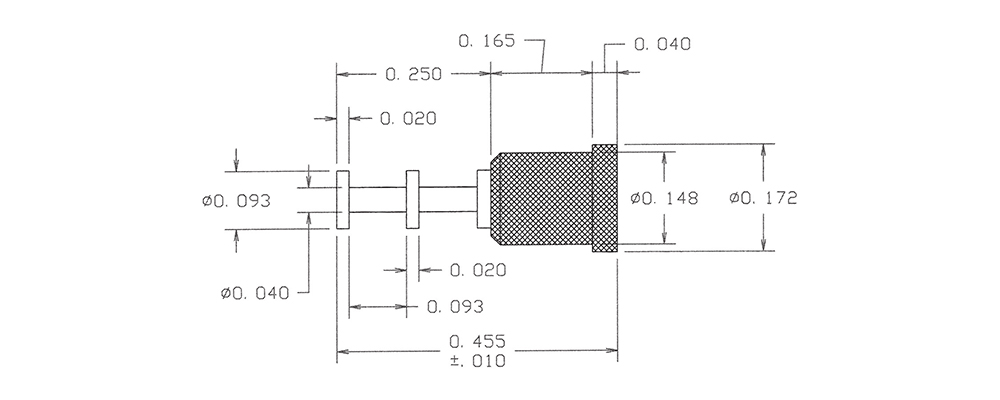

1102R-21-0317
1102R-21-0317
1102R-21-0317
0.455" - - Press Fit 1/8 0.136 Brass Gold - - PTFE Violet YES

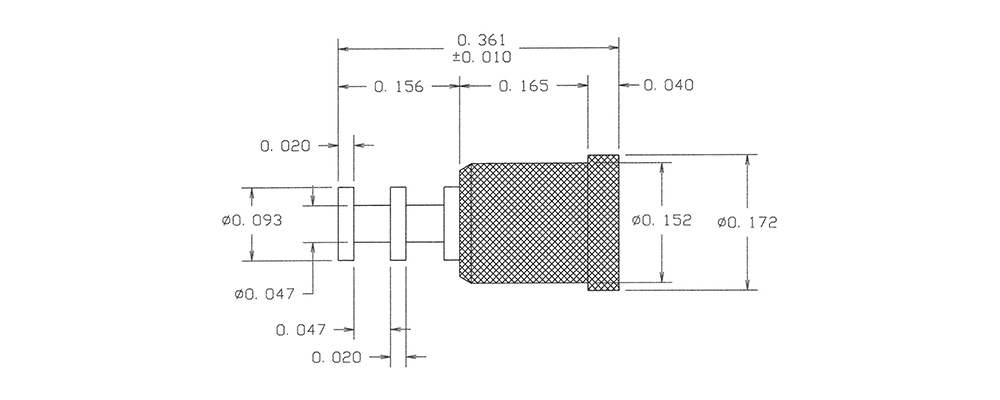

1102R-28-04413
1102R-28-04413
1102R-28-04413
0.361" - - Press Fit 1/8 0.140 Brass Bright Tin - - PTFE Orange NO
1102R-74-0519
1102R-74-0519
1102R-74-0519
0.375" - - Press Fit 3/32 0.172 Brass Electro Solder - - PTFE White NO

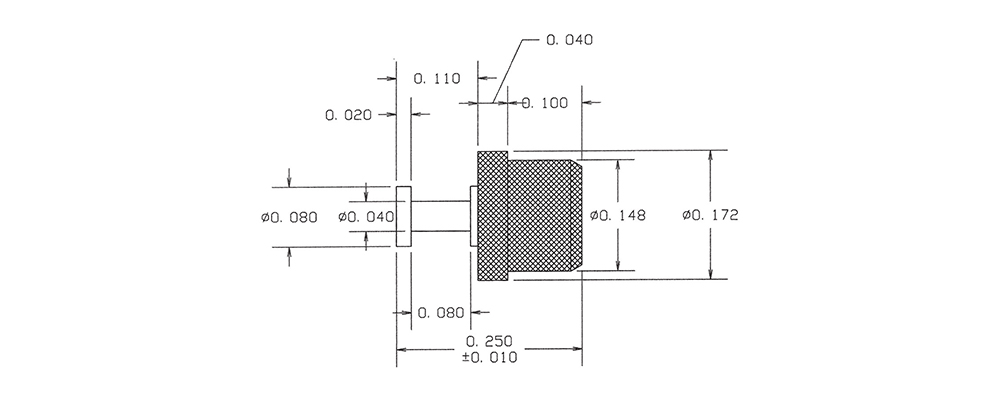

1103-01-0115
1103-01-0115
1103-01-0115
0.250" - - Press Fit 1/16 0.136 Brass Silver - - PTFE Green YES
1103-08-0411
1103-08-0411
1103-08-0411
0.320" - - Press Fit 3/32 0.152 Brass Electro-Tin - - PTFE Brown NO
1103R-08-04417
1103R-08-04417
1103R-08-04417
0.320" - - Press Fit 3/32 0.158 Brass Bright Tin - - PTFE Violet YES
1104-04-08813
1104-04-08813
1104-04-08813
0.392" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Orange NO

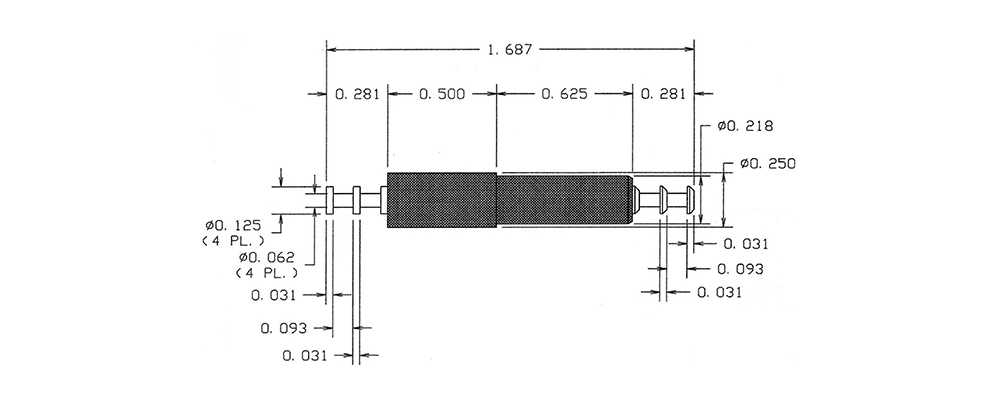

1105-02-0119
1105-02-0119
1105-02-0119
1.687" - Double Turret/Double Turret Press Fit 9/16 0.205 Brass Silver - - PTFE White YES

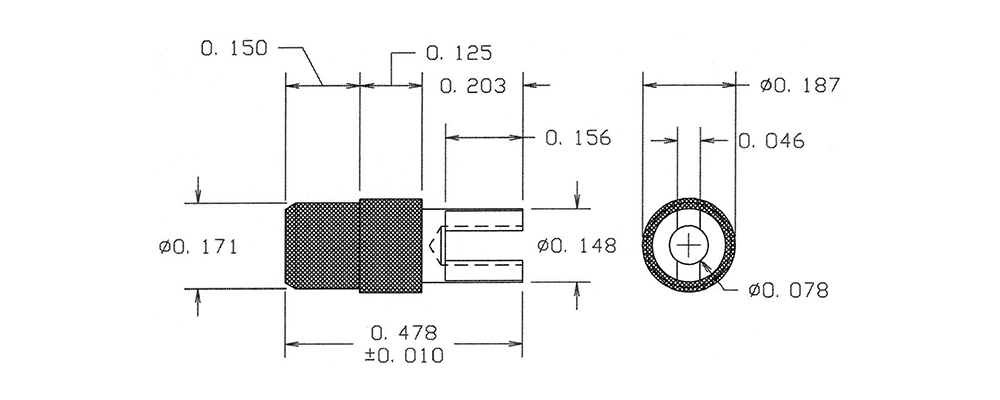

1106-03-0415
1106-03-0415
1106-03-0415
0.478" - - Press Fit 1/8 0.158 Brass Electro-Tin - - PTFE Green YES
1106-07-0511
1106-07-0511
1106-07-0511
0.602" - - Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Brown NO
1106-11-08817
1106-11-08817
1106-11-08817
0.703" - - Press Fit 1/16 0.158 Brass Bright Tin-Lead - - PTFE Violet NO

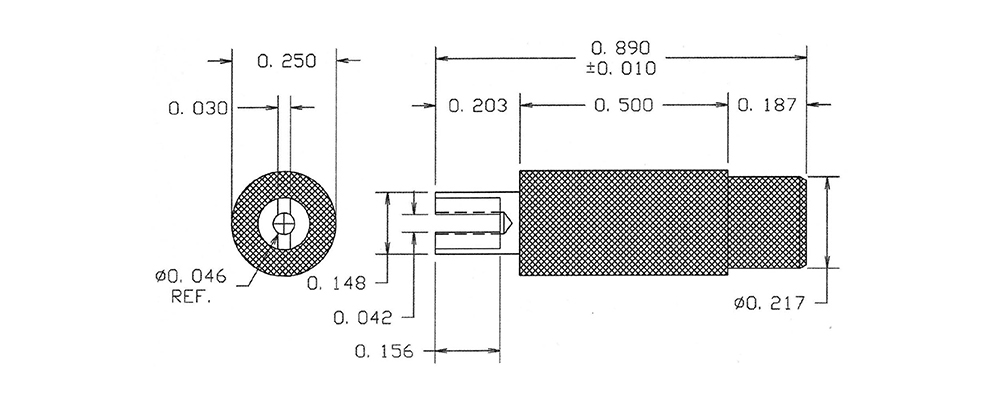

1106-16-0313
1106-16-0313
1106-16-0313
0.890" - - Press Fit 5/32 0.205 Brass Gold - - PTFE Orange NO
1106-22-0419
1106-22-0419
1106-22-0419
0.375" - - Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE White YES
