Commercial
Insulated
Pin Terminals

Filter

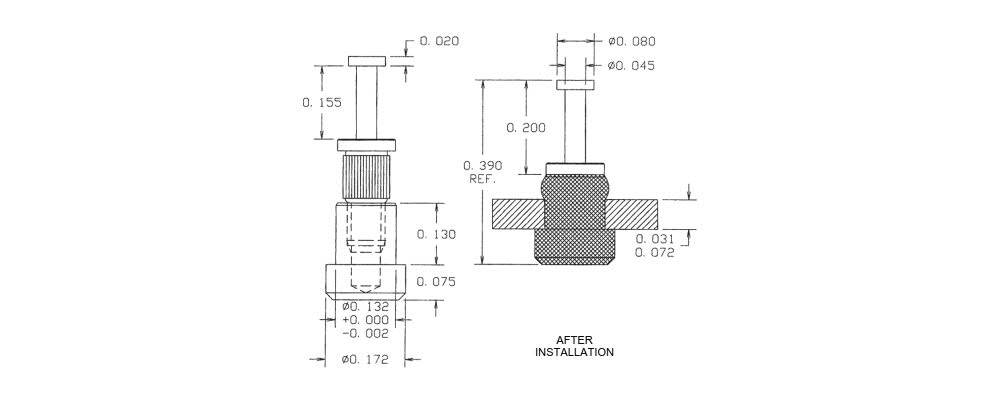

1178R-15-04412
1178R-15-04412
1178R-15-04412
0.390" - - PRESS LOCK 1/32 - 5/64 0.134 Brass Bright Tin - - PTFE Red NO

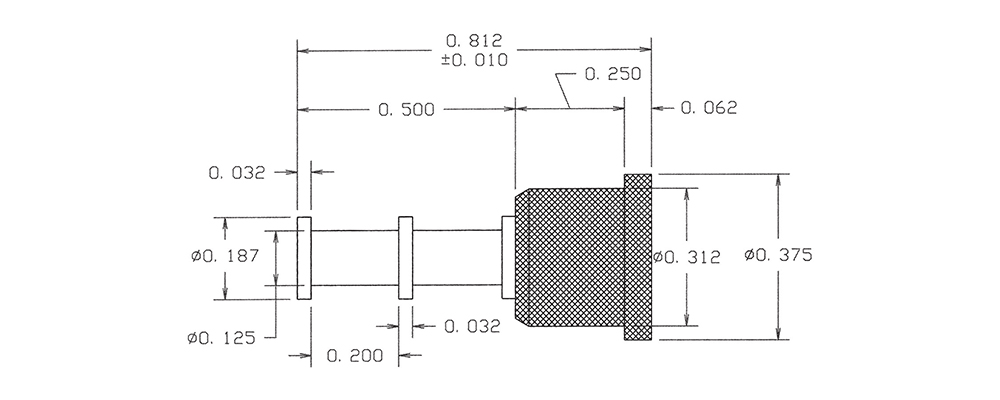

1102R-95-0518
1102R-95-0518
1102R-95-0518
0.812" - - Press Fit 13/64 0.297 Brass Electro Solder - - PTFE Gray NO

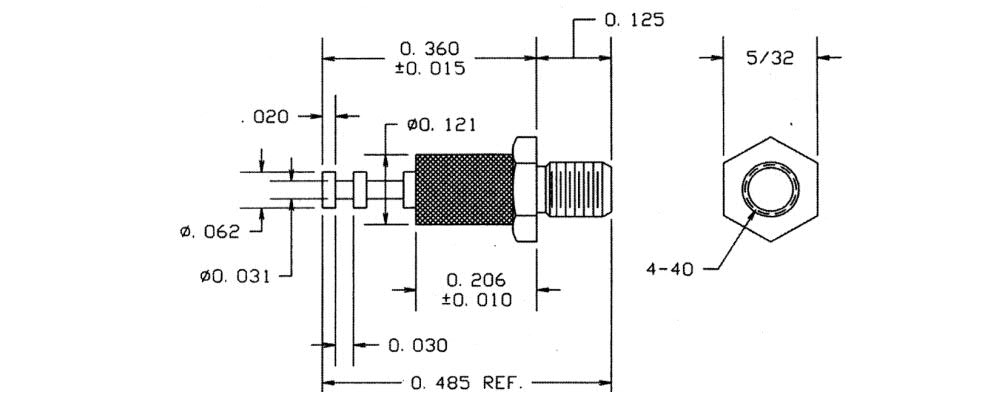

1125-03-0114
1125-03-0114
1125-03-0114
0.485" - - 4-40 1/8 4-40 THREAD Brass Silver Electro-Tin Brass PTFE Yellow NO
1125-07-0410
1125-07-0410
1125-07-0410
0.454" - - Swage Mount 1/16 0.116 ±0.002 Brass Electro-Tin Electro-Tin Brass PTFE Black YES
1125-11-04416
1125-11-04416
1125-11-04416
0.454" - - Swage Mount 1/16 0.116 ±0.002 Brass Bright Tin Electro-Tin Brass PTFE Blue YES

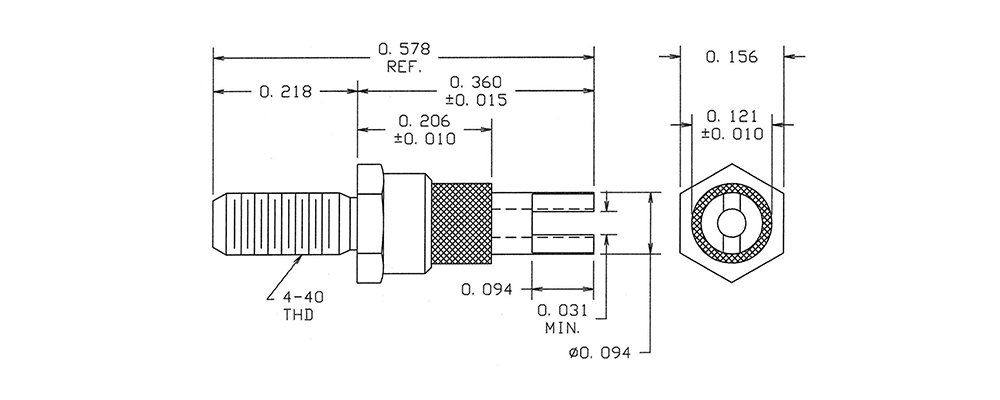

1125-15-08812
1125-15-08812
1125-15-08812
0.578" - - 4-40 Nut 7/64 0.120 Brass Bright Tin-Lead Electro-Tin Brass PTFE Red NO

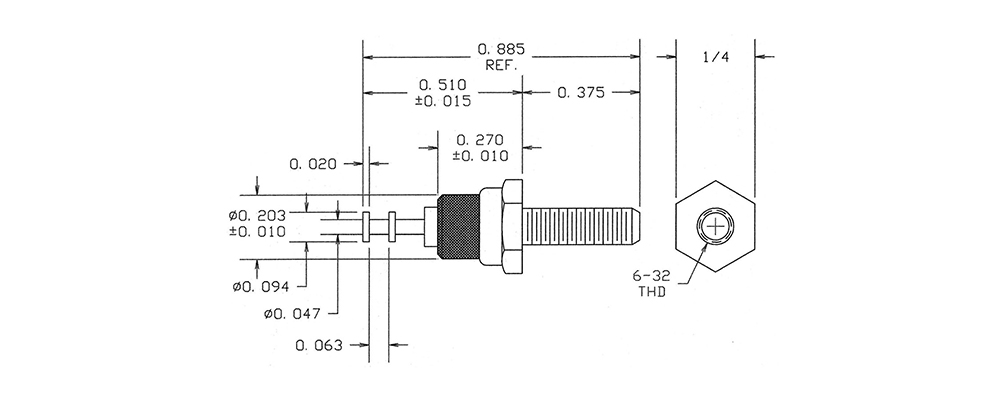

1125-20-0118
1125-20-0118
1125-20-0118
0.885" - - 6-32 Nut 7/32 0.144 Brass Silver Electro-Tin Brass PTFE Gray NO

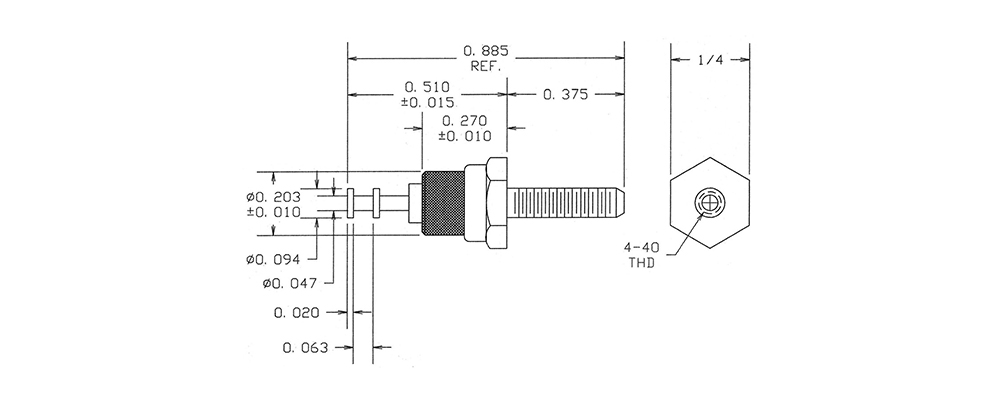

1125-24-0414
1125-24-0414
1125-24-0414
0.885" - - 4-40 Nut Up to 1/4 0.120 Brass Electro-Tin Electro-Tin Brass PTFE Yellow NO

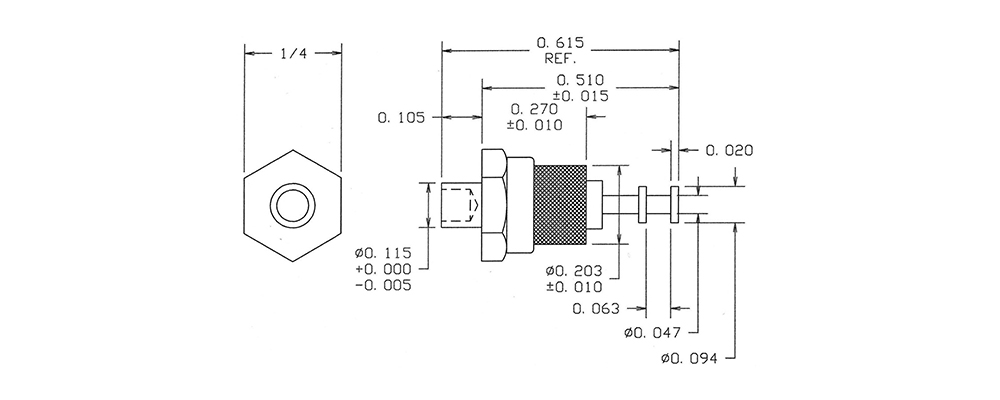

1125-28-0510
1125-28-0510
1125-28-0510
0.615" - - Swage Mount 1/16 0.116 ±0.001 Brass Electro Solder Electro-Tin Brass PTFE Black NO
09-2128-1-08816
09-2128-1-08816
09-2128-1-08816
0.443" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Blue NO

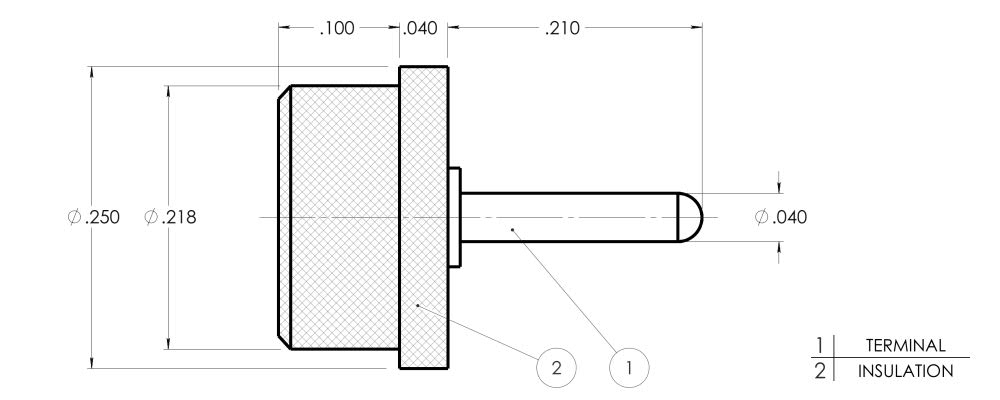

1100-49-0312
1100-49-0312
1100-49-0312
0.350" 0.040 - Press Fit 1/16 0.205 Brass Gold - - PTFE Red NO

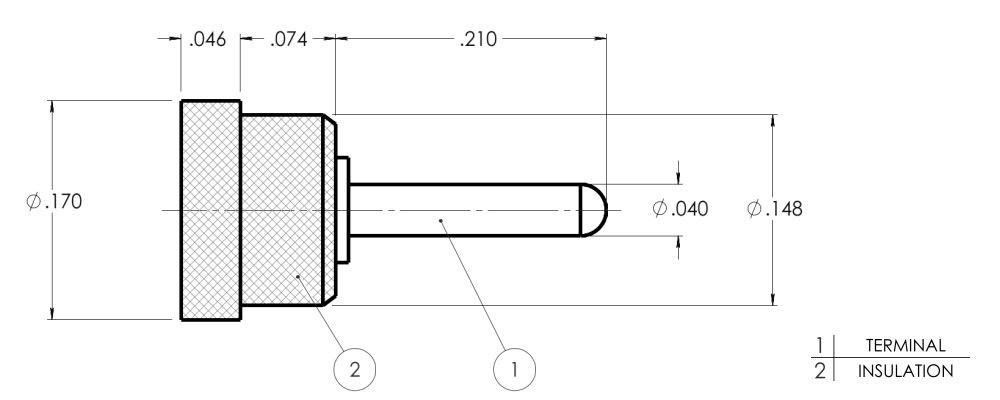

1100R-23A-0418
1100R-23A-0418
1100R-23A-0418
0.330" 0.040 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Gray NO
1100R-36-0514
1100R-36-0514
1100R-36-0514
0.390" 0.040 - Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Yellow NO

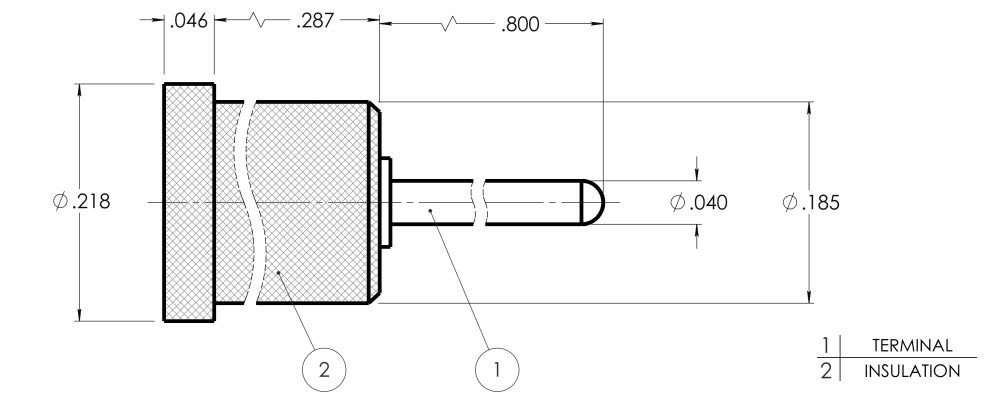

1100R-54-0110
1100R-54-0110
1100R-54-0110
1.133" 0.040 - Press Fit 7/32 0.172 Brass Silver - - PTFE Black YES

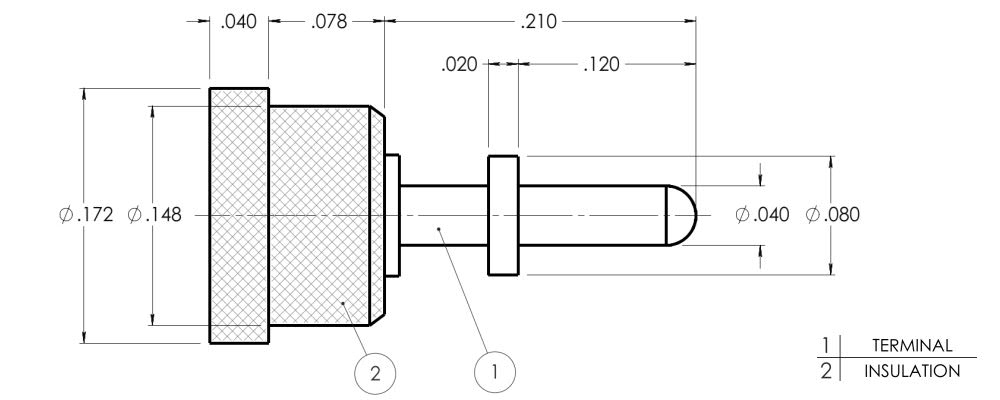

1101R-01-0316
1101R-01-0316
1101R-01-0316
0.328" 0.040 - Press Fit 1/32 0.136 Brass Gold - - PTFE Blue YES
09-2010-1-04417
09-2010-1-04417
09-2010-1-04417
0.436" 0.040 Pin/Tip Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Violet YES
1102-44-04413
1102-44-04413
1102-44-04413
0.750" - - Press Fit 1/16 0.152 Brass Bright Tin - - PTFE Orange NO
09-2078-1-08813
09-2078-1-08813
09-2078-1-08813
0.856" 0.025 SQ. TURRET/PIN Press Fit 5/64 0.086 Brass Bright Tin-Lead - - PTFE Orange NO
1110-39-0519
1110-39-0519
1110-39-0519
0.515" 0.040 Pin/Pin Press Fit 1/16 0.144 Brass Electro Solder - - PTFE White NO
09-2095-1-0119
09-2095-1-0119
09-2095-1-0119
0.636" 0.060 ± 0.010 Pin/Pin Press Fit 1/8 0.136 Brass Silver - - PTFE White YES

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
