Commercial
Insulated
Pin Terminals

Filter
1157-07-0312
1157-07-0312
1157-07-0312
0.350" 0.040 Turret/Tip Press Fit 1/16 0.158 Brass Gold - - PTFE Red NO
1157R-05-0418
1157R-05-0418
1157R-05-0418
0.865" 0.050 TURRET/PIN Press Fit 7/32 0.158 Brass Electro-Tin - - PTFE Gray NO
1160-13-0514
1160-13-0514
1160-13-0514
0.367" 0.085 - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Yellow NO
1167-24-0110
1167-24-0110
1167-24-0110
0.781" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Silver ZINC Brass DIALLYL PHTHALATE Black YES

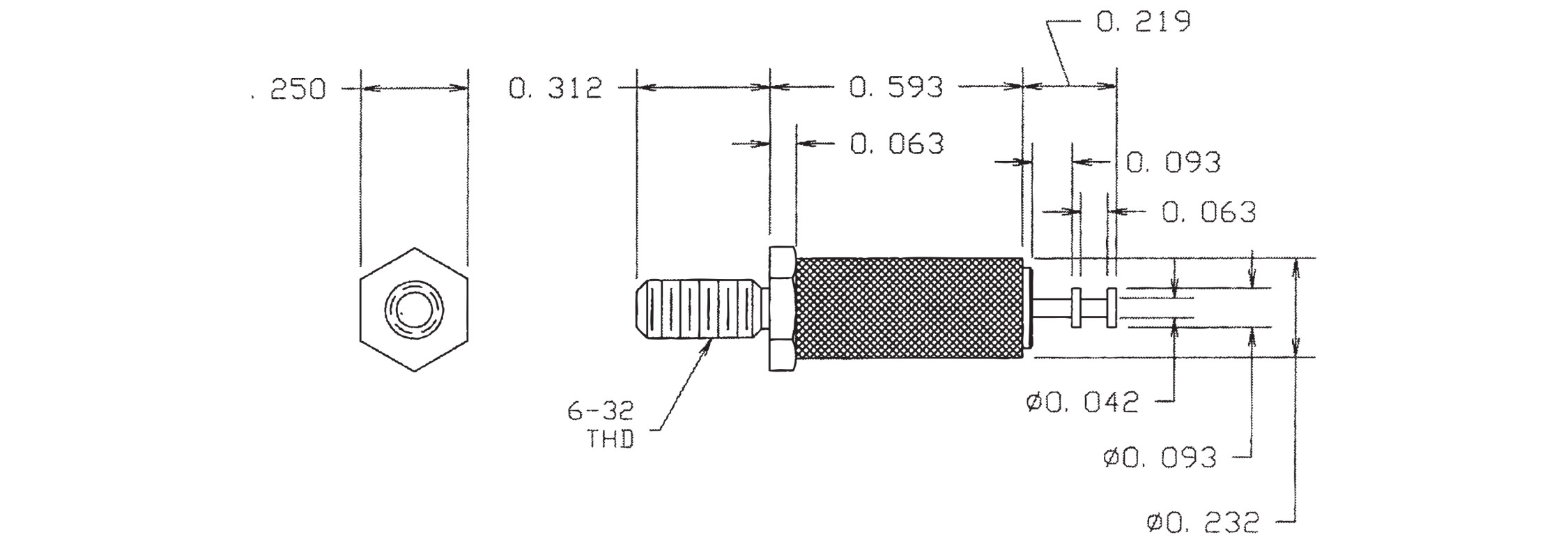

1167-75-0316
1167-75-0316
1167-75-0316
0.905" - - 6-32 Nut Up to 3/16 0.144 Brass Gold ZINC Brass DIALLYL PHTHALATE Blue YES
1169-30-04412
1169-30-04412
1169-30-04412
0.671" 0.060 - 2-56 Nut 1/8 0.094 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Red YES
1169-37-0518
1169-37-0518
1169-37-0518
0.750" - - 4-40 Nut 1/8 0.120 Brass Electro Solder Electro Solder Brass DIALLYL PHTHALATE Gray NO

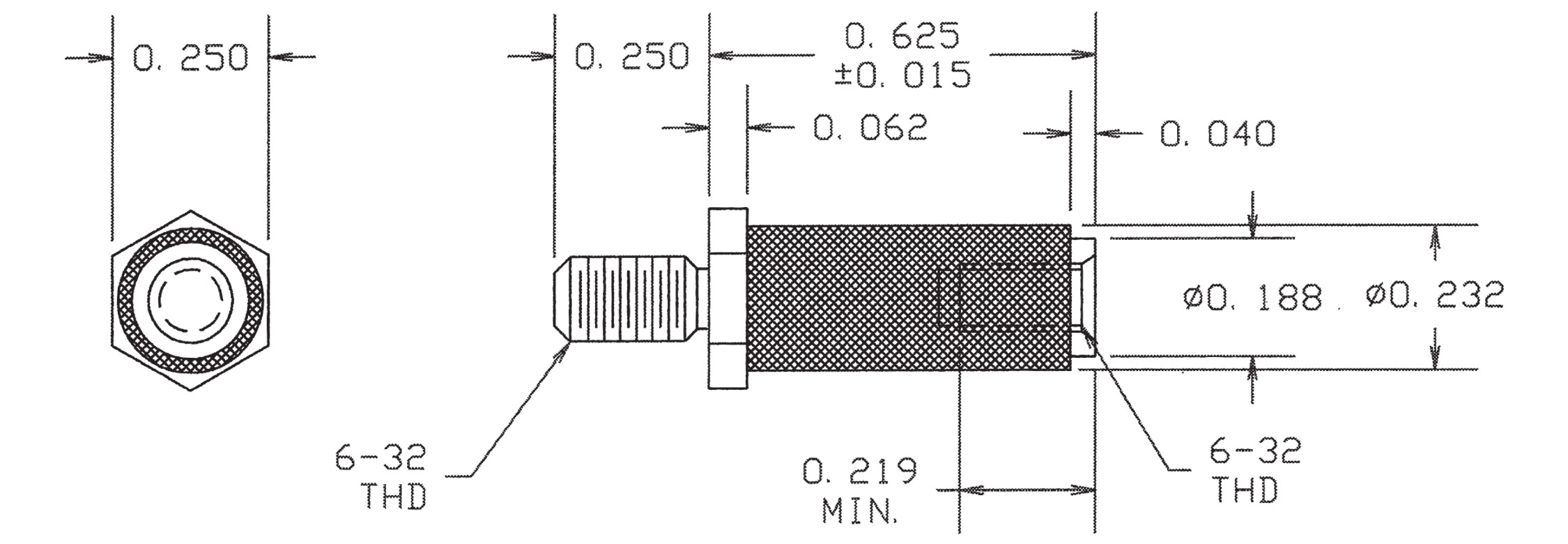

1170-07-07514
1170-07-07514
1170-07-07514
0.875" - - 6-32 Nut 1/8 0.144 Brass ZINC ZINC Brass DIALLYL PHTHALATE Yellow YES

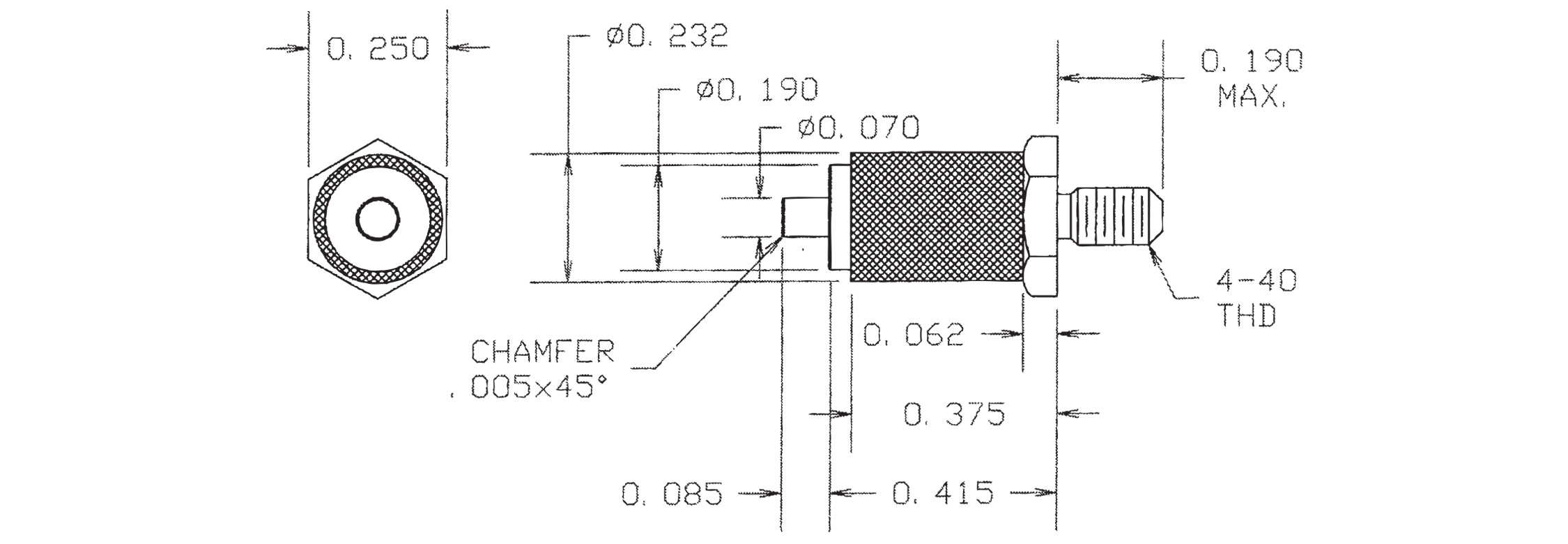

1170-23-0110
1170-23-0110
1170-23-0110
0.500" 0.070 - 4-40 Nut 1/16 0.120 Brass Silver ZINC Brass DIALLYL PHTHALATE Black YES
1175-013-0316
1175-013-0316
1175-013-0316
0.672" 0.047 Pin/Pin PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Gold - - PTFE Blue YES
1175-301-04412
1175-301-04412
1175-301-04412
0.460" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Red NO
1175-351-0518
1175-351-0518
1175-351-0518
0.342" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Gray NO

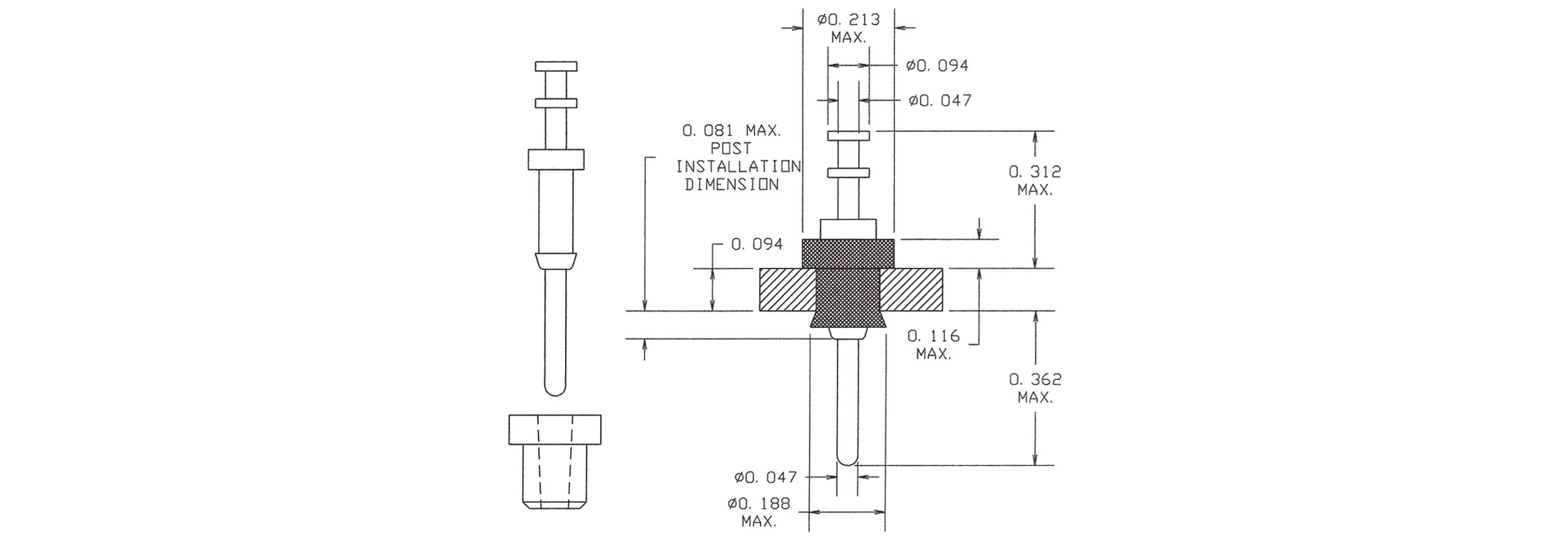

1175-373-0114
1175-373-0114
1175-373-0114
0.768" 0.040 DOUBLE TURRET/PIN PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Silver - - PTFE Yellow NO

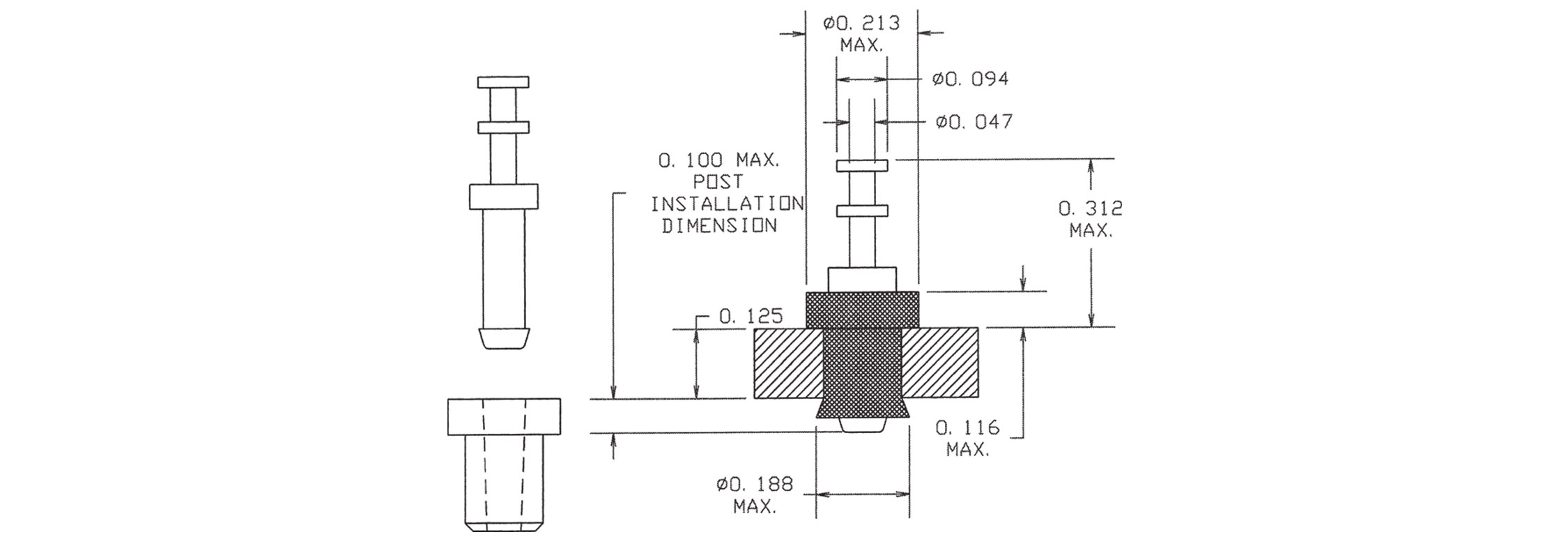

1175-404-0410
1175-404-0410
1175-404-0410
0.537" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Black YES
1175-414-04416
1175-414-04416
1175-414-04416
0.642" - DOUBLE Turret/Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Blue YES
1175-424-08812
1175-424-08812
1175-424-08812
0.756" - Double Turret/Double Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Red NO
1175-441-0118
1175-441-0118
1175-441-0118
0.548" - TURRET/SLOTTED PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Silver - - PTFE Gray NO

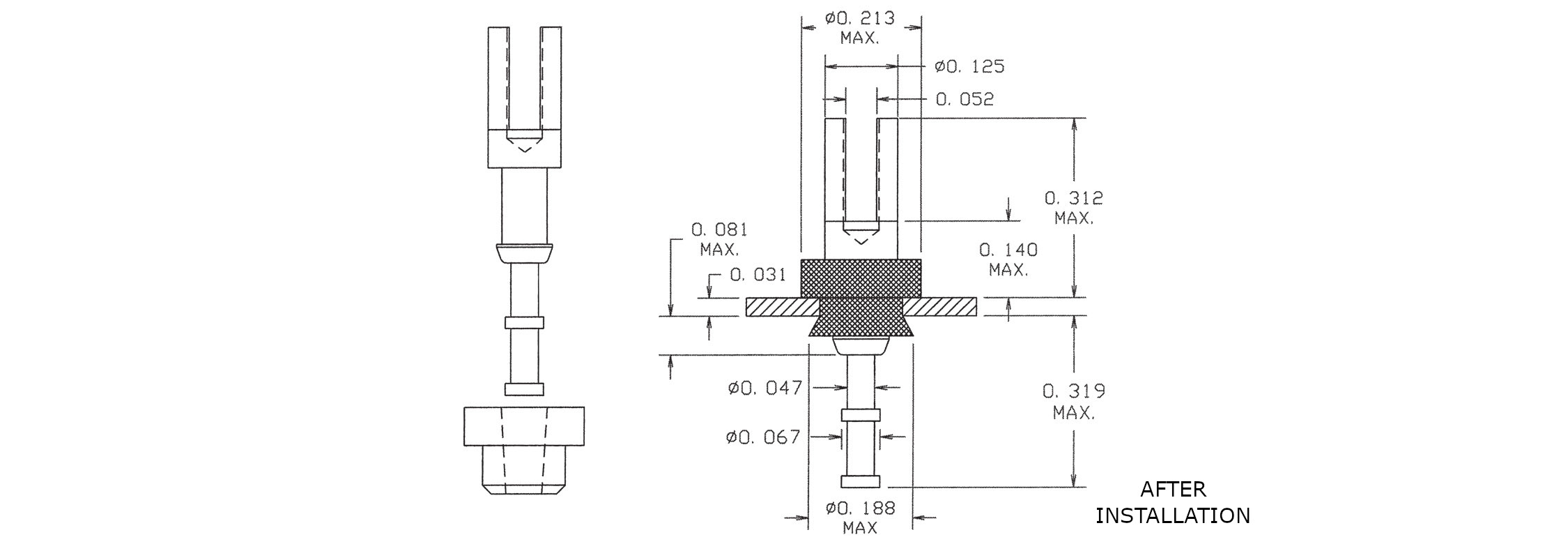

1175-451-0414
1175-451-0414
1175-451-0414
0.662" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Yellow NO
1175-462-0510
1175-462-0510
1175-462-0510
0.392" - - PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Black NO
1175-473-08816
1175-473-08816
1175-473-08816
0.575" - - PRESS LOCK 3/32 0.188 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Blue NO
