Commercial
Insulated
Pin Terminals

Filter

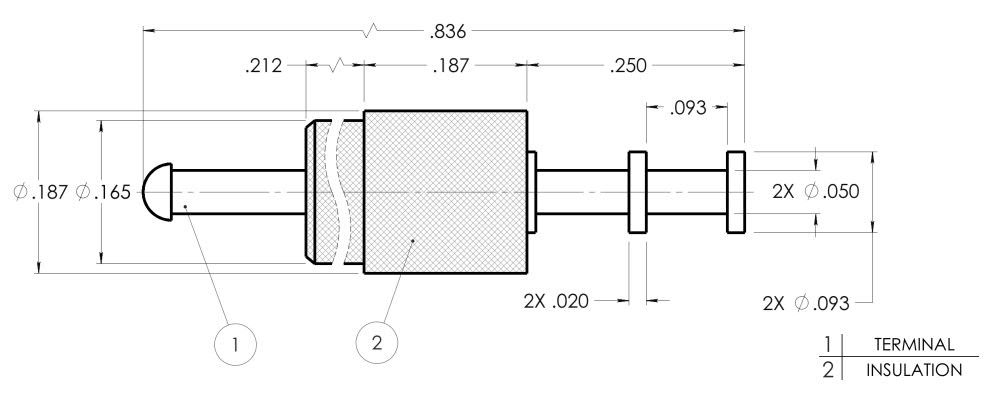

1111-25-0115
1111-25-0115
1111-25-0115
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.152 Brass Silver - - PTFE Green YES
09-2104-1-0415
09-2104-1-0415
09-2104-1-0415
0.460" 0.036 Pin/Pin Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Green YES
1112-07-0411
1112-07-0411
1112-07-0411
0.273" - - Press Fit 1/16 0.113 Brass Electro-Tin - - PTFE Brown NO
09-2112-1-0511
09-2112-1-0511
09-2112-1-0511
0.838" - - 6-32 Nut 1/8 0.144 Brass Electro Solder Nickel Brass PTFE Brown NO
1113-54-04417
1113-54-04417
1113-54-04417
0.327" 0.030 Pin/Pin Press Fit 1/16 0.070 Brass Bright Tin - - PTFE Violet YES
09-2121-1-08817
09-2121-1-08817
09-2121-1-08817
0.275" - - Press Fit 5/64 0.136 Brass Bright Tin-Lead - - PTFE Violet NO
1114-18-08813
1114-18-08813
1114-18-08813
0.250" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin-Lead - - PTFE Orange NO

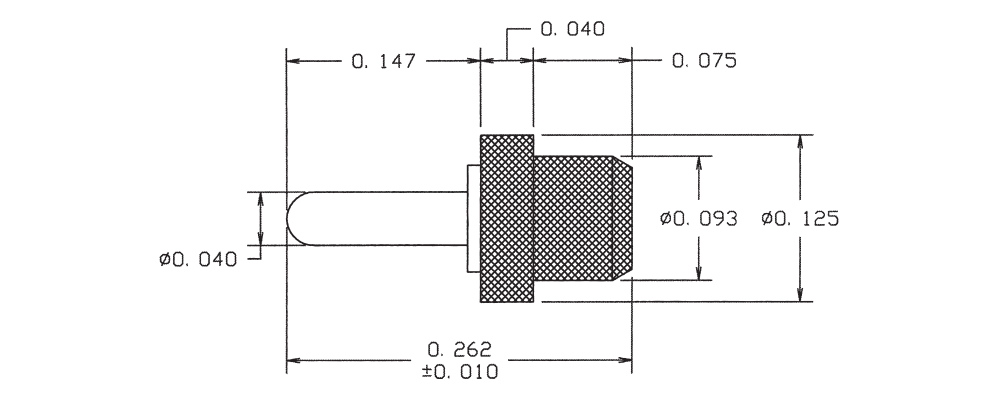

1100-05-0313
1100-05-0313
1100-05-0313
0.262" 0.040 - Press Fit 3/64 0.086 Brass Gold - - PTFE Orange NO

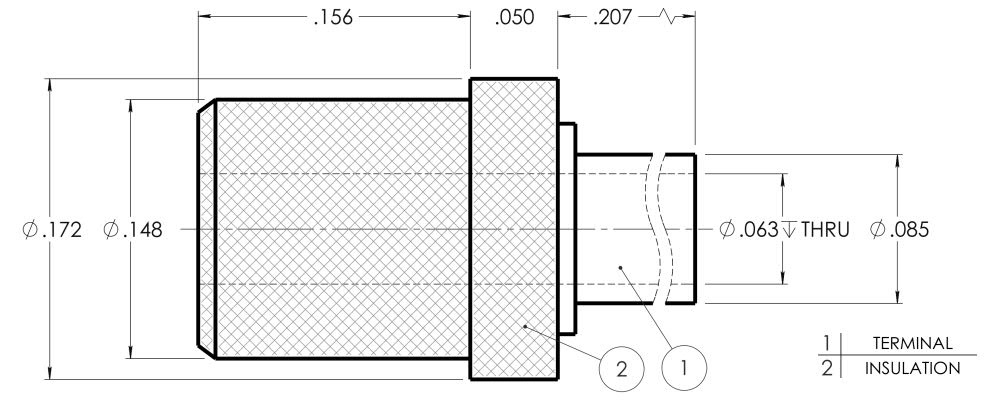

1114-25-0119
1114-25-0119
1114-25-0119
0.413" 0.085 - Press Fit 1/8 0.136 Brass Silver - - PTFE White YES
1100-09-0419
1100-09-0419
1100-09-0419
0.350" 0.040 - Press Fit 3/32 0.098 Brass Electro-Tin - - PTFE White YES
1114R-16-0415
1114R-16-0415
1114R-16-0415
0.296" 0.040 - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Green YES
1100-14-0515
1100-14-0515
1100-14-0515
0.280" 0.040 - Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Green NO
1123R-75-0511
1123R-75-0511
1123R-75-0511
0.426" - - Press Fit 1/8 0.172 Brass Electro Solder - - PTFE Brown NO

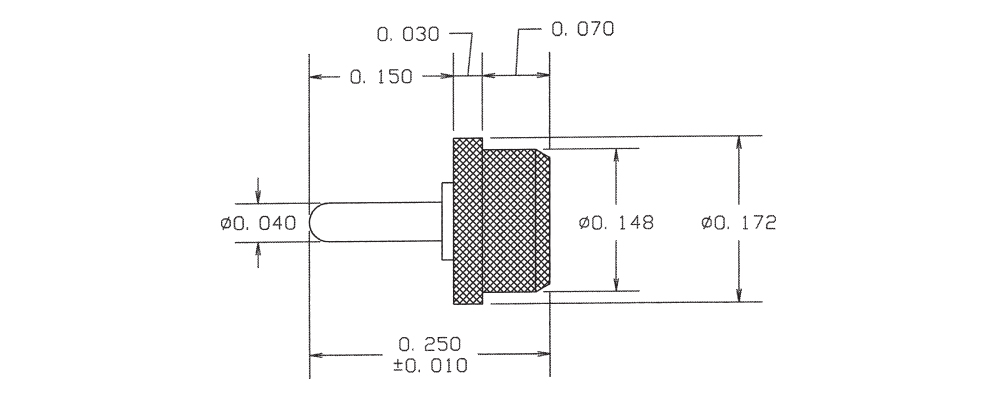

1100-19-0111
1100-19-0111
1100-19-0111
0.250" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE Brown NO
1124-10-08817
1124-10-08817
1124-10-08817
0.899" 0.050 THREAD/TIP Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Violet NO
1100-24-0317
1100-24-0317
1100-24-0317
0.335" 0.040 - Press Fit 1/32 0.136 Brass Gold - - PTFE Violet YES
1153-12-0313
1153-12-0313
1153-12-0313
0.594" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Gold - - PTFE Orange NO
1100-34-04413
1100-34-04413
1100-34-04413
0.410" 0.040 - Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Orange NO
1110-95-0419
1110-95-0419
1110-95-0419
0.778" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE White YES
1100-43-0519
1100-43-0519
1100-43-0519
0.485" 0.040 - Press Fit 1/8 0.152 Brass Electro Solder - - PTFE White NO
