Commercial
Insulated
Pin Terminals

Filter
1175-822-0319
1175-822-0319
1175-822-0319
0.433" - - PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Gold - - PTFE White YES

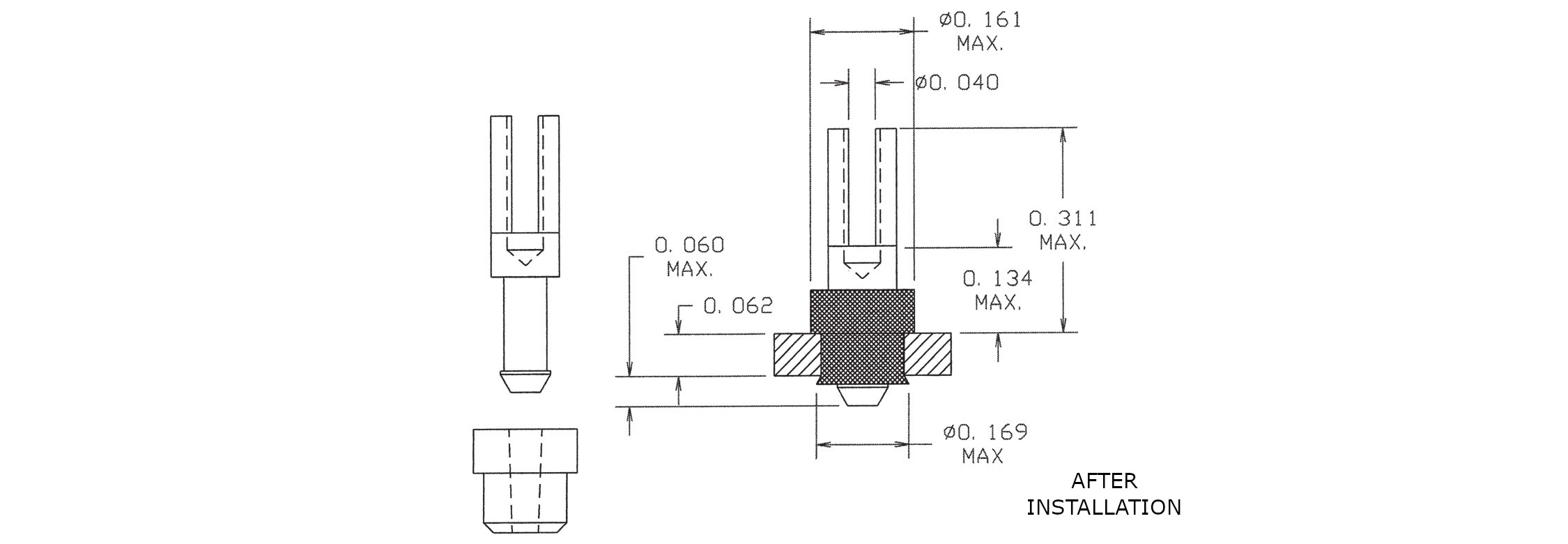

1175-842-04415
1175-842-04415
1175-842-04415
0.433" - - PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Bright Tin - - PTFE Green YES
1175-872-08811
1175-872-08811
1175-872-08811
0.591" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Brown NO

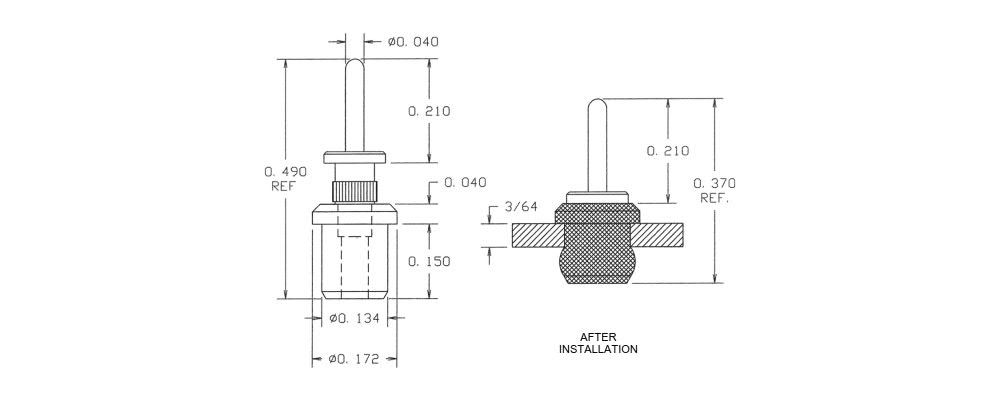

1177-03-0117
1177-03-0117
1177-03-0117
0.370" 0.040 - PRESS LOCK 1/32 - 1/16 0.136 Brass Silver - - PTFE Violet YES
1177-13-0413
1177-13-0413
1177-13-0413
0.495" - - PRESS LOCK 1/32 - 1/16 0.136 Brass Electro-Tin - - PTFE Orange NO
1177-32-04419
1177-32-04419
1177-32-04419
0.500" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/32 - 1/16 0.136 Brass Bright Tin - - PTFE White YES
1177-41-08815
1177-41-08815
1177-41-08815
0.387" 0.040 Pin/Slotted PRESS LOCK 1/32 - 1/16 0.109 Brass Bright Tin-Lead - - PTFE Green NO

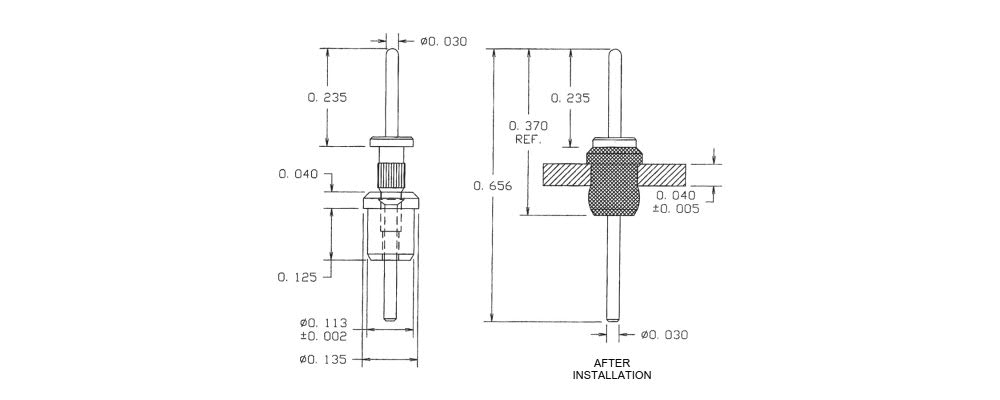

1177-53-0311
1177-53-0311
1177-53-0311
0.656" 0.030 Pin/Pin PRESS LOCK 1/32 - 1/16 0.115 Brass Gold - - PTFE Brown NO
1177-57-0417
1177-57-0417
1177-57-0417
0.687" 0.050 Pin/Pin PRESS LOCK 1/32 - 1/16 0.136 Brass Electro-Tin - - PTFE Violet YES
1177-61-0513
1177-61-0513
1177-61-0513
0.446" 0.040 Pin/Pin PRESS LOCK 1/64 0.138 Brass Electro Solder - - PTFE Orange NO
1178R-03-08819
1178R-03-08819
1178R-03-08819
0.650" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.134 Brass Bright Tin-Lead - - PTFE White NO

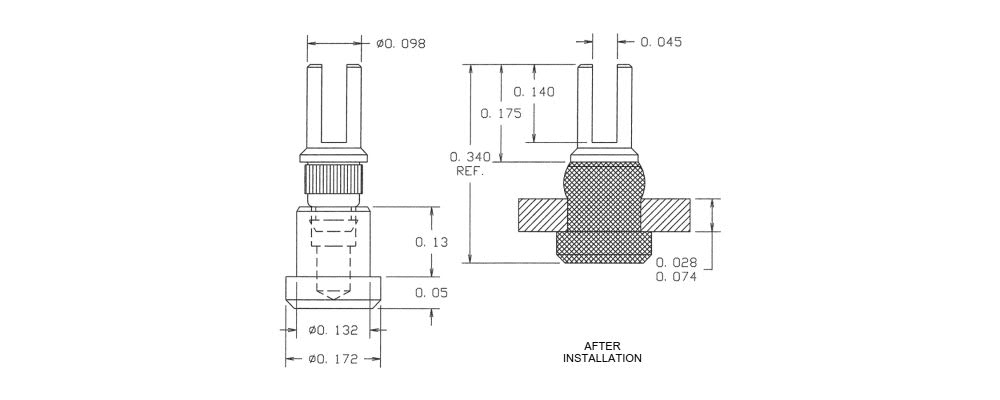

1178R-11-0315
1178R-11-0315
1178R-11-0315
0.340" - - PRESS LOCK 1/32 - 5/64 0.134 Brass Gold - - PTFE Green YES
1178R-15-04411
1178R-15-04411
1178R-15-04411
0.390" - - PRESS LOCK 1/32 - 5/64 0.134 Brass Bright Tin - - PTFE Brown NO
1102R-95-0517
1102R-95-0517
1102R-95-0517
0.812" - - Press Fit 13/64 0.297 Brass Electro Solder - - PTFE Violet NO

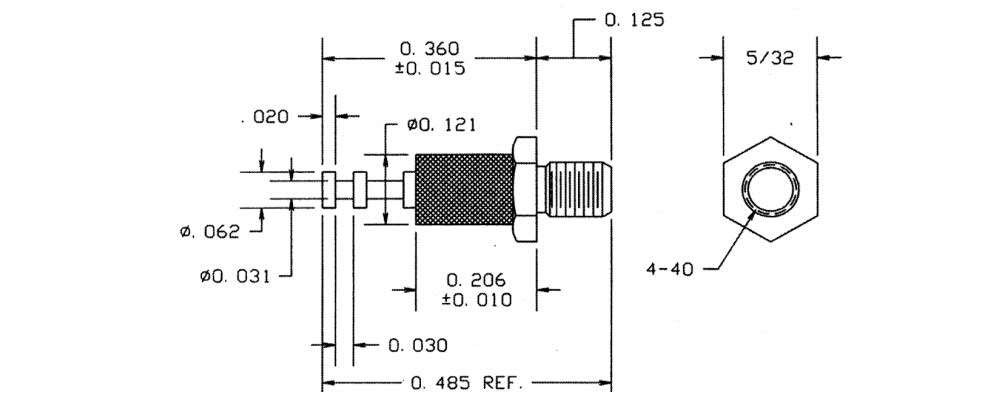

1125-03-0113
1125-03-0113
1125-03-0113
0.485" - - 4-40 1/8 4-40 THREAD Brass Silver Electro-Tin Brass PTFE Orange NO
1125-07-0319
1125-07-0319
1125-07-0319
0.454" - - Swage Mount 1/16 0.116 ±0.002 Brass Gold Electro-Tin Brass PTFE White YES
1125-11-04415
1125-11-04415
1125-11-04415
0.454" - - Swage Mount 1/16 0.116 ±0.002 Brass Bright Tin Electro-Tin Brass PTFE Green YES
1125-15-08811
1125-15-08811
1125-15-08811
0.578" - - 4-40 Nut 7/64 0.120 Brass Bright Tin-Lead Electro-Tin Brass PTFE Brown NO

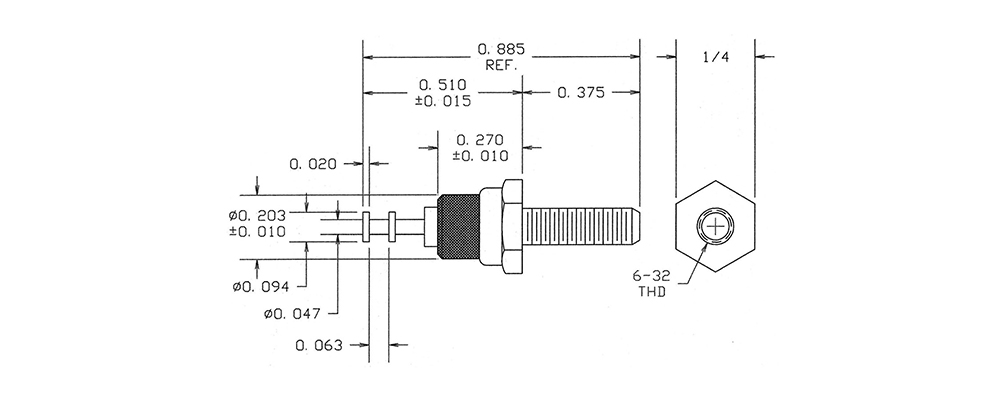

1125-20-0117
1125-20-0117
1125-20-0117
0.885" - - 6-32 Nut 7/32 0.144 Brass Silver Electro-Tin Brass PTFE Violet YES
1125-24-0413
1125-24-0413
1125-24-0413
0.885" - - 4-40 Nut Up to 1/4 0.120 Brass Electro-Tin Electro-Tin Brass PTFE Orange NO
