Commercial
Insulated
Pin Terminals

Filter
1102R-28-04412
1102R-28-04412
1102R-28-04412
0.361" - - Press Fit 1/8 0.140 Brass Bright Tin - - PTFE Red NO
1102R-74-0518
1102R-74-0518
1102R-74-0518
0.375" - - Press Fit 3/32 0.172 Brass Electro Solder - - PTFE Gray NO

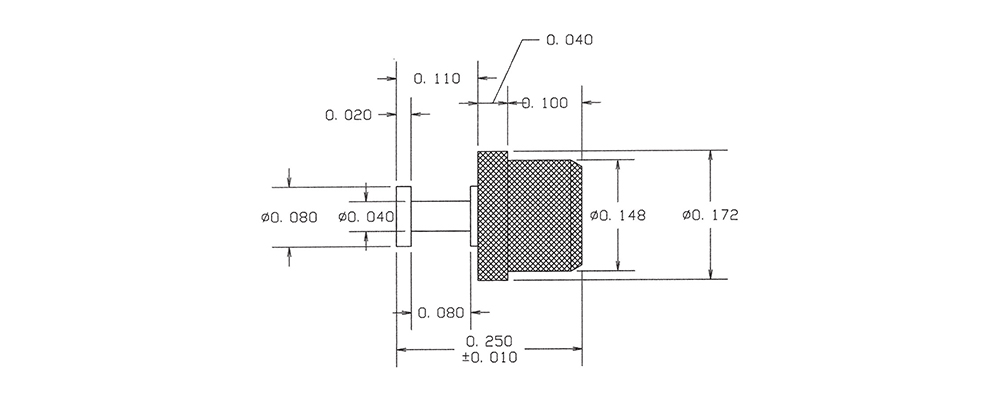

1103-01-0114
1103-01-0114
1103-01-0114
0.250" - - Press Fit 1/16 0.136 Brass Silver - - PTFE Yellow NO
1103-08-0410
1103-08-0410
1103-08-0410
0.320" - - Press Fit 3/32 0.152 Brass Electro-Tin - - PTFE Black YES
1103R-08-04416
1103R-08-04416
1103R-08-04416
0.320" - - Press Fit 3/32 0.158 Brass Bright Tin - - PTFE Blue YES
1104-04-08812
1104-04-08812
1104-04-08812
0.392" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Red NO

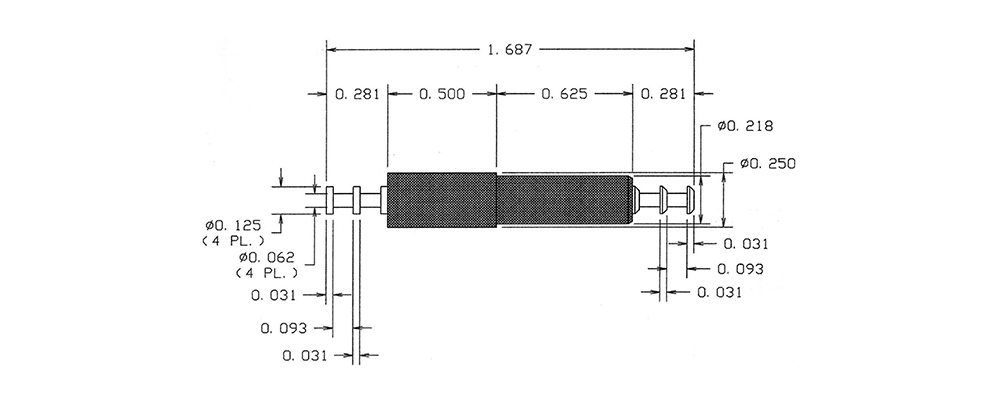

1105-02-0118
1105-02-0118
1105-02-0118
1.687" - Double Turret/Double Turret Press Fit 9/16 0.205 Brass Silver - - PTFE Gray NO
1106-03-0414
1106-03-0414
1106-03-0414
0.478" - - Press Fit 1/8 0.158 Brass Electro-Tin - - PTFE Yellow NO
1106-07-0510
1106-07-0510
1106-07-0510
0.602" - - Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Black NO
1106-11-08816
1106-11-08816
1106-11-08816
0.703" - - Press Fit 1/16 0.158 Brass Bright Tin-Lead - - PTFE Blue NO

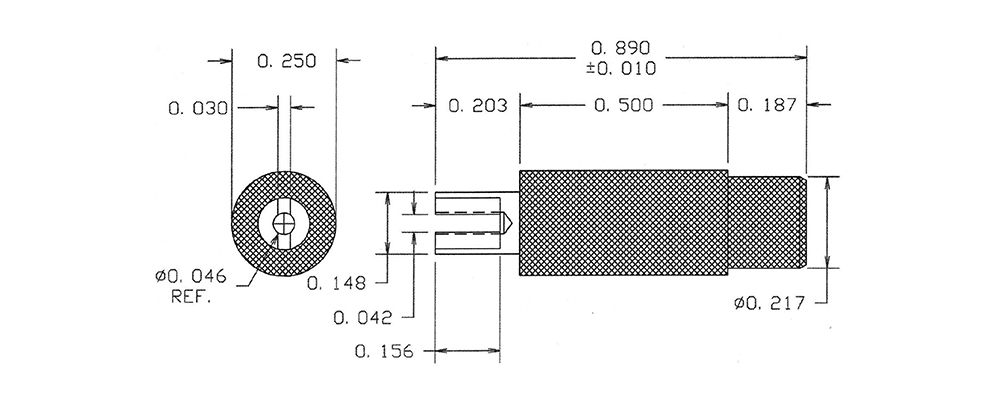

1106-16-0312
1106-16-0312
1106-16-0312
0.890" - - Press Fit 5/32 0.205 Brass Gold - - PTFE Red NO
1106-22-0418
1106-22-0418
1106-22-0418
0.375" - - Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Gray NO
1106-52-0514
1106-52-0514
1106-52-0514
0.276" - - Press Fit 3/32 0.086 Brass Electro Solder - - PTFE Yellow NO
1106R-24-0110
1106R-24-0110
1106R-24-0110
0.890" - - Press Fit 5/32 0.158 Brass Silver - - PTFE Black YES
1106R-51-0316
1106R-51-0316
1106R-51-0316
0.150" - - Press Fit 1/32 0.113 Brass Gold - - PTFE Blue YES
1107-03-04412
1107-03-04412
1107-03-04412
0.819" 0.040 Pin/Pin Press Fit Up to 3/16 0.136 Brass Bright Tin - - PTFE Red NO
1107-08-0518
1107-08-0518
1107-08-0518
0.696" 0.040 Pin/Pin Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Gray NO

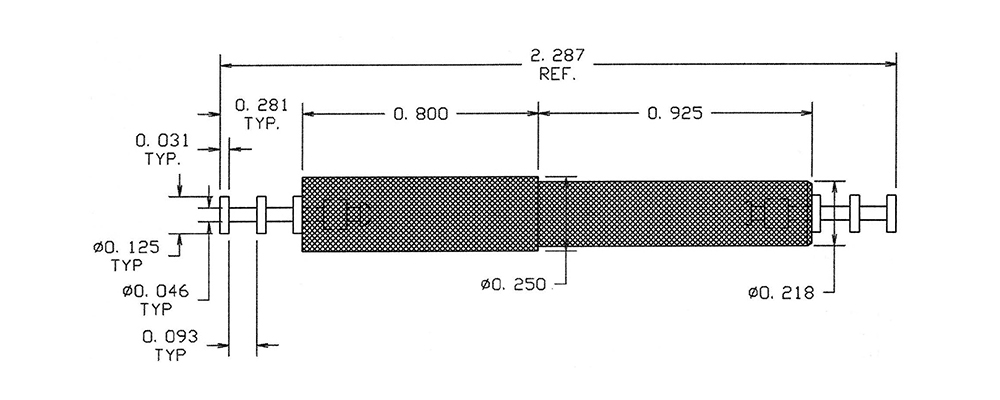

1108-02-0114
1108-02-0114
1108-02-0114
2.287" - Double Turret/Double Turret Press Fit 7/8 0.205 Brass Silver - - PTFE Yellow NO

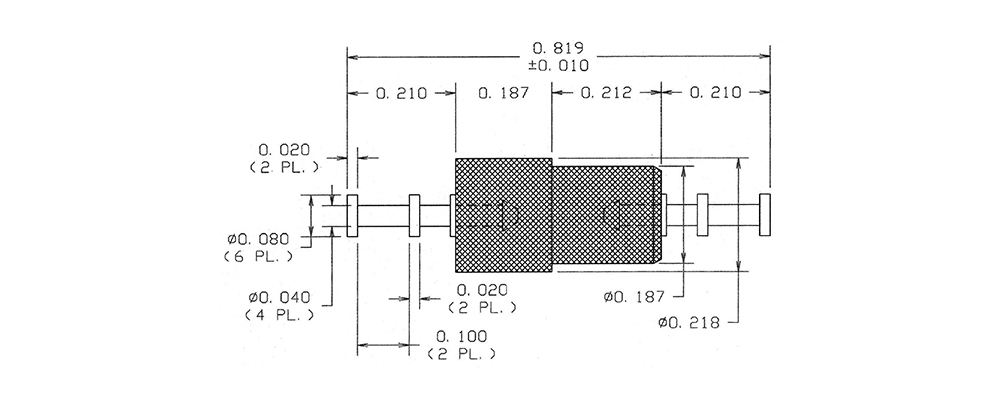

1108-06-0410
1108-06-0410
1108-06-0410
0.819" - Double Turret/Double Turret Press Fit Up to 3/16 0.174 Brass Electro-Tin - - PTFE Black YES
1110-02-04416
1110-02-04416
1110-02-04416
0.438" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Blue YES
