Commercial
Insulated
Pin Terminals

Filter

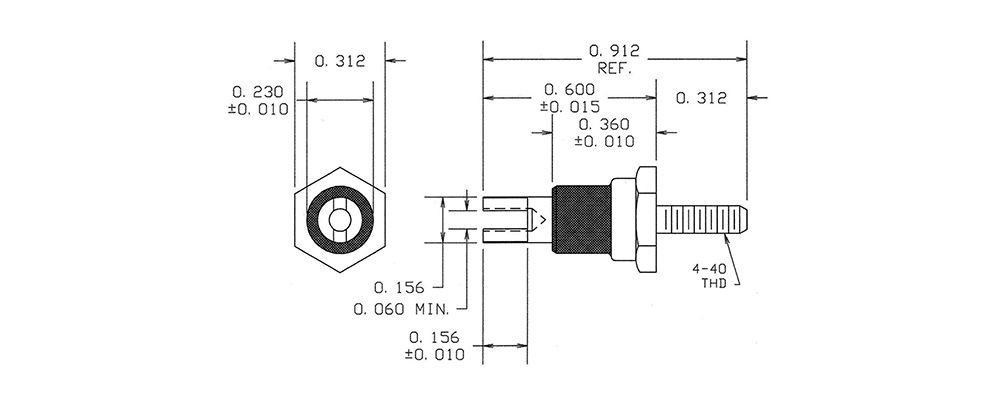

1125-40-08819
1125-40-08819
1125-40-08819
0.912" - - 4-40 Nut Up to 3/16 0.120 Brass Bright Tin-Lead Electro-Tin Brass PTFE White NO
1125-45-0315
1125-45-0315
1125-45-0315
0.890" - - 6-32 Nut 1/8 0.144 Brass Gold ZINC Brass PTFE Green YES

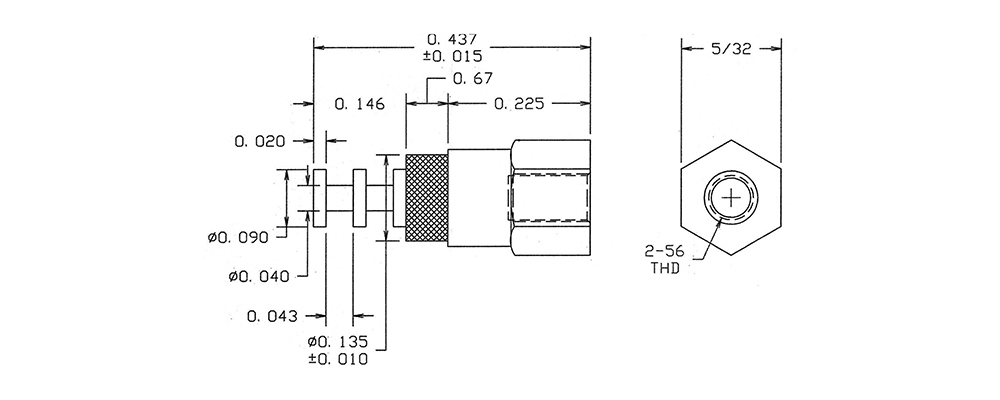

1125-49-04411
1125-49-04411
1125-49-04411
0.437" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Bright Tin ZINC Brass PTFE Brown NO
1125-53-0517
1125-53-0517
1125-53-0517
0.975" - - 6-32 Nut Up to 1/4 0.144 Brass Electro Solder Electro-Tin Brass PTFE Violet NO
1125-58-0113
1125-58-0113
1125-58-0113
1.172" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Silver ZINC Brass PTFE Orange NO
1125-63-0319
1125-63-0319
1125-63-0319
0.453" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Gold ZINC Brass PTFE White YES

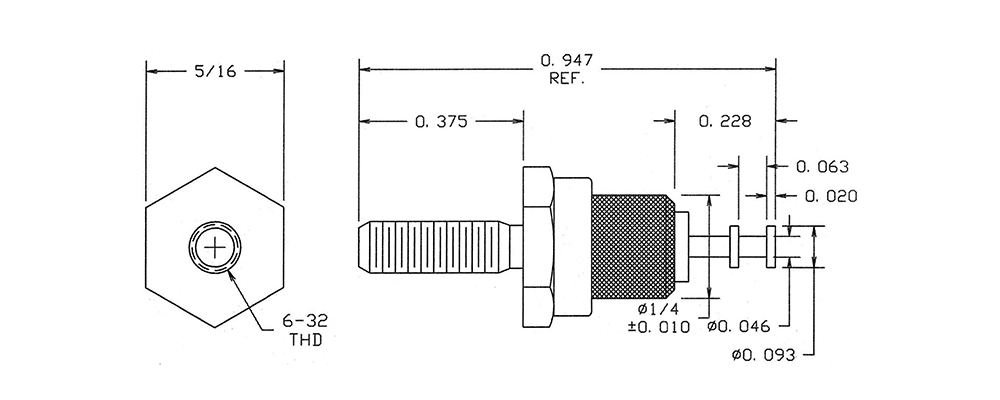

1125-74-04415
1125-74-04415
1125-74-04415
0.947" - - 6-32 Nut Up to 1/4 0.144 Brass Bright Tin ZINC Brass PTFE Green YES
1125-78-08811
1125-78-08811
1125-78-08811
0.697" - - Swage Mount 3/32 0.194 Brass Bright Tin-Lead ZINC Brass PTFE Brown NO

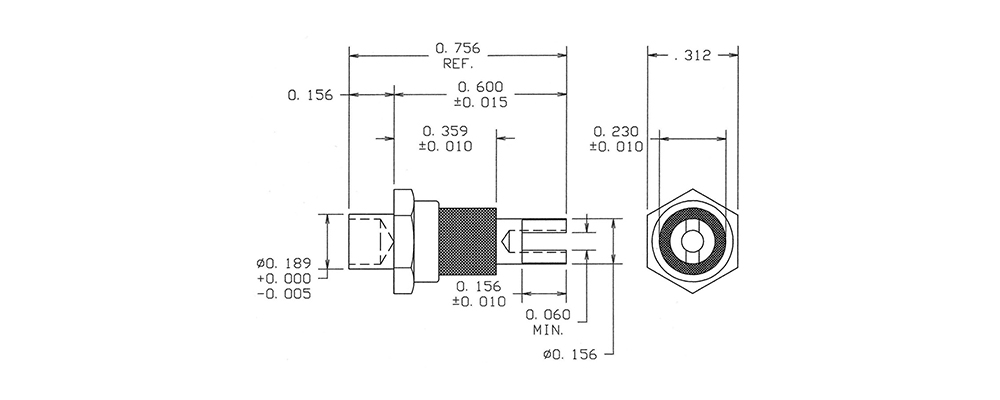

1125-84-0117
1125-84-0117
1125-84-0117
0.756" - - Swage Mount 1/8 0.191 Brass Silver Electro-Tin Brass PTFE Violet YES

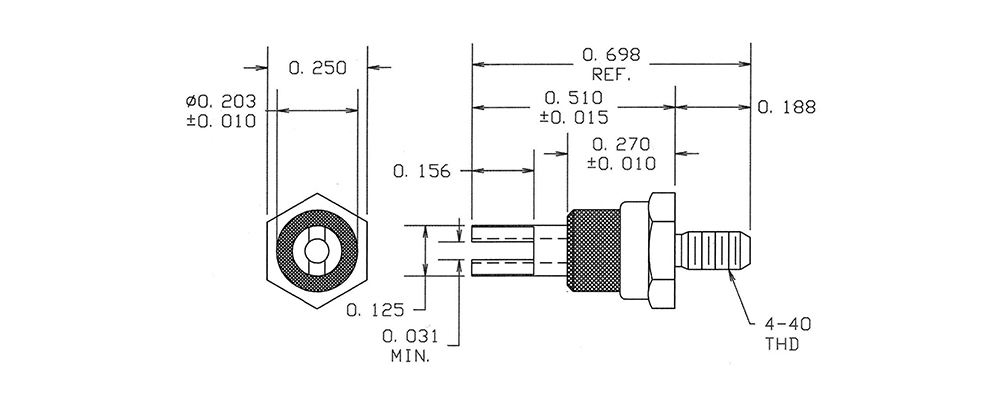

1125-89-0413
1125-89-0413
1125-89-0413
0.698" - - 4-40 Nut 1/16 0.120 Brass Electro-Tin Electro-Tin Brass PTFE Orange NO

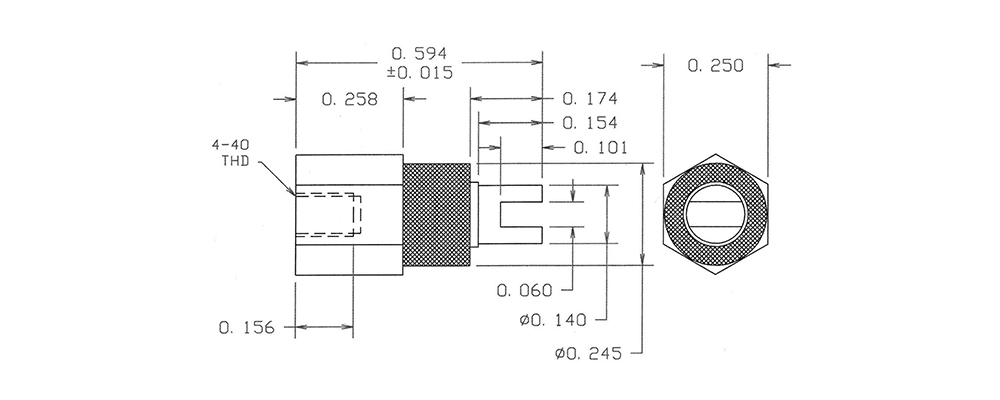

1125-93-04419
1125-93-04419
1125-93-04419
0.594" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin ZINC Brass PTFE White YES

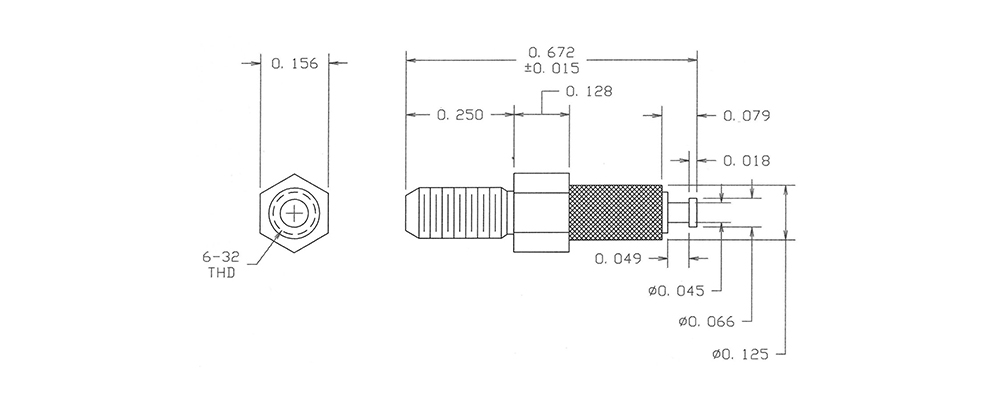

1125-97-08815
1125-97-08815
1125-97-08815
0.672" - - 6-32 Nut 1/8 0.144 Brass Bright Tin-Lead ZINC Brass PTFE Green NO

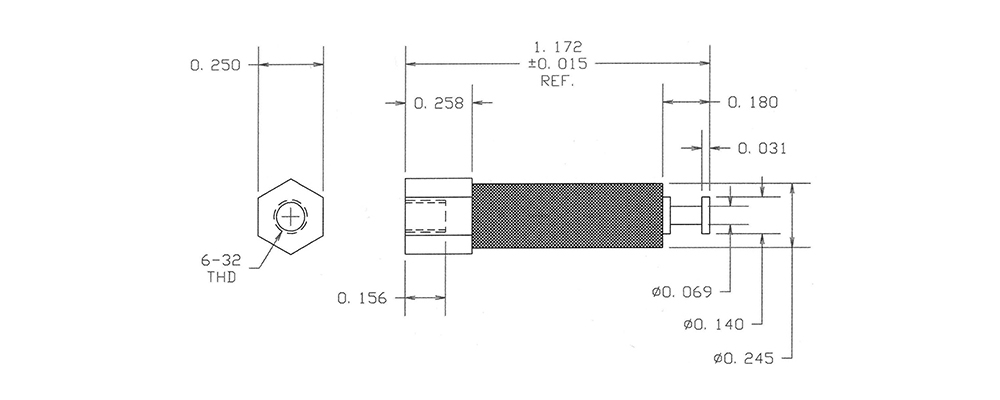

1126-30-0311
1126-30-0311
1126-30-0311
1.172" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Gold ZINC Brass PTFE Brown NO

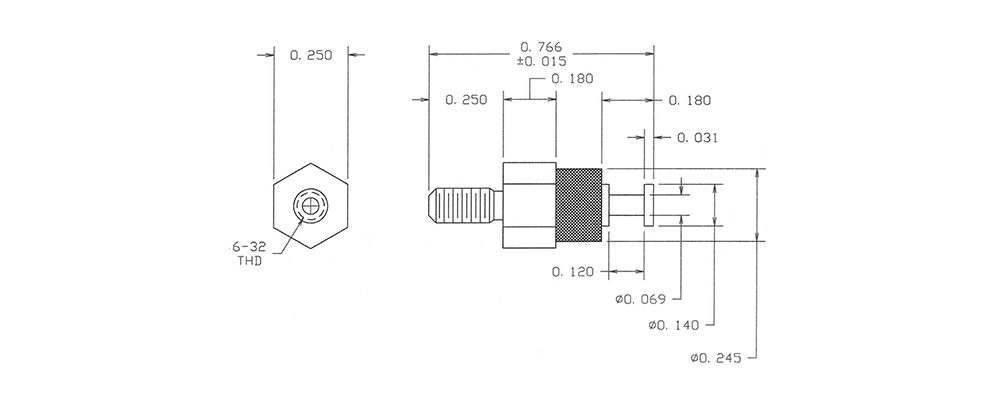

1126-34-0417
1126-34-0417
1126-34-0417
0.766" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Electro-Tin ZINC Brass PTFE Violet YES

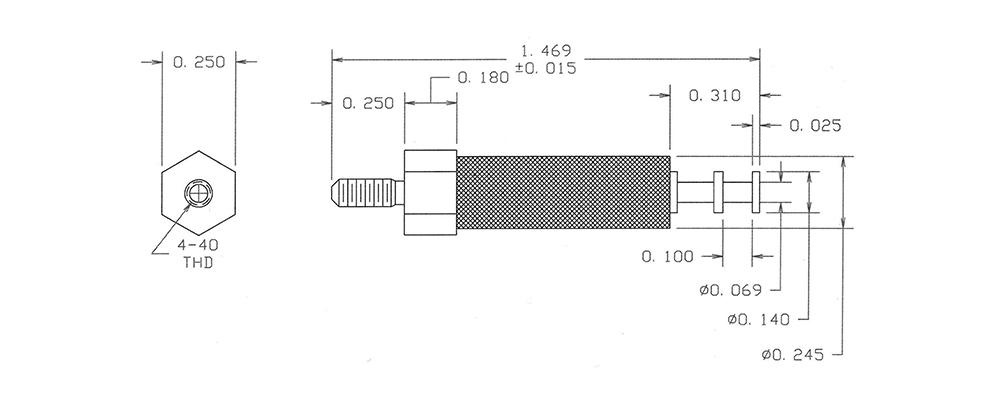

1126-38-0513
1126-38-0513
1126-38-0513
1.469" - - 4-40 Nut 1/8 0.120 Brass Electro Solder ZINC Brass PTFE Orange NO

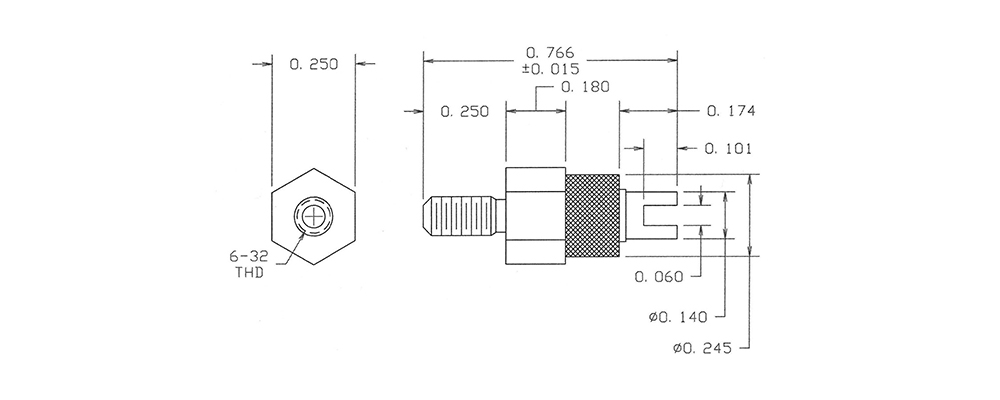

1126-42-08819
1126-42-08819
1126-42-08819
0.766" - - 6-32 Nut 1/8 0.144 Brass Bright Tin-Lead ZINC Brass PTFE White NO
1126-47-0315
1126-47-0315
1126-47-0315
0.672" - - 6-32 Nut 1/8 0.144 Brass Gold ZINC Brass PTFE Green YES
1127-04-04411
1127-04-04411
1127-04-04411
0.719" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin Electro-Tin Brass DIALLYL PHTHALATE Brown YES

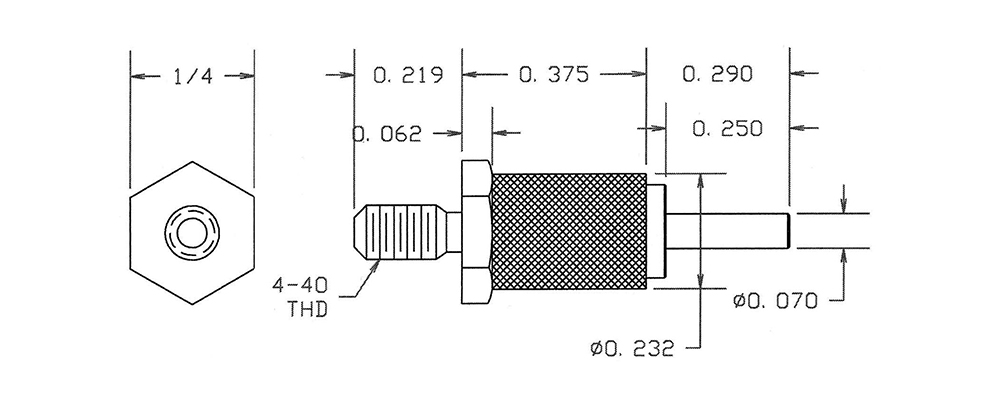

1127-08-0517
1127-08-0517
1127-08-0517
0.884" 0.070 - 4-40 Nut 3/32 0.120 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Violet NO

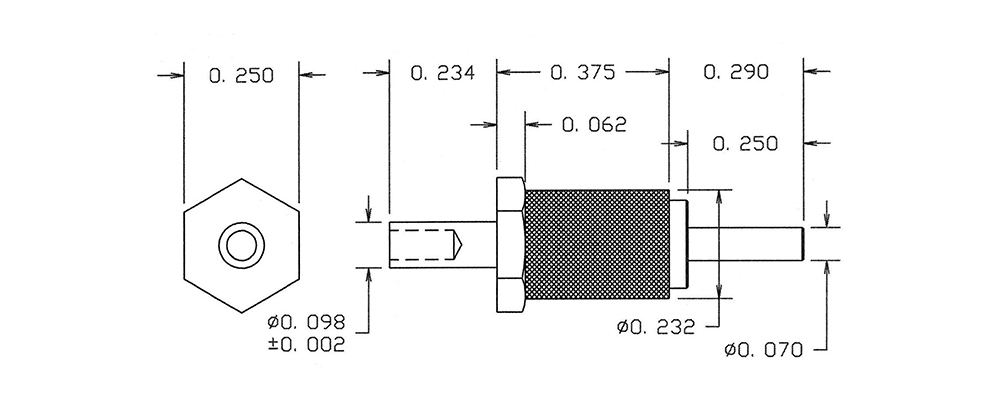

1127-13-0113
1127-13-0113
1127-13-0113
0.899" 0.070 - Swage Mount 3/16 0.104 Brass Silver ZINC Brass DIALLYL PHTHALATE Orange YES
