Commercial
Insulated
Pin Terminals

Filter
1130-07-04419
1130-07-04419
1130-07-04419
2.083" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Bright Tin - - PTFE White YES
1130R-05-08815
1130R-05-08815
1130R-05-08815
1.531" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Bright Tin-Lead - - PTFE Green NO

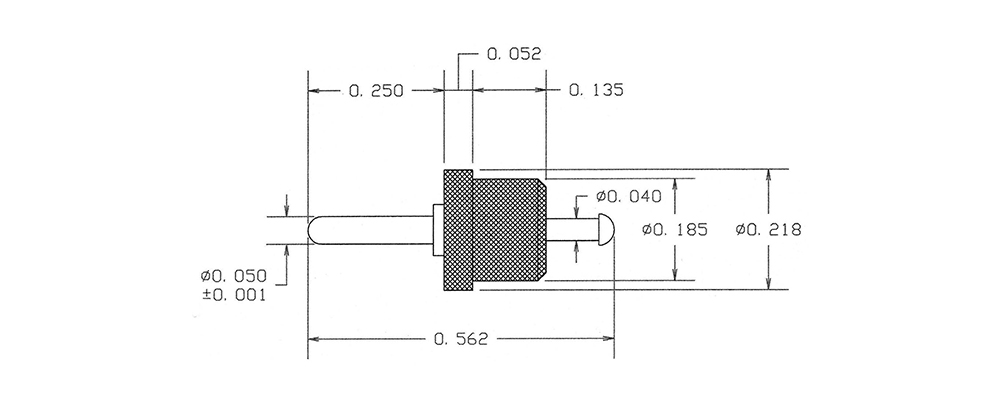

1131-03-0311
1131-03-0311
1131-03-0311
0.562" (0.040)/(0.050) Pin/Tip Press Fit 3/32 0.172 Brass Gold - - PTFE Brown NO
1131-07-0417
1131-07-0417
1131-07-0417
0.906" (0.040)/(0.050) Pin/Tip Press Fit Up to 1/4 0.172 Brass Electro-Tin - - PTFE Violet YES
1132-01-0513
1132-01-0513
1132-01-0513
0.645" 0.090 - Solder 7/32 0.0935 Brass Electro Solder - - PTFE Orange NO
1133-02-08819
1133-02-08819
1133-02-08819
0.836" 0.040 DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 Brass Bright Tin-Lead - - PTFE White NO
1135-01-0315
1135-01-0315
1135-01-0315
0.510" 0.030 Pin/Slotted Press Fit 1/32 0.070 Brass Gold - - PTFE Green YES
1135-05-04411
1135-05-04411
1135-05-04411
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Bright Tin - - PTFE Brown NO
1135-09-0517
1135-09-0517
1135-09-0517
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Violet NO
1137-03-0113
1137-03-0113
1137-03-0113
0.320" 0.030 Pin/Slotted Press Fit 1/16 0.070 Brass Silver - - PTFE Orange NO

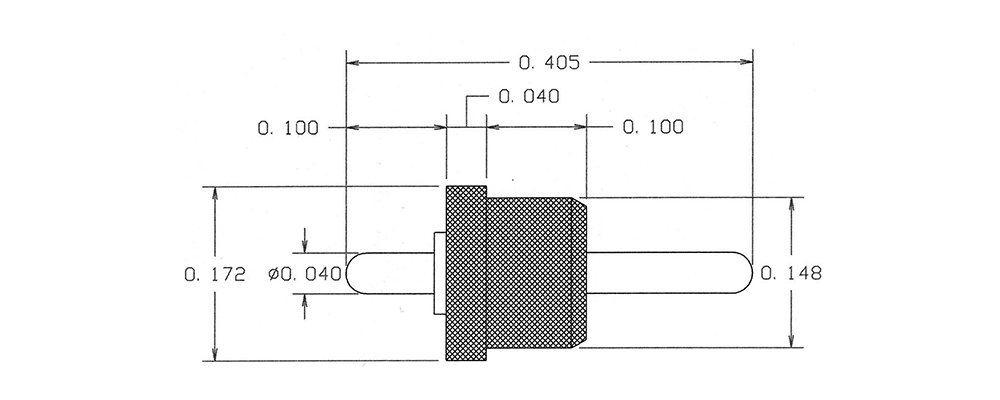

1139-04-0319
1139-04-0319
1139-04-0319
0.405" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Gold - - PTFE White YES
1151-05-04415
1151-05-04415
1151-05-04415
0.350" - - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Green YES
1151-11-08811
1151-11-08811
1151-11-08811
0.455" - - Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Brown NO

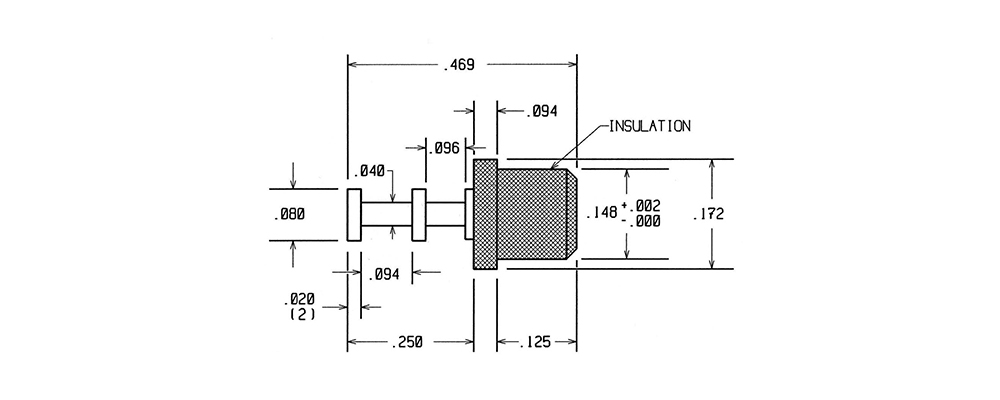

1151-20-0117
1151-20-0117
1151-20-0117
0.469" - - Press Fit 3/32 0.136 Brass Silver - - PTFE Violet YES

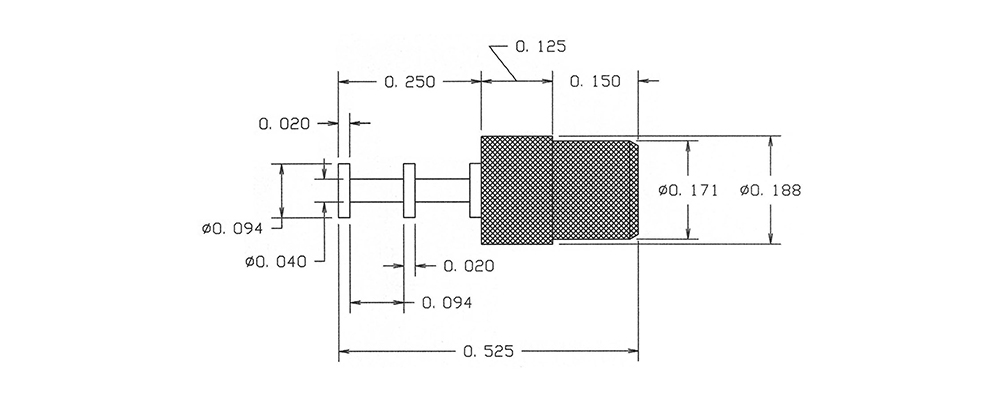

1151-39-0413
1151-39-0413
1151-39-0413
0.525" - - Press Fit 1/8 0.158 Brass Electro-Tin - - PTFE Orange NO
1151-51-04419
1151-51-04419
1151-51-04419
1.234" - - Press Fit 5/32 0.203 Brass Bright Tin - - PTFE White YES
1151R-09-08815
1151R-09-08815
1151R-09-08815
0.390" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Green NO

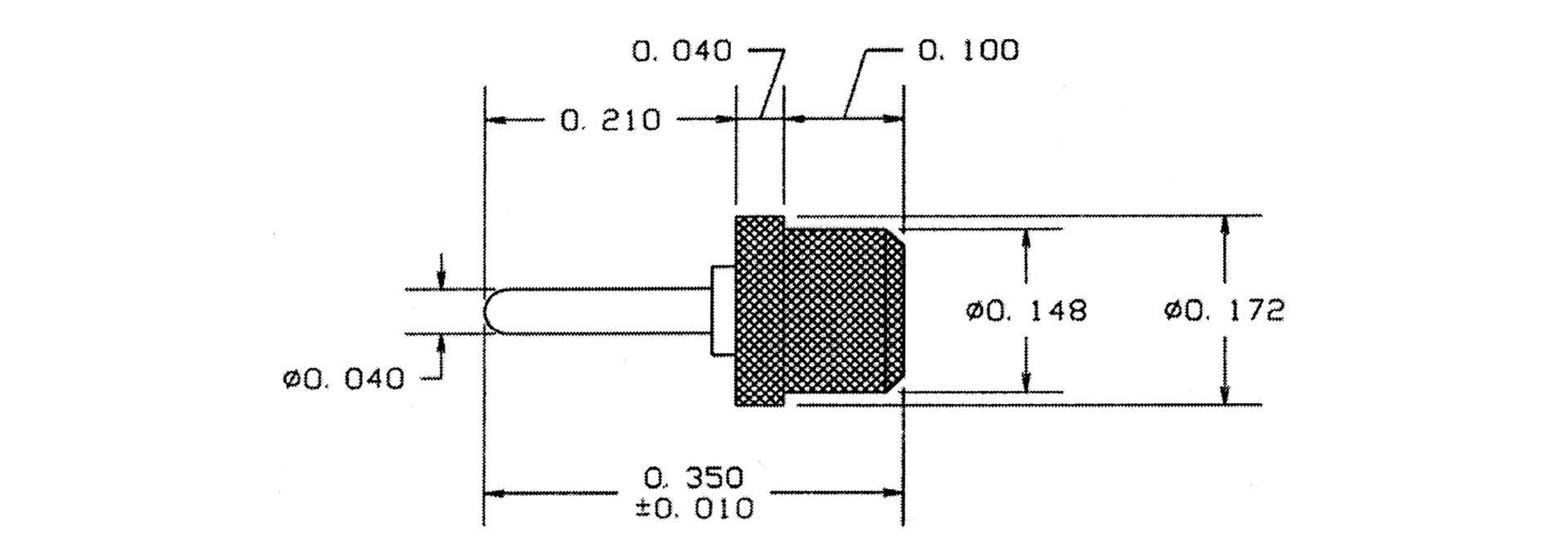

1152-01-0311
1152-01-0311
1152-01-0311
0.350" 0.040 - Press Fit 1/16 0.136 Brass Gold - - PTFE Brown NO
1152-31-0417
1152-31-0417
1152-31-0417
0.750" 0.040 - Press Fit 1/16 0.203 Brass Electro-Tin - - PTFE Violet YES
1152R-17-0513
1152R-17-0513
1152R-17-0513
0.615" 0.040 - Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Orange NO
