Commercial
Insulated
Pin Terminals

Filter
1170-22-08819
1170-22-08819
1170-22-08819
0.968" - - 6-32 Nut Up to 1/4 0.144 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE White NO
1175-013-0315
1175-013-0315
1175-013-0315
0.672" 0.047 Pin/Pin PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Gold - - PTFE Green YES
1175-301-04411
1175-301-04411
1175-301-04411
0.460" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Brown NO
1175-351-0517
1175-351-0517
1175-351-0517
0.342" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Violet NO
1175-373-0113
1175-373-0113
1175-373-0113
0.768" 0.040 DOUBLE TURRET/PIN PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Silver - - PTFE Orange NO
1175-404-0319
1175-404-0319
1175-404-0319
0.537" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Gold - - PTFE White YES
1175-414-04415
1175-414-04415
1175-414-04415
0.642" - DOUBLE Turret/Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Green YES
1175-424-08811
1175-424-08811
1175-424-08811
0.756" - Double Turret/Double Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Brown NO
1175-441-0117
1175-441-0117
1175-441-0117
0.548" - TURRET/SLOTTED PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Silver - - PTFE Violet YES

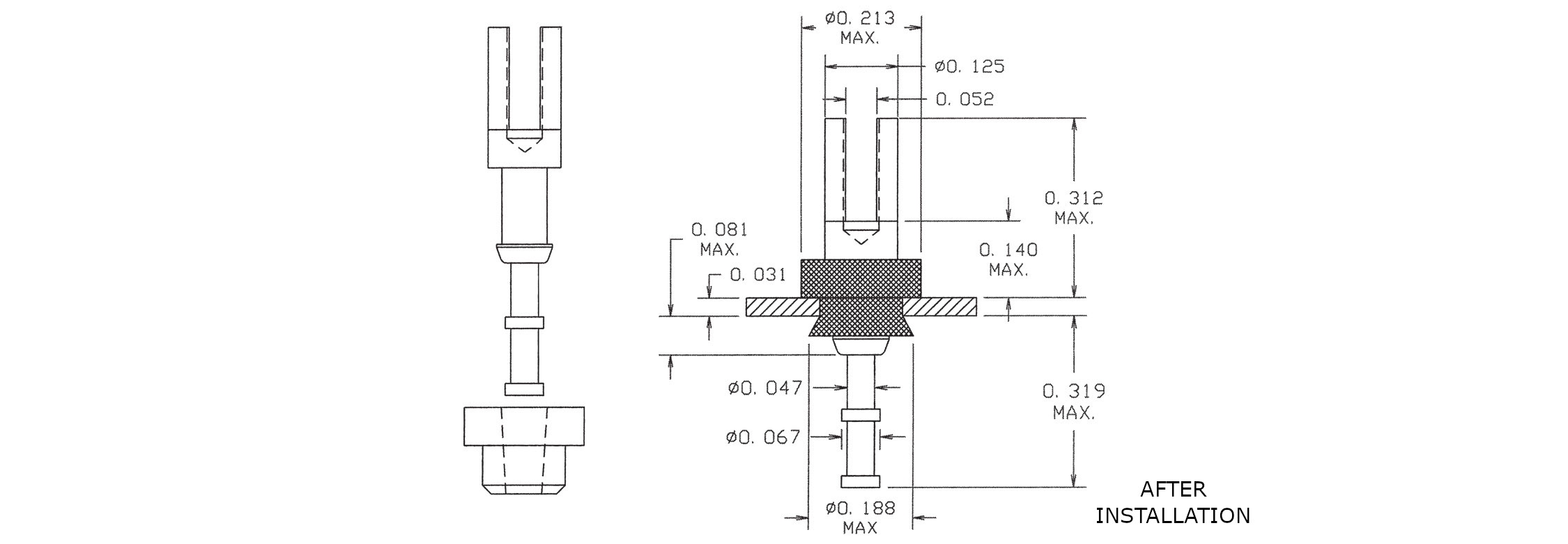

1175-451-0413
1175-451-0413
1175-451-0413
0.662" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Orange NO

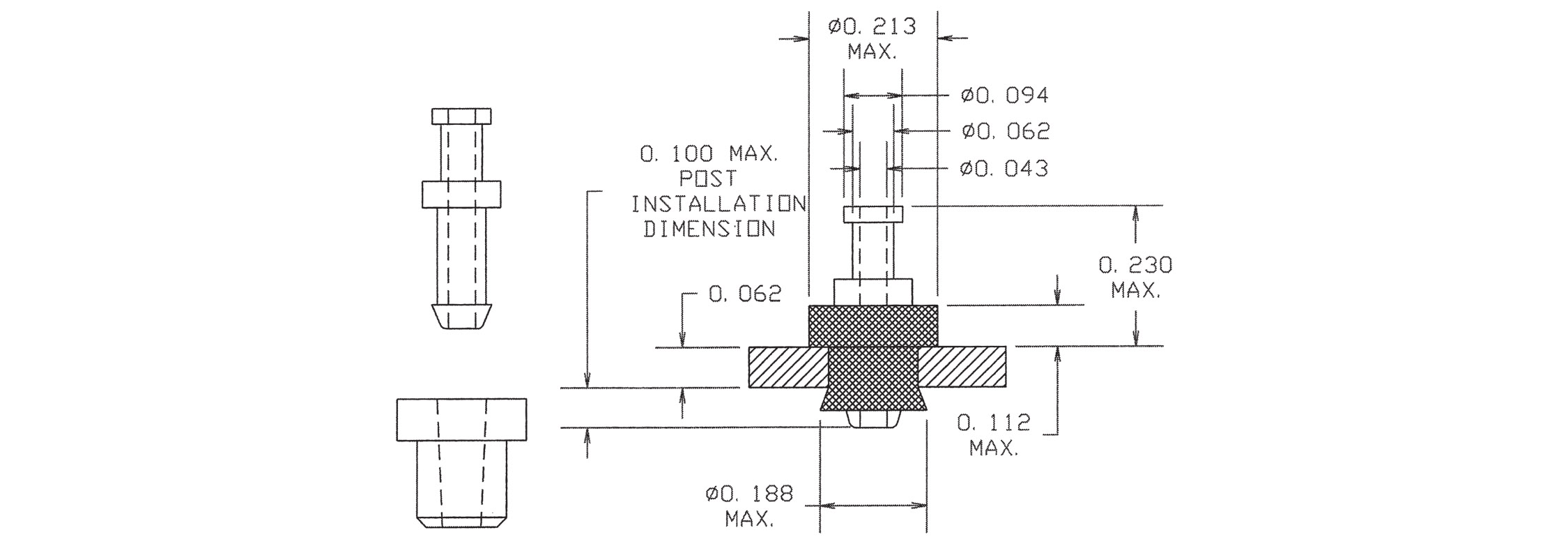

1175-462-04419
1175-462-04419
1175-462-04419
0.392" - - PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE White YES
1175-473-08815
1175-473-08815
1175-473-08815
0.575" - - PRESS LOCK 3/32 0.188 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Green NO

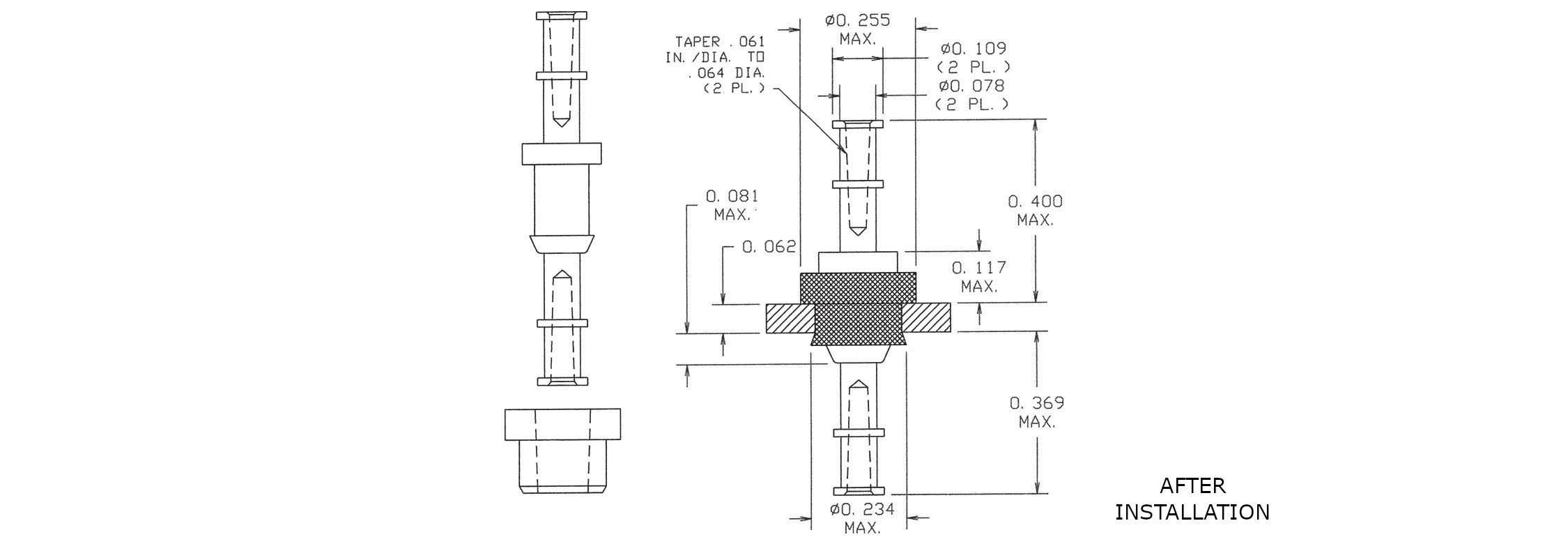

1175-492-0311
1175-492-0311
1175-492-0311
0.831" - Double Turret/Double Turret PRESS LOCK 1/16 0.188 (+0.003/-0.001) Brass Gold - - PTFE Brown NO
1175-601-0417
1175-601-0417
1175-601-0417
0.424" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Violet YES
1175-702-0513
1175-702-0513
1175-702-0513
0.474" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Electro Solder - - PTFE Orange NO
1175-712-08819
1175-712-08819
1175-712-08819
0.579" - DOUBLE Turret/Turret PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE White NO
1175-723-0315
1175-723-0315
1175-723-0315
0.725" - Double Turret/Double Turret PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Gold - - PTFE Green YES

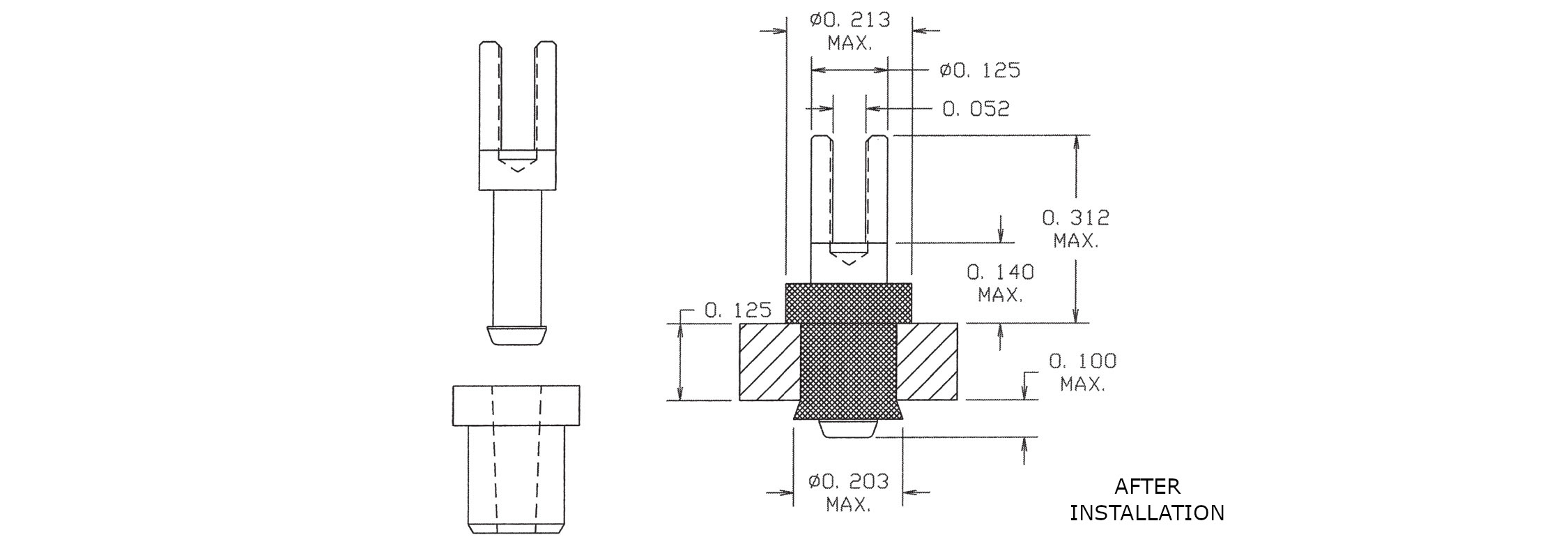

1175-734-04411
1175-734-04411
1175-734-04411
0.537" - - PRESS LOCK 1/8 0.154 (+0.003/-0.001) Brass Bright Tin - - PTFE Brown NO

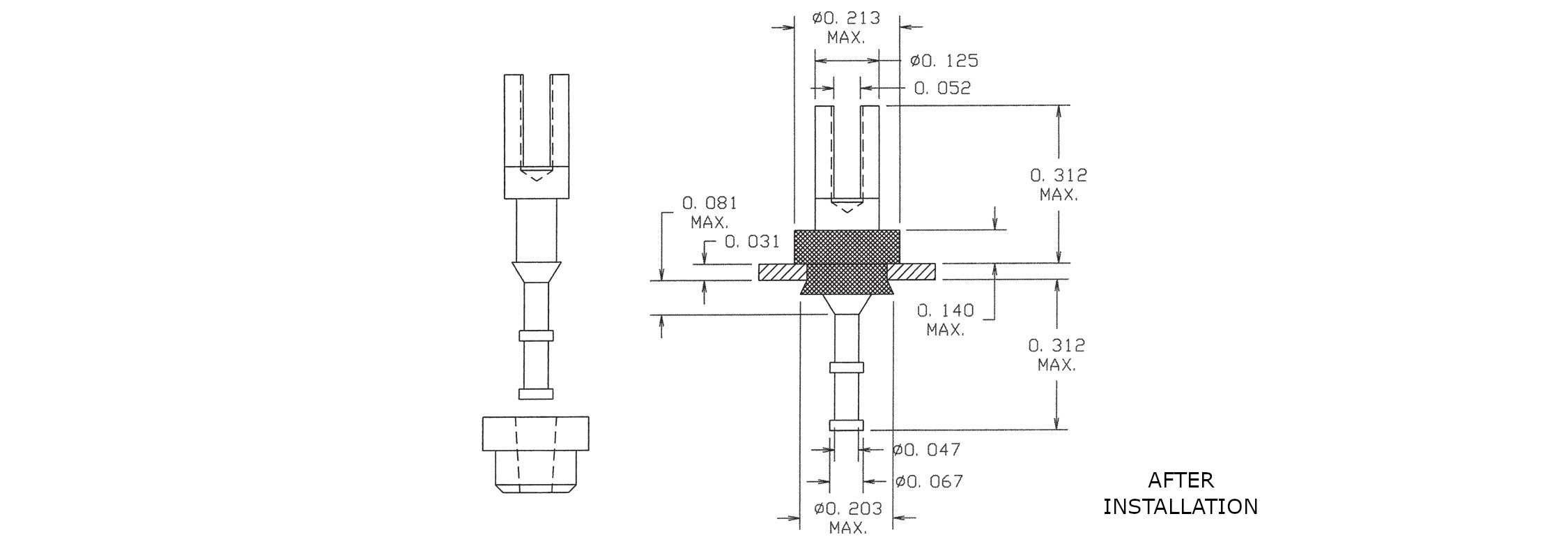

1175-751-0517
1175-751-0517
1175-751-0517
0.655" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.154 (+0.003/-0.001) Brass Electro Solder - - PTFE Violet NO

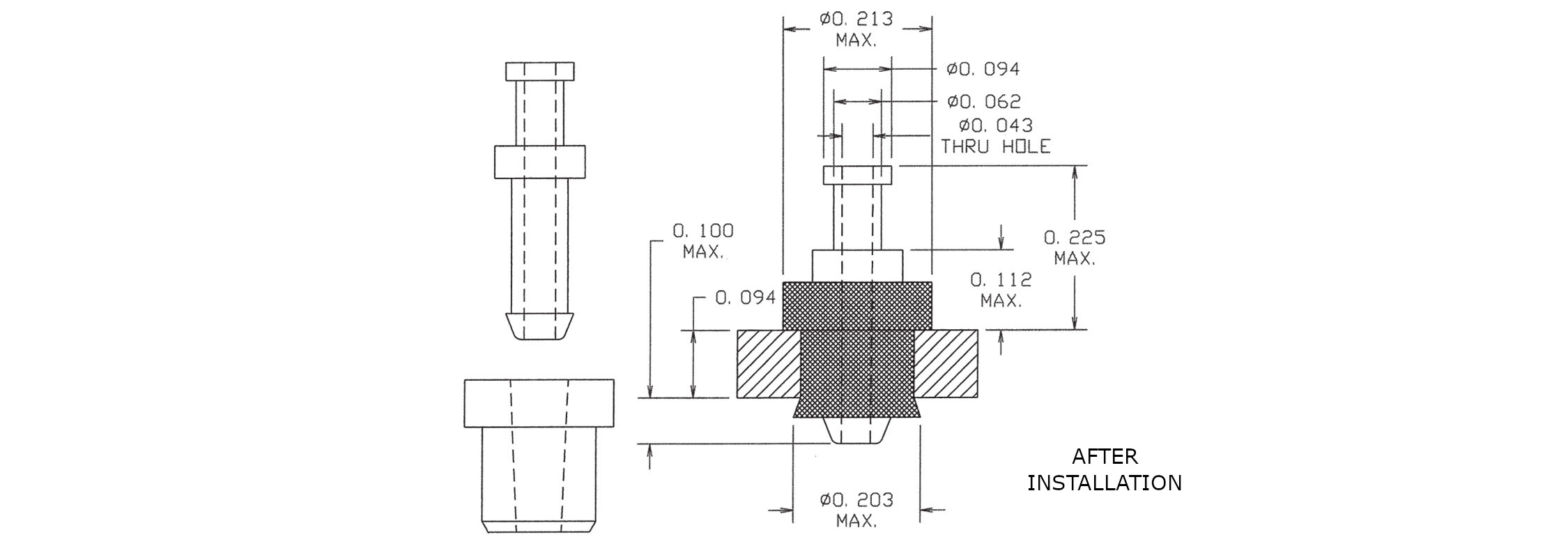

1175-763-0113
1175-763-0113
1175-763-0113
0.419" - - PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Silver - - PTFE Orange NO
