Commercial
Insulated
Pin Terminals

Filter

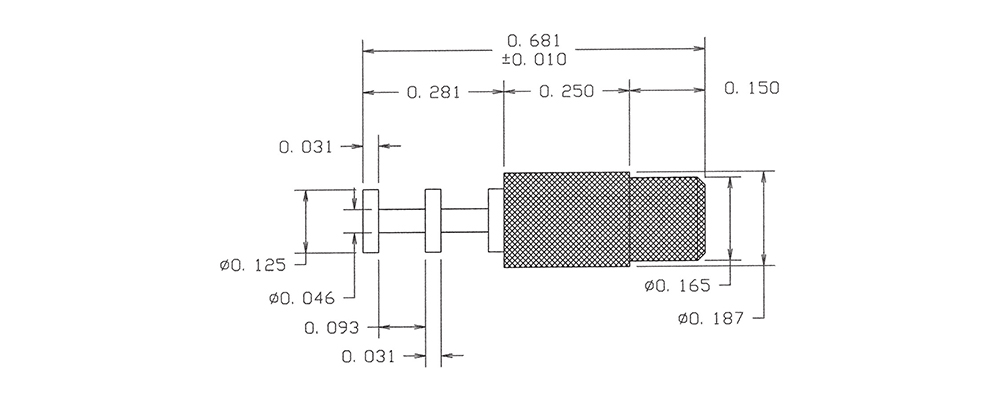

1102-49-0319
1102-49-0319
1102-49-0319
0.681" - - Press Fit 1/8 0.152 Brass Gold - - PTFE White YES

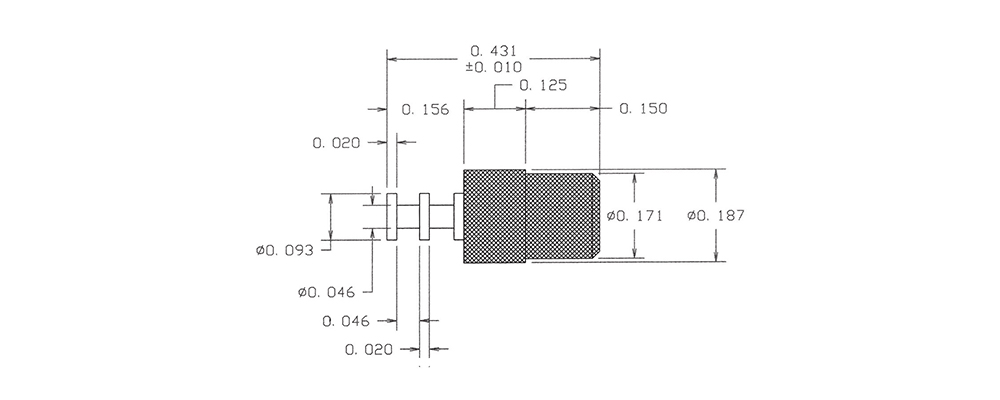

1102-53-04415
1102-53-04415
1102-53-04415
0.431" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Green YES

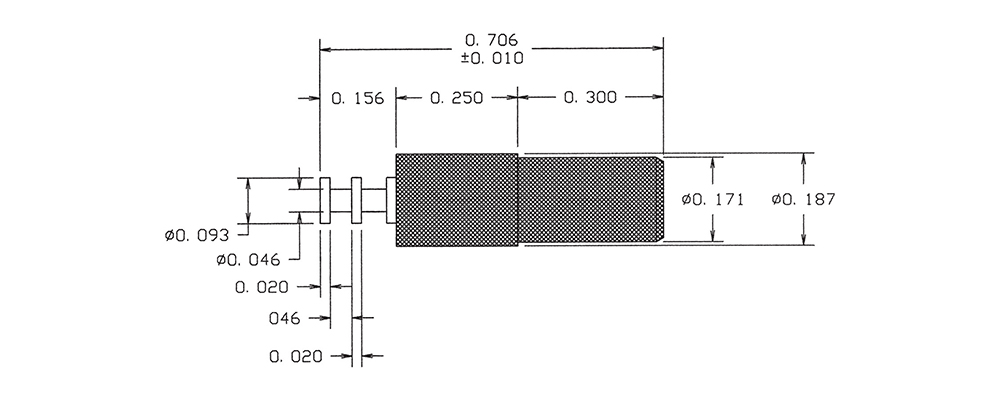

1102-57-08811
1102-57-08811
1102-57-08811
0.706" - - Press Fit Up to 1/4 0.158 Brass Bright Tin-Lead - - PTFE Brown NO

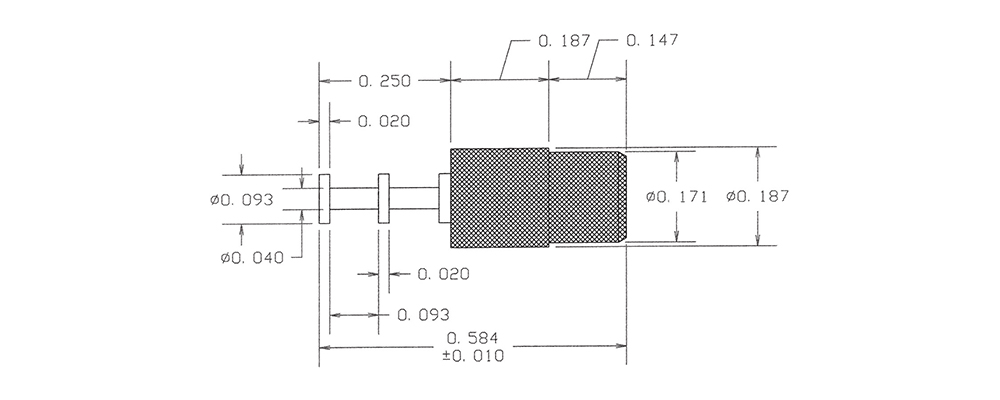

1102-63-0117
1102-63-0117
1102-63-0117
0.584" - - Press Fit 3/32 0.158 Brass Silver - - PTFE Violet YES
1102-67-0413
1102-67-0413
1102-67-0413
0.681" - - Press Fit 1/8 0.158 Brass Electro-Tin - - PTFE Orange NO
1102-71-04419
1102-71-04419
1102-71-04419
1.268" - - Press Fit 5/32 0.158 Brass Bright Tin - - PTFE White YES
1102-76-08815
1102-76-08815
1102-76-08815
0.655" - - Press Fit Up to 3/16 0.236 Brass Bright Tin-Lead - - PTFE Green NO

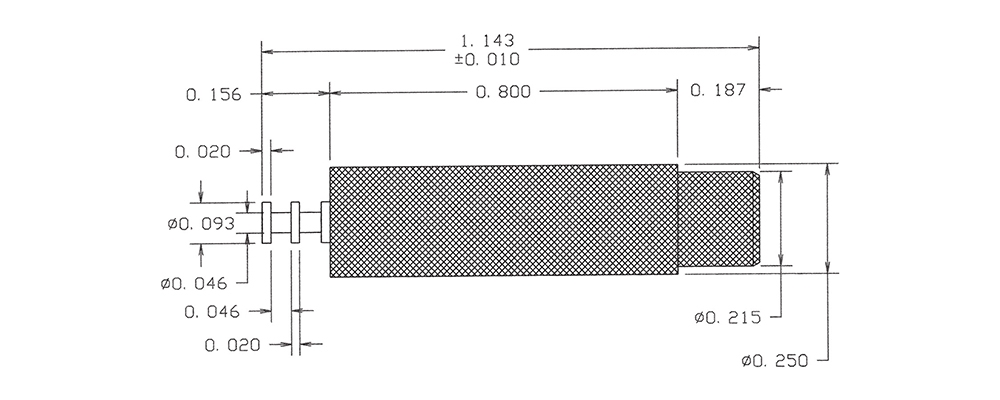

1102-81-0311
1102-81-0311
1102-81-0311
1.143" - - Press Fit 5/32 0.203 Brass Gold - - PTFE Brown NO
1102-85-0417
1102-85-0417
1102-85-0417
0.968" - - Press Fit Up to 1/4 0.203 Brass Electro-Tin - - PTFE Violet YES

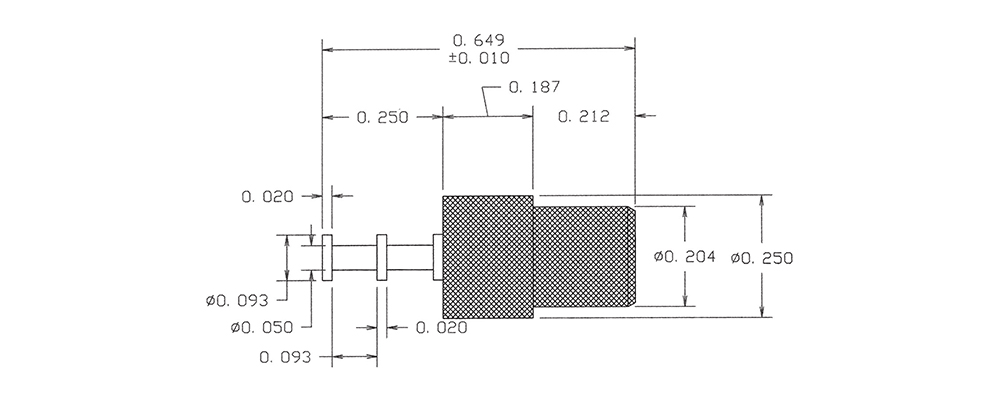

1102-94-0513
1102-94-0513
1102-94-0513
0.649" - - Press Fit Up to 3/16 0.191 Brass Electro Solder - - PTFE Orange NO

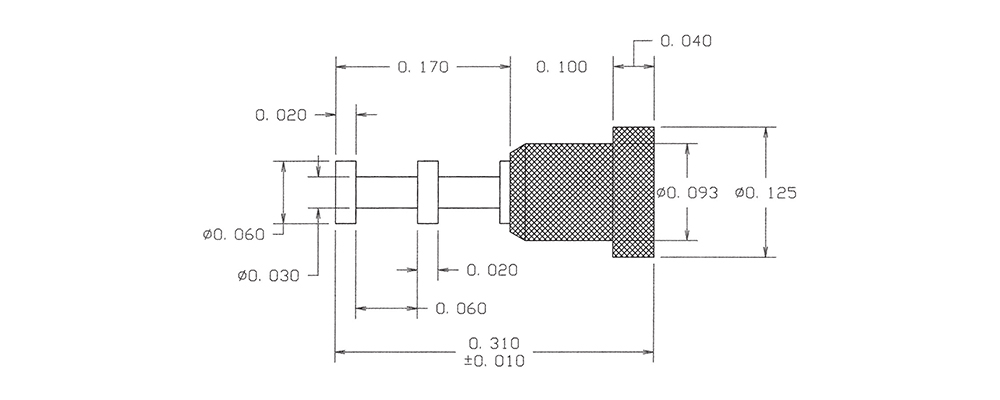

1102R-01-08819
1102R-01-08819
1102R-01-08819
0.310" - - Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE White NO
1102R-21-0315
1102R-21-0315
1102R-21-0315
0.455" - - Press Fit 1/8 0.136 Brass Gold - - PTFE Green YES

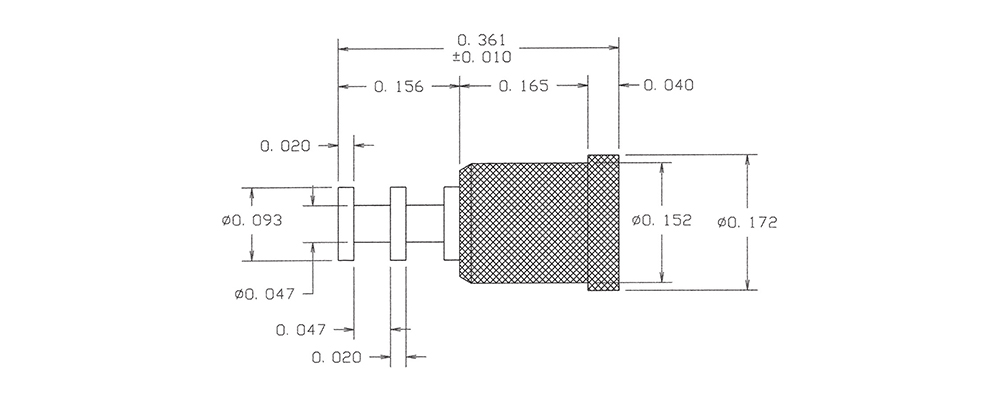

1102R-28-04411
1102R-28-04411
1102R-28-04411
0.361" - - Press Fit 1/8 0.140 Brass Bright Tin - - PTFE Brown NO
1102R-74-0517
1102R-74-0517
1102R-74-0517
0.375" - - Press Fit 3/32 0.172 Brass Electro Solder - - PTFE Violet NO

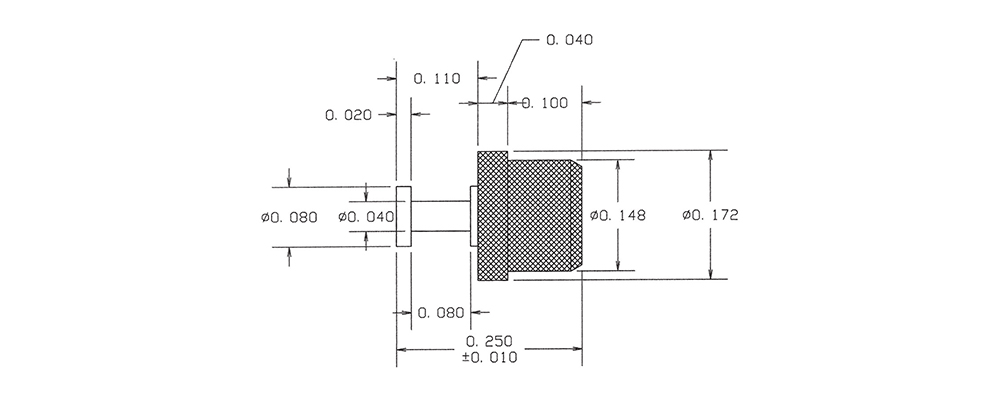

1103-01-0113
1103-01-0113
1103-01-0113
0.250" - - Press Fit 1/16 0.136 Brass Silver - - PTFE Orange NO

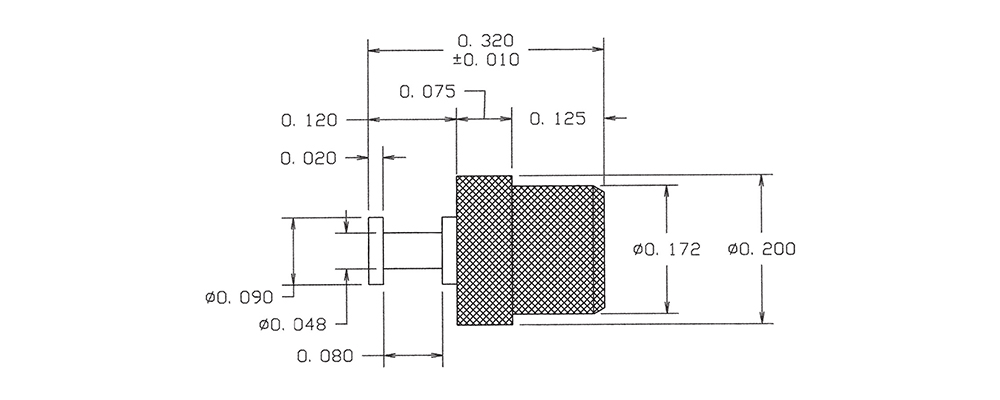

1103-08-0319
1103-08-0319
1103-08-0319
0.320" - - Press Fit 3/32 0.152 Brass Gold - - PTFE White YES
1103R-08-04415
1103R-08-04415
1103R-08-04415
0.320" - - Press Fit 3/32 0.158 Brass Bright Tin - - PTFE Green YES
1104-04-08811
1104-04-08811
1104-04-08811
0.392" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Brown NO
1105-02-0117
1105-02-0117
1105-02-0117
1.687" - Double Turret/Double Turret Press Fit 9/16 0.205 Brass Silver - - PTFE Violet YES

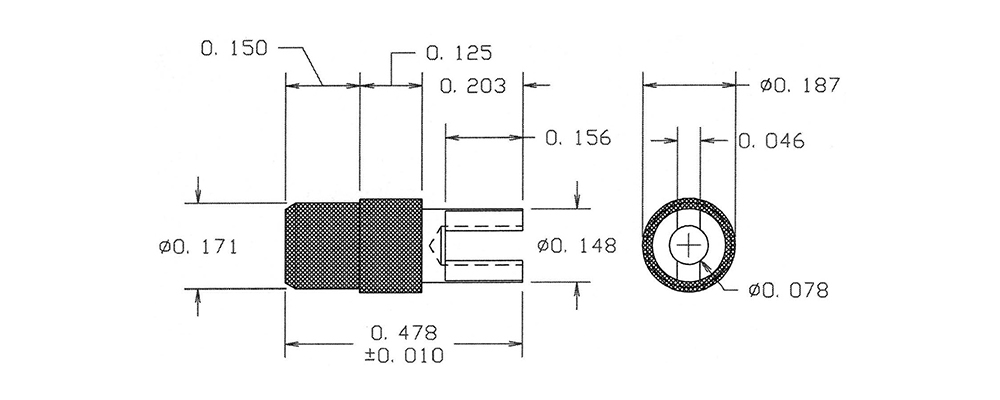

1106-03-0413
1106-03-0413
1106-03-0413
0.478" - - Press Fit 1/8 0.158 Brass Electro-Tin - - PTFE Orange NO
