Commercial
Insulated
Pin Terminals

Filter
1107-08-0516
1107-08-0516
1107-08-0516
0.696" 0.040 Pin/Pin Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Blue NO

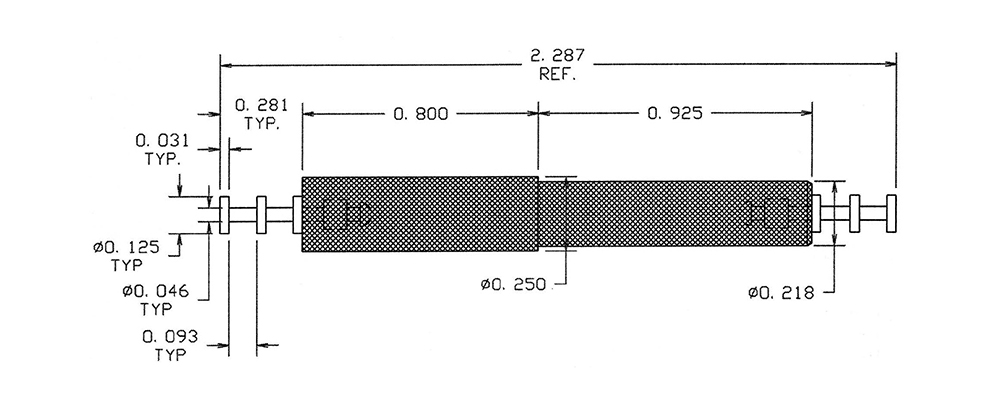

1108-02-0112
1108-02-0112
1108-02-0112
2.287" - Double Turret/Double Turret Press Fit 7/8 0.205 Brass Silver - - PTFE Red NO
1108-06-0318
1108-06-0318
1108-06-0318
0.819" - Double Turret/Double Turret Press Fit Up to 3/16 0.174 Brass Gold - - PTFE Gray NO
1110-02-04414
1110-02-04414
1110-02-04414
0.438" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Yellow NO
1110-06-08810
1110-06-08810
1110-06-08810
0.987" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Black NO

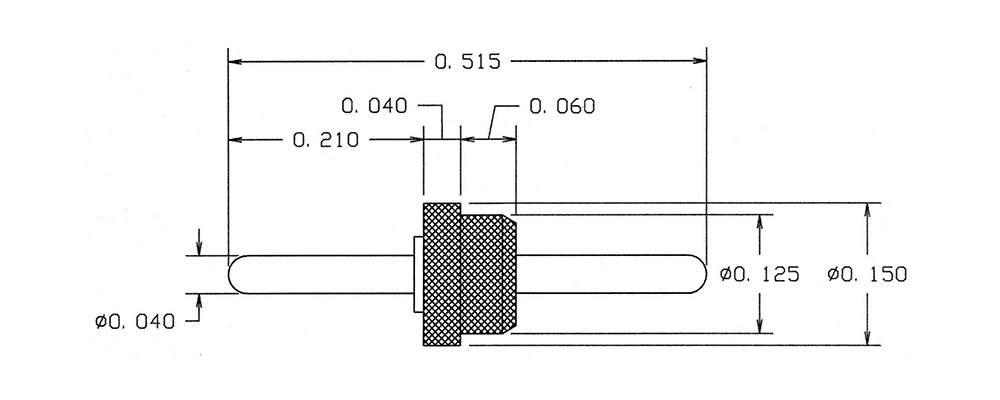

1110-11-0116
1110-11-0116
1110-11-0116
0.515" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Silver - - PTFE Blue YES

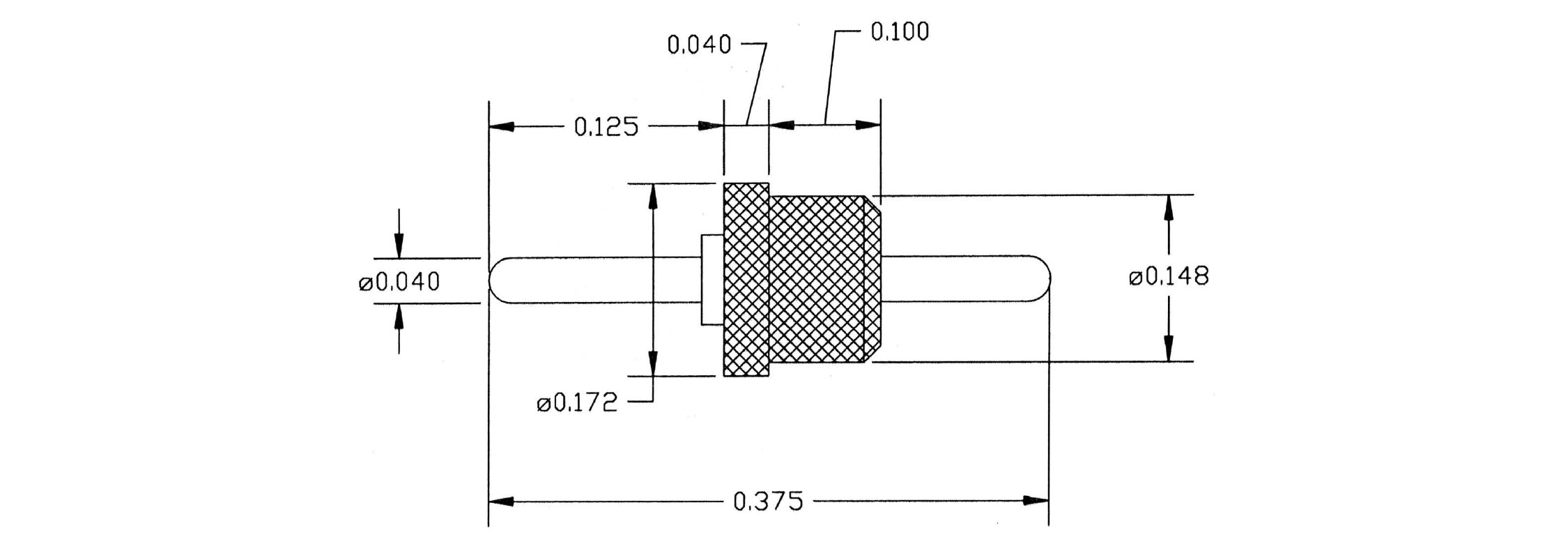

1110-16-0412
1110-16-0412
1110-16-0412
0.375" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Red NO
1110-20-04418
1110-20-04418
1110-20-04418
0.443" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Gray NO
1110-24-08814
1110-24-08814
1110-24-08814
0.535" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO

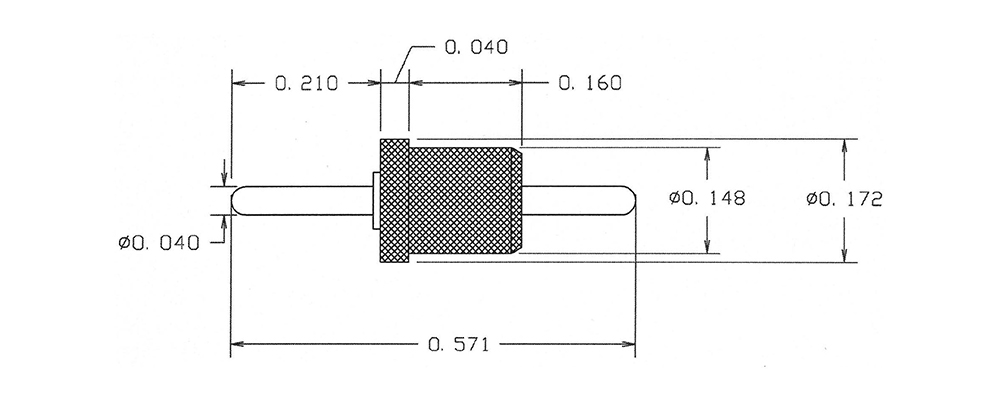

1110-29-0310
1110-29-0310
1110-29-0310
0.571" 0.040 Pin/Pin Press Fit 1/8 0.136 Brass Gold - - PTFE Black YES
1110-33-0416
1110-33-0416
1110-33-0416
0.725" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Blue YES
1110-40-0512
1110-40-0512
1110-40-0512
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Electro Solder - - PTFE Red NO
1110-44-08818
1110-44-08818
1110-44-08818
2.500" 0.049 Pin/Pin Press Fit 1/16 0.156 Brass Bright Tin-Lead - - PTFE Gray NO
1110-49-0314
1110-49-0314
1110-49-0314
1.090" 0.040 Pin/Pin Press Fit 1/16 0.158 Brass Gold - - PTFE Yellow NO
1110-55-04410
1110-55-04410
1110-55-04410
0.515" 0.040 Pin/Pin Press Fit 1/16 0.166 Brass Bright Tin - - PTFE Black YES
1110-61-0516
1110-61-0516
1110-61-0516
0.410" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Blue NO
1110-67-0112
1110-67-0112
1110-67-0112
0.580" 0.040 Pin/Pin Press Fit 1/8 0.136 Brass Silver - - PTFE Red NO
1110-71-0318
1110-71-0318
1110-71-0318
2.000" 0.040 Pin/Pin Press Fit 1/16 0.158 Brass Gold - - PTFE Gray NO
1110-76-04414
1110-76-04414
1110-76-04414
0.450" 0.018 Pin/Pin Press Fit 1/32 0.054 Brass Bright Tin - - PTFE Yellow NO
1110-93-08810
1110-93-08810
1110-93-08810
0.390" 0.035 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Black NO
