Commercial
Insulated
Pin Terminals

Filter
1112R-62-0410
1112R-62-0410
1112R-62-0410
0.260" - - Press Fit 3/32 0.086 Brass Electro-Tin - - PTFE Black YES
1113-03-04416
1113-03-04416
1113-03-04416
0.333" - - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Blue YES
1113-57-08812
1113-57-08812
1113-57-08812
0.407" 0.040 PIN/Solder CUP Press Fit 1/32 0.136 Brass Bright Tin-Lead - - PTFE Red NO
1114-04-0118
1114-04-0118
1114-04-0118
0.225" 0.040 - Press Fit 1/32 0.086 Brass Silver - - PTFE Gray NO

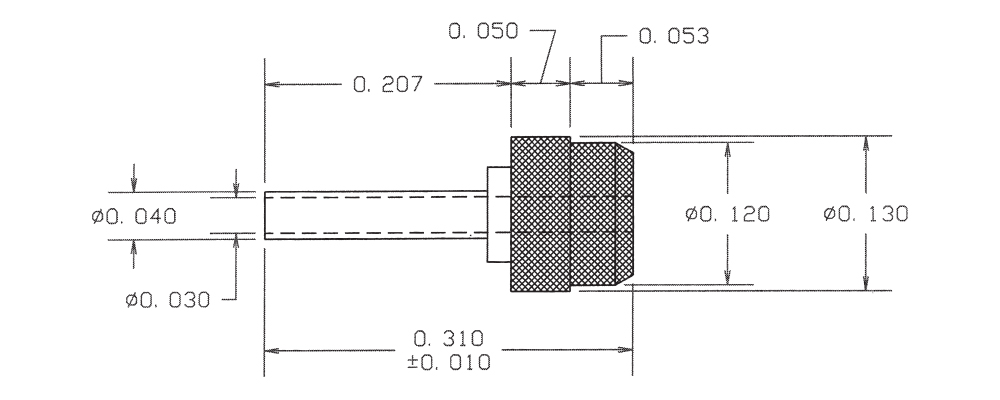

1114-08-0414
1114-08-0414
1114-08-0414
0.310" 0.040 - Press Fit 3/32 0.108 Brass Electro-Tin - - PTFE Yellow NO
1114-50-0510
1114-50-0510
1114-50-0510
0.270" 0.060 - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Black NO
1114-74-08816
1114-74-08816
1114-74-08816
0.367" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Blue NO

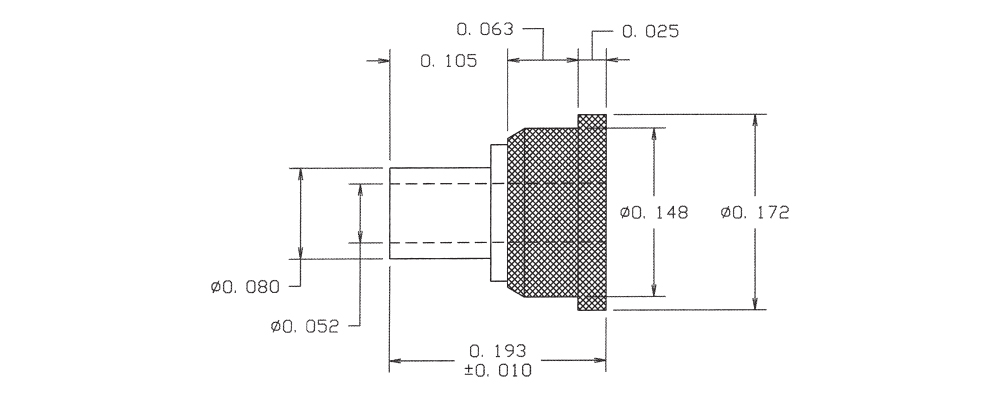

1114R-14-0312
1114R-14-0312
1114R-14-0312
0.193" 0.080 - Press Fit 1/32 0.136 Brass Gold - - PTFE Red NO
1114R-20-0418
1114R-20-0418
1114R-20-0418
0.310" 0.040 - Press Fit 1/64 0.136 Brass Electro-Tin - - PTFE Gray NO
1114R-80-0514
1114R-80-0514
1114R-80-0514
0.380" 0.055 - Press Fit 1/32 0.136 Brass Electro Solder - - PTFE Yellow NO

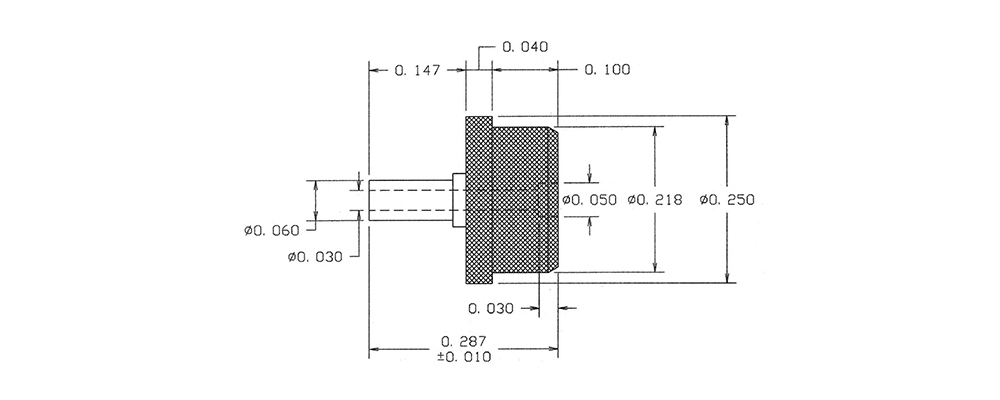

1115-07-0110
1115-07-0110
1115-07-0110
0.287" 0.060 - Press Fit 1/16 0.205 Brass Silver - - PTFE Black YES
1115-51-0316
1115-51-0316
1115-51-0316
0.453" - - Press Fit 1/16 0.187 Brass Gold - - PTFE Blue YES
1115R-02-04412
1115R-02-04412
1115R-02-04412
0.282" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin - - PTFE Red NO
1116-26-0518
1116-26-0518
1116-26-0518
0.281" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Gray NO

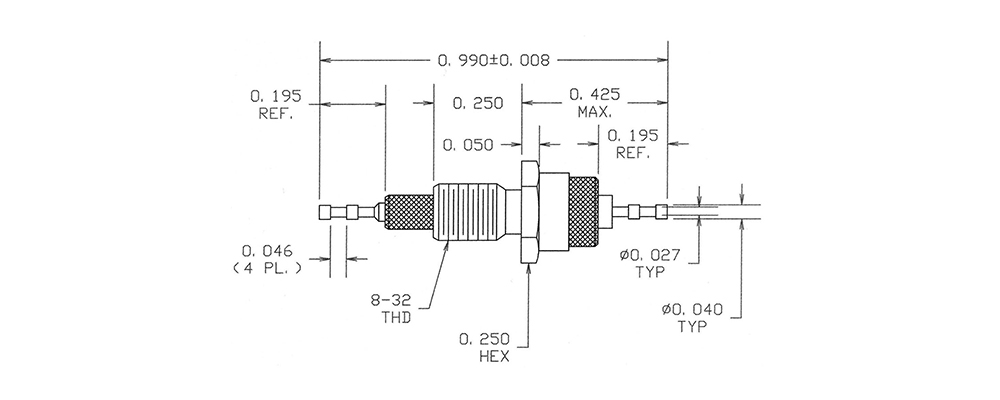

1117-16-0114
1117-16-0114
1117-16-0114
0.990" - Double Turret/Double Turret 8-32 Nut 1/8 0.169 Brass Silver Nickel Brass PTFE Yellow NO
1117-50-0410
1117-50-0410
1117-50-0410
0.640" 0.029 Pin/Pin 4-40 Nut 1/8 0.120 Brass Electro-Tin Nickel Brass PTFE Black YES
1117-54-04416
1117-54-04416
1117-54-04416
0.785" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Bright Tin Nickel Brass PTFE Blue YES
1118-32-08812
1118-32-08812
1118-32-08812
0.346" - TURRET/SLOTTED Press Fit 3/32 0.093 Brass Bright Tin-Lead - - PTFE Red NO
1119-25-0118
1119-25-0118
1119-25-0118
1.500" 0.030 TURRET/PIN Press Fit 3/32 0.070 Brass Silver - - PTFE Gray NO
1119R-20-0414
1119R-20-0414
1119R-20-0414
0.500" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Yellow NO
