Commercial
Insulated
Pin Terminals

Filter
1110-67-0110
1110-67-0110
1110-67-0110
0.580" 0.040 Pin/Pin Press Fit 1/8 0.136 Brass Silver - - PTFE Black YES

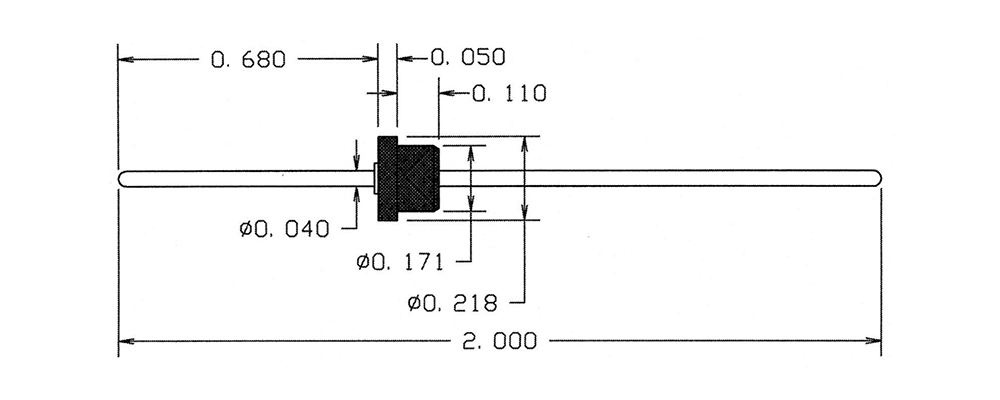

1110-71-0316
1110-71-0316
1110-71-0316
2.000" 0.040 Pin/Pin Press Fit 1/16 0.158 Brass Gold - - PTFE Blue YES
1110-76-04412
1110-76-04412
1110-76-04412
0.450" 0.018 Pin/Pin Press Fit 1/32 0.054 Brass Bright Tin - - PTFE Red NO
1110-93-0518
1110-93-0518
1110-93-0518
0.390" 0.035 Pin/Pin Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Gray NO
1111-07-0114
1111-07-0114
1111-07-0114
0.438" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.136 Brass Silver - - PTFE Yellow NO
1111-11-0410
1111-11-0410
1111-11-0410
0.531" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Black YES
1111-15-04416
1111-15-04416
1111-15-04416
0.609" 0.040 DOUBLE Turret/Tip Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Blue YES
1111-20-08812
1111-20-08812
1111-20-08812
0.836" 0.050 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Red NO
1111-26-0118
1111-26-0118
1111-26-0118
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.158 Brass Silver - - PTFE Gray NO
1111-34-0414
1111-34-0414
1111-34-0414
0.438" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.172 Brass Electro-Tin - - PTFE Yellow NO
1111-38-0510
1111-38-0510
1111-38-0510
0.500" - DOUBLE Turret/Turret Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Black NO
1111-44-08816
1111-44-08816
1111-44-08816
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.191 Brass Bright Tin-Lead - - PTFE Blue NO

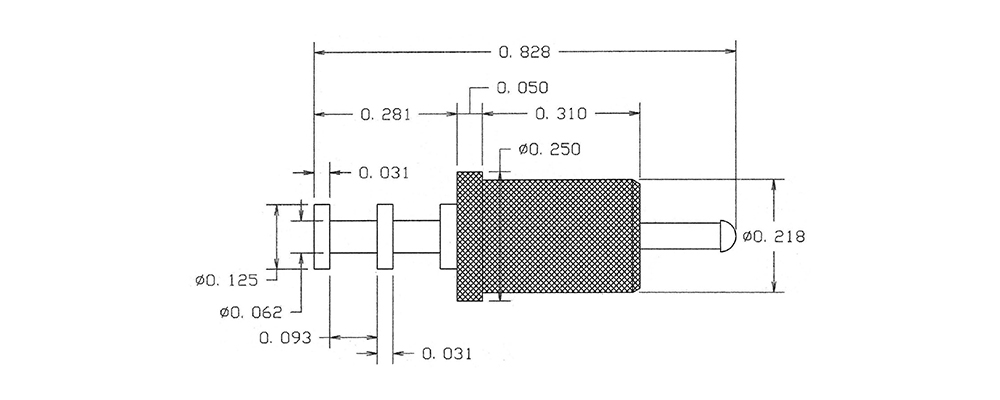

1111-51-0312
1111-51-0312
1111-51-0312
0.828" 0.062 DOUBLE Turret/Tip Press Fit Up to 1/4 0.205 Brass Gold - - PTFE Red NO
1111-59-0418
1111-59-0418
1111-59-0418
0.750" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.086 Brass Electro-Tin - - PTFE Gray NO
1111R-09-0514
1111R-09-0514
1111R-09-0514
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Yellow NO

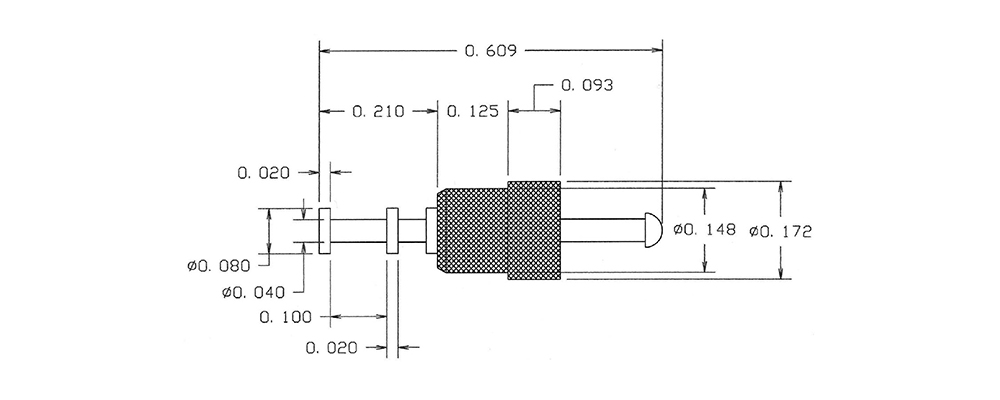

1111R-15-0110
1111R-15-0110
1111R-15-0110
0.609" 0.040 DOUBLE Turret/Tip Press Fit 3/32 0.136 Brass Silver - - PTFE Black YES
1112-09-0316
1112-09-0316
1112-09-0316
0.293" - - Press Fit 1/64 0.113 Brass Gold - - PTFE Blue YES
1112-14-04412
1112-14-04412
1112-14-04412
0.293" - - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Red NO
1112-65-0518
1112-65-0518
1112-65-0518
0.155" - - Press Fit 1/32 0.058 Brass Electro Solder - - PTFE Gray NO
1112R-15-0114
1112R-15-0114
1112R-15-0114
0.351" - - Press Fit 3/32 0.136 Brass Silver - - PTFE Yellow NO
