Commercial
Insulated
Pin Terminals

Filter

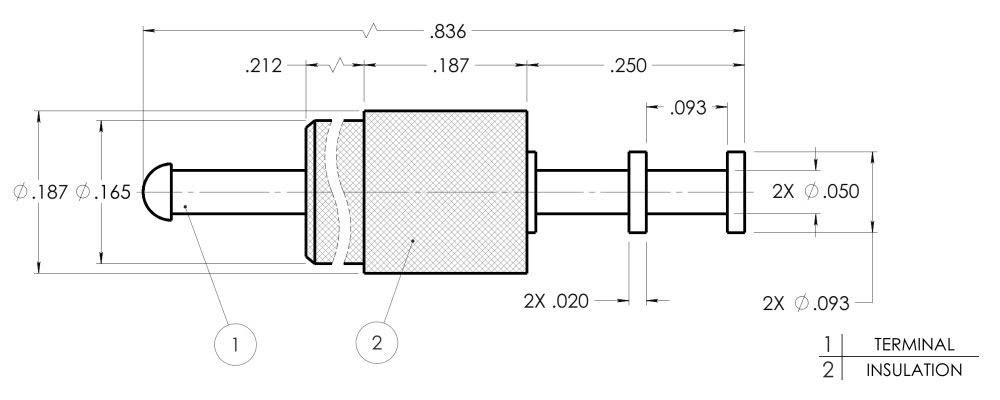

1111-25-0110
1111-25-0110
1111-25-0110
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.152 Brass Silver - - PTFE Black YES

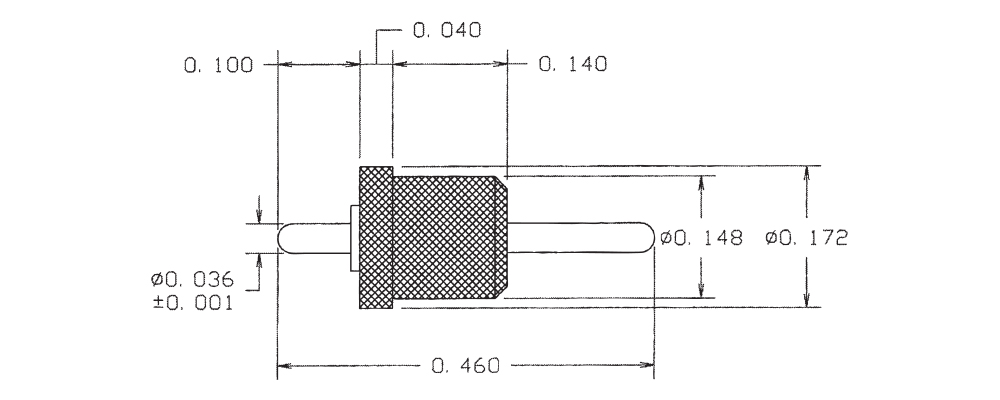

09-2104-1-0410
09-2104-1-0410
09-2104-1-0410
0.460" 0.036 Pin/Pin Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Black YES

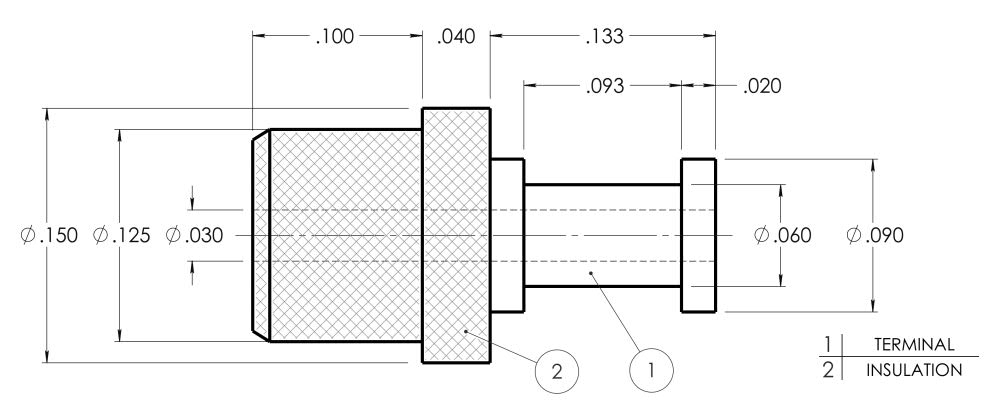

1112-07-0316
1112-07-0316
1112-07-0316
0.273" - - Press Fit 1/16 0.113 Brass Gold - - PTFE Blue YES

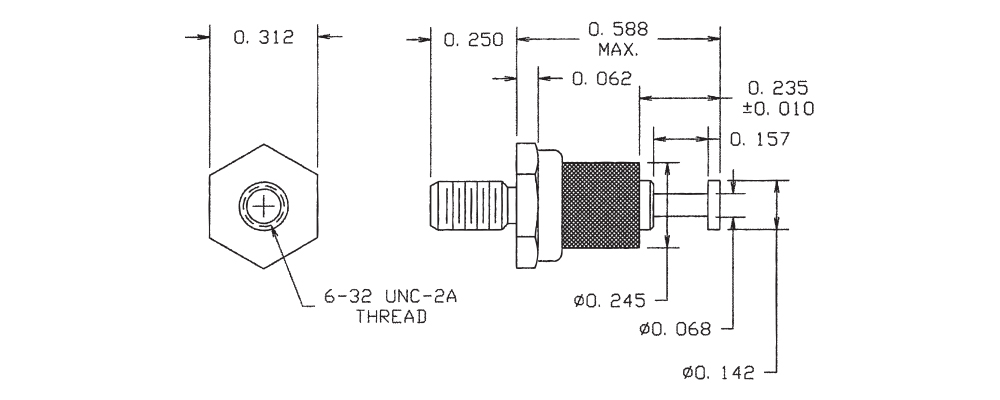

09-2112-1-04416
09-2112-1-04416
09-2112-1-04416
0.838" - - 6-32 Nut 1/8 0.144 Brass Bright Tin Nickel Brass PTFE Blue YES
1113-54-04412
1113-54-04412
1113-54-04412
0.327" 0.030 Pin/Pin Press Fit 1/16 0.070 Brass Bright Tin - - PTFE Red NO
09-2121-1-08812
09-2121-1-08812
09-2121-1-08812
0.275" - - Press Fit 5/64 0.136 Brass Bright Tin-Lead - - PTFE Red NO

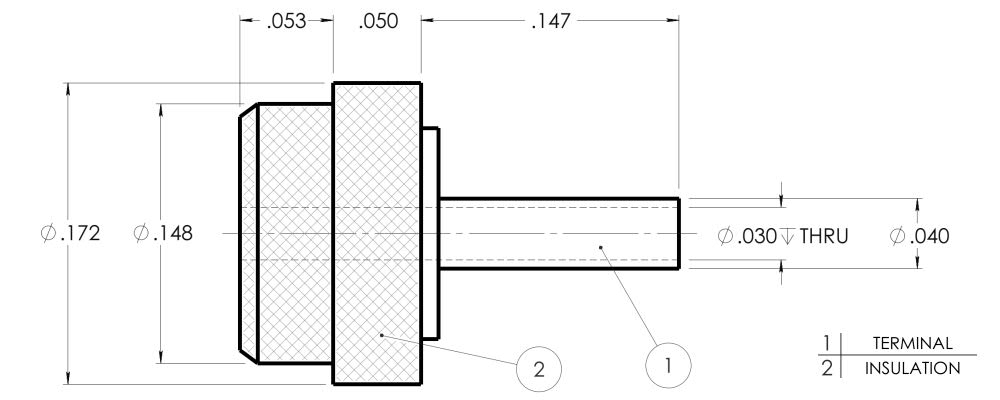

1114-18-0518
1114-18-0518
1114-18-0518
0.250" 0.040 - Press Fit 1/32 0.136 Brass Electro Solder - - PTFE Gray NO

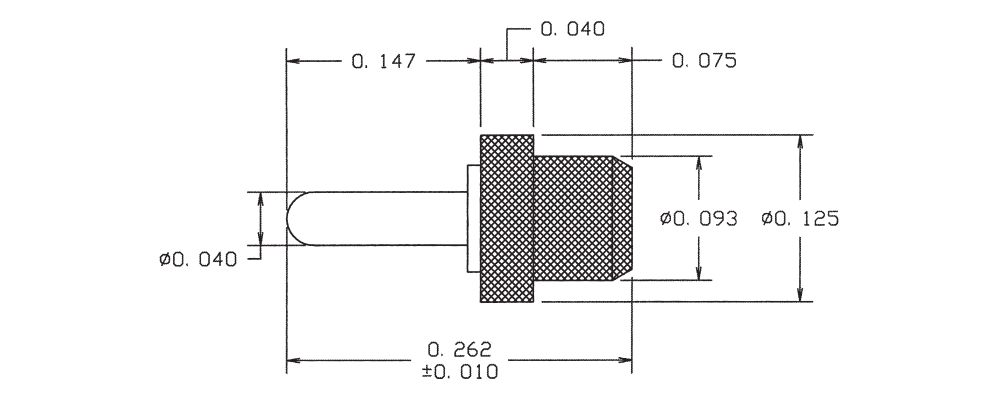

1100-05-0118
1100-05-0118
1100-05-0118
0.262" 0.040 - Press Fit 3/64 0.086 Brass Silver - - PTFE Gray NO

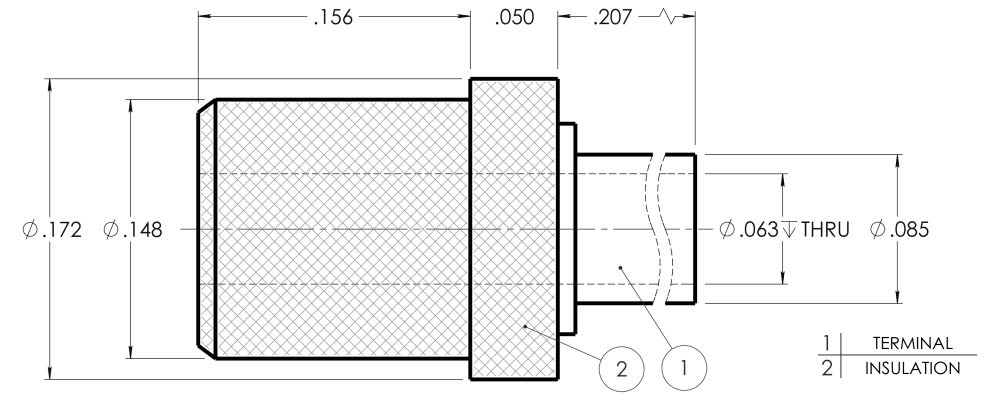

1114-25-0114
1114-25-0114
1114-25-0114
0.413" 0.085 - Press Fit 1/8 0.136 Brass Silver - - PTFE Yellow NO
1100-09-0414
1100-09-0414
1100-09-0414
0.350" 0.040 - Press Fit 3/32 0.098 Brass Electro-Tin - - PTFE Yellow NO
1114R-16-0410
1114R-16-0410
1114R-16-0410
0.296" 0.040 - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Black YES
1100-14-0510
1100-14-0510
1100-14-0510
0.280" 0.040 - Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Black NO

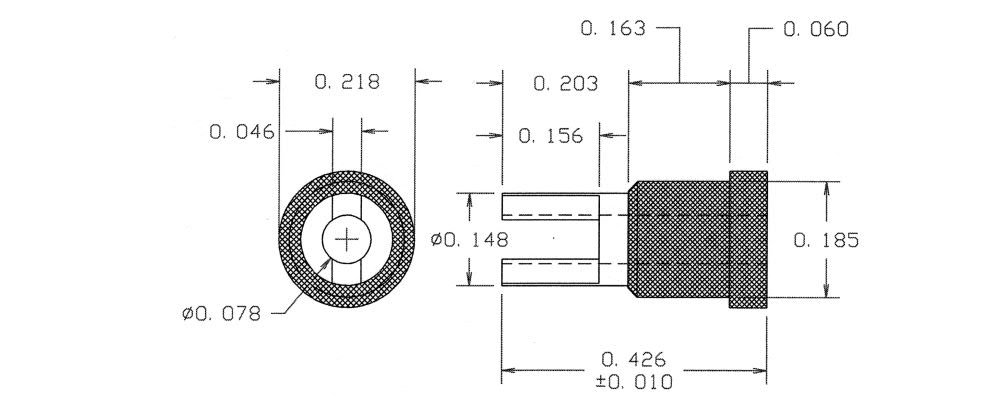

1123R-75-04416
1123R-75-04416
1123R-75-04416
0.426" - - Press Fit 1/8 0.172 Brass Bright Tin - - PTFE Blue YES
1100-18-08816
1100-18-08816
1100-18-08816
0.247" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin-Lead - - PTFE Blue NO
1124-10-08812
1124-10-08812
1124-10-08812
0.899" 0.050 THREAD/TIP Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Red NO

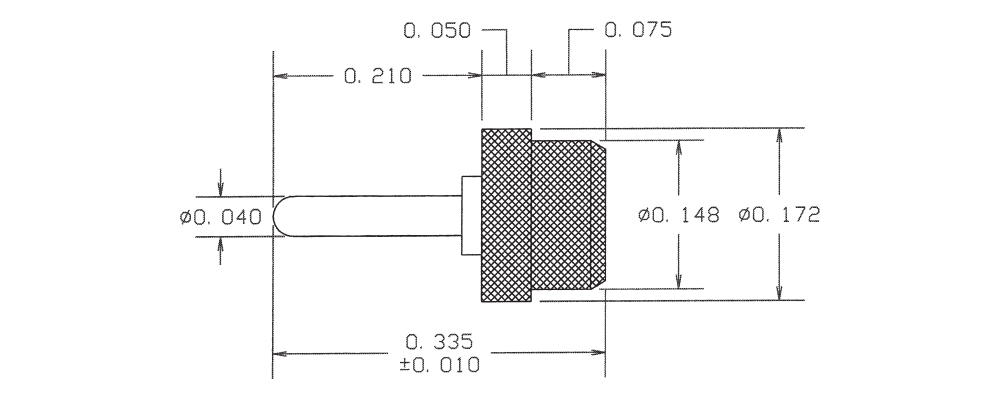

1100-24-0312
1100-24-0312
1100-24-0312
0.335" 0.040 - Press Fit 1/32 0.136 Brass Gold - - PTFE Red NO
1153-12-0118
1153-12-0118
1153-12-0118
0.594" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Silver - - PTFE Gray NO

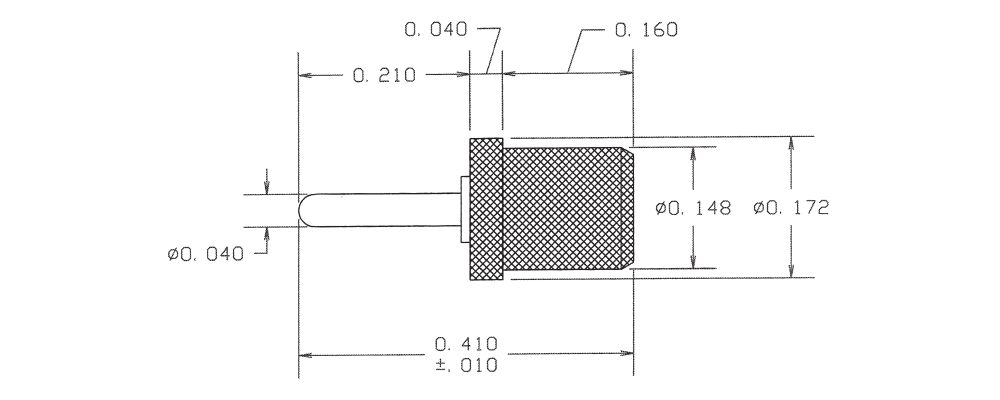

1100-34-0418
1100-34-0418
1100-34-0418
0.410" 0.040 - Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Gray NO

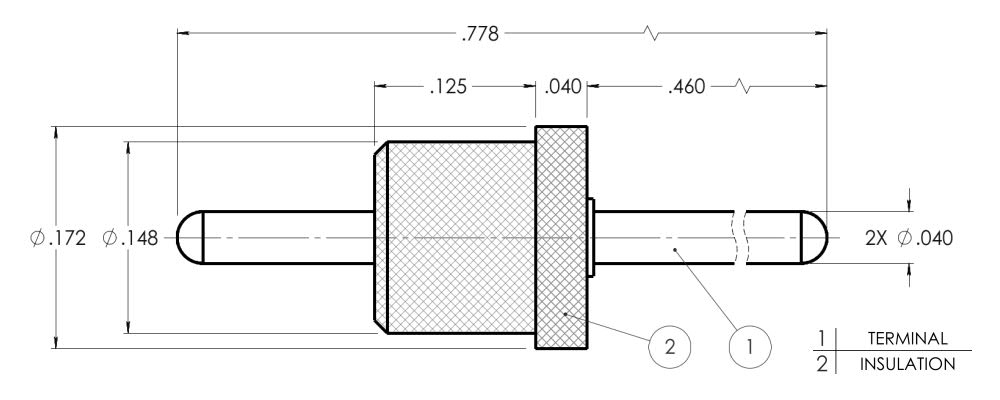

1110-95-0414
1110-95-0414
1110-95-0414
0.778" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Yellow NO

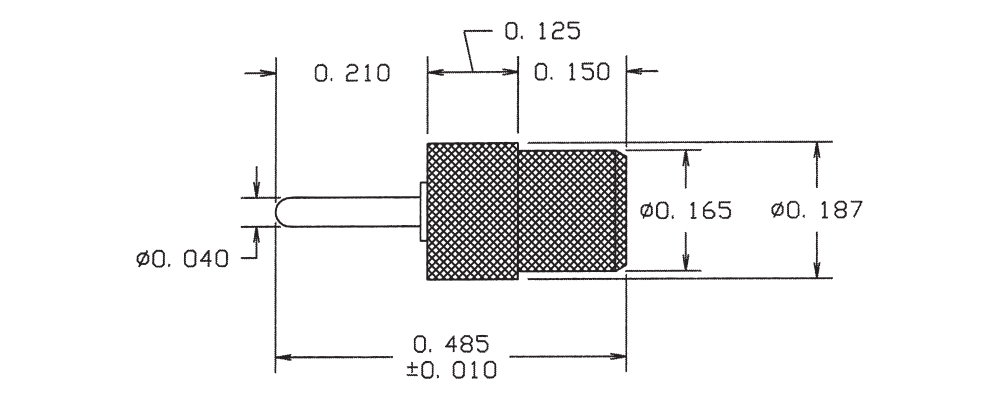

1100-43-0514
1100-43-0514
1100-43-0514
0.485" 0.040 - Press Fit 1/8 0.152 Brass Electro Solder - - PTFE Yellow NO
