Commercial
Insulated
Pin Terminals

Filter
1102-67-0410
1102-67-0410
1102-67-0410
0.681" - - Press Fit 1/8 0.158 Brass Electro-Tin - - PTFE Black YES

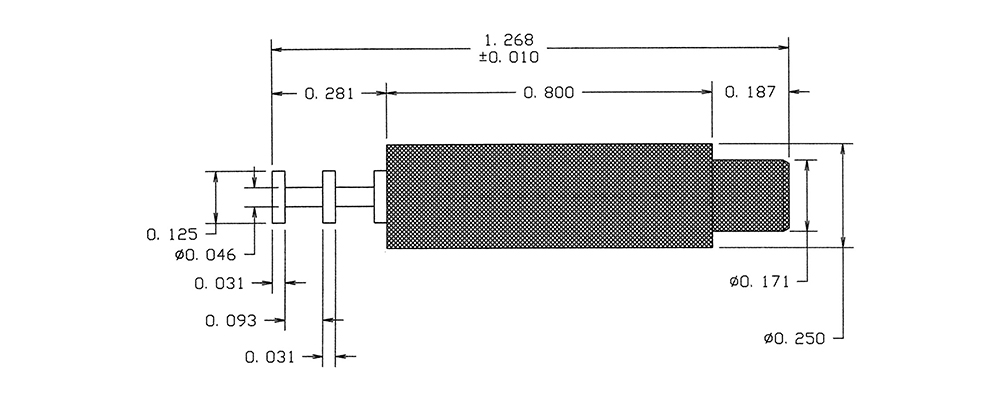

1102-71-04416
1102-71-04416
1102-71-04416
1.268" - - Press Fit 5/32 0.158 Brass Bright Tin - - PTFE Blue YES
1102-76-08812
1102-76-08812
1102-76-08812
0.655" - - Press Fit Up to 3/16 0.236 Brass Bright Tin-Lead - - PTFE Red NO
1102-81-0118
1102-81-0118
1102-81-0118
1.143" - - Press Fit 5/32 0.203 Brass Silver - - PTFE Gray NO
1102-85-0414
1102-85-0414
1102-85-0414
0.968" - - Press Fit Up to 1/4 0.203 Brass Electro-Tin - - PTFE Yellow NO

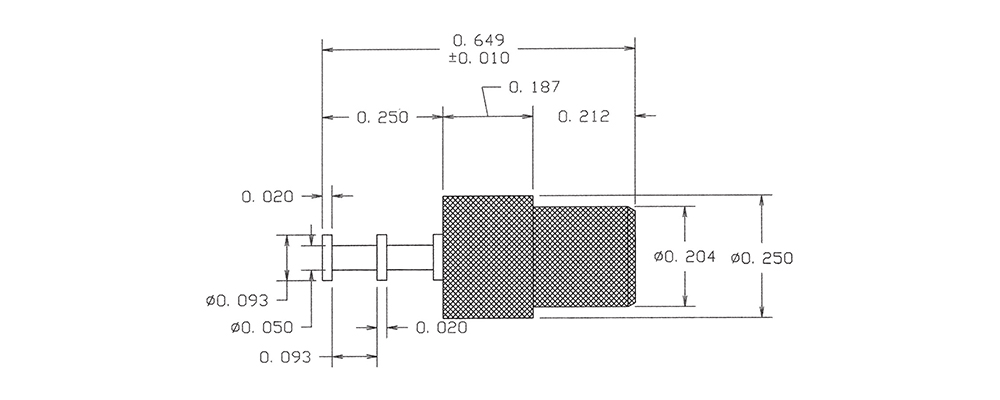

1102-94-0510
1102-94-0510
1102-94-0510
0.649" - - Press Fit Up to 3/16 0.191 Brass Electro Solder - - PTFE Black NO
1102R-01-08816
1102R-01-08816
1102R-01-08816
0.310" - - Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Blue NO
1102R-21-0312
1102R-21-0312
1102R-21-0312
0.455" - - Press Fit 1/8 0.136 Brass Gold - - PTFE Red NO
1102R-28-0418
1102R-28-0418
1102R-28-0418
0.361" - - Press Fit 1/8 0.140 Brass Electro-Tin - - PTFE Gray NO
1102R-74-0514
1102R-74-0514
1102R-74-0514
0.375" - - Press Fit 3/32 0.172 Brass Electro Solder - - PTFE Yellow NO

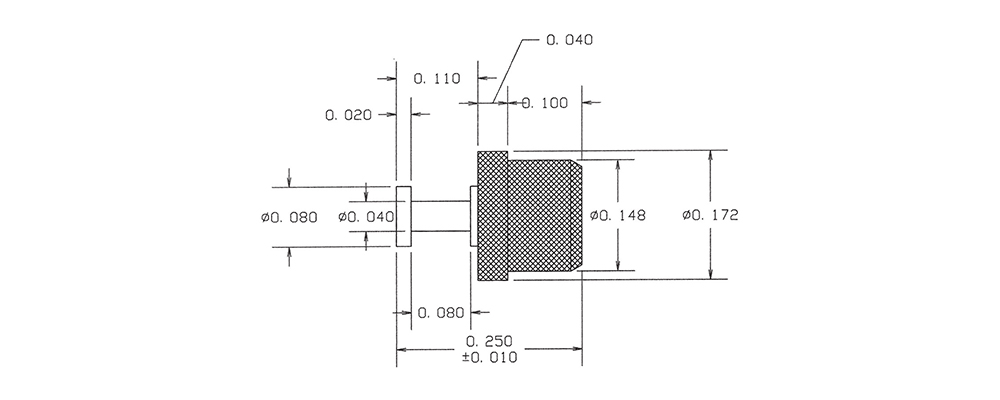

1103-01-0110
1103-01-0110
1103-01-0110
0.250" - - Press Fit 1/16 0.136 Brass Silver - - PTFE Black YES

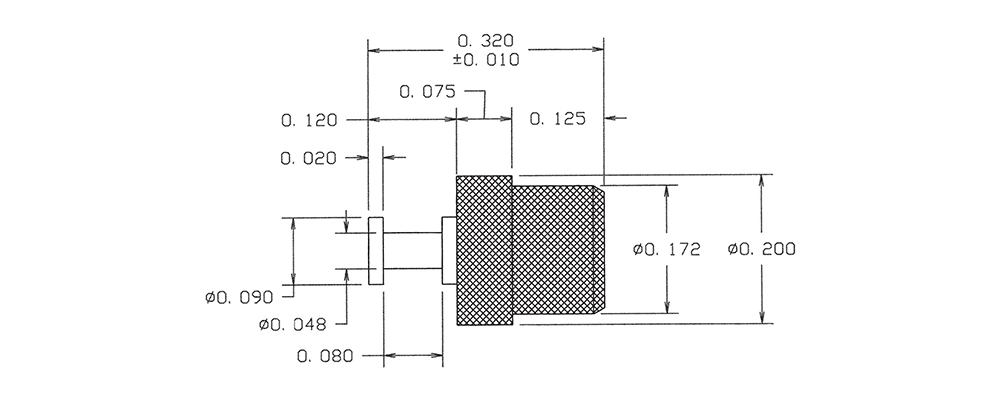

1103-08-0316
1103-08-0316
1103-08-0316
0.320" - - Press Fit 3/32 0.152 Brass Gold - - PTFE Blue YES
1103R-08-04412
1103R-08-04412
1103R-08-04412
0.320" - - Press Fit 3/32 0.158 Brass Bright Tin - - PTFE Red NO
1104-04-0518
1104-04-0518
1104-04-0518
0.392" - - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Gray NO
1105-02-0114
1105-02-0114
1105-02-0114
1.687" - Double Turret/Double Turret Press Fit 9/16 0.205 Brass Silver - - PTFE Yellow NO
1106-03-0410
1106-03-0410
1106-03-0410
0.478" - - Press Fit 1/8 0.158 Brass Electro-Tin - - PTFE Black YES
1106-07-04416
1106-07-04416
1106-07-04416
0.602" - - Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE Blue YES

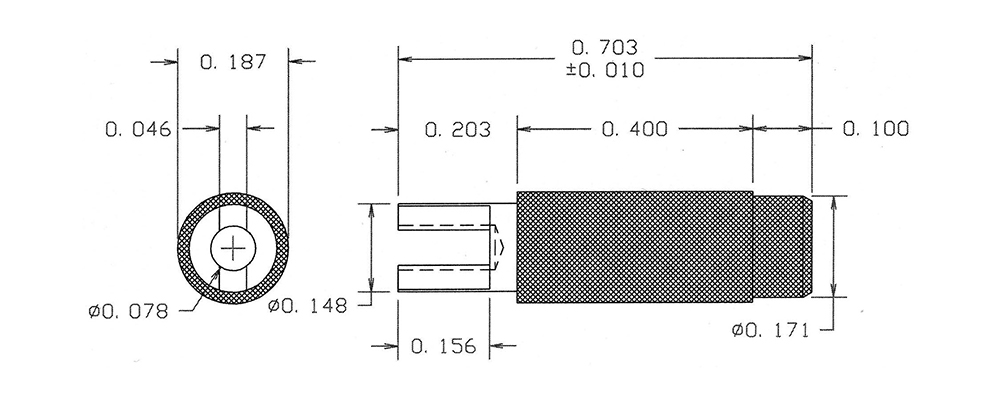

1106-11-08812
1106-11-08812
1106-11-08812
0.703" - - Press Fit 1/16 0.158 Brass Bright Tin-Lead - - PTFE Red NO
1106-16-0118
1106-16-0118
1106-16-0118
0.890" - - Press Fit 5/32 0.205 Brass Silver - - PTFE Gray NO

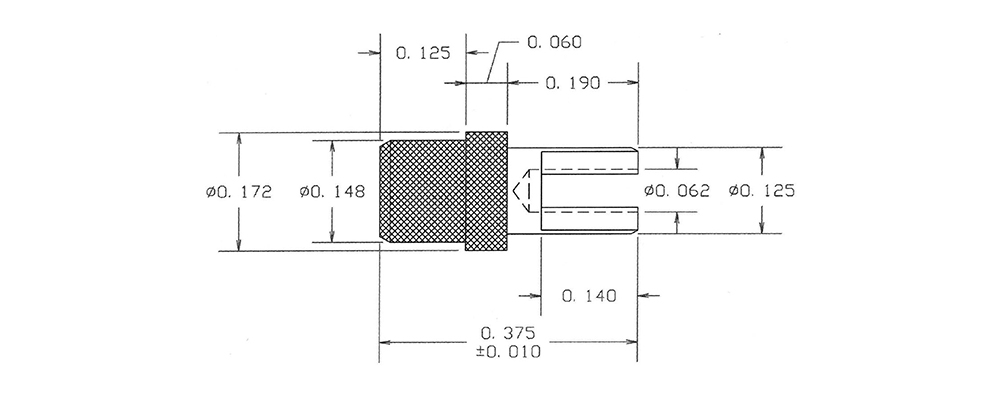

1106-22-0414
1106-22-0414
1106-22-0414
0.375" - - Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Yellow NO
