Commercial
Insulated
Pin Terminals

Filter
1106-52-0510
1106-52-0510
1106-52-0510
0.276" - - Press Fit 3/32 0.086 Brass Electro Solder - - PTFE Black NO
1106R-23-08816
1106R-23-08816
1106R-23-08816
0.375" - - Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Blue NO
1106R-51-0312
1106R-51-0312
1106R-51-0312
0.150" - - Press Fit 1/32 0.113 Brass Gold - - PTFE Red NO
1107-03-0418
1107-03-0418
1107-03-0418
0.819" 0.040 Pin/Pin Press Fit Up to 3/16 0.136 Brass Electro-Tin - - PTFE Gray NO
1107-08-0514
1107-08-0514
1107-08-0514
0.696" 0.040 Pin/Pin Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Yellow NO
1108-02-0110
1108-02-0110
1108-02-0110
2.287" - Double Turret/Double Turret Press Fit 7/8 0.205 Brass Silver - - PTFE Black YES
1108-06-0316
1108-06-0316
1108-06-0316
0.819" - Double Turret/Double Turret Press Fit Up to 3/16 0.174 Brass Gold - - PTFE Blue YES
1110-02-04412
1110-02-04412
1110-02-04412
0.438" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Red NO
1110-06-0518
1110-06-0518
1110-06-0518
0.987" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Gray NO
1110-11-0114
1110-11-0114
1110-11-0114
0.515" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Silver - - PTFE Yellow NO

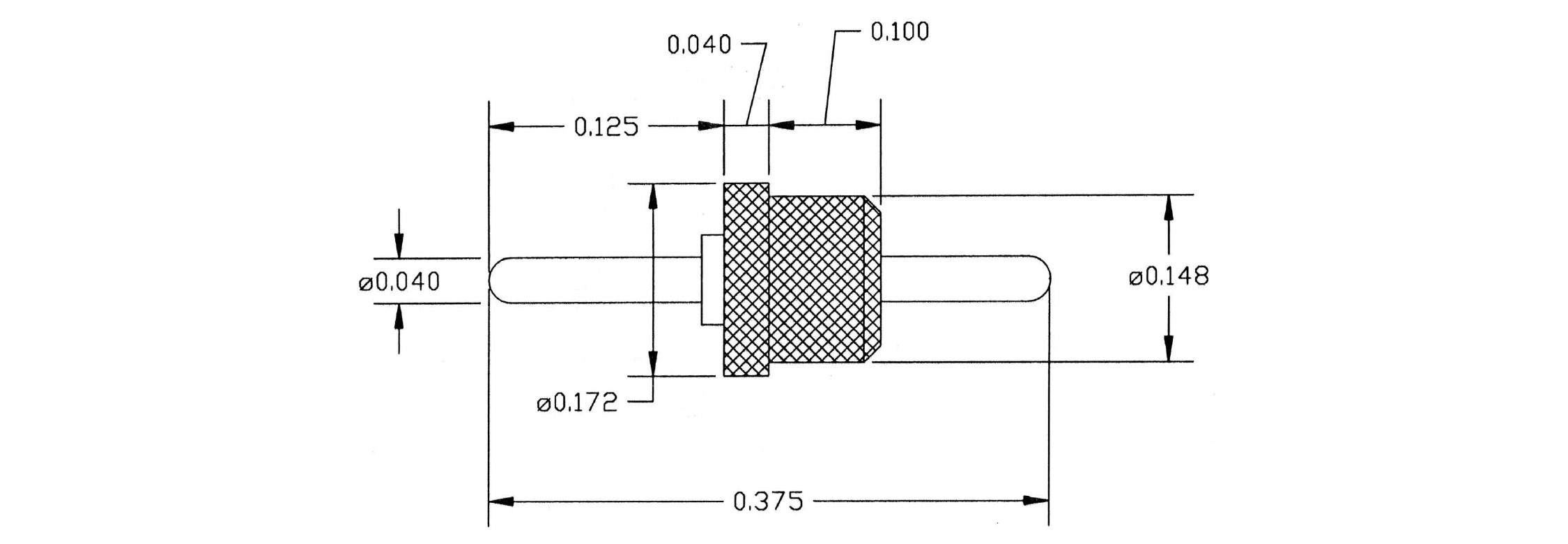

1110-16-0410
1110-16-0410
1110-16-0410
0.375" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Black YES
1110-20-04416
1110-20-04416
1110-20-04416
0.443" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Blue YES
1110-24-08812
1110-24-08812
1110-24-08812
0.535" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Red NO
1110-29-0118
1110-29-0118
1110-29-0118
0.571" 0.040 Pin/Pin Press Fit 1/8 0.136 Brass Silver - - PTFE Gray NO
1110-33-0414
1110-33-0414
1110-33-0414
0.725" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Yellow NO
1110-40-0510
1110-40-0510
1110-40-0510
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Electro Solder - - PTFE Black NO
1110-44-08816
1110-44-08816
1110-44-08816
2.500" 0.049 Pin/Pin Press Fit 1/16 0.156 Brass Bright Tin-Lead - - PTFE Blue NO
1110-49-0312
1110-49-0312
1110-49-0312
1.090" 0.040 Pin/Pin Press Fit 1/16 0.158 Brass Gold - - PTFE Red NO
1110-55-0418
1110-55-0418
1110-55-0418
0.515" 0.040 Pin/Pin Press Fit 1/16 0.166 Brass Electro-Tin - - PTFE Gray NO
1110-61-0514
1110-61-0514
1110-61-0514
0.410" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Yellow NO
