Commercial
Insulated
Pin Terminals

Filter
1127-70-0417
1127-70-0417
1127-70-0417
0.844" - - 4-40 Nut 3/32 0.120 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Violet YES
1127-74-0513
1127-74-0513
1127-74-0513
1.000" - - 4-40 Nut 3/32 0.120 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Orange NO
1127-78-08819
1127-78-08819
1127-78-08819
0.859" - - Swage Mount 3/16 0.104 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE White NO

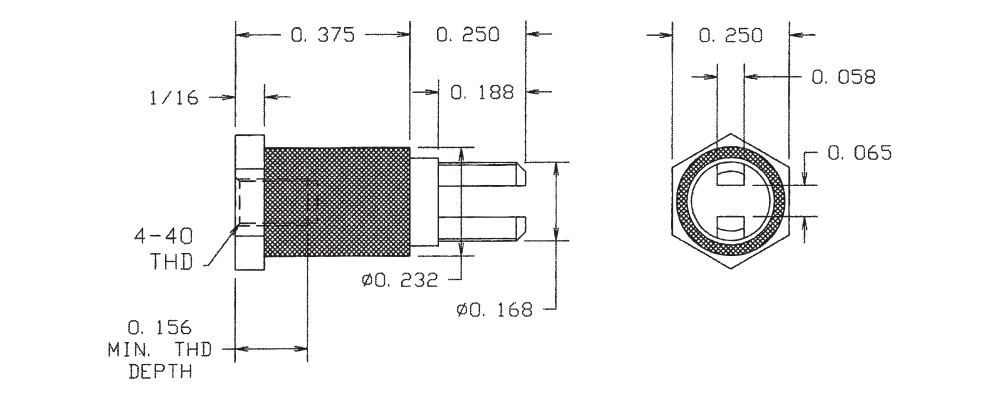

1127-83-0315
1127-83-0315
1127-83-0315
0.625" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Gold ZINC Brass DIALLYL PHTHALATE Green YES
1127-87-04411
1127-87-04411
1127-87-04411
0.515" - - 2-56 Nut 1/32 0.094 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Brown YES
1127-91-0517
1127-91-0517
1127-91-0517
0.674" - - Swage Mount 3/32 0.082 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Violet NO
1129-01-0113
1129-01-0113
1129-01-0113
1.000" 0.030 TURRET/PIN Press Fit Up to 1/4 0.205 Brass Silver - - PTFE Orange NO
1130-02-0319
1130-02-0319
1130-02-0319
1.870" (0.030)/(0.040) Pin/Pin Press Fit 7/32 0.172 Brass Gold - - PTFE White YES
1130-07-04415
1130-07-04415
1130-07-04415
2.083" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Bright Tin - - PTFE Green YES
1130R-05-08811
1130R-05-08811
1130R-05-08811
1.531" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Bright Tin-Lead - - PTFE Brown NO
1131-03-0117
1131-03-0117
1131-03-0117
0.562" (0.040)/(0.050) Pin/Tip Press Fit 3/32 0.172 Brass Silver - - PTFE Violet YES

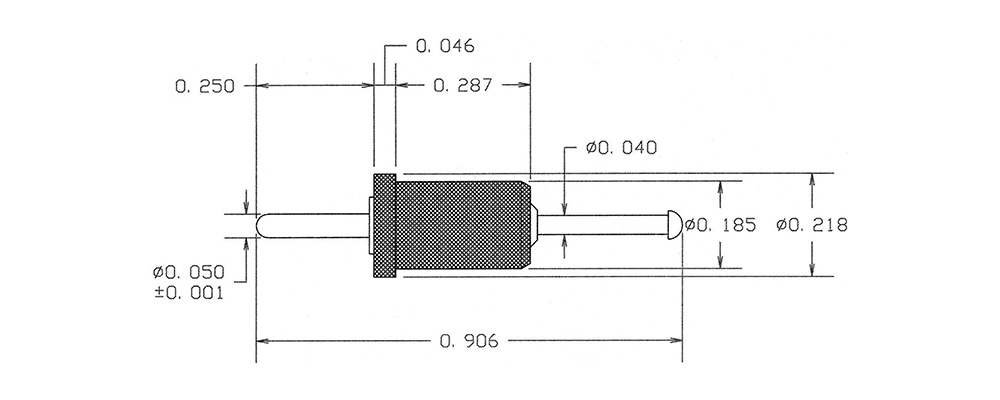

1131-07-0413
1131-07-0413
1131-07-0413
0.906" (0.040)/(0.050) Pin/Tip Press Fit Up to 1/4 0.172 Brass Electro-Tin - - PTFE Orange NO
1132-01-04419
1132-01-04419
1132-01-04419
0.645" 0.090 - Solder 7/32 0.0935 Brass Bright Tin - - PTFE White YES
1133-02-08815
1133-02-08815
1133-02-08815
0.836" 0.040 DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 Brass Bright Tin-Lead - - PTFE Green NO
1135-01-0311
1135-01-0311
1135-01-0311
0.510" 0.030 Pin/Slotted Press Fit 1/32 0.070 Brass Gold - - PTFE Brown NO
1135-05-0417
1135-05-0417
1135-05-0417
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Electro-Tin - - PTFE Violet YES
1135-09-0513
1135-09-0513
1135-09-0513
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Orange NO
1137-02-08819
1137-02-08819
1137-02-08819
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Bright Tin-Lead - - PTFE White NO

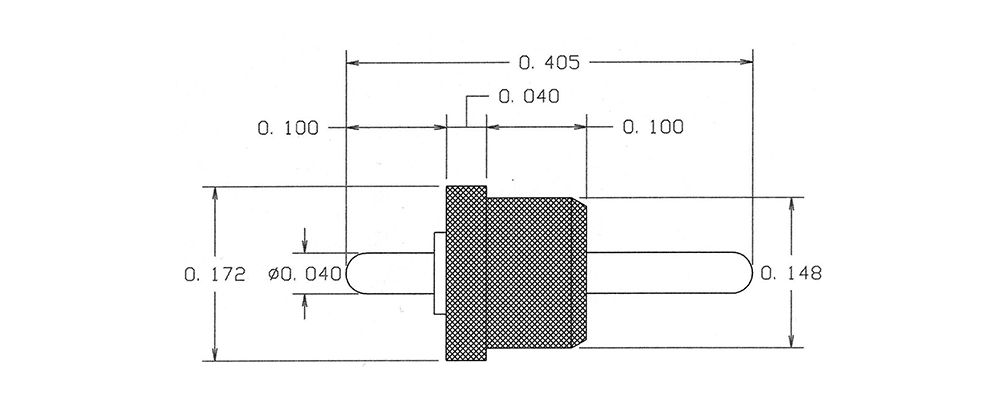

1139-04-0315
1139-04-0315
1139-04-0315
0.405" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Gold - - PTFE Green YES
1151-05-04411
1151-05-04411
1151-05-04411
0.350" - - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Brown NO

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
