Commercial
Insulated
Pin Terminals

Filter

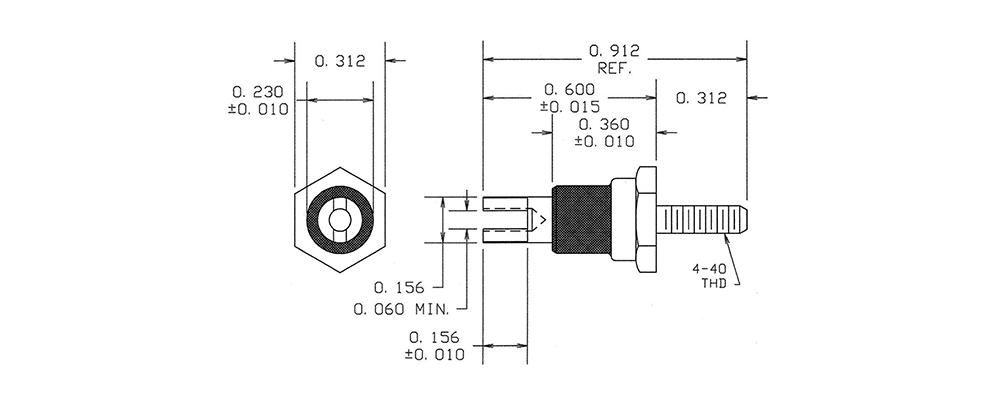

1125-40-08814
1125-40-08814
1125-40-08814
0.912" - - 4-40 Nut Up to 3/16 0.120 Brass Bright Tin-Lead Electro-Tin Brass PTFE Yellow NO
1125-45-0310
1125-45-0310
1125-45-0310
0.890" - - 6-32 Nut 1/8 0.144 Brass Gold ZINC Brass PTFE Black YES

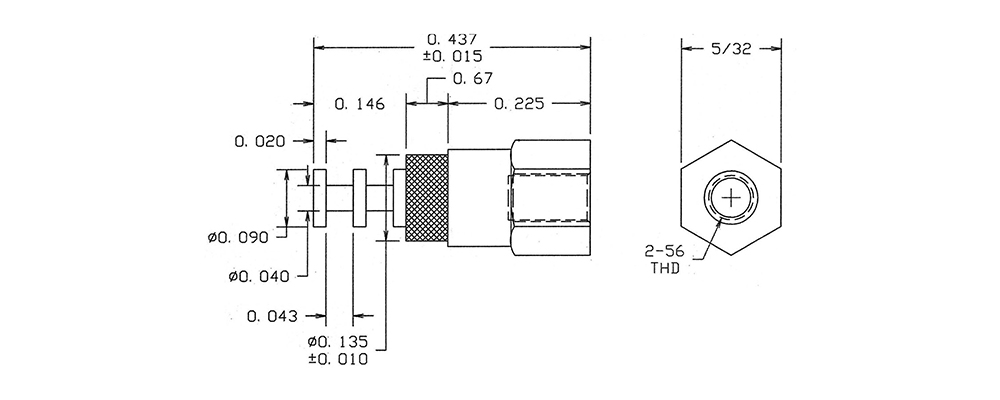

1125-49-0416
1125-49-0416
1125-49-0416
0.437" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Electro-Tin ZINC Brass PTFE Blue YES
1125-53-0512
1125-53-0512
1125-53-0512
0.975" - - 6-32 Nut Up to 1/4 0.144 Brass Electro Solder Electro-Tin Brass PTFE Red NO
1125-57-08818
1125-57-08818
1125-57-08818
0.975" - - 4-40 Nut Up to 1/4 0.120 Brass Bright Tin-Lead Electro-Tin Brass PTFE Gray NO
1125-63-0314
1125-63-0314
1125-63-0314
0.453" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Gold ZINC Brass PTFE Yellow NO

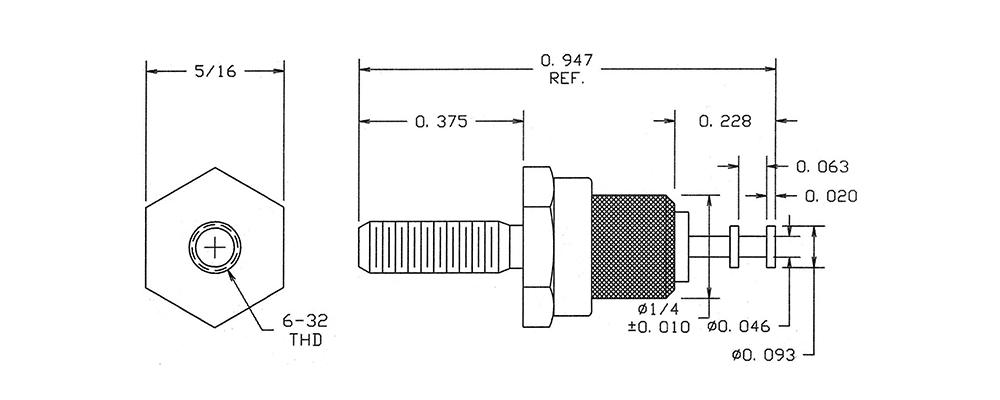

1125-74-04410
1125-74-04410
1125-74-04410
0.947" - - 6-32 Nut Up to 1/4 0.144 Brass Bright Tin ZINC Brass PTFE Black YES
1125-78-0516
1125-78-0516
1125-78-0516
0.697" - - Swage Mount 3/32 0.194 Brass Electro Solder ZINC Brass PTFE Blue NO
1125-84-0112
1125-84-0112
1125-84-0112
0.756" - - Swage Mount 1/8 0.191 Brass Silver Electro-Tin Brass PTFE Red NO

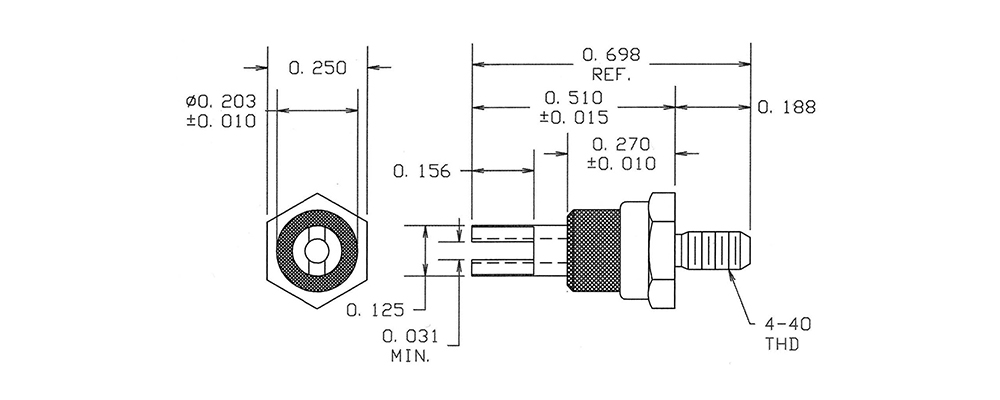

1125-89-0318
1125-89-0318
1125-89-0318
0.698" - - 4-40 Nut 1/16 0.120 Brass Gold Electro-Tin Brass PTFE Gray NO

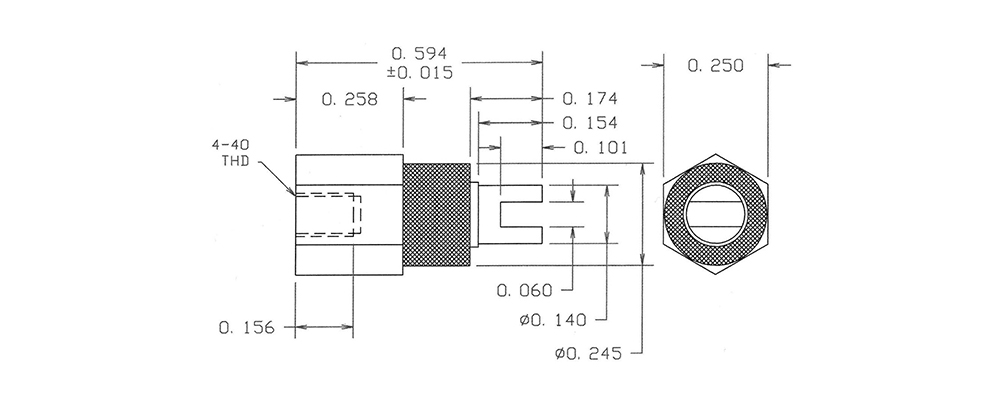

1125-93-04414
1125-93-04414
1125-93-04414
0.594" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin ZINC Brass PTFE Yellow NO
1125-97-08810
1125-97-08810
1125-97-08810
0.672" - - 6-32 Nut 1/8 0.144 Brass Bright Tin-Lead ZINC Brass PTFE Black NO

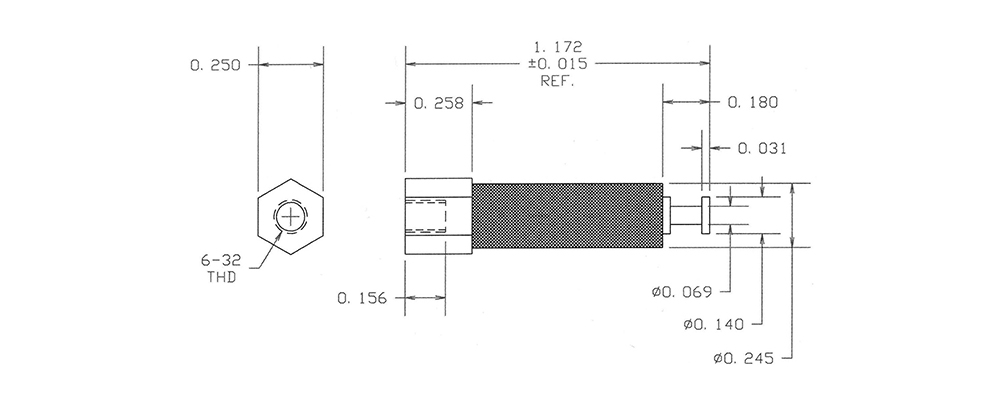

1126-30-0116
1126-30-0116
1126-30-0116
1.172" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Silver ZINC Brass PTFE Blue YES
1126-34-0412
1126-34-0412
1126-34-0412
0.766" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Electro-Tin ZINC Brass PTFE Red NO

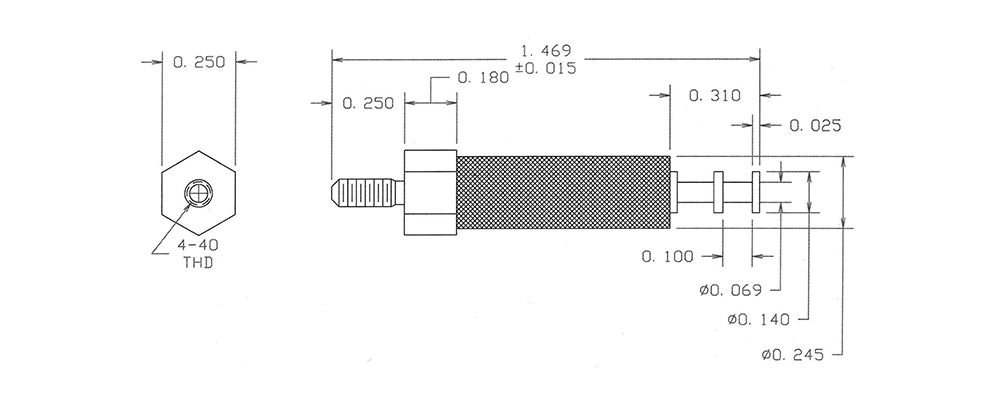

1126-38-04418
1126-38-04418
1126-38-04418
1.469" - - 4-40 Nut 1/8 0.120 Brass Bright Tin ZINC Brass PTFE Gray NO

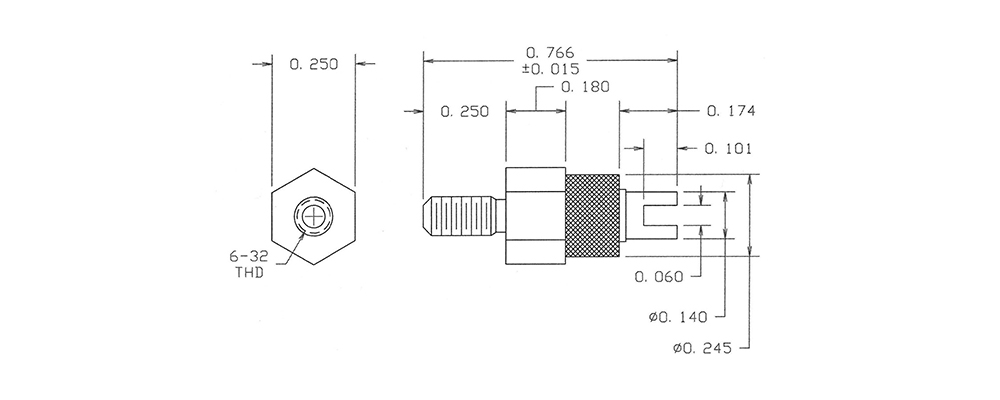

1126-42-08814
1126-42-08814
1126-42-08814
0.766" - - 6-32 Nut 1/8 0.144 Brass Bright Tin-Lead ZINC Brass PTFE Yellow NO

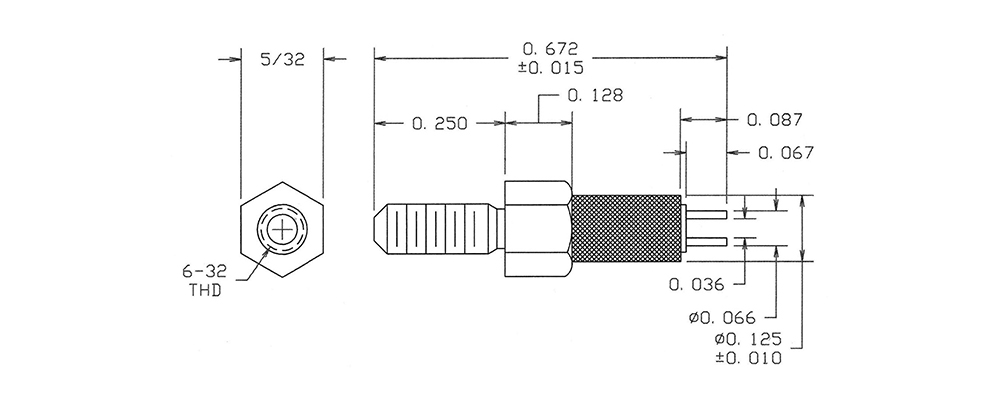

1126-47-0310
1126-47-0310
1126-47-0310
0.672" - - 6-32 Nut 1/8 0.144 Brass Gold ZINC Brass PTFE Black YES
1127-04-0416
1127-04-0416
1127-04-0416
0.719" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro-Tin Electro-Tin Brass DIALLYL PHTHALATE Blue YES

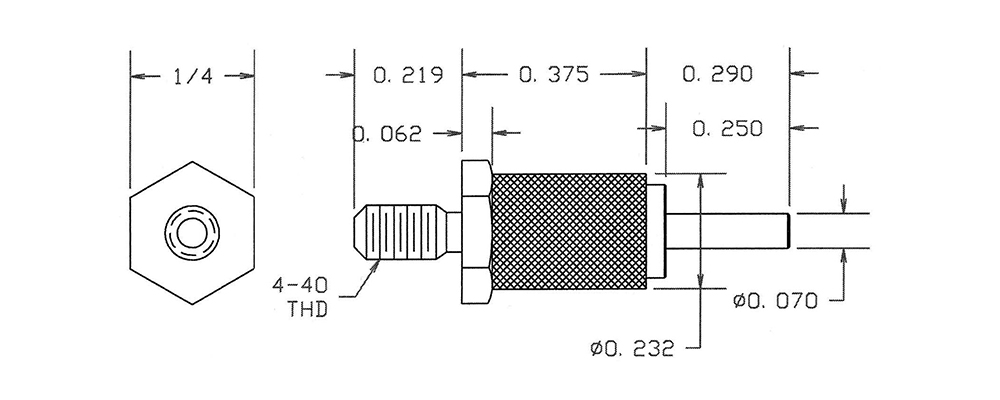

1127-08-0512
1127-08-0512
1127-08-0512
0.884" 0.070 - 4-40 Nut 3/32 0.120 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Red NO

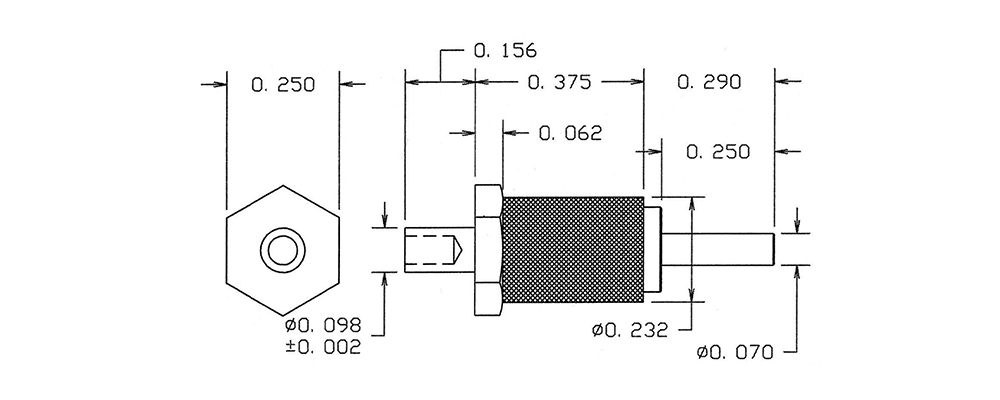

1127-12-08818
1127-12-08818
1127-12-08818
0.821" 0.070 - Swage Mount 1/8 0.104 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Gray NO
