Commercial
Insulated
Pin Terminals

Filter
1117-54-04414
1117-54-04414
1117-54-04414
0.785" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Bright Tin Nickel Brass PTFE Yellow NO
1118-32-08810
1118-32-08810
1118-32-08810
0.346" - TURRET/SLOTTED Press Fit 3/32 0.093 Brass Bright Tin-Lead - - PTFE Black NO
1119-25-0116
1119-25-0116
1119-25-0116
1.500" 0.030 TURRET/PIN Press Fit 3/32 0.070 Brass Silver - - PTFE Blue YES
1119R-20-0412
1119R-20-0412
1119R-20-0412
0.500" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Red NO
1121-02-04418
1121-02-04418
1121-02-04418
0.350" 0.040 Turret/Tip Press Fit 1/32 0.113 Brass Bright Tin - - PTFE Gray NO
1121-06-08814
1121-06-08814
1121-06-08814
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO
1121-12-0310
1121-12-0310
1121-12-0310
0.500" 0.080 Turret/Tip Press Fit 3/32 0.158 Brass Gold - - PTFE Black YES
1121-16-0416
1121-16-0416
1121-16-0416
0.740" 0.050 Turret/Tip Press Fit Up to 3/16 0.158 Brass Electro-Tin - - PTFE Blue YES
1121-20-0512
1121-20-0512
1121-20-0512
1.115" 0.050 Turret/Tip Press Fit 9/32 0.158 Brass Electro Solder - - PTFE Red NO
1121-24-08818
1121-24-08818
1121-24-08818
0.640" 0.046 Turret/Tip Press Fit Up to 3/16 0.172 Brass Bright Tin-Lead - - PTFE Gray NO
1121-31-0314
1121-31-0314
1121-31-0314
0.520" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Gold - - PTFE Yellow NO
1121-52-04410
1121-52-04410
1121-52-04410
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Bright Tin - - PTFE Black YES
1121R-06-0516
1121R-06-0516
1121R-06-0516
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Blue NO

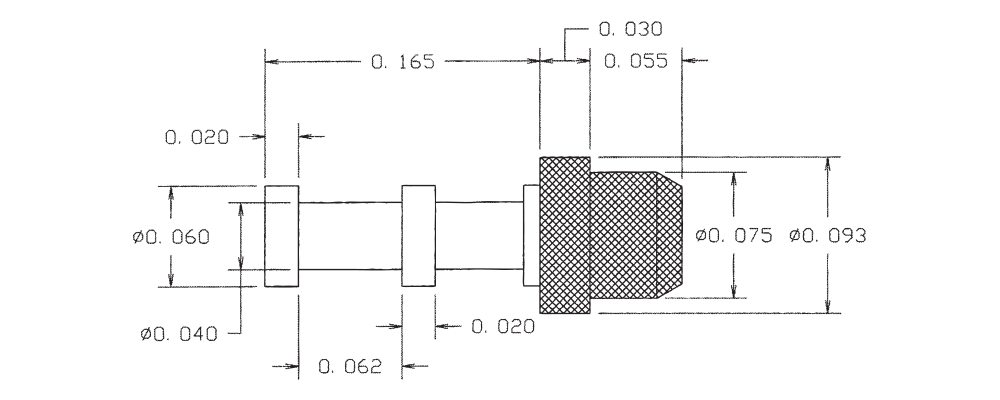

1122-01-0112
1122-01-0112
1122-01-0112
0.250" - - Press Fit 1/64 0.070 Brass Silver - - PTFE Red NO

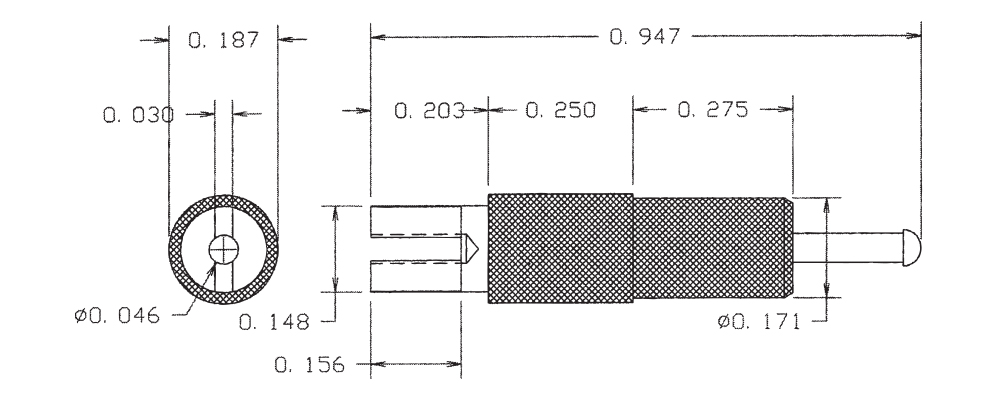

1123-04-0318
1123-04-0318
1123-04-0318
0.947" 0.050 TIP/SLOTTED Press Fit Up to 3/16 0.158 Brass Gold - - PTFE Gray NO
1123-08-04414
1123-08-04414
1123-08-04414
1.197" 0.050 TIP/SLOTTED Press Fit 15/32 0.158 Brass Bright Tin - - PTFE Yellow NO
1123-72-08810
1123-72-08810
1123-72-08810
0.495" 0.040 TIP/SLOTTED Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Black NO
1123R-07-0116
1123R-07-0116
1123R-07-0116
1.197" 0.050 TIP/SLOTTED Press Fit 11/32 0.158 Brass Silver - - PTFE Blue YES
1123R-70-0412
1123R-70-0412
1123R-70-0412
0.495" 0.040 Pin/Slotted Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Red NO
1125-35-04418
1125-35-04418
1125-35-04418
0.850" - - 6-32 Nut 1/8 0.144 Brass Bright Tin Electro-Tin Brass PTFE Gray NO
