Commercial
Insulated
Pin Terminals

Filter
1130-07-04414
1130-07-04414
1130-07-04414
2.083" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Bright Tin - - PTFE Yellow NO
1130R-05-08810
1130R-05-08810
1130R-05-08810
1.531" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Bright Tin-Lead - - PTFE Black NO

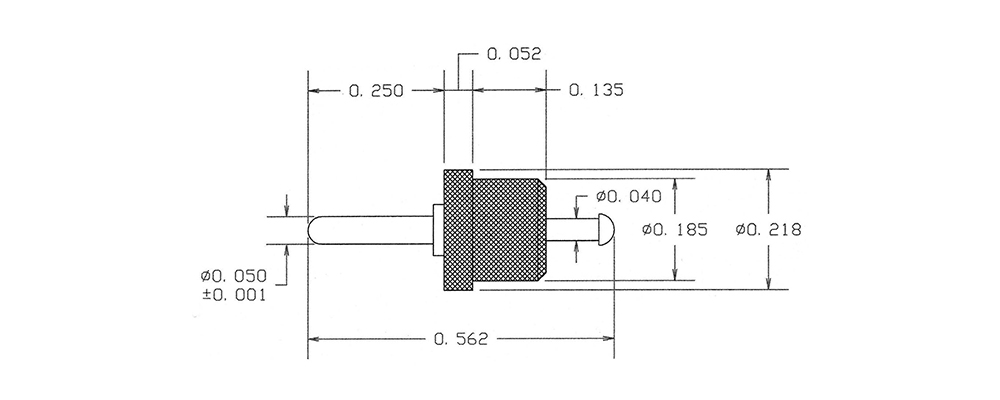

1131-03-0116
1131-03-0116
1131-03-0116
0.562" (0.040)/(0.050) Pin/Tip Press Fit 3/32 0.172 Brass Silver - - PTFE Blue YES
1131-07-0412
1131-07-0412
1131-07-0412
0.906" (0.040)/(0.050) Pin/Tip Press Fit Up to 1/4 0.172 Brass Electro-Tin - - PTFE Red NO
1132-01-04418
1132-01-04418
1132-01-04418
0.645" 0.090 - Solder 7/32 0.0935 Brass Bright Tin - - PTFE Gray NO
1133-02-08814
1133-02-08814
1133-02-08814
0.836" 0.040 DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO
1135-01-0310
1135-01-0310
1135-01-0310
0.510" 0.030 Pin/Slotted Press Fit 1/32 0.070 Brass Gold - - PTFE Black YES
1135-05-0416
1135-05-0416
1135-05-0416
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Electro-Tin - - PTFE Blue YES
1135-09-0512
1135-09-0512
1135-09-0512
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Red NO
1137-02-08818
1137-02-08818
1137-02-08818
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Bright Tin-Lead - - PTFE Gray NO
1139-04-0314
1139-04-0314
1139-04-0314
0.405" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Gold - - PTFE Yellow NO
1151-05-04410
1151-05-04410
1151-05-04410
0.350" - - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Black YES
1151-11-0516
1151-11-0516
1151-11-0516
0.455" - - Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Blue NO

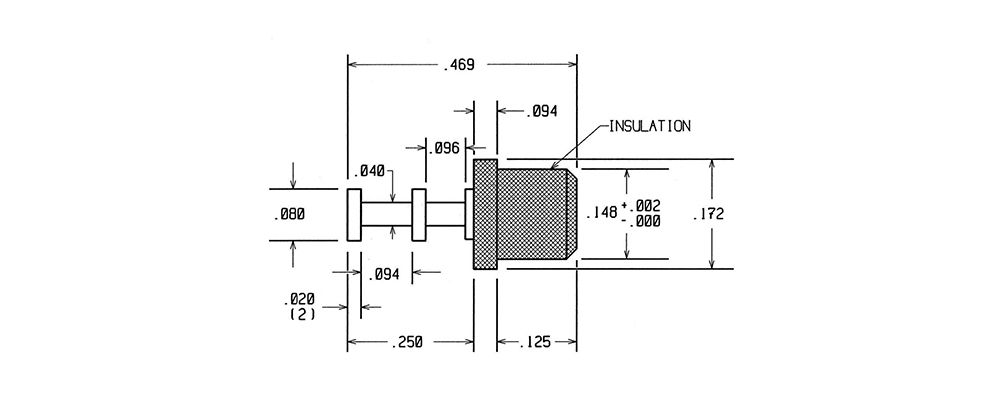

1151-20-0112
1151-20-0112
1151-20-0112
0.469" - - Press Fit 3/32 0.136 Brass Silver - - PTFE Red NO
1151-39-0318
1151-39-0318
1151-39-0318
0.525" - - Press Fit 1/8 0.158 Brass Gold - - PTFE Gray NO
1151-51-04414
1151-51-04414
1151-51-04414
1.234" - - Press Fit 5/32 0.203 Brass Bright Tin - - PTFE Yellow NO
1151R-09-08810
1151R-09-08810
1151R-09-08810
0.390" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Black NO
1152-01-0116
1152-01-0116
1152-01-0116
0.350" 0.040 - Press Fit 1/16 0.136 Brass Silver - - PTFE Blue YES
1152-31-0412
1152-31-0412
1152-31-0412
0.750" 0.040 - Press Fit 1/16 0.203 Brass Electro-Tin - - PTFE Red NO
1152R-17-04418
1152R-17-04418
1152R-17-04418
0.615" 0.040 - Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Gray NO
