Commercial
Insulated
Pin Terminals

Filter

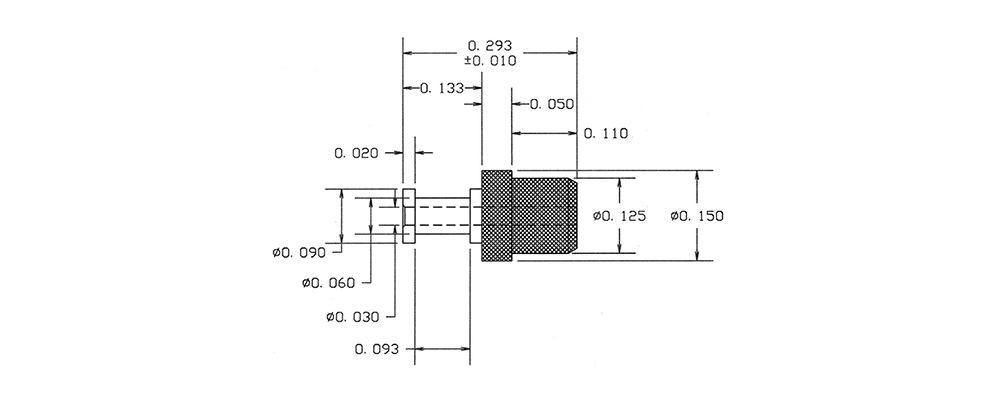

1112-09-0314
1112-09-0314
1112-09-0314
0.293" - - Press Fit 1/64 0.113 Brass Gold - - PTFE Yellow NO
1112-14-04410
1112-14-04410
1112-14-04410
0.293" - - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Black YES
1112-65-0516
1112-65-0516
1112-65-0516
0.155" - - Press Fit 1/32 0.058 Brass Electro Solder - - PTFE Blue NO

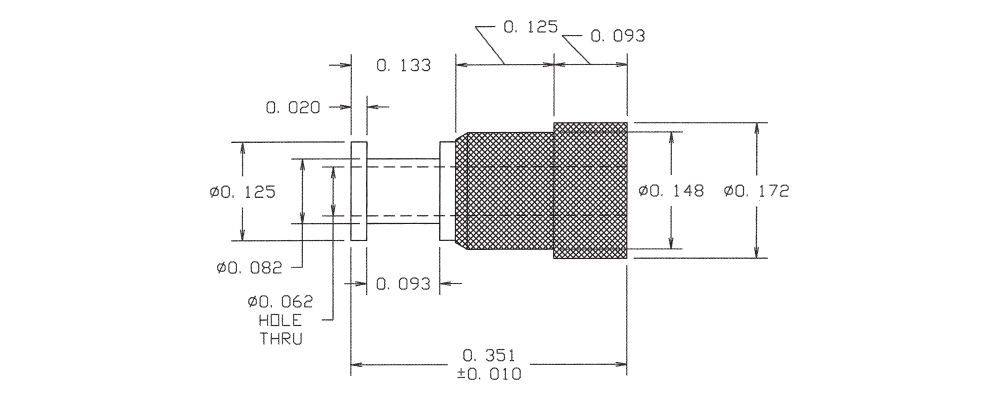

1112R-15-0112
1112R-15-0112
1112R-15-0112
0.351" - - Press Fit 3/32 0.136 Brass Silver - - PTFE Red NO
1112R-62-0318
1112R-62-0318
1112R-62-0318
0.260" - - Press Fit 3/32 0.086 Brass Gold - - PTFE Gray NO
1113-03-04414
1113-03-04414
1113-03-04414
0.333" - - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Yellow NO
1113-57-08810
1113-57-08810
1113-57-08810
0.407" 0.040 PIN/Solder CUP Press Fit 1/32 0.136 Brass Bright Tin-Lead - - PTFE Black NO

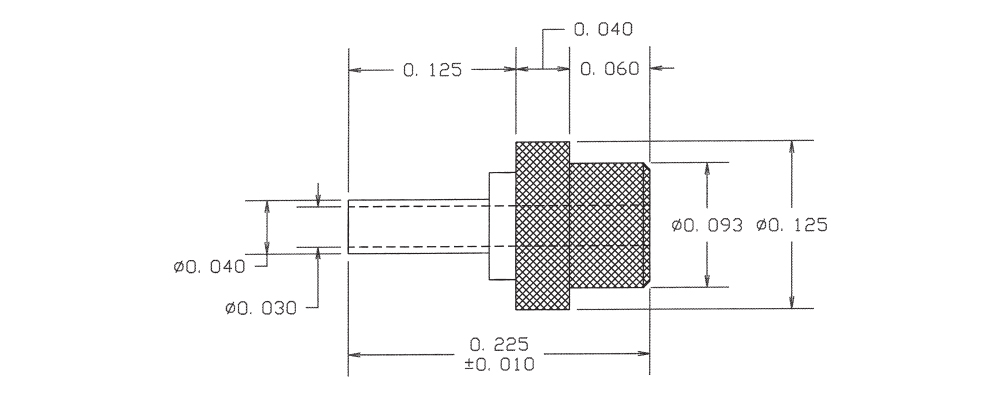

1114-04-0116
1114-04-0116
1114-04-0116
0.225" 0.040 - Press Fit 1/32 0.086 Brass Silver - - PTFE Blue YES
1114-08-0412
1114-08-0412
1114-08-0412
0.310" 0.040 - Press Fit 3/32 0.108 Brass Electro-Tin - - PTFE Red NO
1114-50-04418
1114-50-04418
1114-50-04418
0.270" 0.060 - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Gray NO
1114-74-08814
1114-74-08814
1114-74-08814
0.367" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO

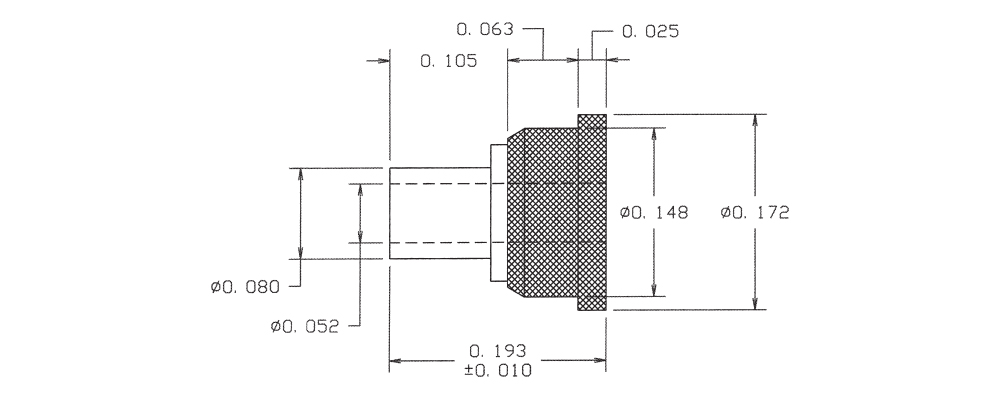

1114R-14-0310
1114R-14-0310
1114R-14-0310
0.193" 0.080 - Press Fit 1/32 0.136 Brass Gold - - PTFE Black YES
1114R-20-0416
1114R-20-0416
1114R-20-0416
0.310" 0.040 - Press Fit 1/64 0.136 Brass Electro-Tin - - PTFE Blue YES
1114R-80-0512
1114R-80-0512
1114R-80-0512
0.380" 0.055 - Press Fit 1/32 0.136 Brass Electro Solder - - PTFE Red NO
1115-06-08818
1115-06-08818
1115-06-08818
0.367" 0.040 - Press Fit 1/16 0.187 Brass Bright Tin-Lead - - PTFE Gray NO
1115-51-0314
1115-51-0314
1115-51-0314
0.453" - - Press Fit 1/16 0.187 Brass Gold - - PTFE Yellow NO
1115R-02-04410
1115R-02-04410
1115R-02-04410
0.282" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin - - PTFE Black YES
1116-26-0516
1116-26-0516
1116-26-0516
0.281" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Blue NO

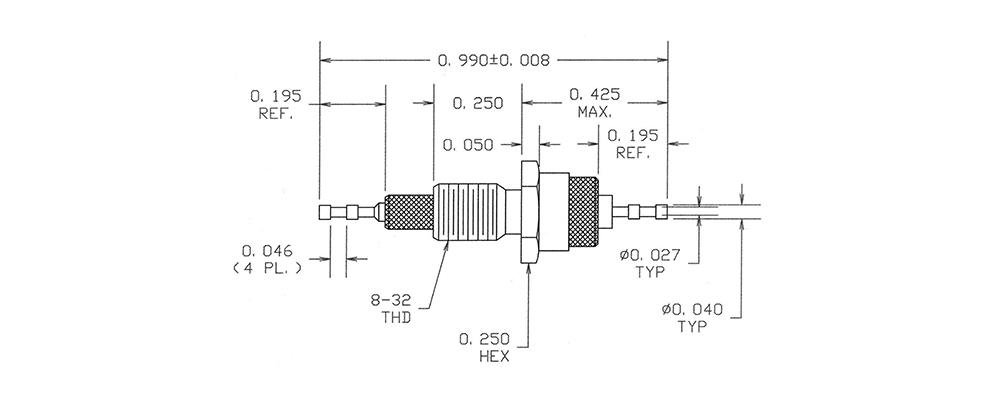

1117-16-0112
1117-16-0112
1117-16-0112
0.990" - Double Turret/Double Turret 8-32 Nut 1/8 0.169 Brass Silver Nickel Brass PTFE Red NO
1117-50-0318
1117-50-0318
1117-50-0318
0.640" 0.029 Pin/Pin 4-40 Nut 1/8 0.120 Brass Gold Nickel Brass PTFE Gray NO
