Commercial
Insulated
Pin Terminals

Filter
1102-49-0314
1102-49-0314
1102-49-0314
0.681" - - Press Fit 1/8 0.152 Brass Gold - - PTFE Yellow NO
1102-53-04410
1102-53-04410
1102-53-04410
0.431" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Black YES

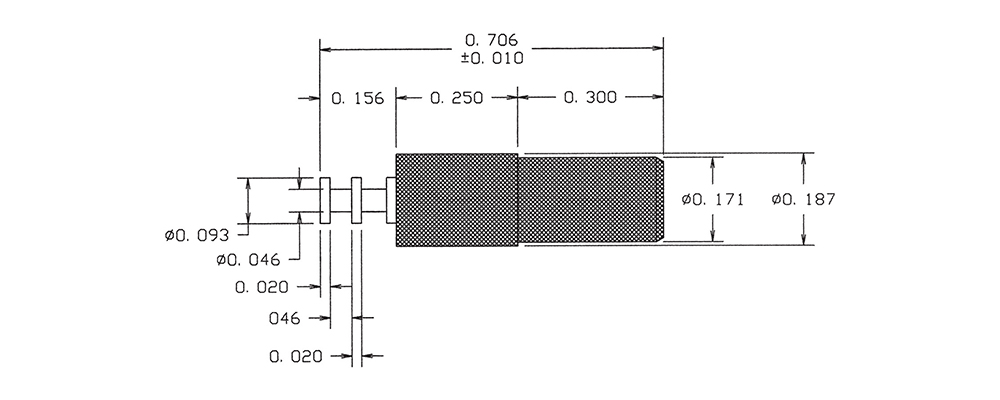

1102-57-0516
1102-57-0516
1102-57-0516
0.706" - - Press Fit Up to 1/4 0.158 Brass Electro Solder - - PTFE Blue NO

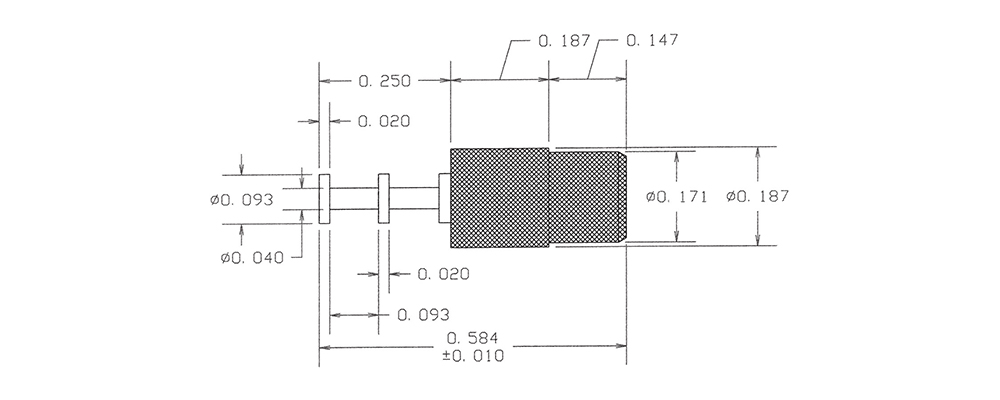

1102-63-0112
1102-63-0112
1102-63-0112
0.584" - - Press Fit 3/32 0.158 Brass Silver - - PTFE Red NO
1102-67-0318
1102-67-0318
1102-67-0318
0.681" - - Press Fit 1/8 0.158 Brass Gold - - PTFE Gray NO
1102-71-04414
1102-71-04414
1102-71-04414
1.268" - - Press Fit 5/32 0.158 Brass Bright Tin - - PTFE Yellow NO
1102-76-08810
1102-76-08810
1102-76-08810
0.655" - - Press Fit Up to 3/16 0.236 Brass Bright Tin-Lead - - PTFE Black NO
1102-81-0116
1102-81-0116
1102-81-0116
1.143" - - Press Fit 5/32 0.203 Brass Silver - - PTFE Blue YES

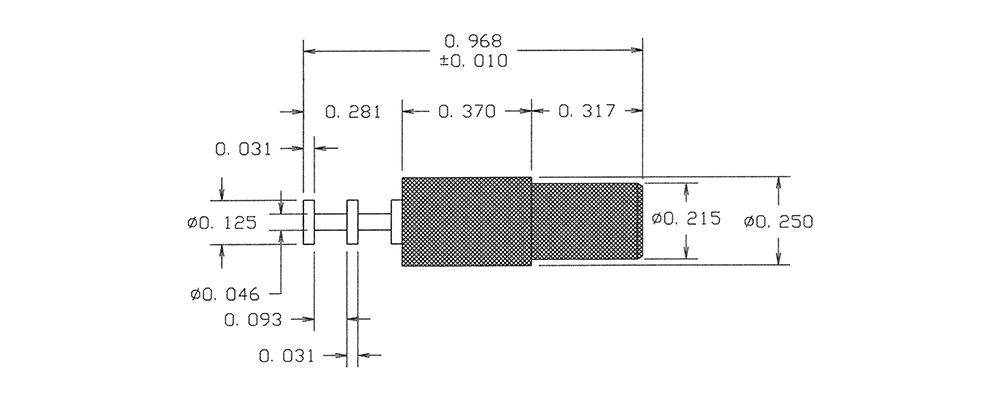

1102-85-0412
1102-85-0412
1102-85-0412
0.968" - - Press Fit Up to 1/4 0.203 Brass Electro-Tin - - PTFE Red NO
1102-94-04418
1102-94-04418
1102-94-04418
0.649" - - Press Fit Up to 3/16 0.191 Brass Bright Tin - - PTFE Gray NO
1102R-01-08814
1102R-01-08814
1102R-01-08814
0.310" - - Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Yellow NO

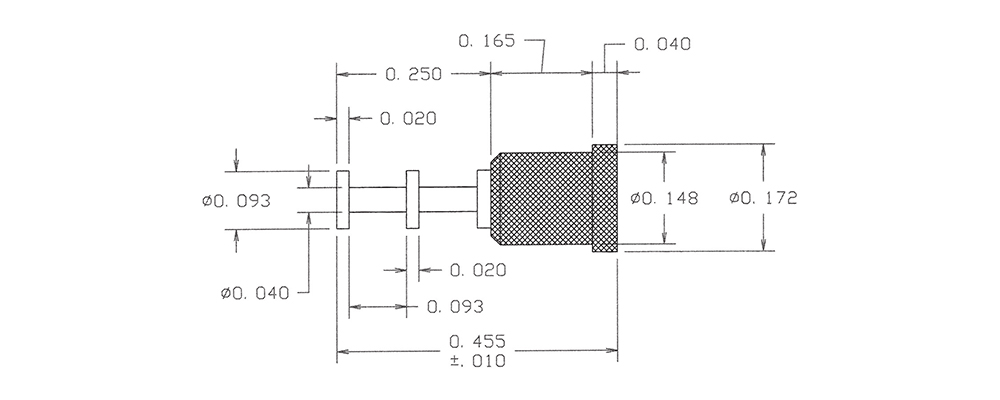

1102R-21-0310
1102R-21-0310
1102R-21-0310
0.455" - - Press Fit 1/8 0.136 Brass Gold - - PTFE Black YES

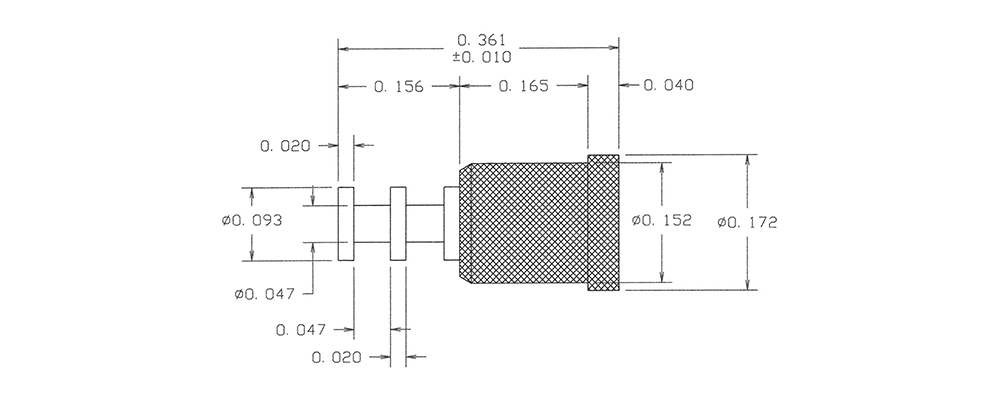

1102R-28-0416
1102R-28-0416
1102R-28-0416
0.361" - - Press Fit 1/8 0.140 Brass Electro-Tin - - PTFE Blue YES
1102R-74-0512
1102R-74-0512
1102R-74-0512
0.375" - - Press Fit 3/32 0.172 Brass Electro Solder - - PTFE Red NO
1102R-92-08818
1102R-92-08818
1102R-92-08818
0.460" - - Press Fit 3/32 0.172 Brass Bright Tin-Lead - - PTFE Gray NO

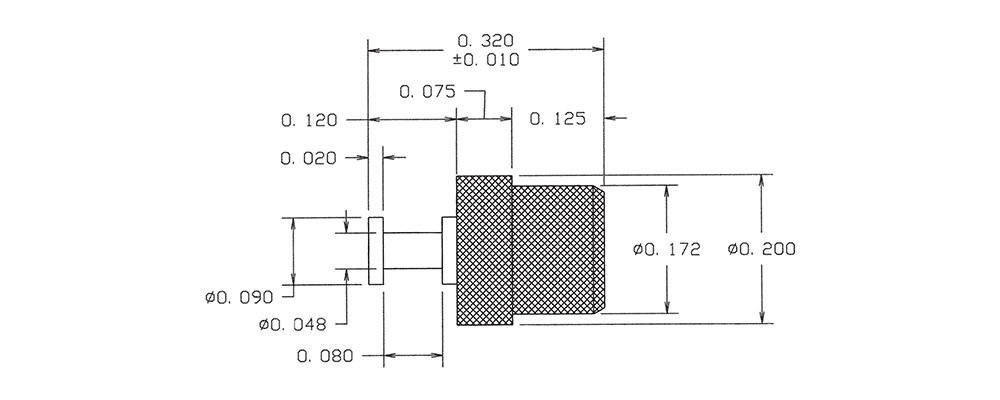

1103-08-0314
1103-08-0314
1103-08-0314
0.320" - - Press Fit 3/32 0.152 Brass Gold - - PTFE Yellow NO
1103R-08-04410
1103R-08-04410
1103R-08-04410
0.320" - - Press Fit 3/32 0.158 Brass Bright Tin - - PTFE Black YES
1104-04-0516
1104-04-0516
1104-04-0516
0.392" - - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Blue NO

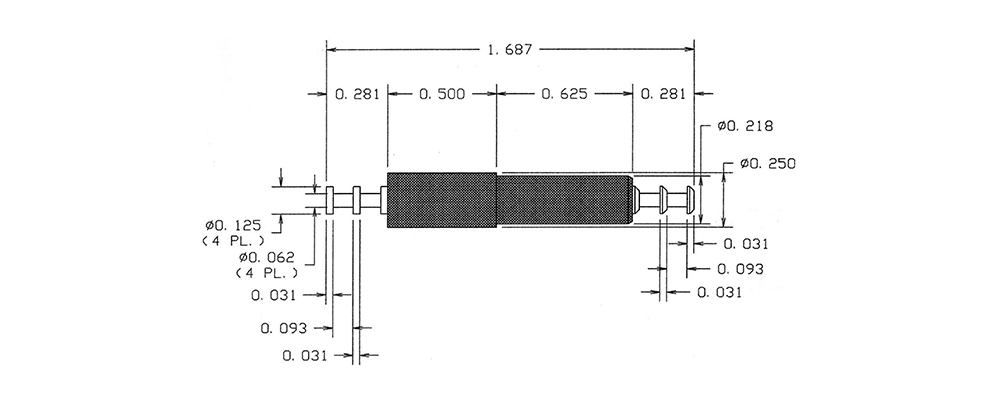

1105-02-0112
1105-02-0112
1105-02-0112
1.687" - Double Turret/Double Turret Press Fit 9/16 0.205 Brass Silver - - PTFE Red NO

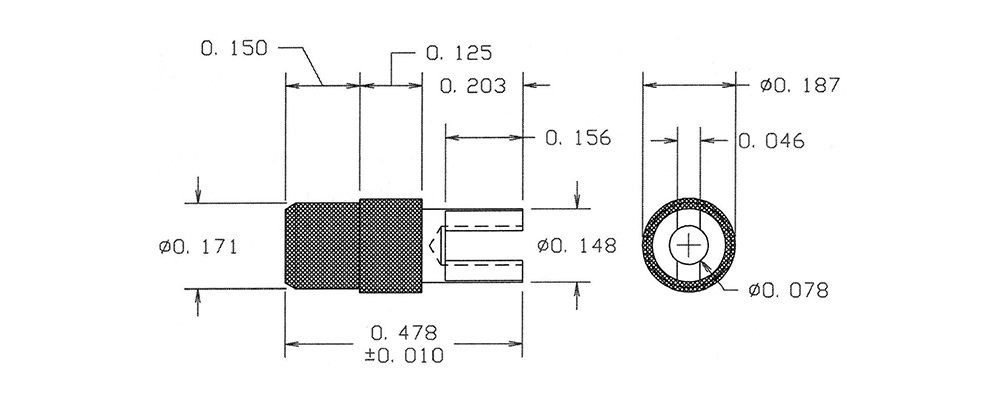

1106-03-0318
1106-03-0318
1106-03-0318
0.478" - - Press Fit 1/8 0.158 Brass Gold - - PTFE Gray NO
