Commercial
Insulated
Pin Terminals

Filter

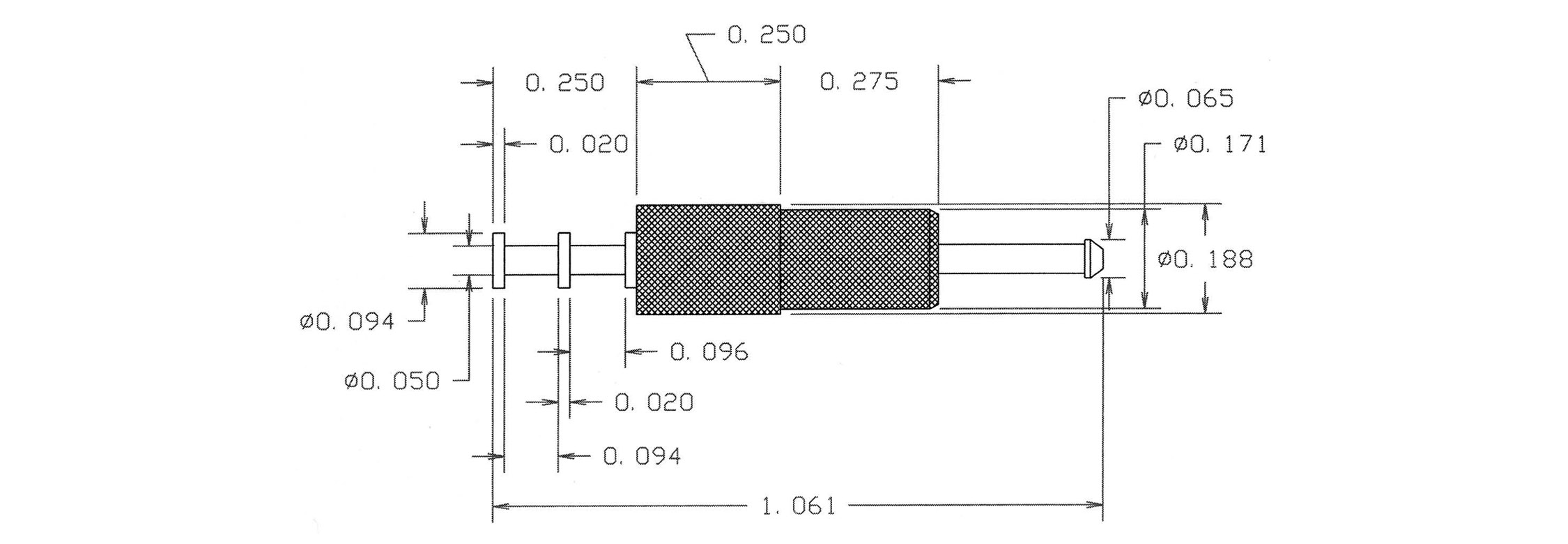

1156-15-0111
1156-15-0111
1156-15-0111
1.061" 0.050 DOUBLE TURRET/PIN Press Fit 7/32 0.158 Brass Silver - - PTFE Brown NO

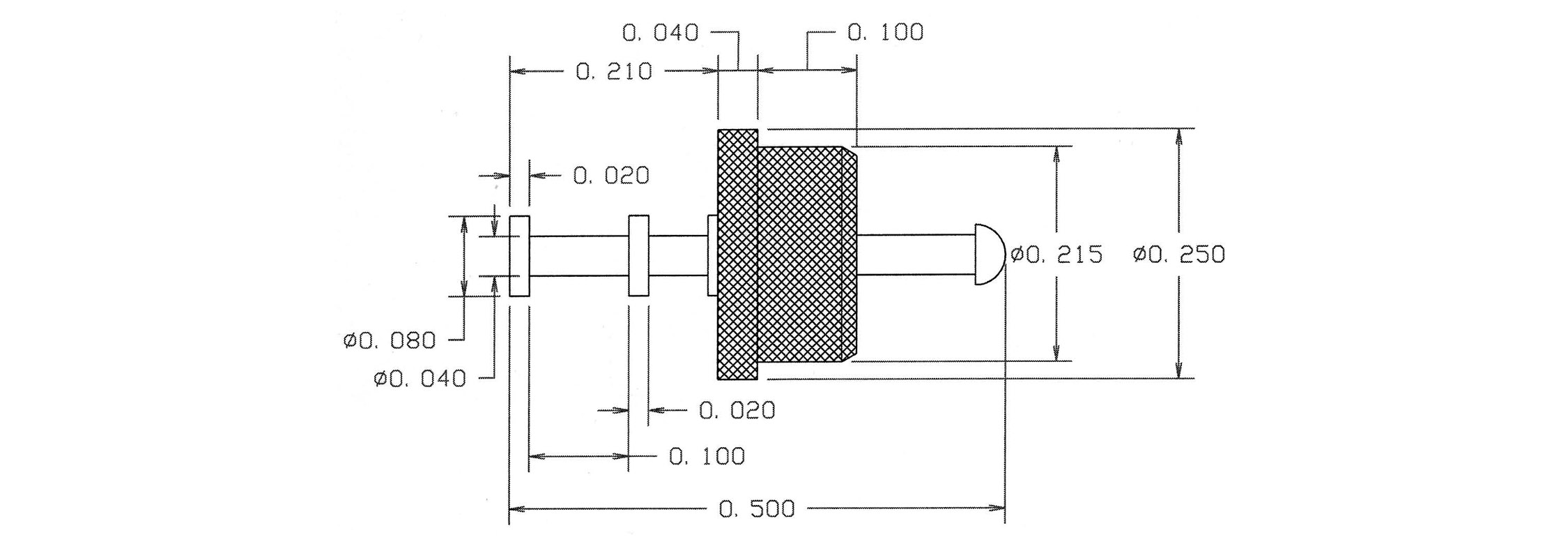

1156-19-0317
1156-19-0317
1156-19-0317
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.203 Brass Gold - - PTFE Violet YES
1156R-01-04413
1156R-01-04413
1156R-01-04413
0.460" 0.040 DOUBLE Turret/Tip Press Fit 1/32 0.086 Brass Bright Tin - - PTFE Orange NO
1157-01-0519
1157-01-0519
1157-01-0519
0.350" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Electro Solder - - PTFE White NO
1157-07-0115
1157-07-0115
1157-07-0115
0.350" 0.040 Turret/Tip Press Fit 1/16 0.158 Brass Silver - - PTFE Green YES
1157R-05-0411
1157R-05-0411
1157R-05-0411
0.865" 0.050 TURRET/PIN Press Fit 7/32 0.158 Brass Electro-Tin - - PTFE Brown NO
1160-13-04417
1160-13-04417
1160-13-04417
0.367" 0.085 - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Violet YES
1167-20-08813
1167-20-08813
1167-20-08813
0.843" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Orange NO

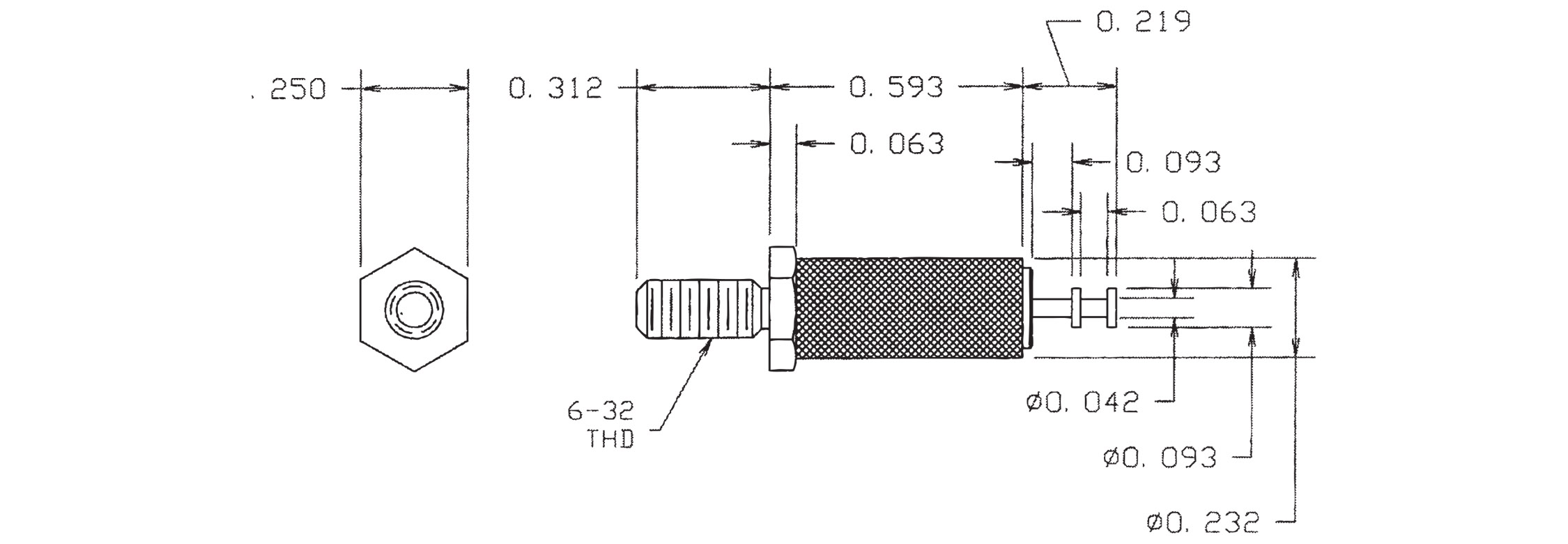

1167-75-0119
1167-75-0119
1167-75-0119
0.905" - - 6-32 Nut Up to 3/16 0.144 Brass Silver ZINC Brass DIALLYL PHTHALATE White YES
1169-30-0415
1169-30-0415
1169-30-0415
0.671" 0.060 - 2-56 Nut 1/8 0.094 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Green YES
1169-37-0511
1169-37-0511
1169-37-0511
0.750" - - 4-40 Nut 1/8 0.120 Brass Electro Solder Electro Solder Brass DIALLYL PHTHALATE Brown NO

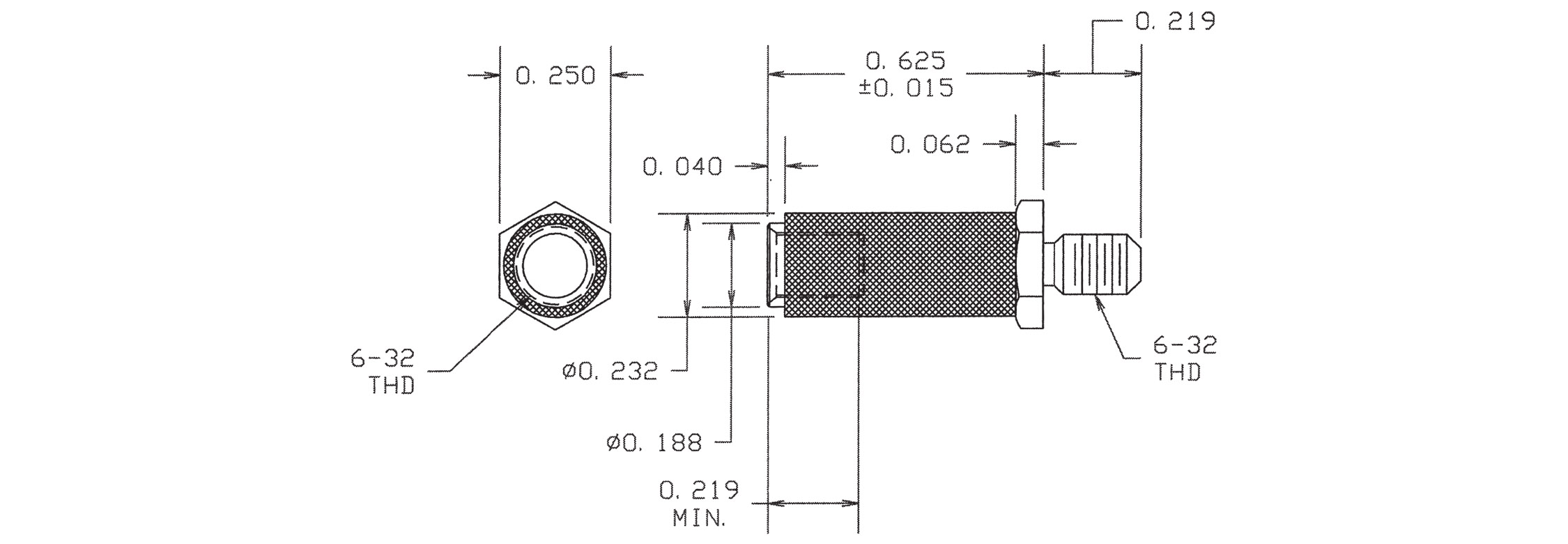

1170-06-07517
1170-06-07517
1170-06-07517
0.844" - - 6-32 Nut 3/32 0.144 Brass ZINC ZINC Brass DIALLYL PHTHALATE Violet YES
1170-22-08813
1170-22-08813
1170-22-08813
0.968" - - 6-32 Nut Up to 1/4 0.144 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Orange NO
1175-013-0119
1175-013-0119
1175-013-0119
0.672" 0.047 Pin/Pin PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Silver - - PTFE White YES
1175-301-0415
1175-301-0415
1175-301-0415
0.460" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Green YES
1175-351-0511
1175-351-0511
1175-351-0511
0.342" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Brown NO
1175-372-08817
1175-372-08817
1175-372-08817
0.736" 0.040 DOUBLE TURRET/PIN PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Violet NO
1175-404-0313
1175-404-0313
1175-404-0313
0.537" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Gold - - PTFE Orange NO
1175-414-0419
1175-414-0419
1175-414-0419
0.642" - DOUBLE Turret/Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE White YES
1175-424-0515
1175-424-0515
1175-424-0515
0.756" - Double Turret/Double Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Green NO
