Commercial
Insulated
Pin Terminals

Filter

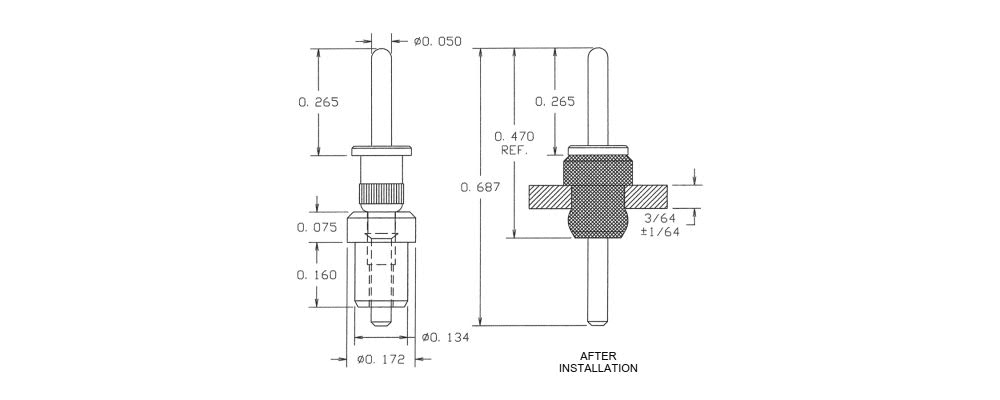

1177-57-0411
1177-57-0411
1177-57-0411
0.687" 0.050 Pin/Pin PRESS LOCK 1/32 - 1/16 0.136 Brass Electro-Tin - - PTFE Brown NO
1177-61-04417
1177-61-04417
1177-61-04417
0.446" 0.040 Pin/Pin PRESS LOCK 1/64 0.138 Brass Bright Tin - - PTFE Violet YES
1178R-03-08813
1178R-03-08813
1178R-03-08813
0.650" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.134 Brass Bright Tin-Lead - - PTFE Orange NO

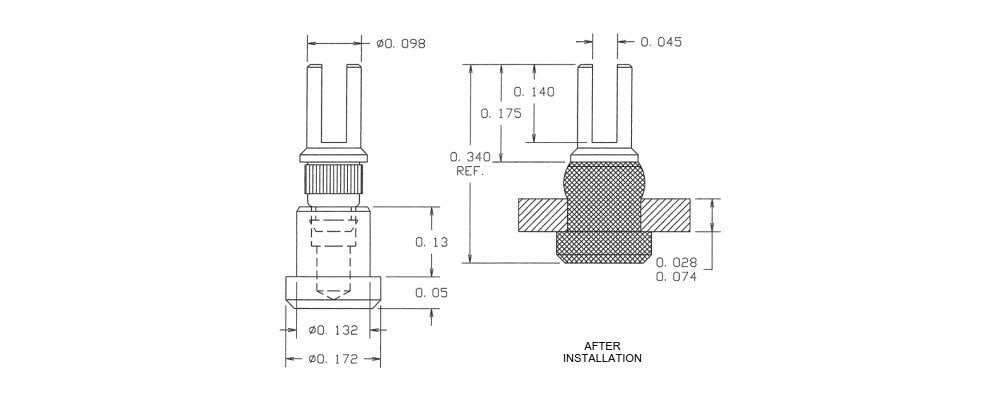

1178R-11-0119
1178R-11-0119
1178R-11-0119
0.340" - - PRESS LOCK 1/32 - 5/64 0.134 Brass Silver - - PTFE White YES
1178R-15-0415
1178R-15-0415
1178R-15-0415
0.390" - - PRESS LOCK 1/32 - 5/64 0.134 Brass Electro-Tin - - PTFE Green YES
1102R-95-0511
1102R-95-0511
1102R-95-0511
0.812" - - Press Fit 13/64 0.297 Brass Electro Solder - - PTFE Brown NO
1125-02-08817
1125-02-08817
1125-02-08817
0.578" - - 2-56 Nut 7/64 0.094 Brass Bright Tin-Lead Electro-Tin Brass PTFE Violet NO
1125-07-0313
1125-07-0313
1125-07-0313
0.454" - - Swage Mount 1/16 0.116 ±0.002 Brass Gold Electro-Tin Brass PTFE Orange NO
1125-11-0419
1125-11-0419
1125-11-0419
0.454" - - Swage Mount 1/16 0.116 ±0.002 Brass Electro-Tin Electro-Tin Brass PTFE White YES
1125-15-0515
1125-15-0515
1125-15-0515
0.578" - - 4-40 Nut 7/64 0.120 Brass Electro Solder Electro-Tin Brass PTFE Green NO
1125-20-0111
1125-20-0111
1125-20-0111
0.885" - - 6-32 Nut 7/32 0.144 Brass Silver Electro-Tin Brass PTFE Brown NO
1125-24-0317
1125-24-0317
1125-24-0317
0.885" - - 4-40 Nut Up to 1/4 0.120 Brass Gold Electro-Tin Brass PTFE Violet YES
1125-28-04413
1125-28-04413
1125-28-04413
0.615" - - Swage Mount 1/16 0.116 ±0.001 Brass Bright Tin Electro-Tin Brass PTFE Orange NO
09-2128-1-0519
09-2128-1-0519
09-2128-1-0519
0.443" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Electro Solder - - PTFE White NO
1100-49-0115
1100-49-0115
1100-49-0115
0.350" 0.040 - Press Fit 1/16 0.205 Brass Silver - - PTFE Green YES
1100R-23A-0411
1100R-23A-0411
1100R-23A-0411
0.330" 0.040 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Brown NO
1100R-36-04417
1100R-36-04417
1100R-36-04417
0.390" 0.040 - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Violet YES
1100R-53-08813
1100R-53-08813
1100R-53-08813
0.756" 0.040 - Press Fit 15/32 0.172 Brass Bright Tin-Lead - - PTFE Orange NO

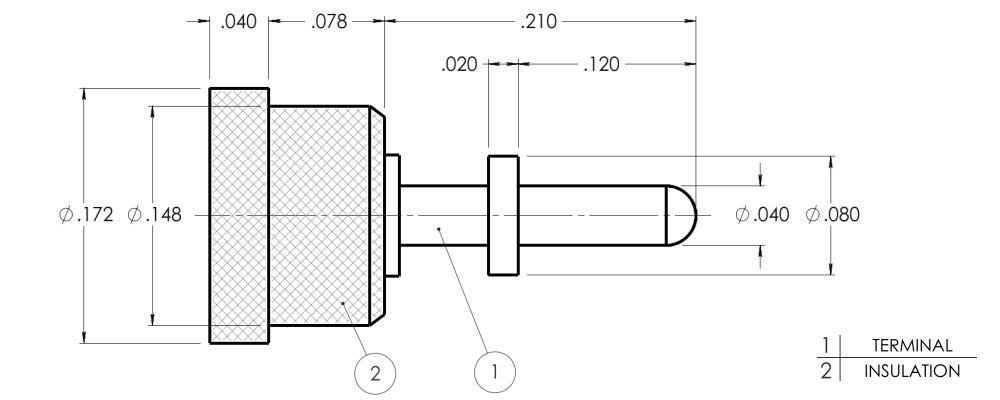

1101R-01-0119
1101R-01-0119
1101R-01-0119
0.328" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE White YES
09-2010-1-04410
09-2010-1-04410
09-2010-1-04410
0.436" 0.040 Pin/Tip Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Black YES
