Commercial
Insulated
Pin Terminals

Filter
1115R-02-0418
1115R-02-0418
1115R-02-0418
0.282" 0.040 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Gray NO
1116-26-0514
1116-26-0514
1116-26-0514
0.281" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Yellow NO

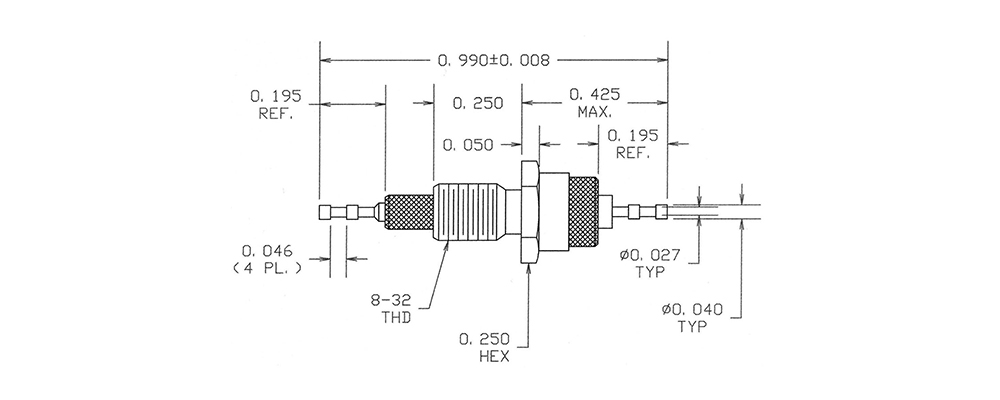

1117-16-0110
1117-16-0110
1117-16-0110
0.990" - Double Turret/Double Turret 8-32 Nut 1/8 0.169 Brass Silver Nickel Brass PTFE Black YES
1117-50-0316
1117-50-0316
1117-50-0316
0.640" 0.029 Pin/Pin 4-40 Nut 1/8 0.120 Brass Gold Nickel Brass PTFE Blue YES
1117-54-04412
1117-54-04412
1117-54-04412
0.785" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Bright Tin Nickel Brass PTFE Red NO
1118-32-0518
1118-32-0518
1118-32-0518
0.346" - TURRET/SLOTTED Press Fit 3/32 0.093 Brass Electro Solder - - PTFE Gray NO

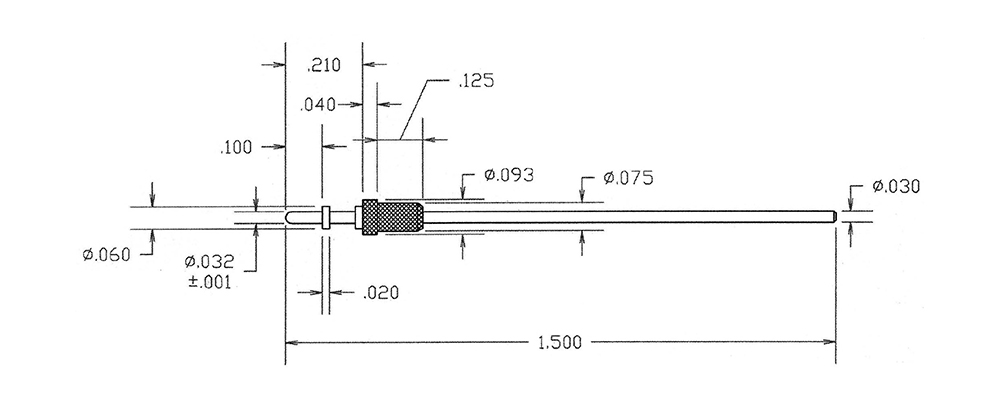

1119-25-0114
1119-25-0114
1119-25-0114
1.500" 0.030 TURRET/PIN Press Fit 3/32 0.070 Brass Silver - - PTFE Yellow NO
1119R-20-0410
1119R-20-0410
1119R-20-0410
0.500" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Black YES
1121-02-04416
1121-02-04416
1121-02-04416
0.350" 0.040 Turret/Tip Press Fit 1/32 0.113 Brass Bright Tin - - PTFE Blue YES
1121-06-08812
1121-06-08812
1121-06-08812
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Red NO

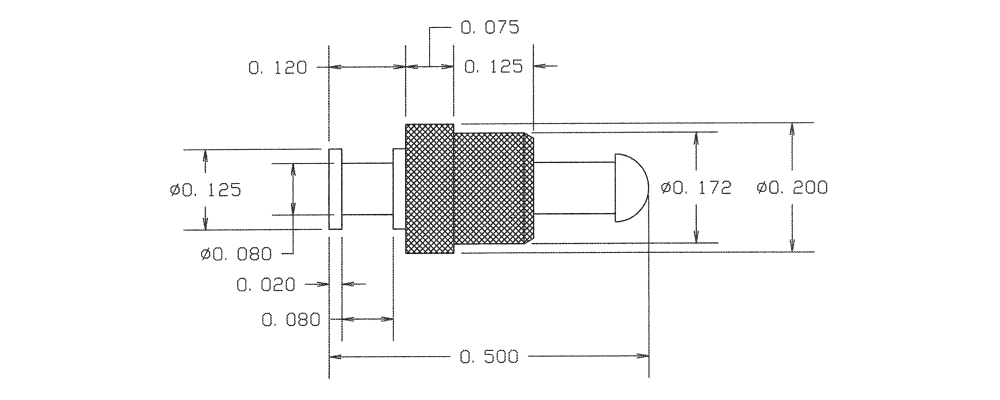

1121-12-0118
1121-12-0118
1121-12-0118
0.500" 0.080 Turret/Tip Press Fit 3/32 0.158 Brass Silver - - PTFE Gray NO
1121-16-0414
1121-16-0414
1121-16-0414
0.740" 0.050 Turret/Tip Press Fit Up to 3/16 0.158 Brass Electro-Tin - - PTFE Yellow NO
1121-20-0510
1121-20-0510
1121-20-0510
1.115" 0.050 Turret/Tip Press Fit 9/32 0.158 Brass Electro Solder - - PTFE Black NO
1121-24-08816
1121-24-08816
1121-24-08816
0.640" 0.046 Turret/Tip Press Fit Up to 3/16 0.172 Brass Bright Tin-Lead - - PTFE Blue NO

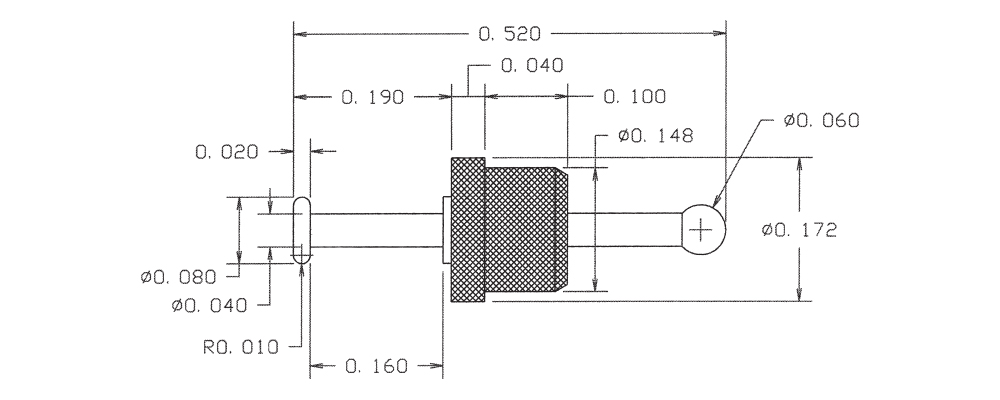

1121-31-0312
1121-31-0312
1121-31-0312
0.520" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Gold - - PTFE Red NO
1121-52-0418
1121-52-0418
1121-52-0418
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Electro-Tin - - PTFE Gray NO
1121R-06-0514
1121R-06-0514
1121R-06-0514
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Yellow NO
1122-01-0110
1122-01-0110
1122-01-0110
0.250" - - Press Fit 1/64 0.070 Brass Silver - - PTFE Black YES

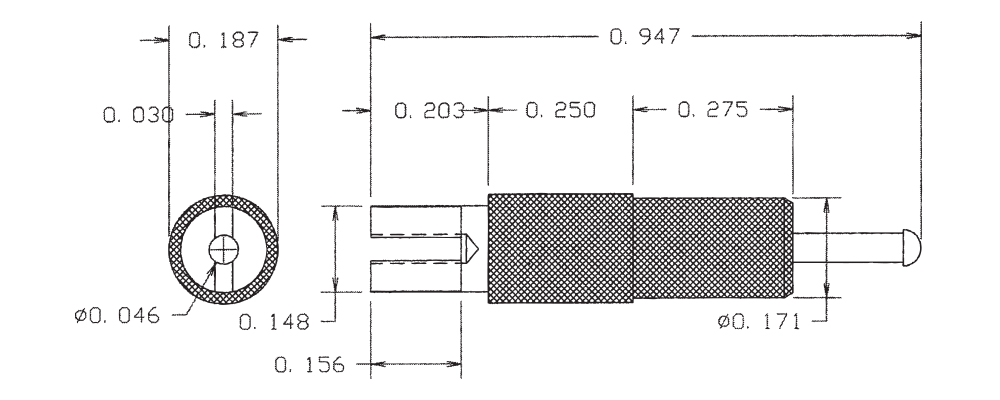

1123-04-0316
1123-04-0316
1123-04-0316
0.947" 0.050 TIP/SLOTTED Press Fit Up to 3/16 0.158 Brass Gold - - PTFE Blue YES
1123-08-04412
1123-08-04412
1123-08-04412
1.197" 0.050 TIP/SLOTTED Press Fit 15/32 0.158 Brass Bright Tin - - PTFE Red NO
