Commercial
Insulated
Pin Terminals

Filter
1102-85-0316
1102-85-0316
1102-85-0316
0.968" - - Press Fit Up to 1/4 0.203 Brass Gold - - PTFE Blue YES
1102-94-04412
1102-94-04412
1102-94-04412
0.649" - - Press Fit Up to 3/16 0.191 Brass Bright Tin - - PTFE Red NO
1102R-01-0518
1102R-01-0518
1102R-01-0518
0.310" - - Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Gray NO
1102R-21-0114
1102R-21-0114
1102R-21-0114
0.455" - - Press Fit 1/8 0.136 Brass Silver - - PTFE Yellow NO
1102R-28-0410
1102R-28-0410
1102R-28-0410
0.361" - - Press Fit 1/8 0.140 Brass Electro-Tin - - PTFE Black YES
1102R-74-04416
1102R-74-04416
1102R-74-04416
0.375" - - Press Fit 3/32 0.172 Brass Bright Tin - - PTFE Blue YES
1102R-92-08812
1102R-92-08812
1102R-92-08812
0.460" - - Press Fit 3/32 0.172 Brass Bright Tin-Lead - - PTFE Red NO
1103-08-0118
1103-08-0118
1103-08-0118
0.320" - - Press Fit 3/32 0.152 Brass Silver - - PTFE Gray NO
1103R-08-0414
1103R-08-0414
1103R-08-0414
0.320" - - Press Fit 3/32 0.158 Brass Electro-Tin - - PTFE Yellow NO
1104-04-0510
1104-04-0510
1104-04-0510
0.392" - - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Black NO
1105-01-08816
1105-01-08816
1105-01-08816
1.187" - Double Turret/Double Turret Press Fit Up to 5/16 0.205 Brass Bright Tin-Lead - - PTFE Blue NO
1106-03-0312
1106-03-0312
1106-03-0312
0.478" - - Press Fit 1/8 0.158 Brass Gold - - PTFE Red NO
1106-07-0418
1106-07-0418
1106-07-0418
0.602" - - Press Fit Up to 3/16 0.158 Brass Electro-Tin - - PTFE Gray NO
1106-11-0514
1106-11-0514
1106-11-0514
0.703" - - Press Fit 1/16 0.158 Brass Electro Solder - - PTFE Yellow NO
1106-16-0110
1106-16-0110
1106-16-0110
0.890" - - Press Fit 5/32 0.205 Brass Silver - - PTFE Black YES

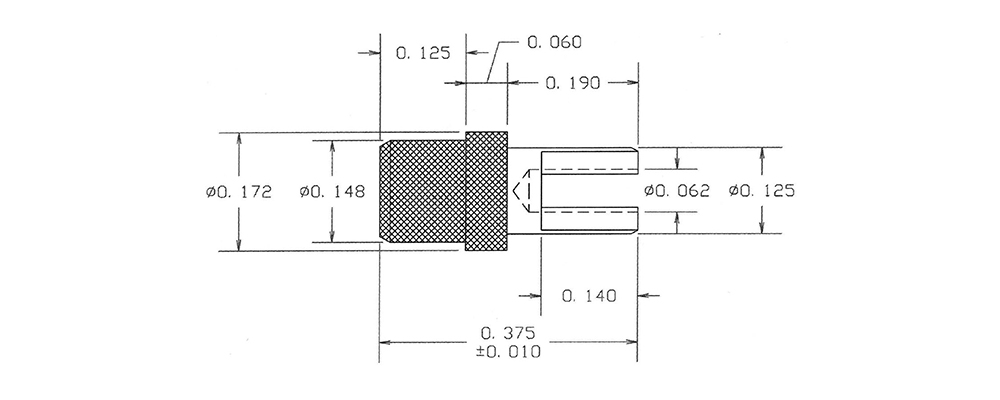

1106-22-0316
1106-22-0316
1106-22-0316
0.375" - - Press Fit 3/32 0.136 Brass Gold - - PTFE Blue YES
1106-52-04412
1106-52-04412
1106-52-04412
0.276" - - Press Fit 3/32 0.086 Brass Bright Tin - - PTFE Red NO
1106R-23-0518
1106R-23-0518
1106R-23-0518
0.375" - - Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Gray NO
1106R-51-0114
1106R-51-0114
1106R-51-0114
0.150" - - Press Fit 1/32 0.113 Brass Silver - - PTFE Yellow NO
1107-03-0410
1107-03-0410
1107-03-0410
0.819" 0.040 Pin/Pin Press Fit Up to 3/16 0.136 Brass Electro-Tin - - PTFE Black YES
